Inne P2N New York
Double pocketdoors with soft closing
Double pocket doors consists of two sliding glass door and sliding- and maintenance rails mounted to the top of the gap, to the ceiling. Both doors slide inside the wall on the rail which continues into the wall fixtures on both sides. A high quality sliding mechanism, as well as floor guide fittings provide smooth and safe door movements. The doors are equipped with one soft closing mechanism each, which cushions the closing and gently pulls the doors into their closed position.
For pocket doors, the installation profiles should be mounted to the ceiling prior to closing up the walls into which the doors will slide. The standard installation profiles require a total gap width of at least 4000 mm, and at least 48 mm empty space between the walls (rail itself needs 66 mm). Ceiling profiles should be mounted 48 mm higher than intended gap height. It is important to carefully align the 2 rails between the doors. After mounting the installation rails, the wall can be closed up. Alternatively the installation can be done first, and the wall closed up after that. Wheel carriages and stoppers should be mounted to the sliding rails before mounting them to the installation rails. The sliding rails should be secured to the installation rails with screws in the doorway. The doors should then be tilted, lift to place and locked after which the floor guides are slid into place and glued to the floor. Lastly mount the cover profiles.
20 Working days
20 year warranty
The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). Transparent, super bright, grey and brown are smooth surfaced and transparent panels. Reeded and satin panels are not fully transparent, details cannot be made out through the panel. The reeded glass is smooth on one side and textured on the other. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

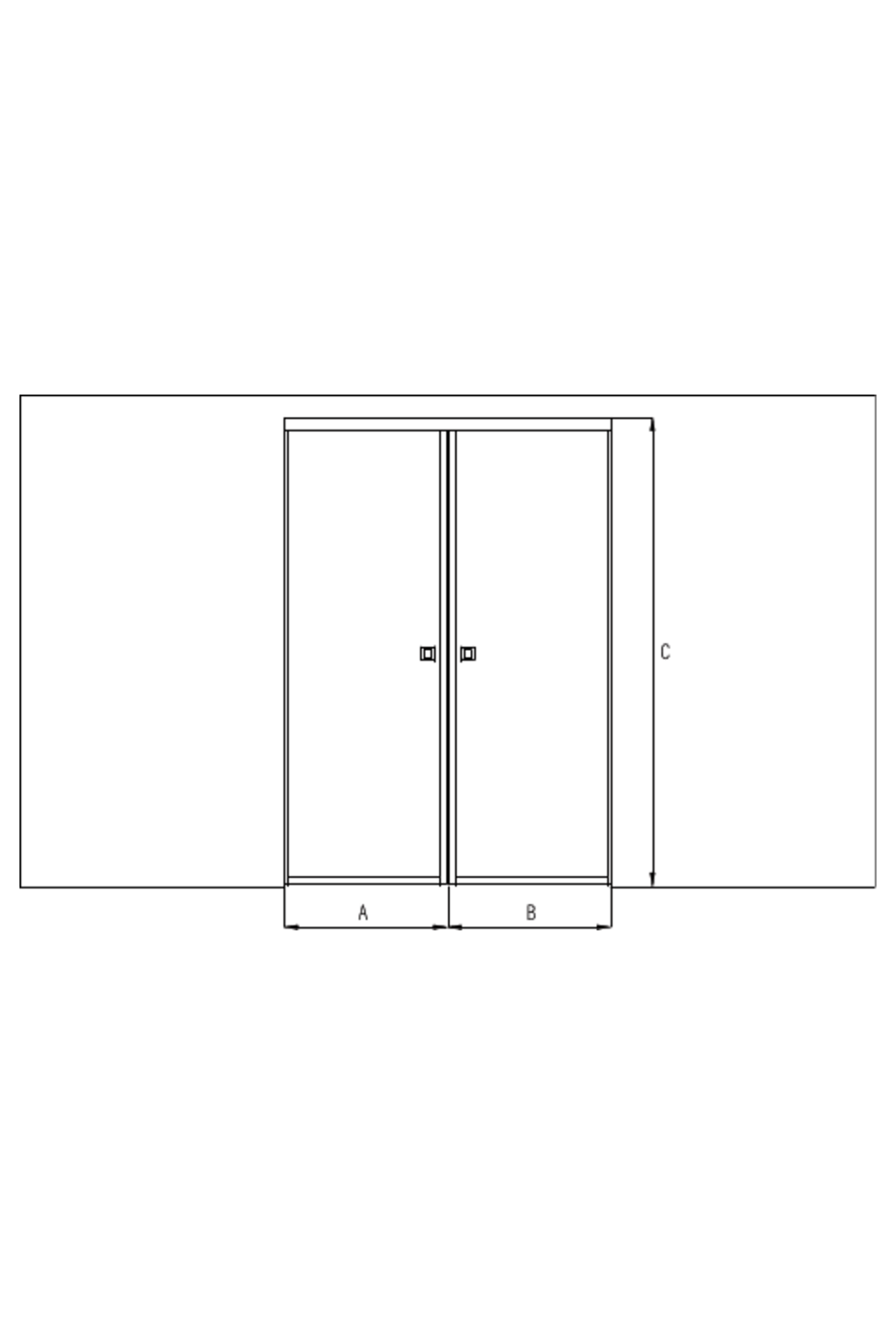

Pocket doors are always manufactured according to custom dimensions. When ordering, enter the actual width of door gap (A+B) and actual height of door gap. The mounting rails will require 48 mm space above the actual gap, inside the wall. Please note that both doors will be approximately 160 mm in the gap when opened, due to the handle needing to be reachable. The mounting rails will always require at least 4000 mm width, including the doorway and the parts inside the walls, if the rails aren't cut during mounting (possible, if doors are less than 950 mm).
Product size
.:
Select handle
Product
Product code
Price
1
Inne P2N New York
Product code
P2N-61-00
Price
0.00 €
2
Inne sliding Door A
White painted/Transparent=905 x 2000
Product code
770 61 0000
Price
933.00 €
3
Inne sliding Door B
White painted/Transparent=905 x 2000
Product code
770 61 0000
Price
933.00 €
4
Blak sliding Sliding profiles
White painted/Transparent=10 x 1800
Product code
PD0 61 0000
Price
0.00 €
5
Blak sliding Sliding profiles
White painted/Transparent=10 x 1800
Product code
PD0 61 0000
Price
0.00 €
6
TOTAL
Product code
Price
1866.01 €
.:
| EAN: |
|---|
