Bläk P62 Paris

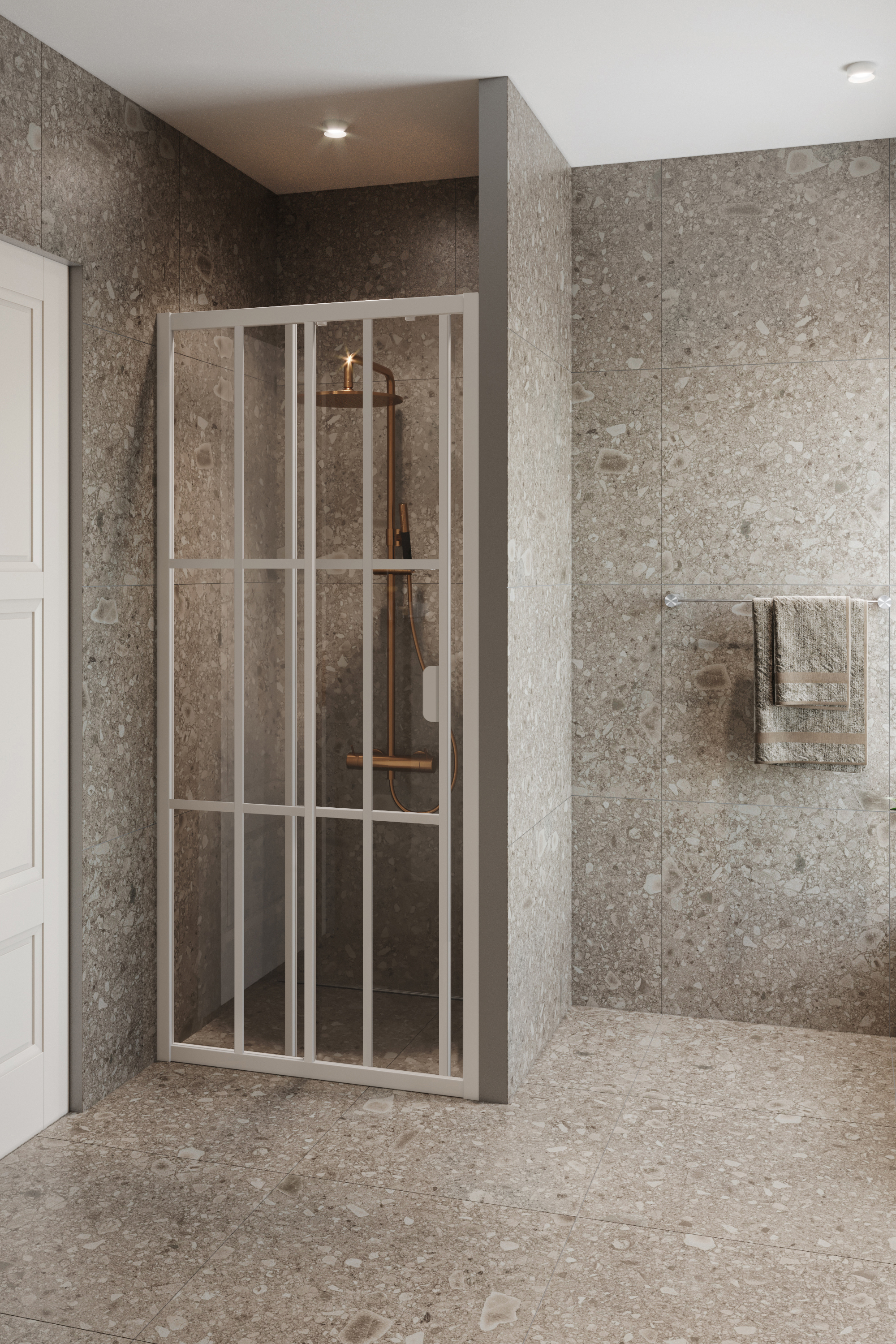

Alcove fixture with a fixed wall and sliding door

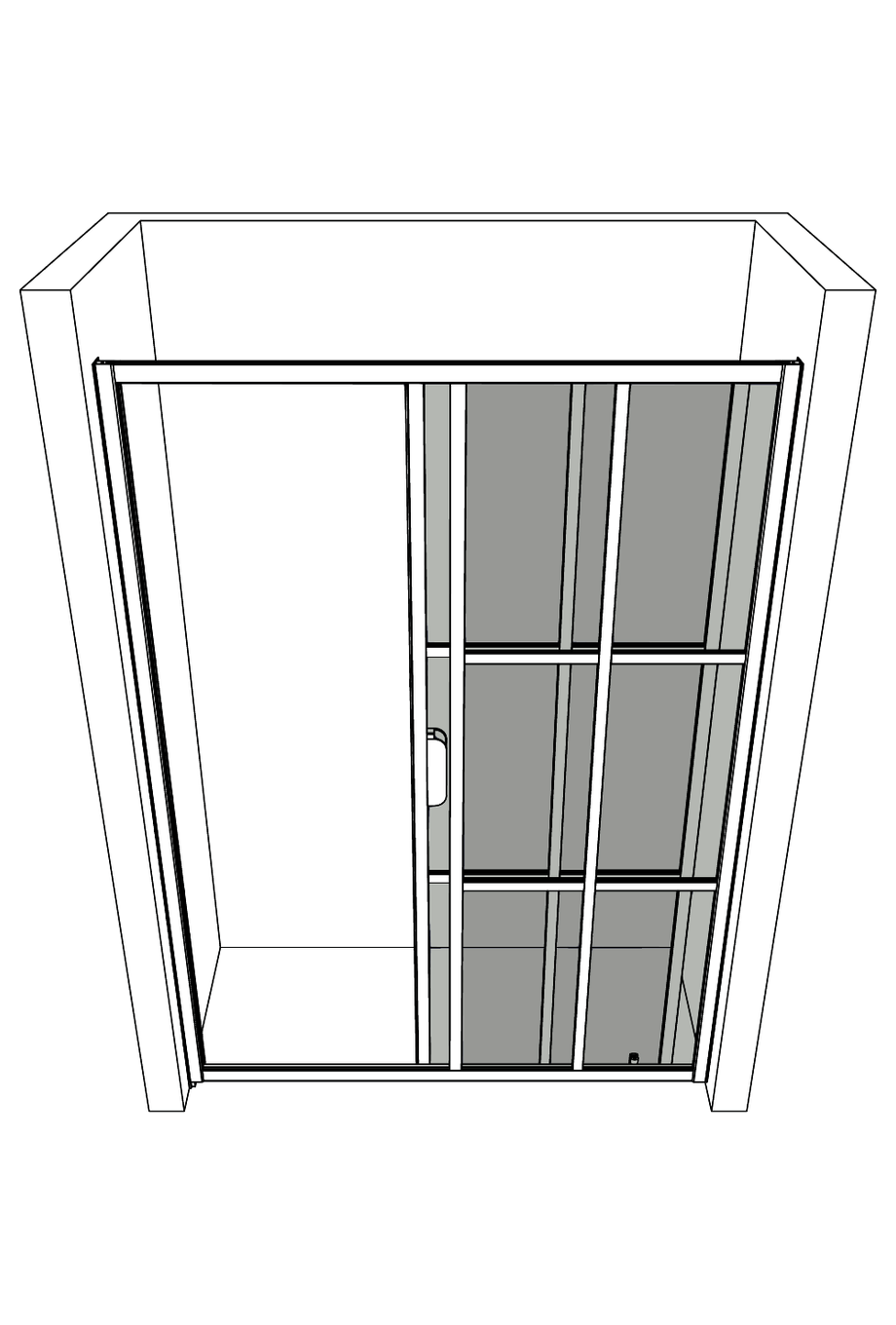

Alcove fixture consists of a fixed wall and a sliding door. The product is well-suited for a shower enclosure with fixtures next to it where the door doesn't have enough space to move outside and inside. The door slides behind the fixed wall, so it does not need additional space for opening. The door slides behind the fixed part supported by the bearing wheels installed into the top and bottom edges of the door. A magnet seal keeps the door tightly closed during showering.
The alcove fixture is attached to the wall of the building from the sides by means of wall mountedprofiles. The alcove fixture is installed with a single lower slide rail of the width of the entire product, using both top and bottom rollers. The product can be installed off the floor with the help of an adjustment leg, allowing the water to flow under the slide rail. Alternatively the water flow can be prevented by installing a seal (standard part) under the slide rail. . Installation guide
20 Working days
20 year warranty
The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear, grey and brown glasses are smooth surfaced and transparent panels, Chinchilla and satin panels are not fully transparent, details cannot be made out through the panel. Chinchilla is textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The alcove fitting is always manufactured by custom dimensions. The wall mounted profiles have the total of 40 mm adjustment range. The adjustment range can be used for leveling any tilt of the buildings walls as well as for accommodating the alcove fitting into the installation opening. Please note that the mounting opening should be 25mm higher than the product itself.
Product size

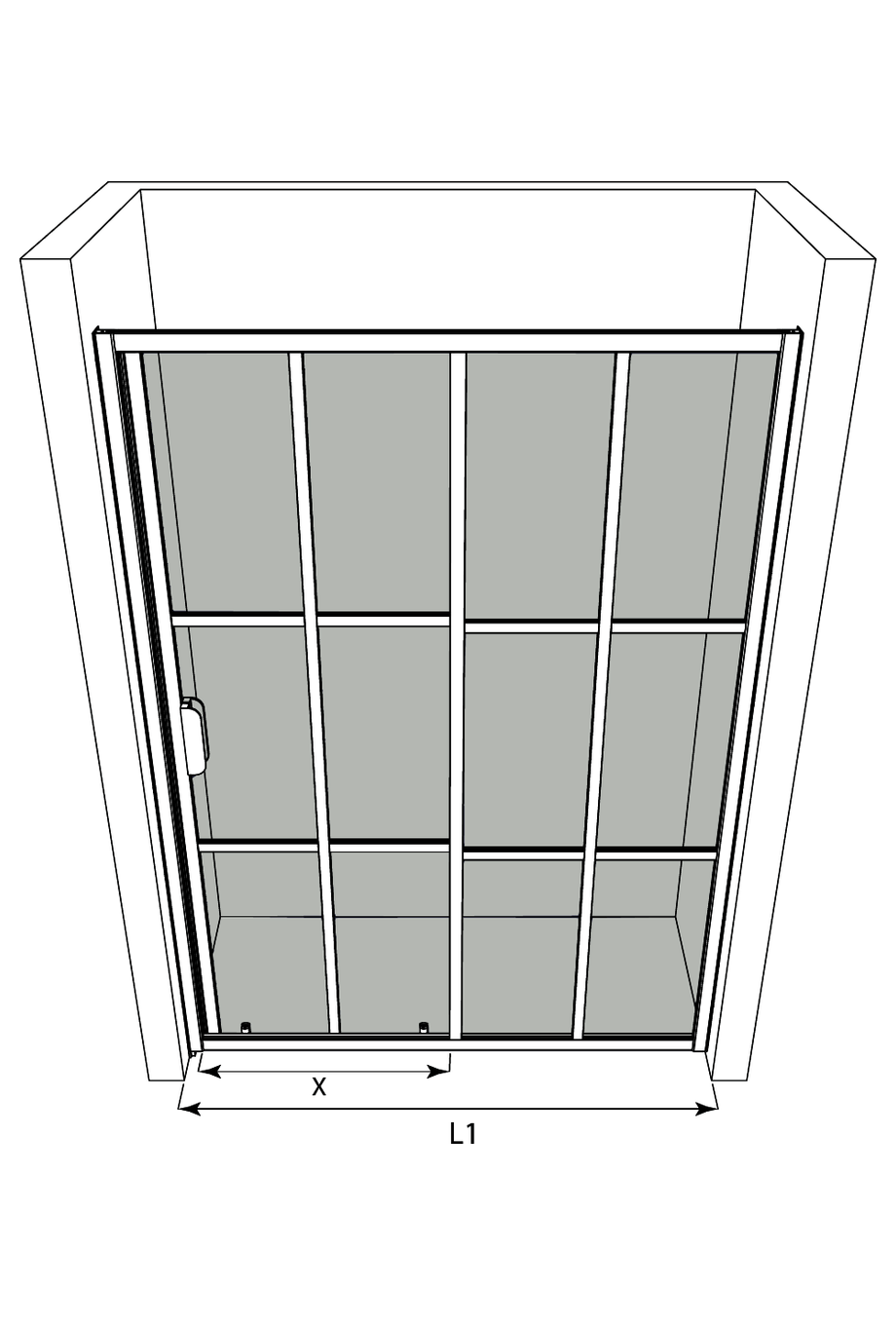

The selected combination can be installed into the opening (L1) the width of which is:
- At its narrowest: 200mm
- At its widest: 240mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
Choose handle
Please choose handedness below. The chosen handedness states on which side the door will be, watching from the outside of the showerspace.
Product
Product code
Price
1
Bläk P62 Paris
Product code
P62-61-0
Price
0.00 €
2
Glisse N62 Size
White painted/Transparent=200 x 150
Product code
N62 61 0000
Price
1017.00 €
3
Round handle
Product code
Y76 6L MMMM
Price
27.00 €
4
Paris -frame
Product code
07R 6L 0000
Price
252.00 €
5
BLÄK SERIES 01.08-30.11.2024 -20%
Product code
DISCOUNT
Price
-259.20 €
6
TOTAL
Product code
Price
1036.80 €
The selected combination can be installed into the opening (L1) the width of which is:
- At its narrowest: 200mm
- At its widest: 240mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
