Vetro 523

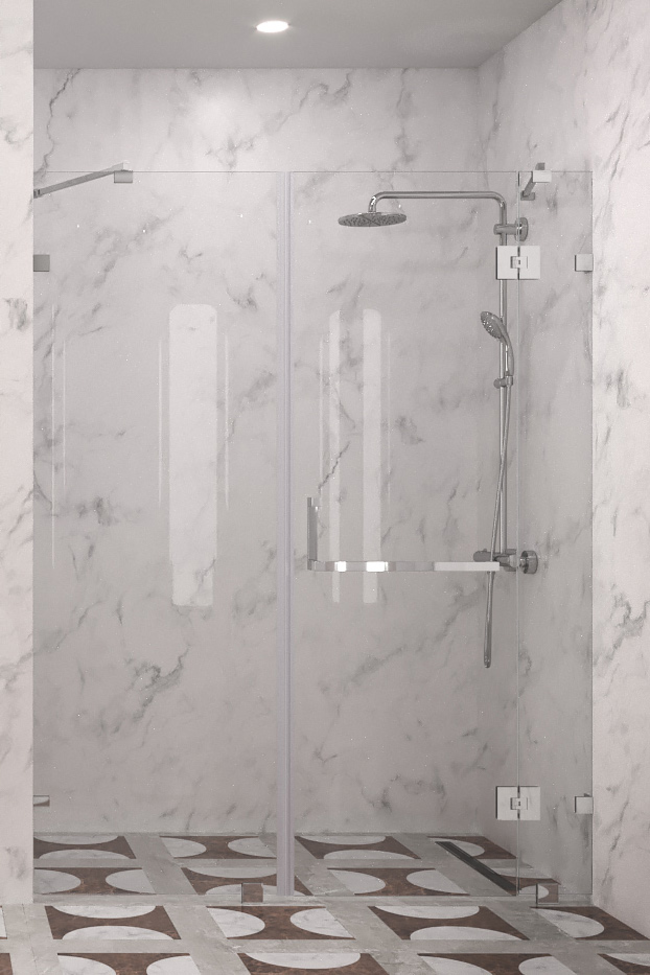

Alcove fitting with a fixed wall and hinged door which has a fixed part
The alcove fixture consists of two fixed walls, to one of which is hinged a hinged door. The product is well-suited for a shower enclosure which has fixtures located on both sides. Fixed walls can be dimensioned according to the depth of the fixtures so that when opened, the door does not hit the fixtures.
The door opens 90 degrees to the outside and is equipped with an adjustable centring. The centring tries to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.

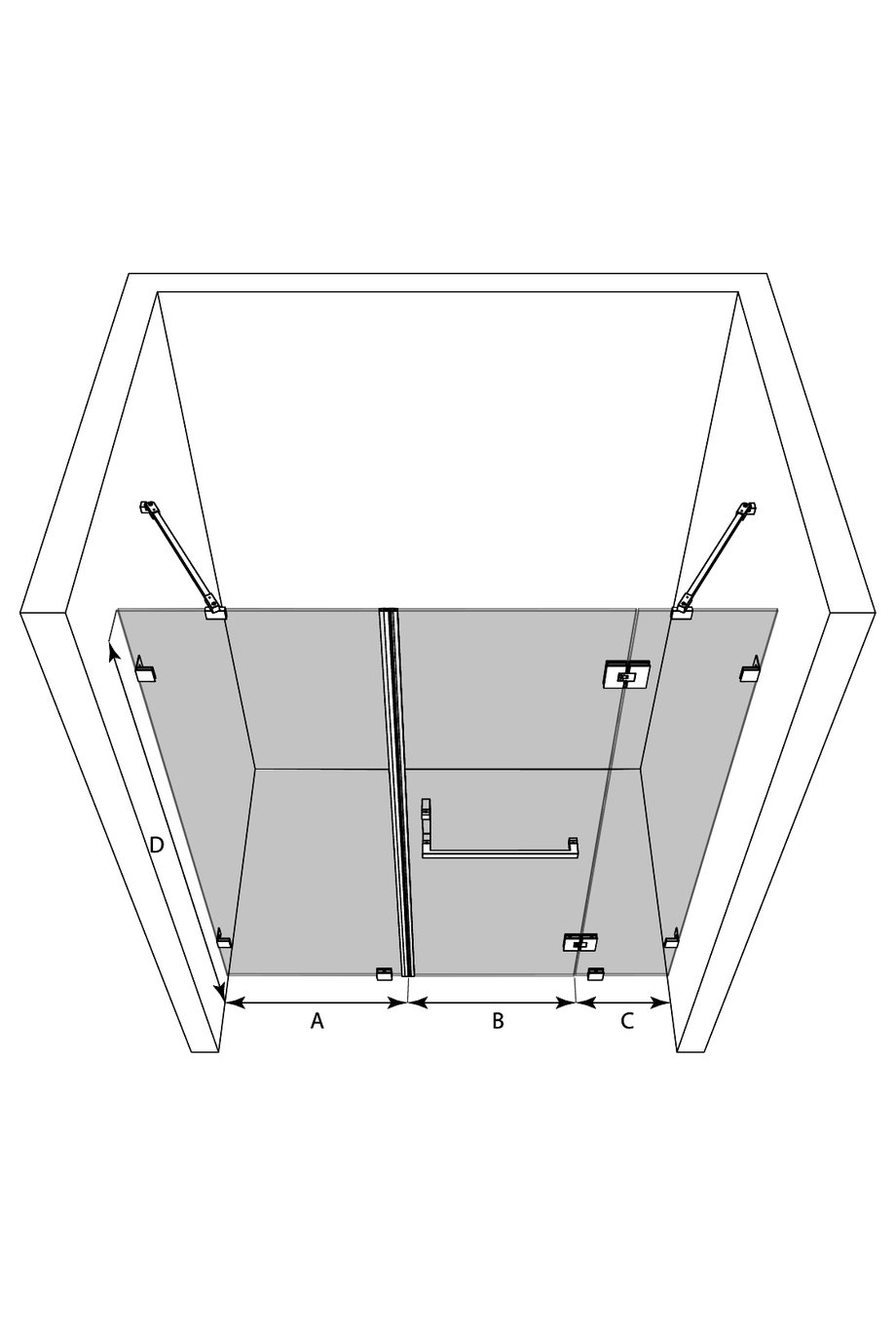

Fixed walls are attached to the wall of the building from the sides by means of wall mountedfittings and supported from the top edge by the braces installed in the corners as well as from the bottom edge by the fitting glued to the floor. Between the panels of the fixed walls and the floor will be a 25mm high gap. Between the panel and the floor may be installed seal (standard part)s , so that water will not be able to flow under the panels. At the bottom edge of the door panel can be installed which restricts the flow of water. Installation guide
20 Working days
20 year warranty

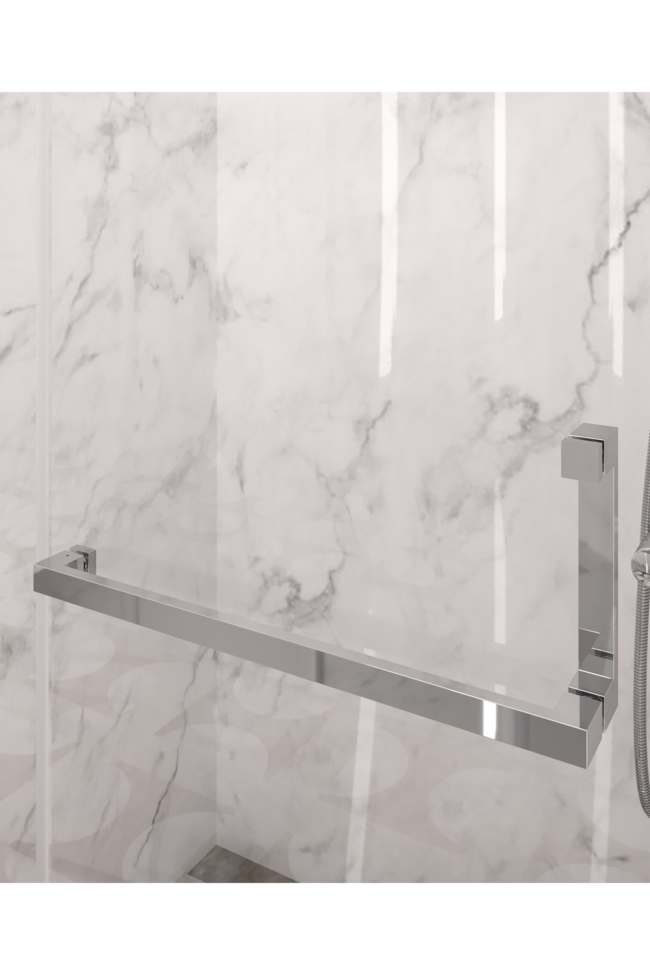

The fittings used in the product, like square foot and brace bars, are manufactured of brass alloy. Surface treatment options is chrome plated.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions.
Product size

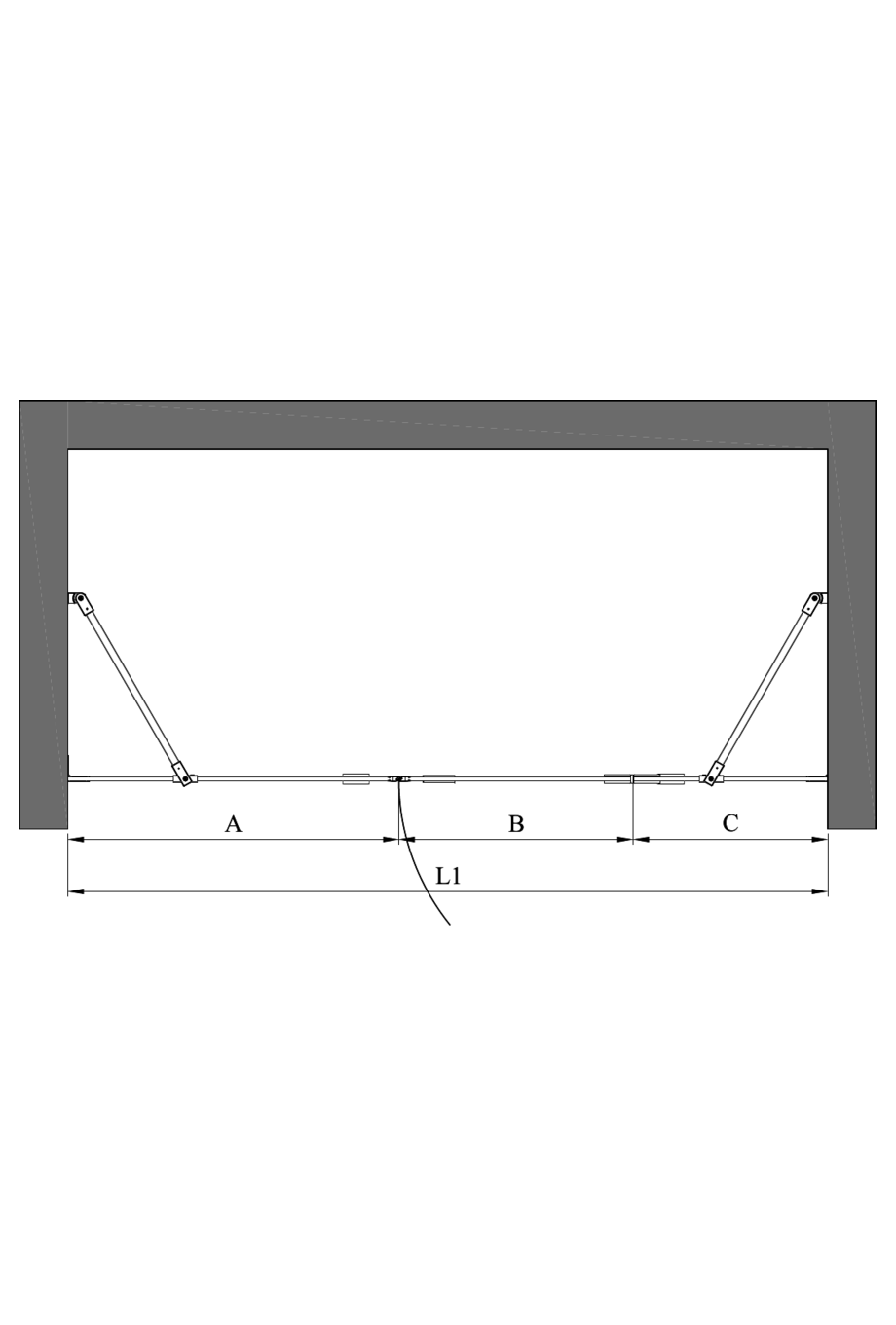

The selected combination can be installed into the opening (L1), the width of which is: 1171mm.
The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the alcove fitting may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Vetro 523
Product code
523-21-400
Price
0.00 €
2
Vetro 511 Alcove fixed screen
Chrome plated/Transparent/A=391 x 2000
Product code
511 21 0038
Price
451.00 €
3
Vetro 521 Alcove hinged door
Chrome plated/Transparent/B=580 x 1000
Product code
521 21 1000
Price
650.00 €
4
Vetro 521 Alcove fixed screen
Chrome plated/Transparent/C=200 x 1000
Product code
521 21 0000
Price
650.00 €
5
Magnet seal pair
Product code
915 2L 0000
Price
42.00 €
6
TOTAL
Product code
Price
1793.00 €
The selected combination can be installed into the opening (L1), the width of which is: 1171mm.
The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the alcove fitting may also be installed in the opposite direction than presented in the layout.:
