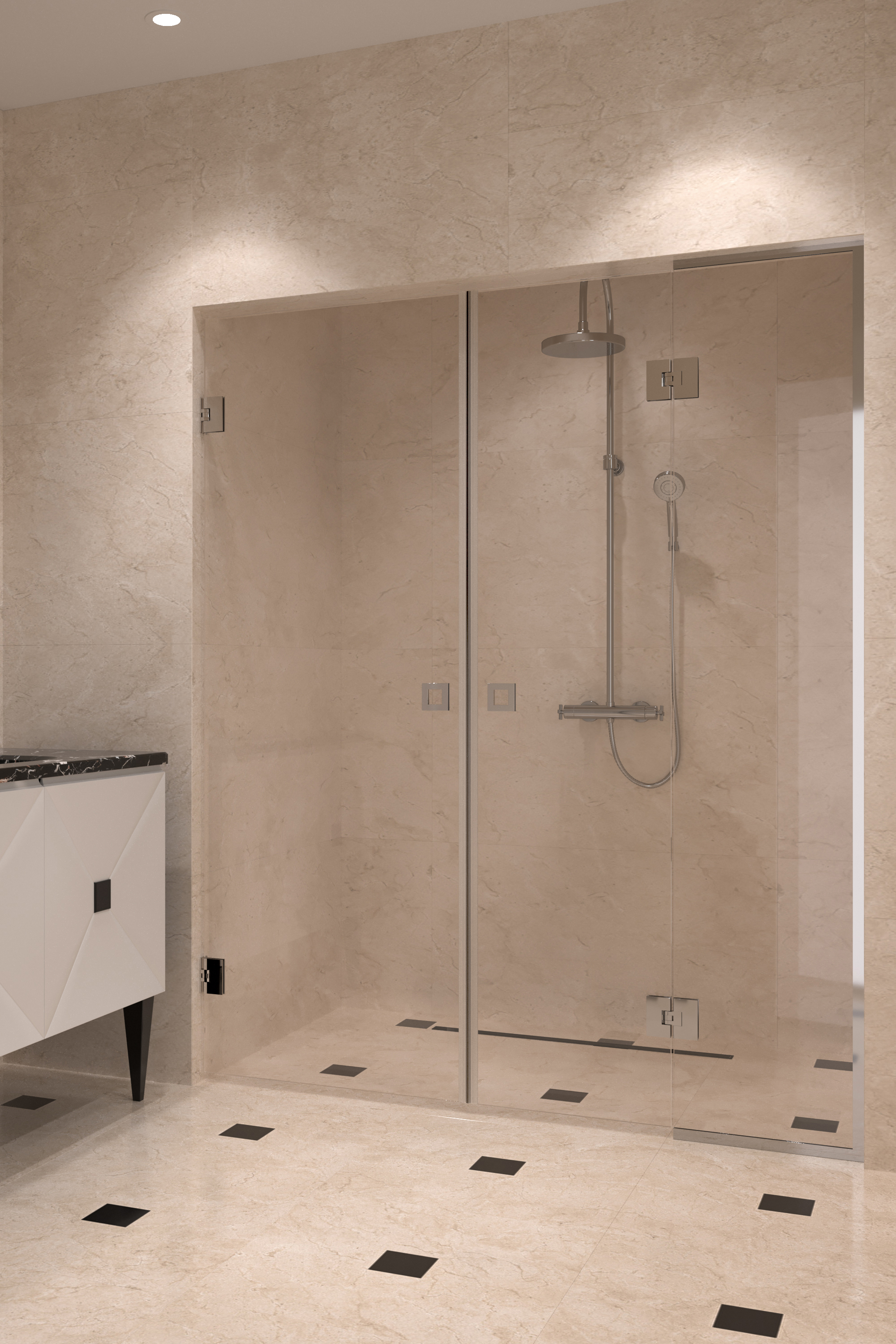

Vetro 555
Alcove fitting with a hinged double door, one of which has a fixed part
The alcove fixture consists of a hinged door and a fixed wall into which another hinged door has been attached. The product is well-suited for a shower enclosure with fixtures located next to it. The fixed wall and the doorway can be dimensioned so that the fixed wall protects the fixtures and the doorway occupies the width of the available space space. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.
Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.
20 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
Shower wall is manufactured according to custom measures.
Product size
The selected product can be installed into the opening the total width L1 of which is 2100mm and the total length L2 1965mm.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Choose handle
Product
Product code
Price
1
Vetro 555
Product code
555-21-000
Price
0.00 €
2
Vetro 512 Alcove hinged door
Chrome plated/Transparent/A=787 x 1965
Product code
512 21 0000
Price
535.00 €
3
Vetro 517 Alcove hinged door
Chrome plated/Transparent/B=487 x 2000
Product code
517 21 1000
Price
629.00 €
4
Vetro 517 Alcove fixed screen
Chrome plated/Transparent/C=800 x 2000
Product code
517 21 0000
Price
629.00 €
5
Magnet seal pair
Product code
915 2L 0000
Price
42.00 €
6
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
7
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
8
TOTAL
Product code
Price
1889.00 €
The selected product can be installed into the opening the total width L1 of which is 2100mm and the total length L2 1965mm.:
