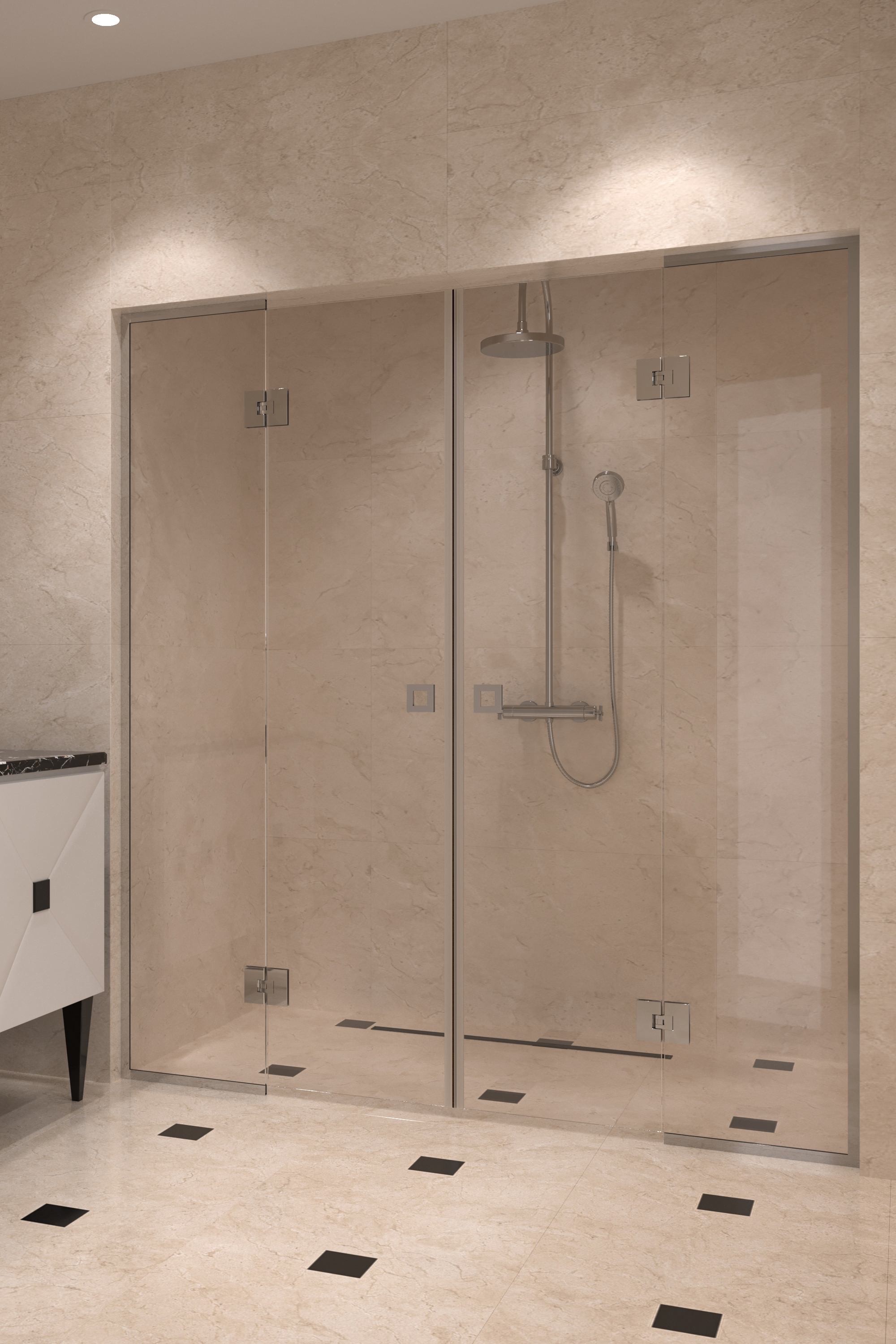

Vetro 554
Alcove fitting with a hinged double door with framed fixed parts
Alcove fixture consists of two fixed walls, into which hinged doors have been attached. The product is well-suited for a shower enclosure is well-suited for a shower enclosure outside of which there are fixtures on both sides. The fixed parts can be dimensioned according to the depth of the fixtures so that when opened, the doors do not hit the fixtures. Doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.
Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.
18 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are Chrome plated, Brushed, Brass, White (RAL 9016), Black (RAL 9005), Sand (RAL 1019), Mocha (RAL 8025) and Cocoa (RAL 8019). Chrome and Brass are shiny surface treatments, brushed fittings are brushed matte, White, Black, Sand, Mocha and Cocoa fittings are painted.
The product is manufactured of 8 mm thick tempered safety panel (EN 12150). Glassoptions are Transparent, grey, brown, satin, super bright and black. One side of the satin glasses is etched to acquire a velvety feel and the other side is smooth. When choosing a satin glass product, bear in mind that the etched surface of the panel is sensitive to scratches and stains. The black glass is slightly see through in heavy light and almost nontransparent if the space is darker. The super bright glasses are manufactured with the iron removed, thus removing most of the green tint that glasses naturally have. Please note, that productpictures of satin glass use super bright satin of which an offer can be calculated via our customer srevice. All glasses can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
Shower wall is manufactured according to custom measures.

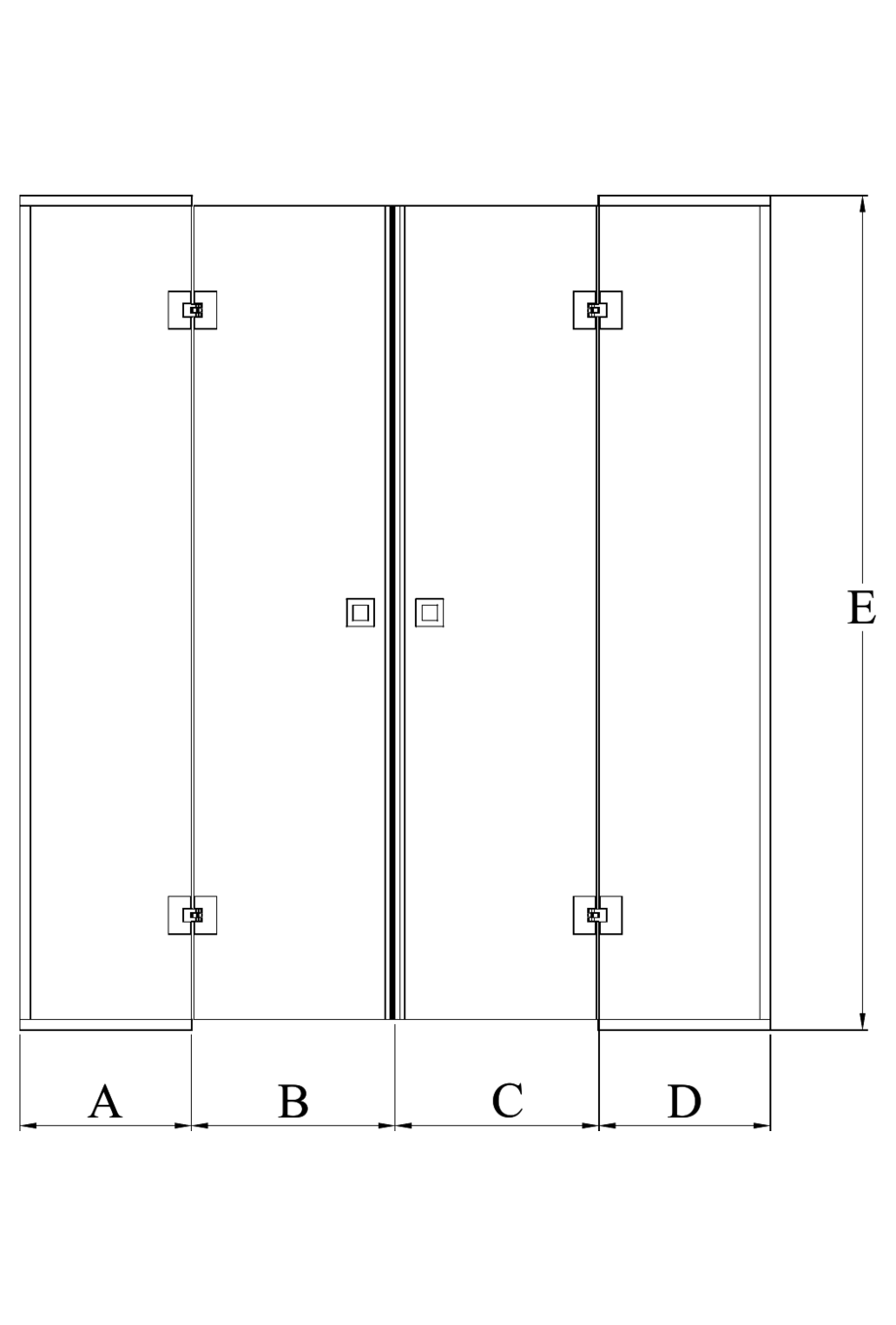

Product size

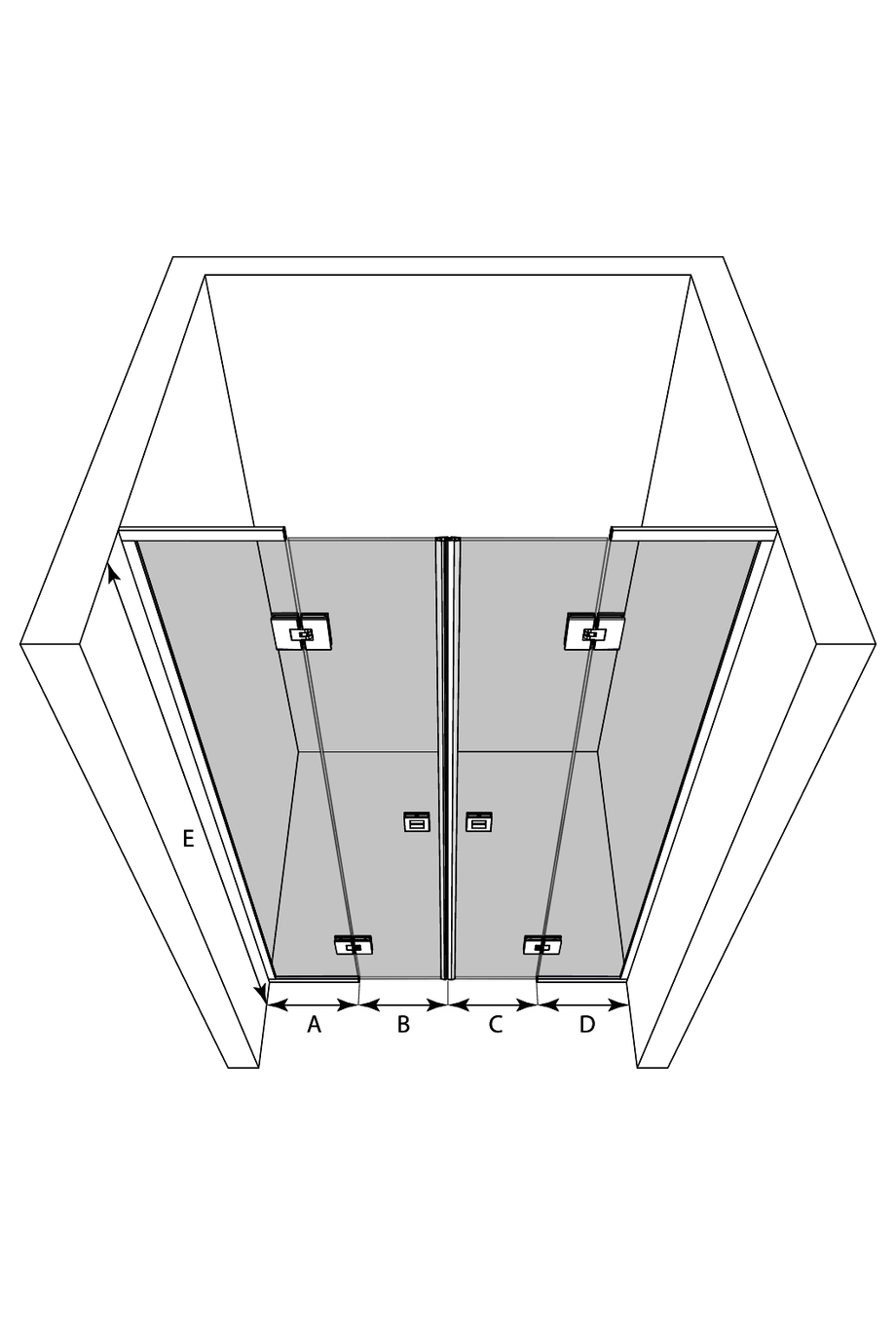

The selected product can be installed into the opening the total width L1 of which is 2600mm and the total length L2 2000mm.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Choose handle
Product
Product code
Price
1
Vetro 554
Product code
554-21-0000
Price
0.00 €
2
Vetro 517 Alcove fixed screen
Chrome plated/Transparent/A=800 x 2000
Product code
517 21 0000
Price
625.00 €
3
Vetro 517 Alcove hinged door
Chrome plated/Transparent/B=487 x 2000
Product code
517 21 1000
Price
625.00 €
4
Vetro 517 Alcove hinged door
Chrome plated/Transparent/C=487 x 2000
Product code
517 21 1000
Price
625.00 €
5
Vetro 517 Alcove fixed screen
Chrome plated/Transparent/D=800 x 2000
Product code
517 21 0000
Price
625.00 €
6
Magnet seal pair
Product code
915 21 MMMM
Price
32.00 €
7
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
8
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
9
TOTAL
Product code
Price
2586.00 €
The selected product can be installed into the opening the total width L1 of which is 2600mm and the total length L2 2000mm.:
| EAN: | 6418379427139 |
|---|
