Vetro 564

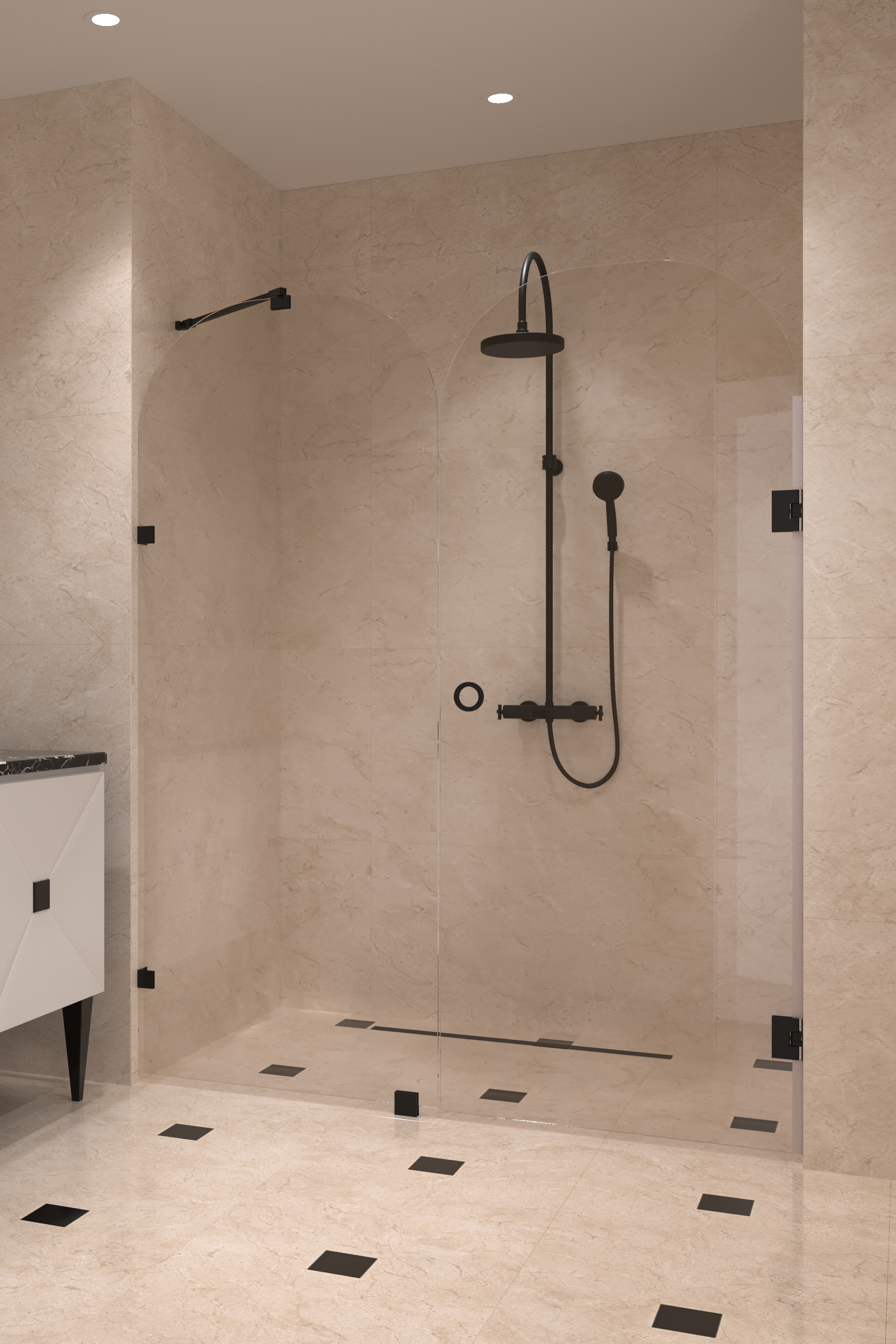

Alcove fitting with an arched fixed wall and an arched hinged door
Alcove fixture with a door consists of a fixed wall and a hinged door. The product is well-suited for a shower enclosure with fixtures located next to it. The fixed wall and door can be dimensioned so that the fixed wall protects the fixtures and the door is of the width of the available space.

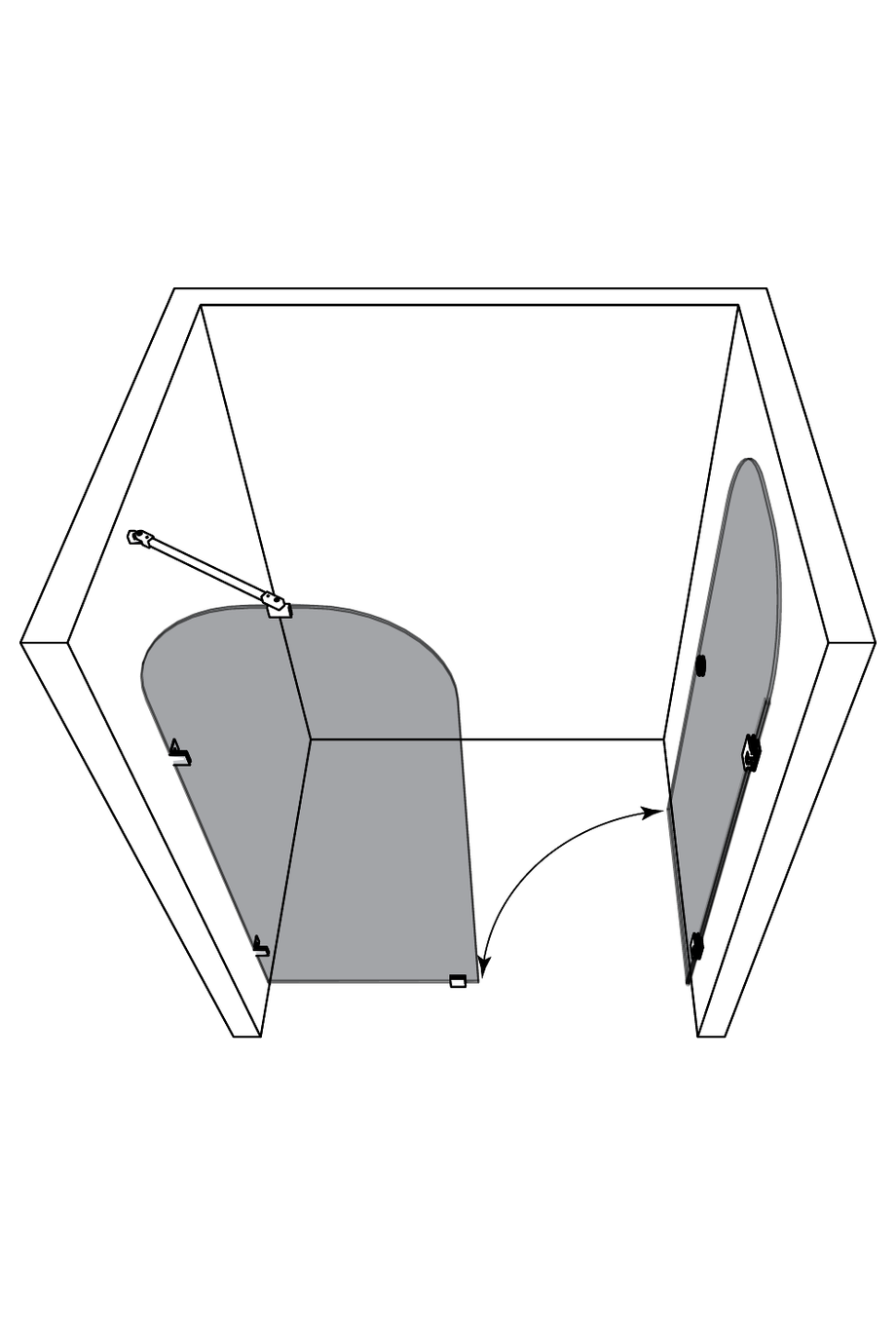

The door opens 90 degrees to the outside and is equipped with an adjustable centring. The centring tries to return the door back to the open and closed positions.
Fixed wall and door are attached to the wall of the building from the sides by means of wall mountedfittings and hinges. The fixed wall is supported from the top edge by a brace installed in the corner and from the bottom edge by a fitting glued to the floor. Between the panel of the fixed wall and the floor will be a 25mm high gap. Between the panel and the floor may be installed a seal (standard part) in order to prevent water from passing through under the panel. At the bottom edge of the door panel can be installed which restricts the flow of water. Installation guide
18 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
Alcove fitting is manufactured according to measures.
Product size

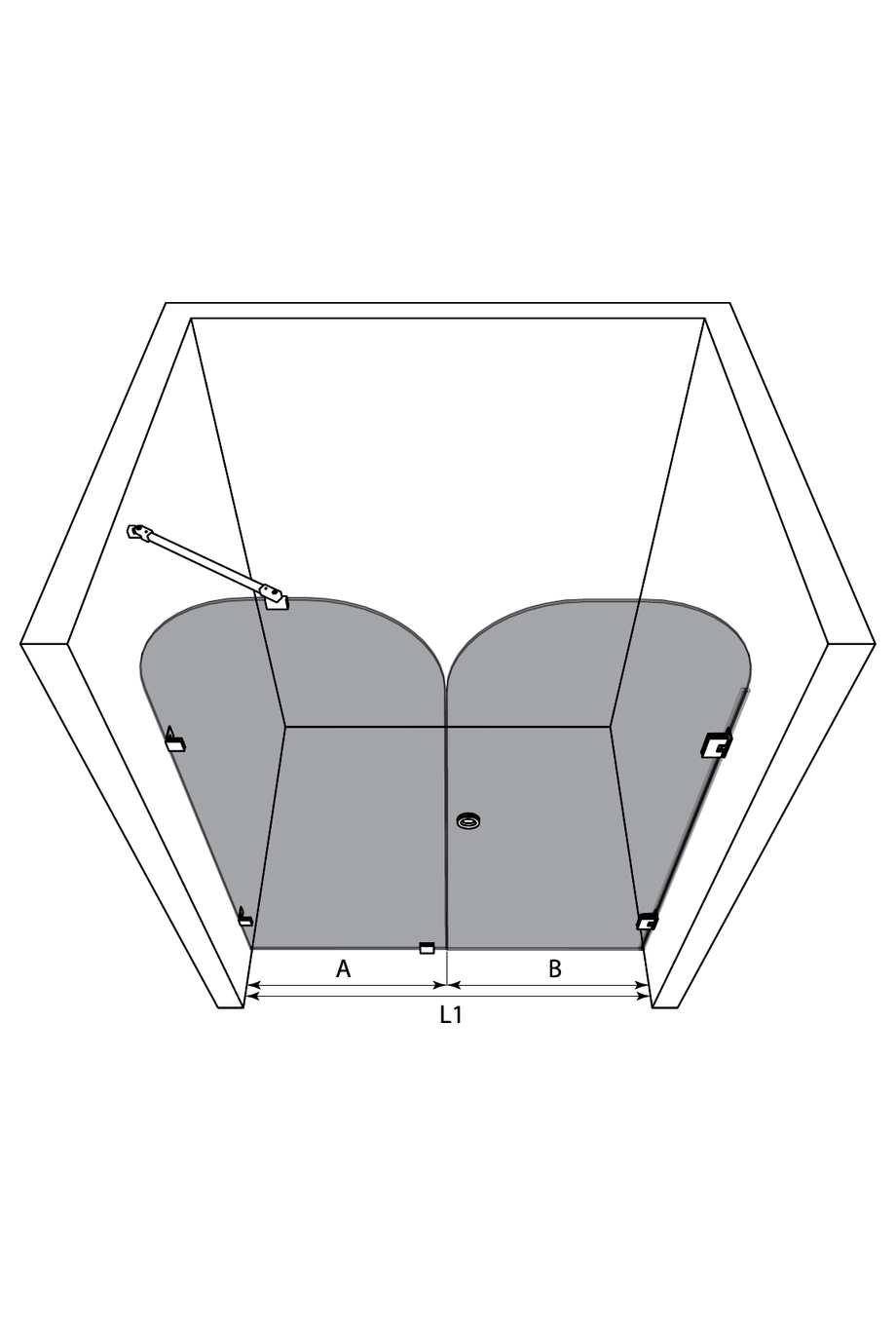

The selected combination can be installed into the opening (L1), the width of which is: 1400mm.
The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the alcove fitting may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10mm and its width is 16mm. An extension step can be placed under the glass clamp to raise it by 10mm.
Choose handle
Product
Product code
Price
1
Vetro 564
Product code
564-21-00
Price
0.00 €
2
Vetro 509 Alcove fixed screen
Chrome plated/Transparent/A=700 x 1950
Product code
509 21 0000
Price
870.00 €
3
Vetro 519 Alcove hinged door
Chrome plated/Transparent/B=700 x 1950
Product code
519 21 0000
Price
870.00 €
4
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
5
TOTAL
Product code
Price
1767.00 €
The selected combination can be installed into the opening (L1), the width of which is: 1400mm.
The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the alcove fitting may also be installed in the opposite direction than presented in the layout.:
