Bläk 754 Paris

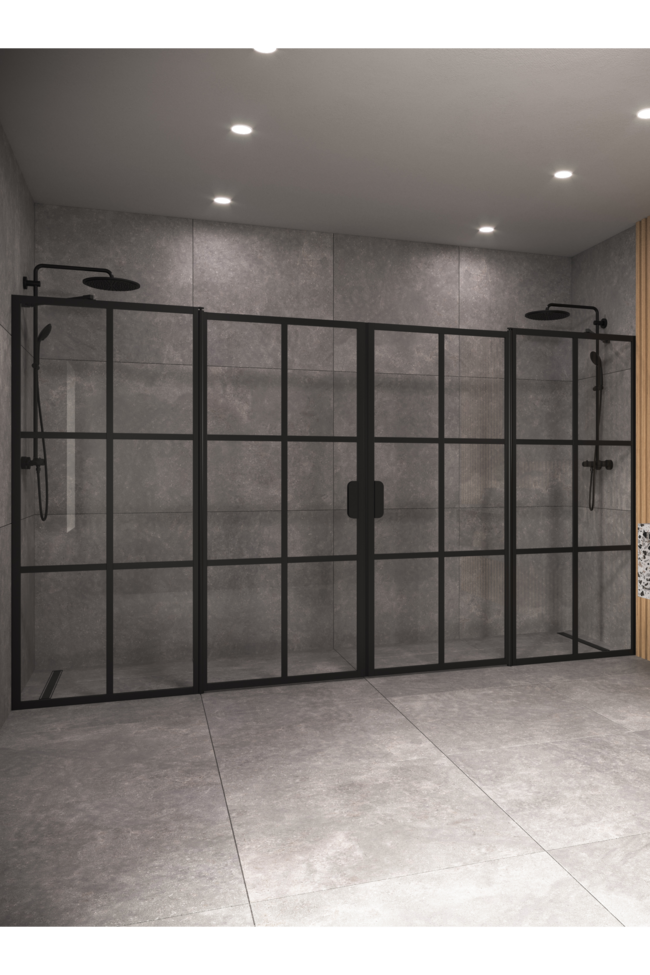

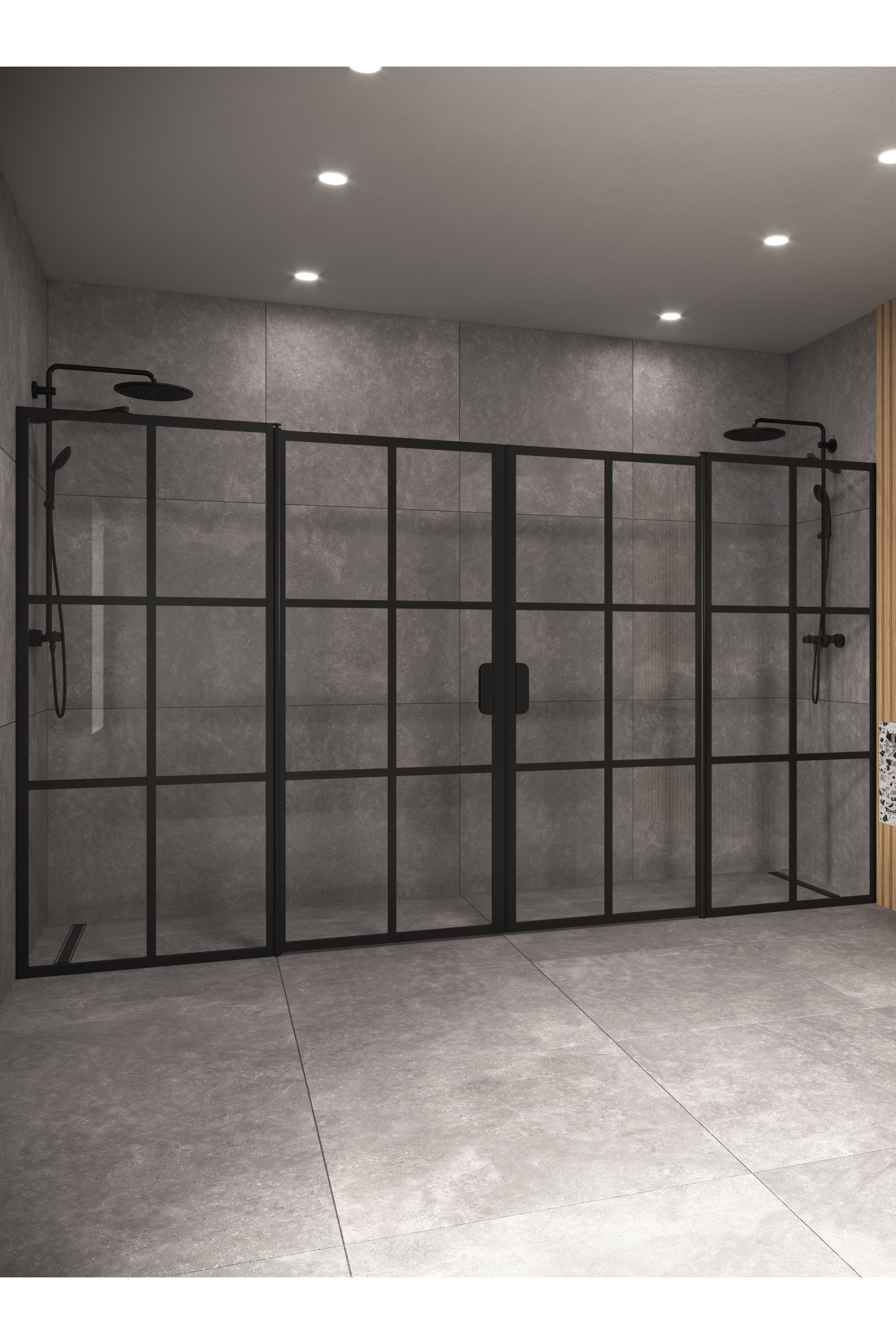

Alcove fitting with a hinged double door with fixed parts
Alcove fixture consists of two fixed walls, into which hinged doors have been attached. The product is well-suited for a shower enclosure is well-suited for a shower enclosure outside of which there are fixtures on both sides. The fixed parts can be dimensioned according to the depth of the fixtures so that when opened, the doors do not hit the fixtures. Doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.
Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.
The fixed panels are mounted to the building wall using wall mounting profiles on each side of the enclosure space. The door panels are attached to the wall fixed panels from both sides. The support bar is set up from the top edge of the fixed panel and screwed into the building wall. Bottom seals can be attached to the panels and a step profile can be installed under the door panels to improve water retention. Magnet seals are installed on each of the doorway panels to keep door tightly closed.
11 Working days
20 year warranty
The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.
The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 14mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm(door), 40mmm(fixed panel) and it can be grooved for example for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected instead when ordering.

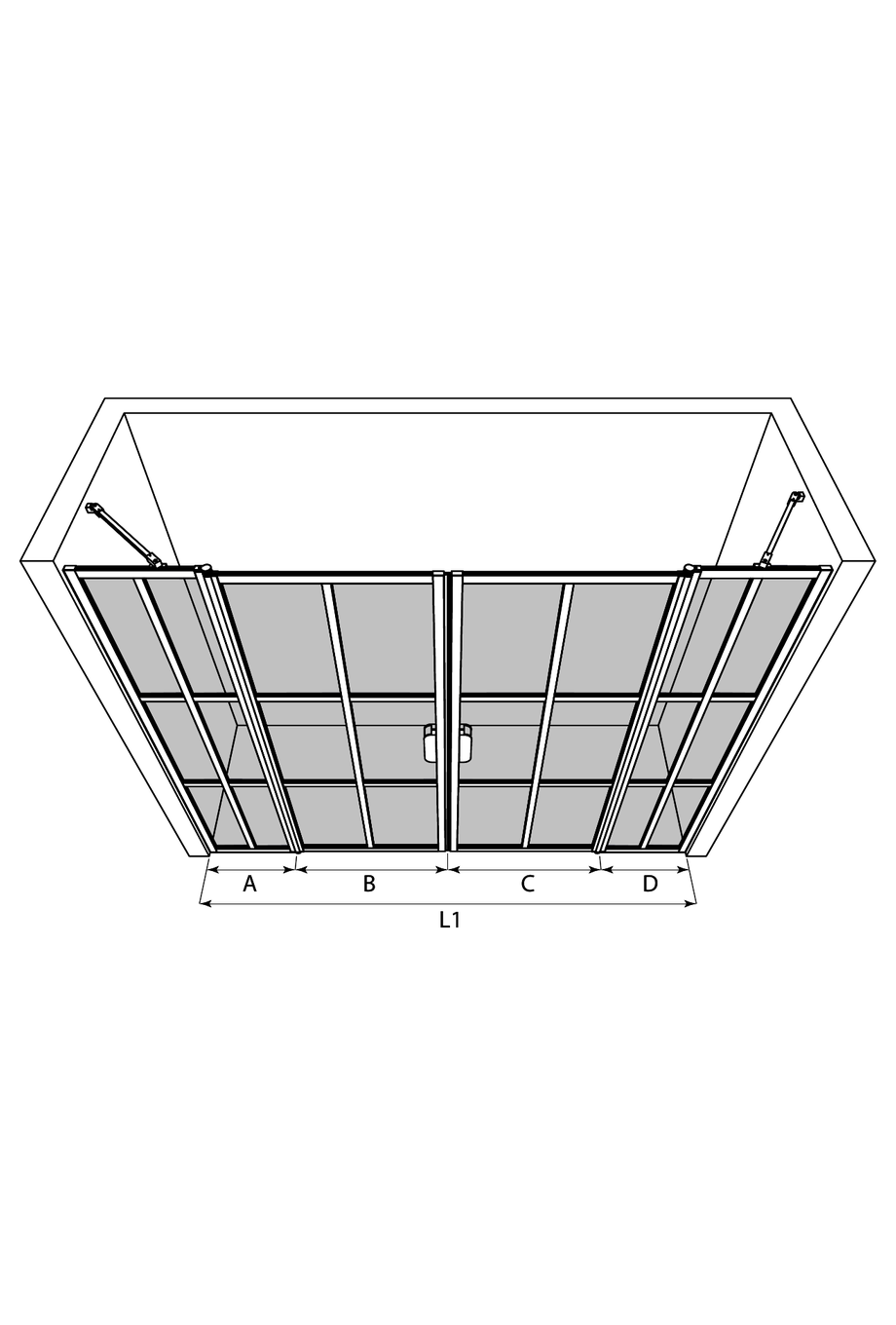

Product size
The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1214mm
- At its widest: 1228mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a shower door threshold under the door. The door threshold is cut into a suitable length on the side and glued to the floor. The height of a shaped threshold is 10mm and its width is 16mm.Fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.
Product
Product code
Price
1
Bläk 754 Paris
Product code
754-61-1111
Price
0.00 €
2
Bläk 714 Alcove fixed screen
White painted/Transparent/A=260 x 1950
Product code
714 61 0026
Price
310.00 €
3
Blak 714 Alcove hinged door
White painted/Transparent/B=347 x 1950
Product code
714 61 1033
Price
310.00 €
4
Blak 714 Alcove hinged door
White painted/Transparent/C=347 x 1950
Product code
714 61 1033
Price
310.00 €
5
Bläk 714 Alcove fixed screen
White painted/Transparent/D=260 x 1950
Product code
714 61 0026
Price
310.00 €
6
Paris -frame
Product code
709 RL 0001
Price
126.00 €
7
Magnet seal pair
Product code
705 RL 0001
Price
42.00 €
8
Paris -frame
Product code
709 RL 0001
Price
126.00 €
9
Paris -frame
Product code
709 RL 0001
Price
126.00 €
10
Paris -frame
Product code
709 RL 0001
Price
126.00 €
11
TOTAL
Product code
Price
1786.01 €
The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1214mm
- At its widest: 1228mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
| EAN: | 6418379999261 |
|---|
