Bläk 84A New York

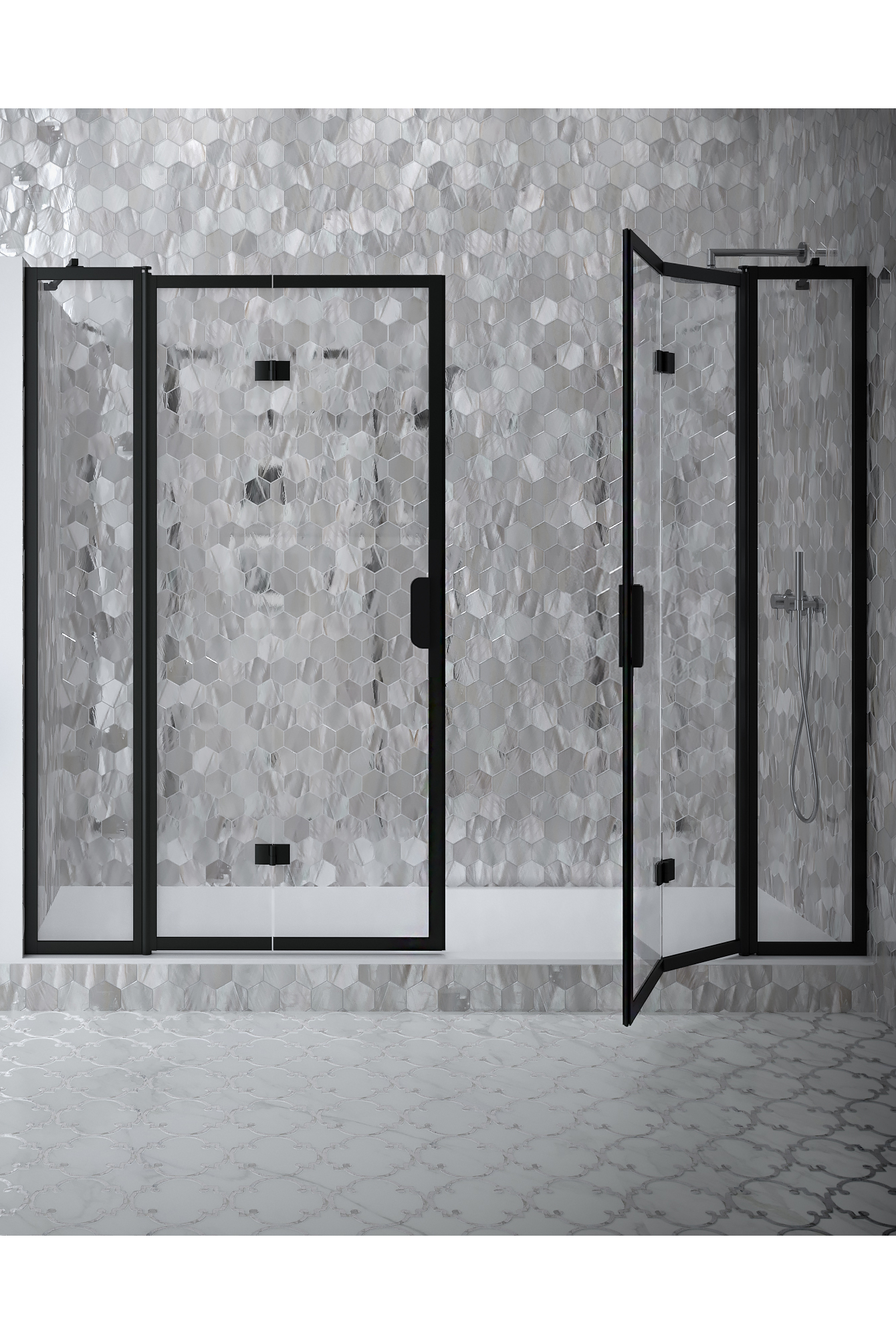

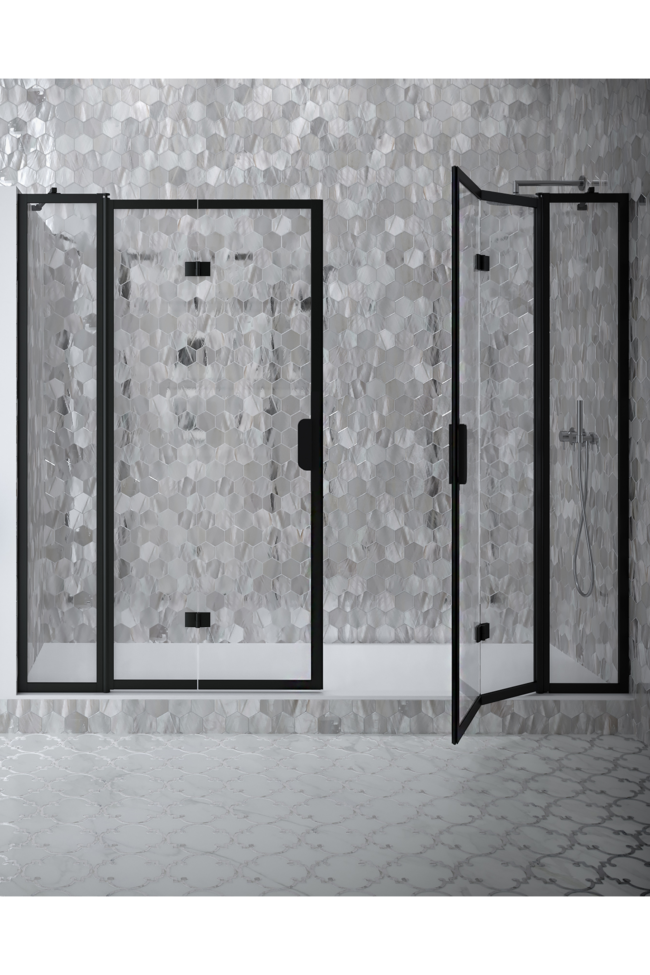

Alcove fitting with folding double doors with fixed parts
Alcove fitting configuration consists of two fixed walls, into which have been hinged folding doors. The product is well-suited for a shower enclosure where the doors do not necessarily have the space to properly open outwards and where the space is cramped also in the inside of the shower area. A folding door does not require space for opening outside the shower area; instead, the door folds inside the shower area so that the door panels fold into a small space in the direction of the wall of the building. Fixed wall can be dimensioned according to the fixture (e.g. the mixer) inside the shower area so that the doors do not hit the fixtures when being folded. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the doors can be turned in the direction of the building walls.
Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outermost panels turn in relation to the innermost panels so that the panels of the doors fold against each other to the internal side of the shower area. A pair of magnet handles keeps the doors tightly closed during showering.
The fixed panels are mounted to the building wall using wall mounting profiles on each side of the enclosure space. The door panels are attached to the wall fixed panels from both sides. The support bar is set up from the top edge of the fixed panel and screwed into the building wall. Bottom seals can be attached to the panels and a step profile can be installed under the door panels to improve water retention. Magnet seals are installed on each of the doorway panels to keep door tightly closed.
27 Working days
20 year warranty
The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.
The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 0mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm(door), 40mmm(fixed panel) and it can be grooved for example for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected instead when ordering.
Product size

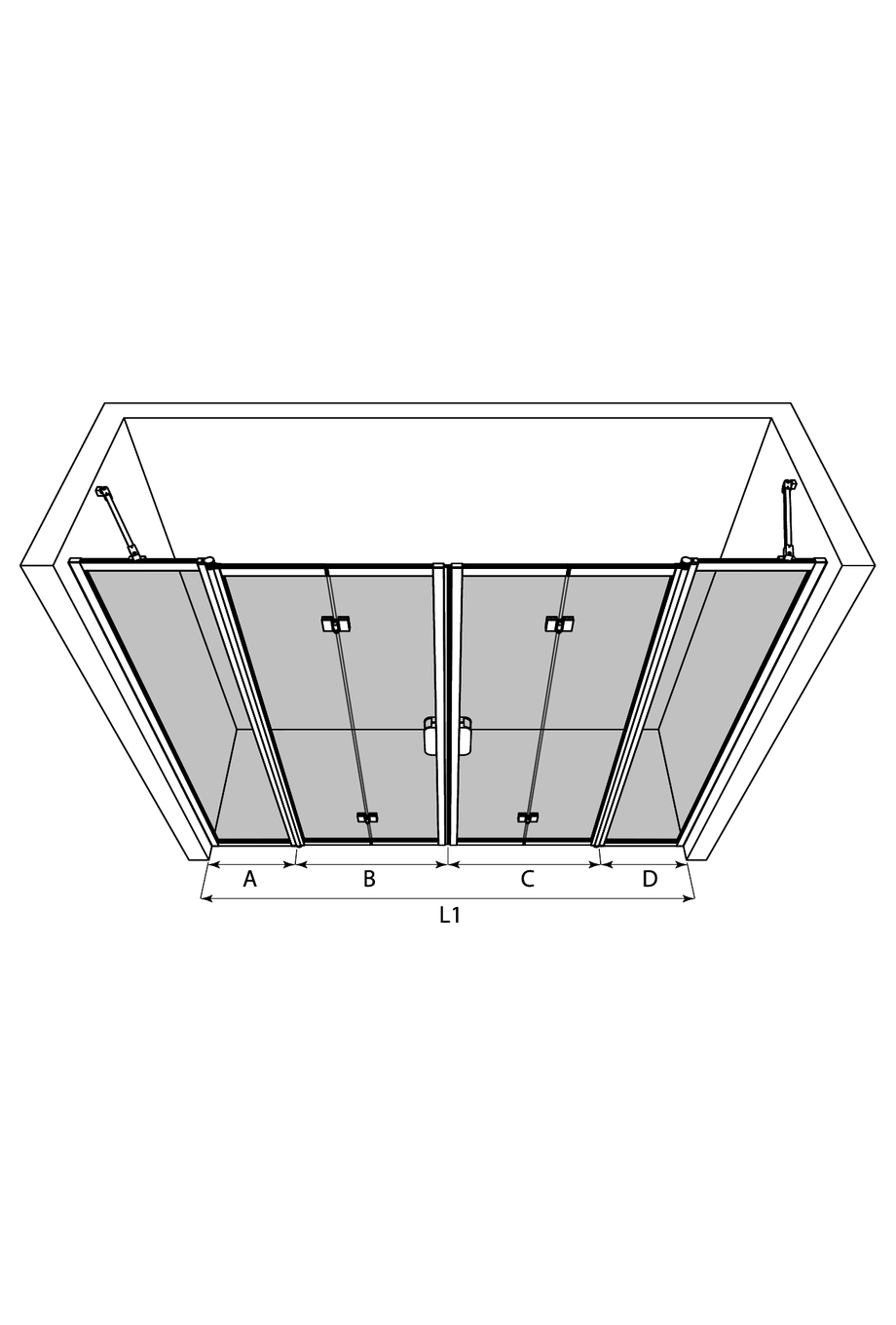

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1784mm
- At its widest: 1784mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Bläk 84A New York
Product code
84A-61-1111
Price
0.00 €
2
Bläk 714 Alcove fixed screen
White painted/Transparent/A=260 x 1950
Product code
714 61 0026
Price
310.00 €
3
Blak 715 Alcove hinged door
White painted/Transparent/B=632 x 1950
Product code
715 61 0062
Price
414.00 €
4
Blak 715 Alcove hinged door
White painted/Transparent/C=632 x 1950
Product code
715 61 0062
Price
414.00 €
5
Bläk 714 Alcove fixed screen
White painted/Transparent/D=260 x 1950
Product code
714 61 0026
Price
310.00 €
6
Magnet seal pair
Product code
705 RL 0001
Price
42.00 €
7
TOTAL
Product code
Price
1490.00 €
The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1784mm
- At its widest: 1784mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
| EAN: | 6418379000646 |
|---|
