Bläk 89V Tokyo

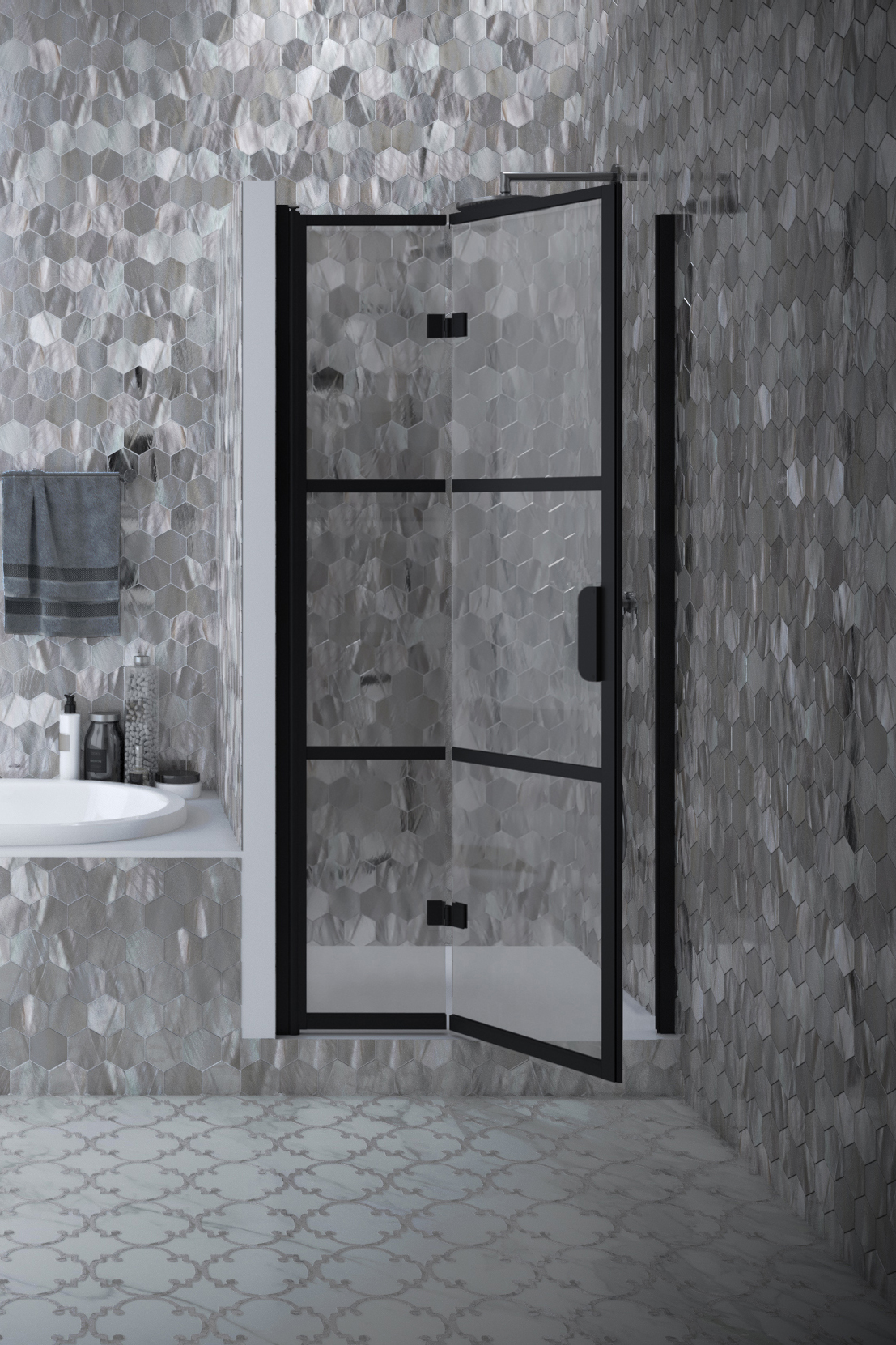

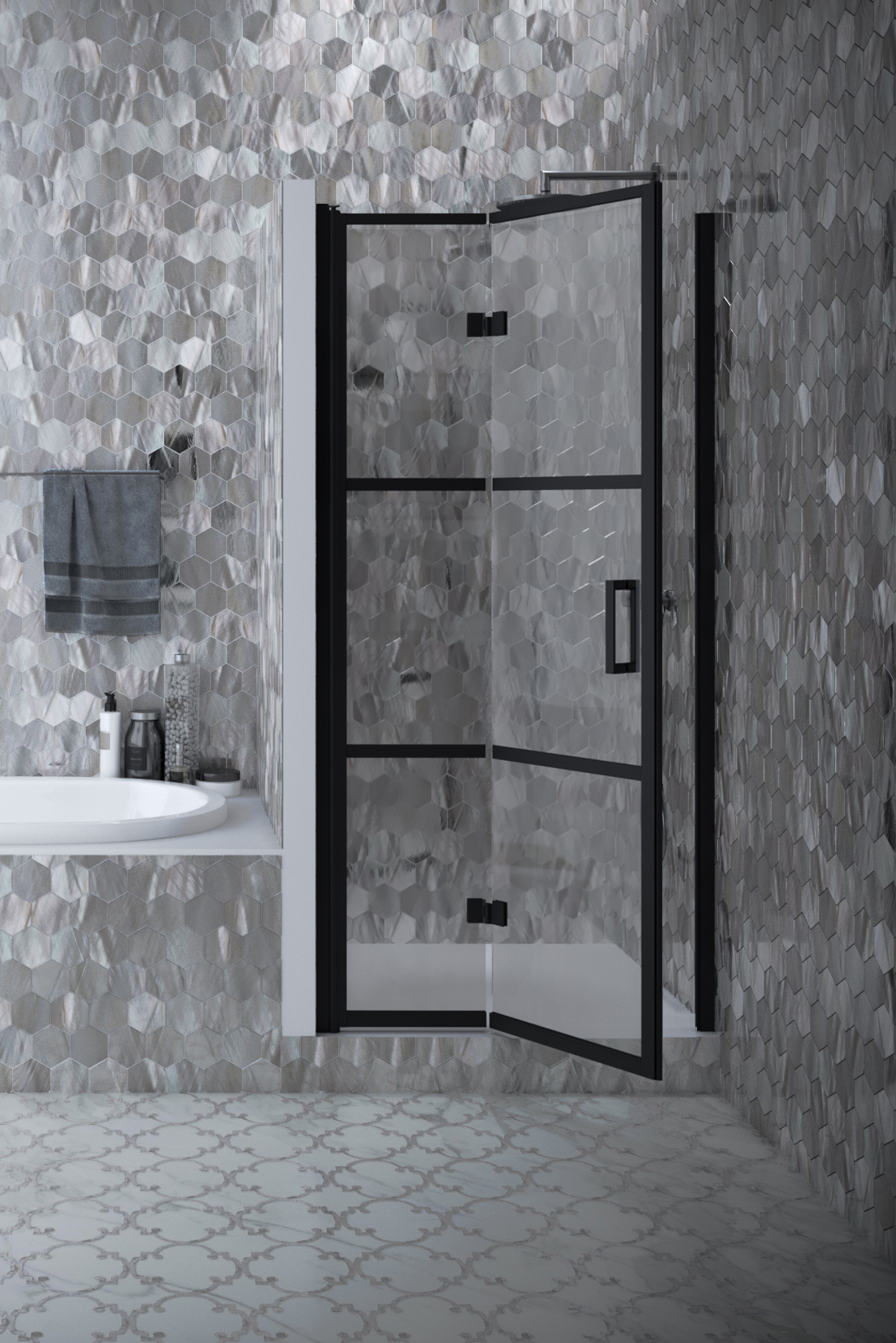

Folding shower door with magnet locking
Folding shower door protects the space and the fixtures located next to the shower from splashing water. When the shower is not in use, the shower screen can be folded into a small space against the wall of the building, inside the shower area.
The shower door rotates 90 degrees in both directions and is equipped with an adjustable centring. The function of the centring is to return the door to the open and closed positions. In addition, the outer panel rotates 180 degrees in relation to the inner panel so that the panels fold against each other into the interior portion of the shower area. The door is equipped with a magnet seal that locks tightly to its counterpart when the shower is in use.
The door panel is mounted to the building wall using wall mounting profile on the hinge side of the doorway and a magnet holding wall profile on the other side. Bottom seals and step profiles can be installed under the door panels to improve water retention.
27 Working days
20 year warranty
The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.
The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 22mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

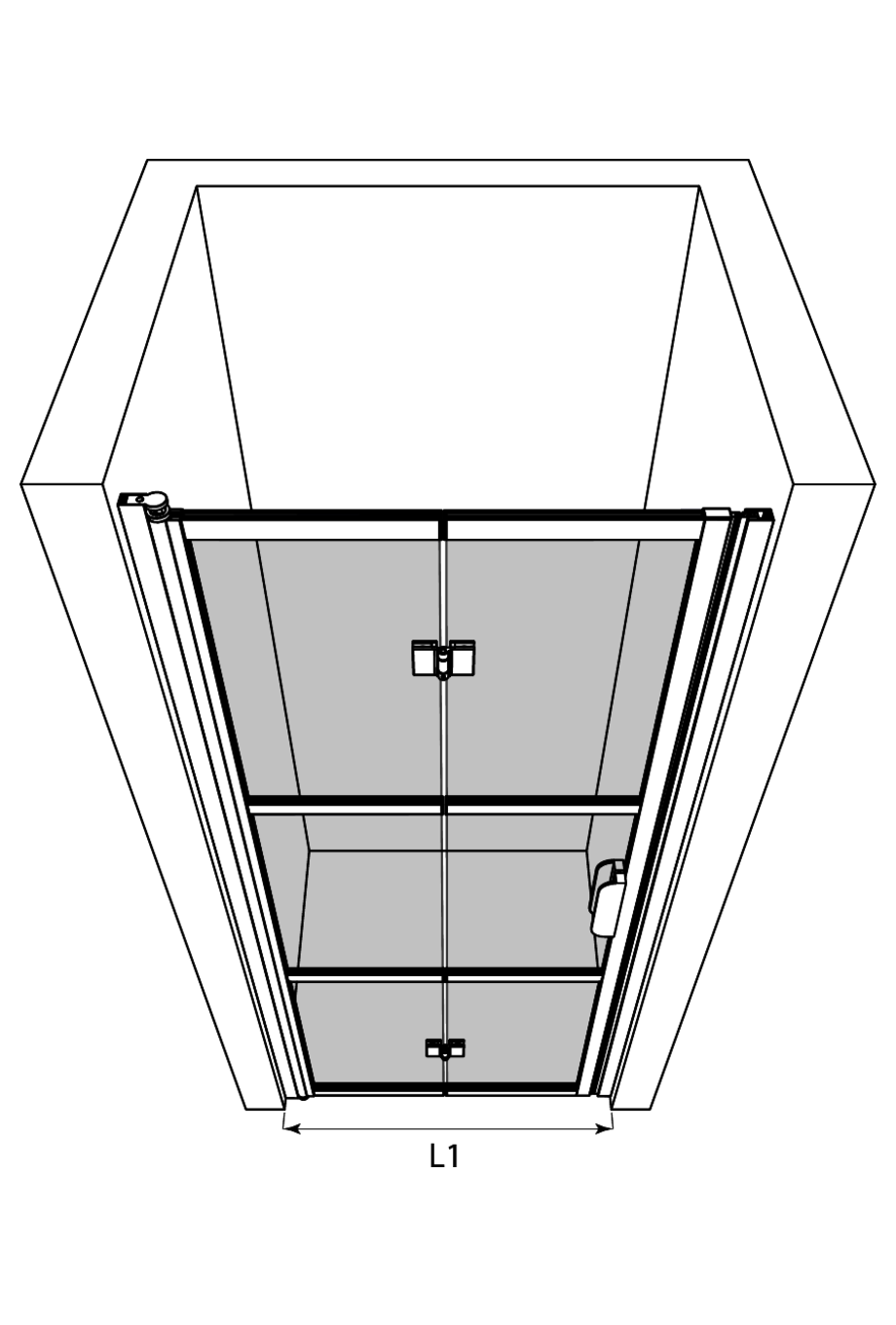

Product size
The total width of the selected product is:
- At its narrowest: 734mm
- At its widest: 756mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Bläk 89V Tokyo
Product code
89V-61-1
Price
0.00 €
2
Blak 713 Folding shower screen
White painted/Transparent/A=734 x 1950
Product code
713 61 0070
Price
514.00 €
3
Magnet locking
Product code
728 6L 0001
Price
105.00 €
4
Tokyo -frame
Product code
702 6L 0001
Price
63.00 €
5
TOTAL
Product code
Price
682.00 €
The total width of the selected product is:
- At its narrowest: 734mm
- At its widest: 756mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
