Bläk 774 New York

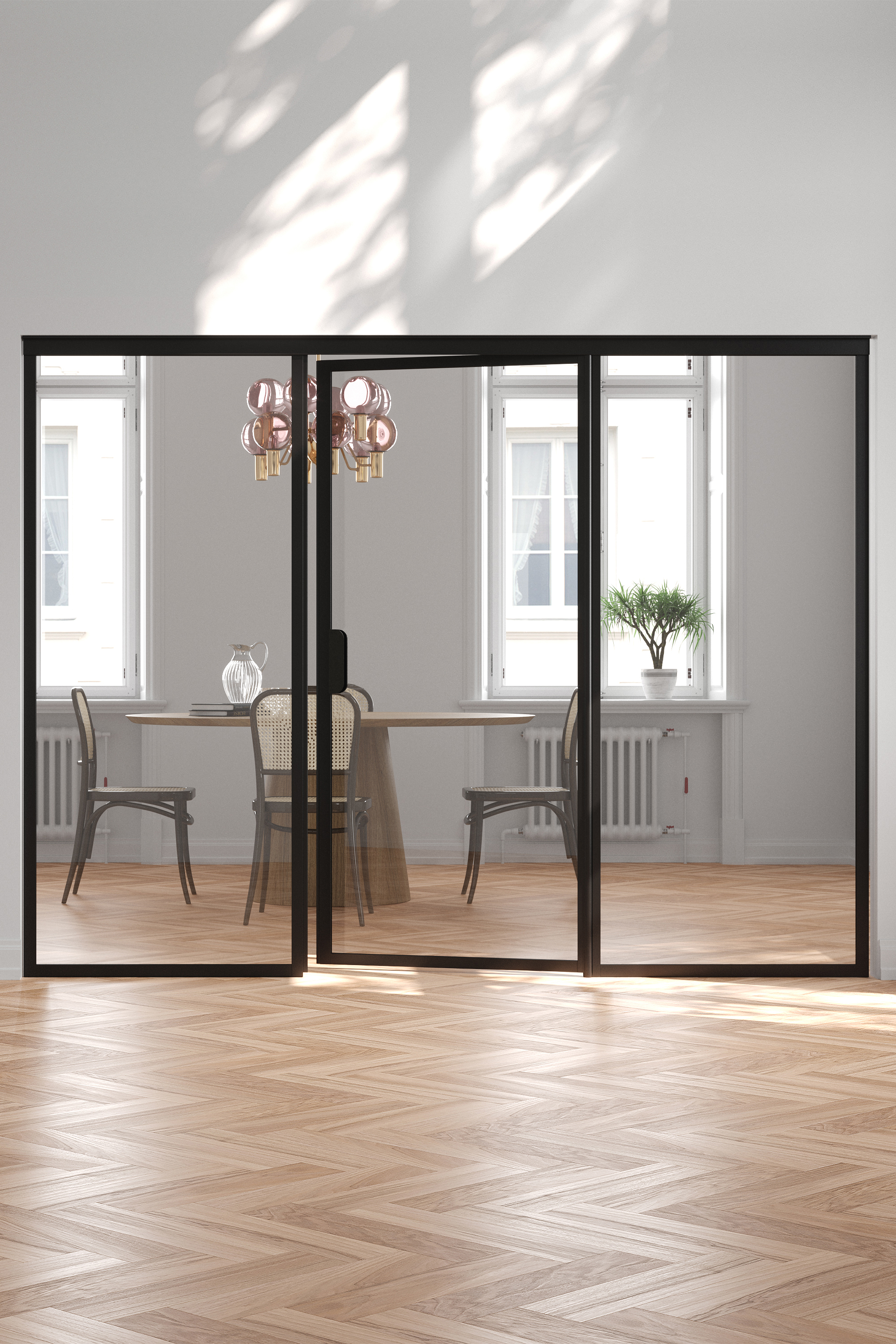

Glass wall with fixed panels on hinge and handle side
The glass wall configuration consists of two fixed walls one of which has a hinged door.
The door opens 90 degrees to the outside and is equipped with an adjustable centring. The function of the centering is to return the door to the open and closed positions.
The fixed wall panels are mounted to the building wall on both sides of the enclosure using wall mounting profiles and floor fitting profiles. The door panel is attached to the fixed panel. The panels are secured with self-drilling screws. The top of the glass wall is secured by a long profile, covering the top of the unit from one side, and a short profile, covering the fixed part on the side which the door opens to. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.
15 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

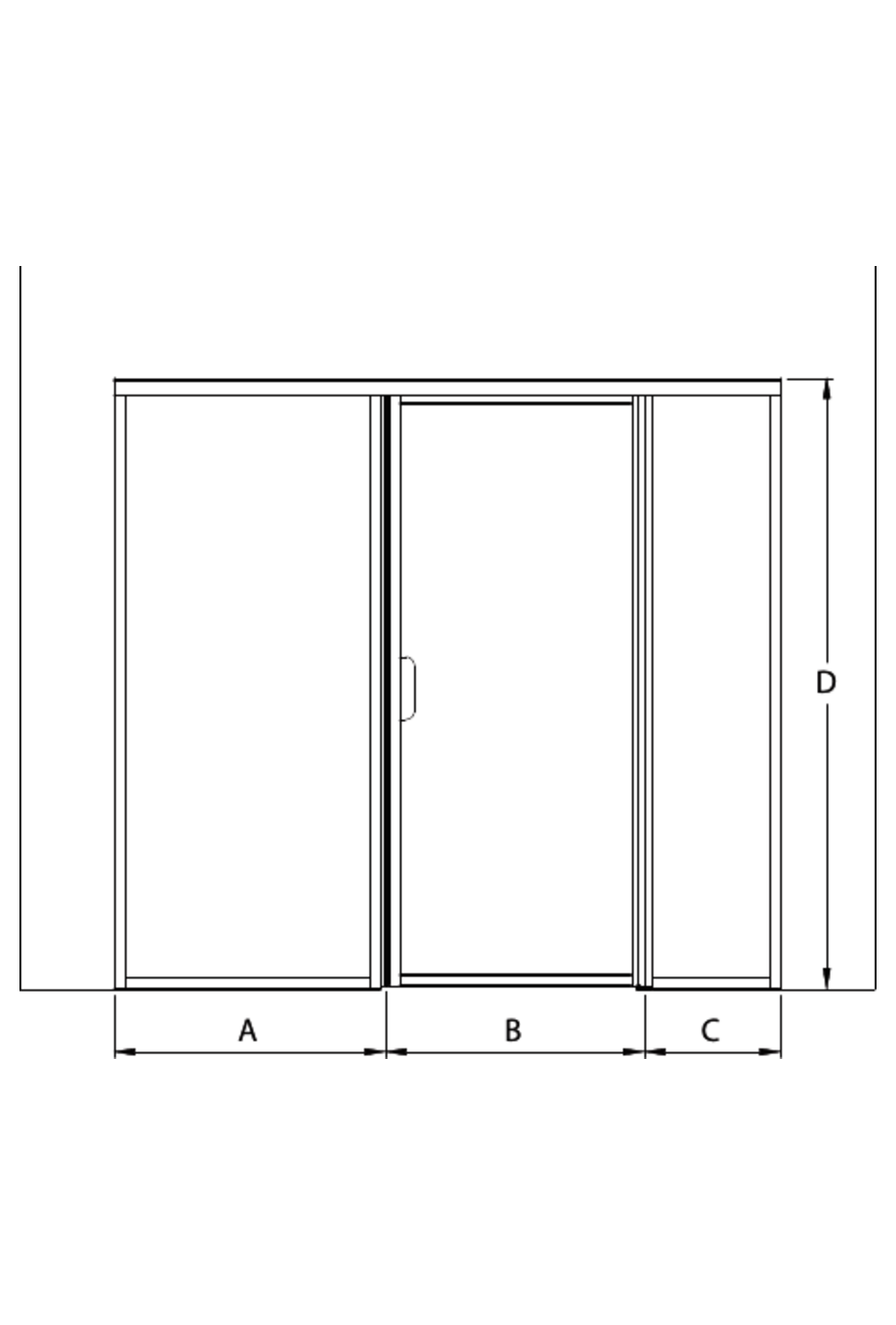

The unit is always manufactured according to custom dimensions. When selecting the size, enter the width of the opening and the height of the opening, entering the smallest measurements in the actual gap. When the width consists of more than one panel, all entered width measurements should add up to the total measurement of the actual gap at its narrowest.
Product size
The selected product can be installed into the opening the total width L1 of which is 1500mm and the total length L2 2000mm.:
Product
Product code
Price
1
Bläk 774 New York
Product code
774-61-000
Price
0.00 €
2
Bläk 731 Handle side panel
White painted/Transparent=488 x 2000
Product code
731 61 0000
Price
346.00 €
3
Bläk 734 Door
White painted/Transparent=485 x 2000
Product code
734 61 1000
Price
440.00 €
4
Bläk 734 Hingeside panel
White painted/Transparent=500 x 2000
Product code
734 61 0000
Price
346.00 €
5
Bläk 704 Broad ceiling list
White painted/Transparent=10 x 1500
Product code
704 61 0000
Price
0.00 €
6
Maintenance manual Maintenance guide
/=
Product code
059 RL MMMM
Price
0.00 €
7
Magnet locking
Product code
723 RL MMMM
Price
0.00 €
8
TOTAL
Product code
Price
1132.00 €
The selected product can be installed into the opening the total width L1 of which is 1500mm and the total length L2 2000mm.:
