Forma 386
Showercorner curved double doors

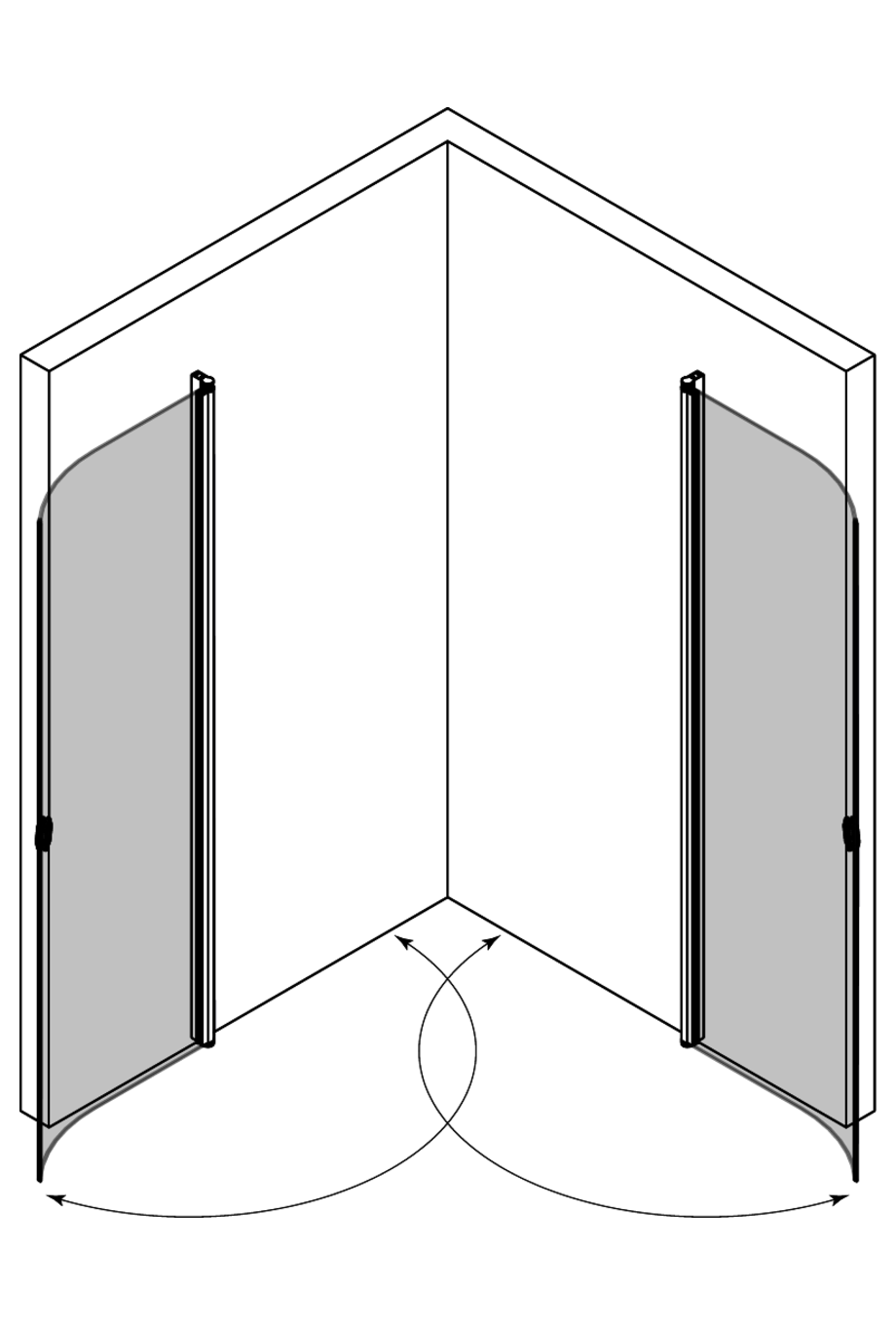

The shower enclosure consists of two hinged doors. The product is well-suited for for a shower corner where there is space for opening the door either to the inside or outside of the shower area. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the against the walls. Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. A pair of magnet seals keeps the doors tightly closed during showering.
Doors are attached to the building walls by means of wall mountedprofiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel.
9 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color.
The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).
The size of the shower enclosure is selected from the standard dimensions. The wall mountedprofiles have adjustment range of 15mm. The adjustment range can be used for levelling any tilt of the building s walls or for extension of the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved for example for the inlet of the surface water pipes.
Product size

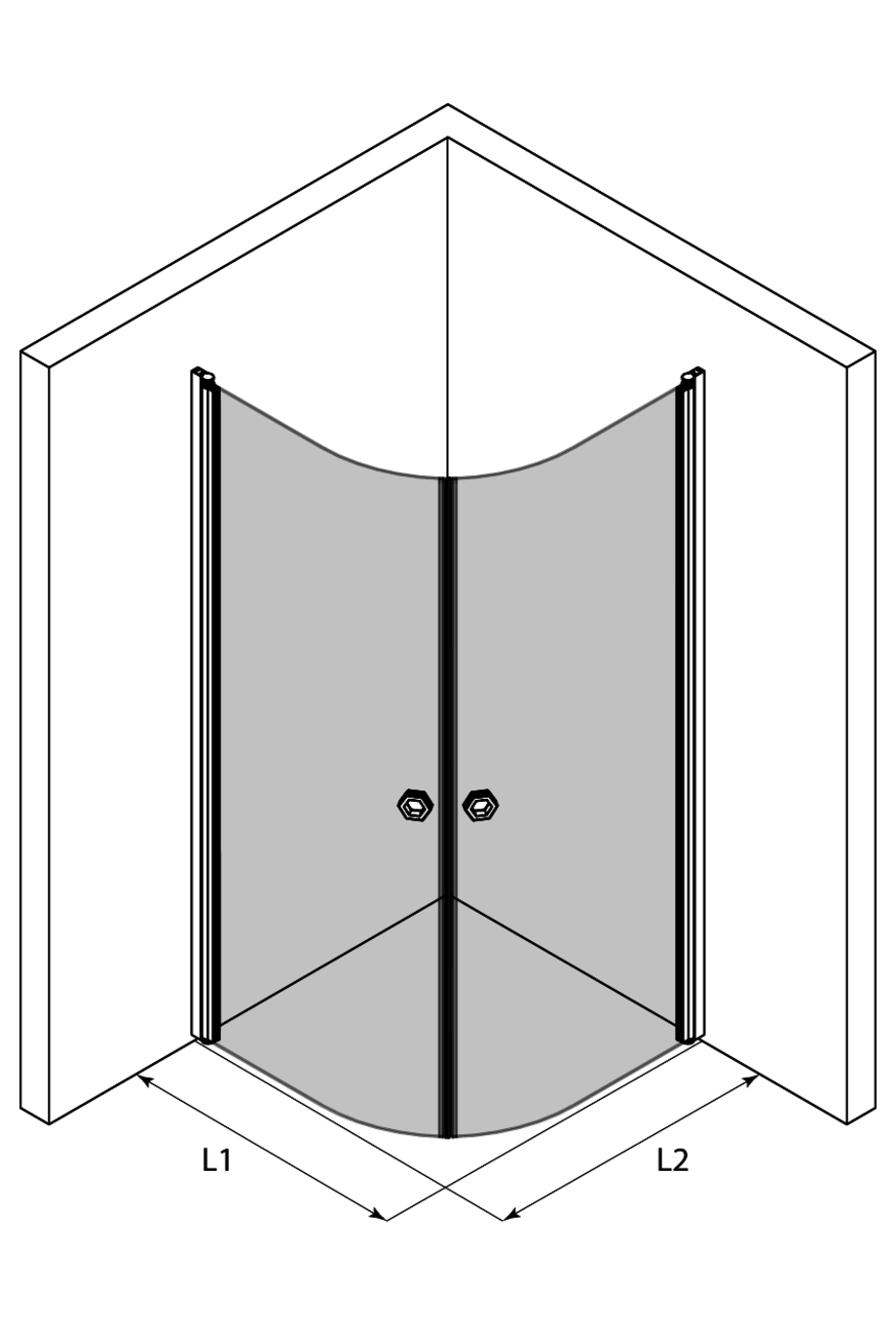

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 700mm - 715mm
- Side L2 : 700mm - 715mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a shower door threshold under the door. The door threshold is cut into a suitable length on the side and glued to the floor. The height of a shaped threshold is 10mm and its width is 16mm.Fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.
Please select handle model:
Product
Product code
Price
1
Forma 386
Product code
386-61-11
Price
0.00 €
2
Forma curved Door
White painted/Transparent/A=700 x 2025
Product code
306 61 0056
Price
305.00 €
3
Forma curved Door
White painted/Transparent/B=700 x 2025
Product code
306 61 0056
Price
305.00 €
4
Magnet seal pair
Product code
F06 6L 0001
Price
21.00 €
5
Hexagonal handle chrome
Product code
F01 RL MMMM
Price
63.00 €
6
Hexagonal handle chrome
Product code
F01 RL MMMM
Price
63.00 €
7
TOTAL
Product code
Price
757.00 €
Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 700mm - 715mm
- Side L2 : 700mm - 715mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
