Bläk 861 Tokyo
Sliding door with soft closing mechanism

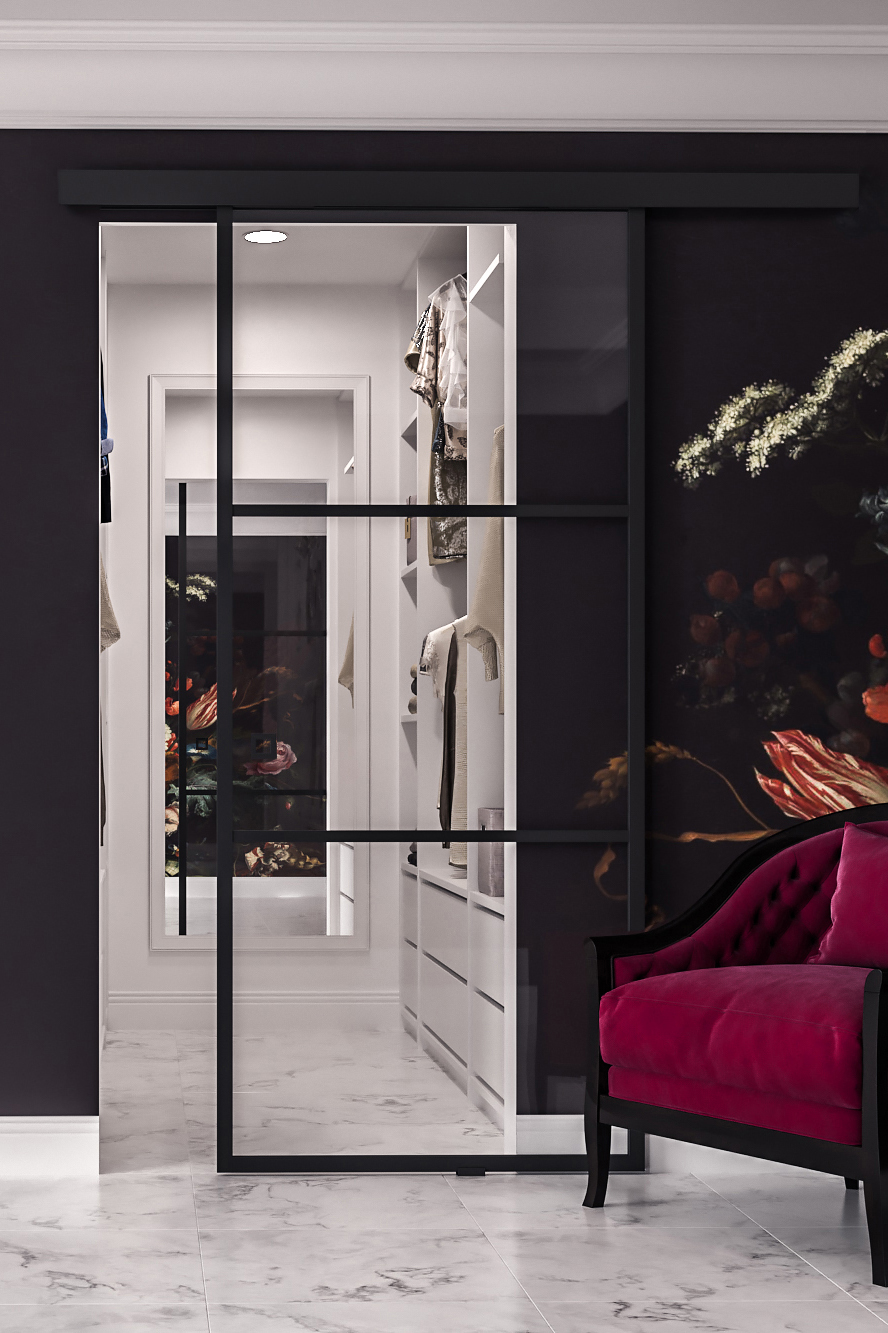

The sliding door unit consists of a glass screen and a sliding mechanism mounted to the building wall above the doorway.Sliding door fixture takes up very little space in the room, a quality sliding mechanism and a floor guide fitting provides a smooth and safe door movement.The doors are equipped with soft closing mechanism which cushions the closing and gently pulls the door into position. Handle height is 0.5H (Height) (as per 2D drawing).

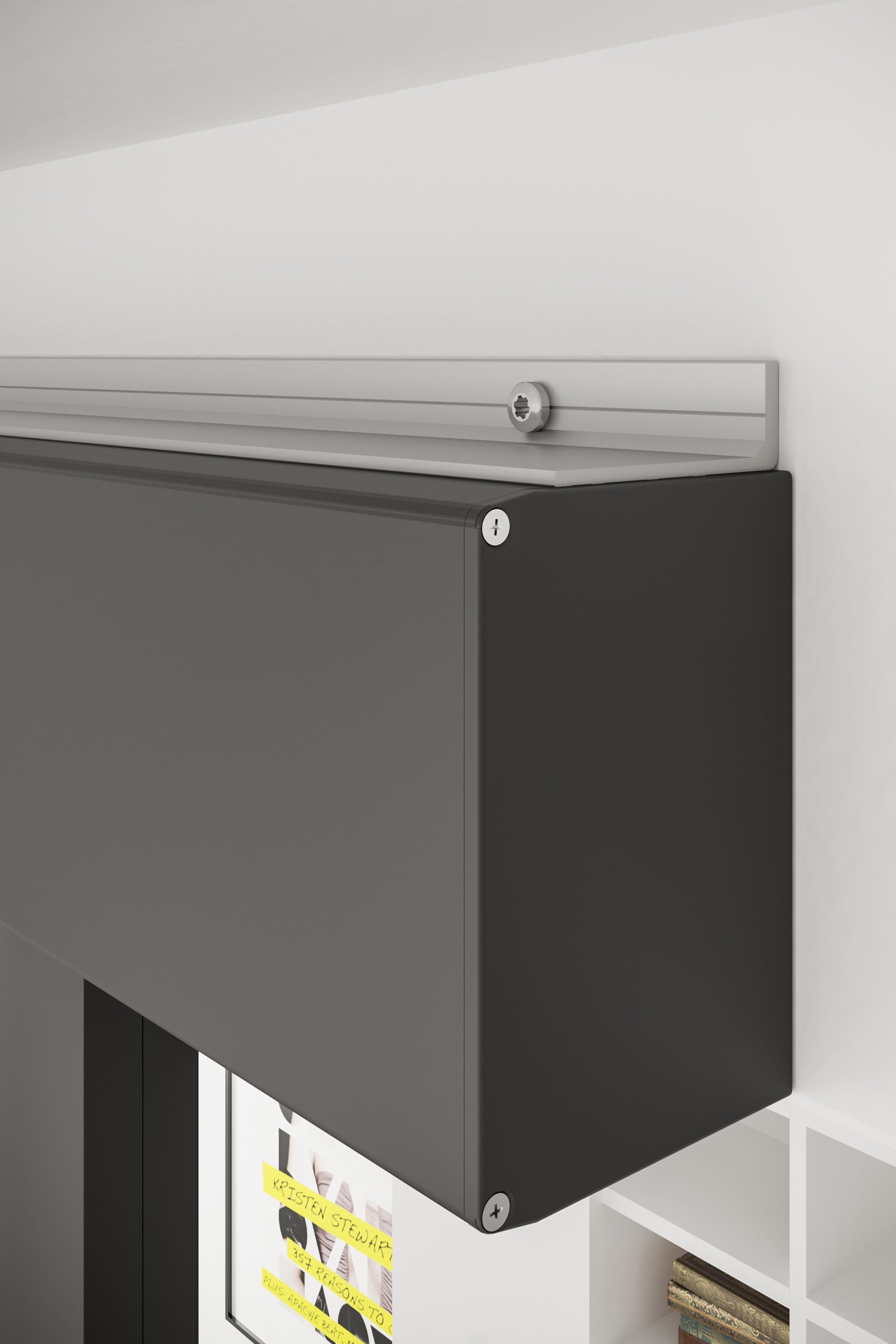

The sliding rail profile is fixed to the wall.The sliding mechanism is affixed to the top of the door panels before being mounted on the sliding profile. A door guide is installed on the floor. The sliding rail profile is covered from the front and sides with cover plates.
20 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. Profiles are painted black (RAL 9005) through powder coating.
The product is manufactured of 8mm thick tempered safety panel (EN 12150). One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The sliding door is always manufactured according to custom dimensions. When ordering, enter actual width of door gap and height of door gap. The door will be manufactured 40 mm wider than entered doorgap. It is recommended that the width of the door should always be at least Height/3.
Product size
:
Product
Product code
Price
1
Bläk 861 Tokyo
Product code
861-91-0
Price
1519.00 €
2
Blak sliding Door
Black painted/Transparent=800 x 1900
Product code
753 91 0000
Price
0.00 €
3
Wall mounted Sliding profiles
Black painted/Transparent=10 x 1510
Product code
754 91 0000
Price
0.00 €
4
Blak Sliding Installation instructions
/=
Product code
8/25 5ARLM
Price
0.00 €
5
Single door accessories
Product code
947 91 0000
Price
0.00 €
6
Tokyo -frame
Product code
702 9L 0000
Price
0.00 €
7
TOTAL
Product code
Price
1519.00 €
:
| EAN: |
|---|
