Bläk 724 New York

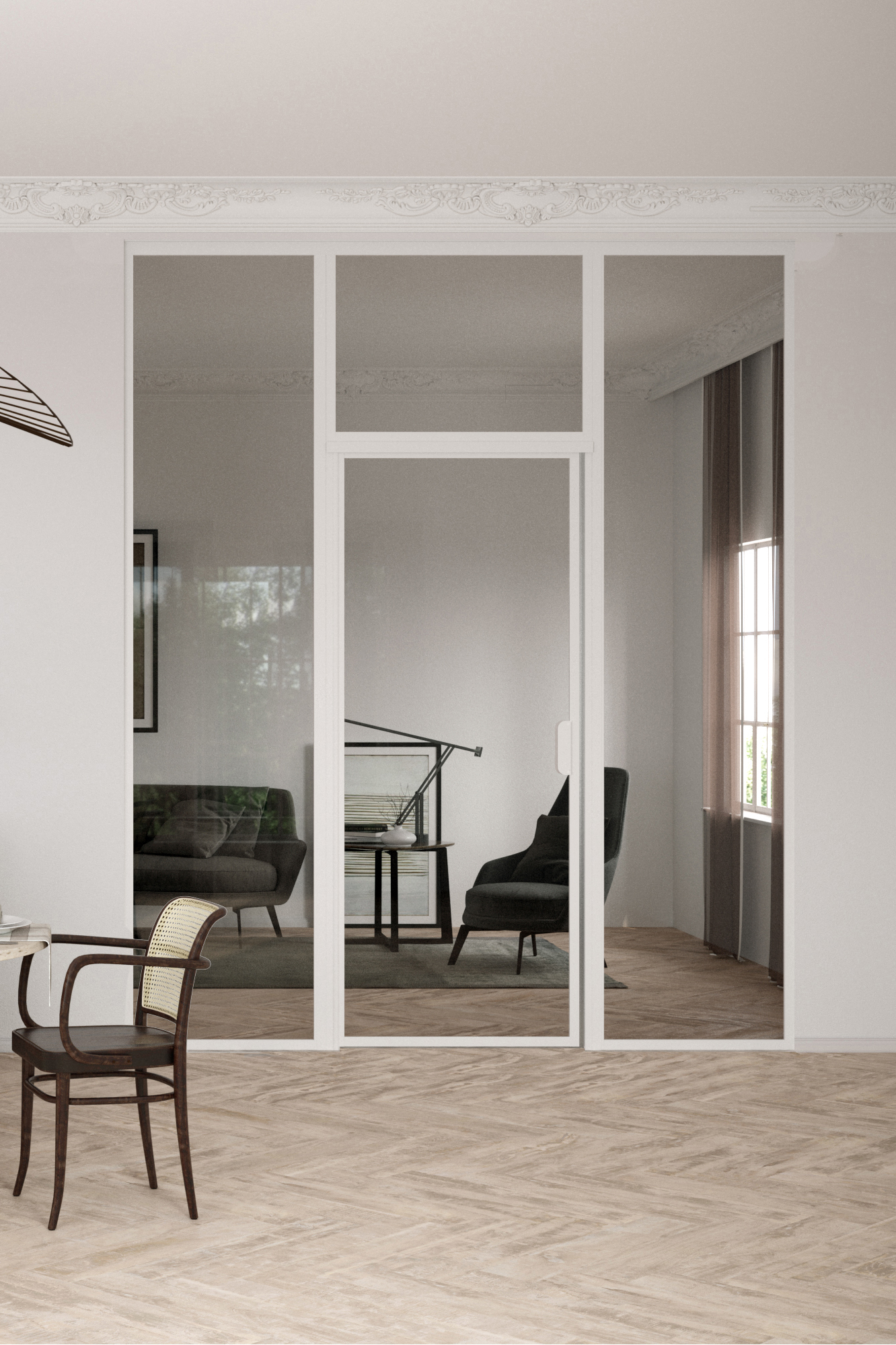

Glass wall with fixed panels on hinge and handle side and upper window
The glass wall configuration consists of an upper window and two fixed walls one of which has a hinged door. The door opens 90 degrees to the outside and is equipped with an adjustable centring. The function of the centering is to return the door to the open and closed positions.
The wall panels are mounted to the building wall on each side of the enclosure using wall mounting profiles and floor fitting profiles.The door panel is attached to the fixed panel.The panels and the upper window are secured with self-drilling screws.Magnet seals are installed on each of the doorway panels to keep the door tightly closed.
21 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.
The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).
Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 14mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening.Door opening is 93mm smaller than indicated total door measure .

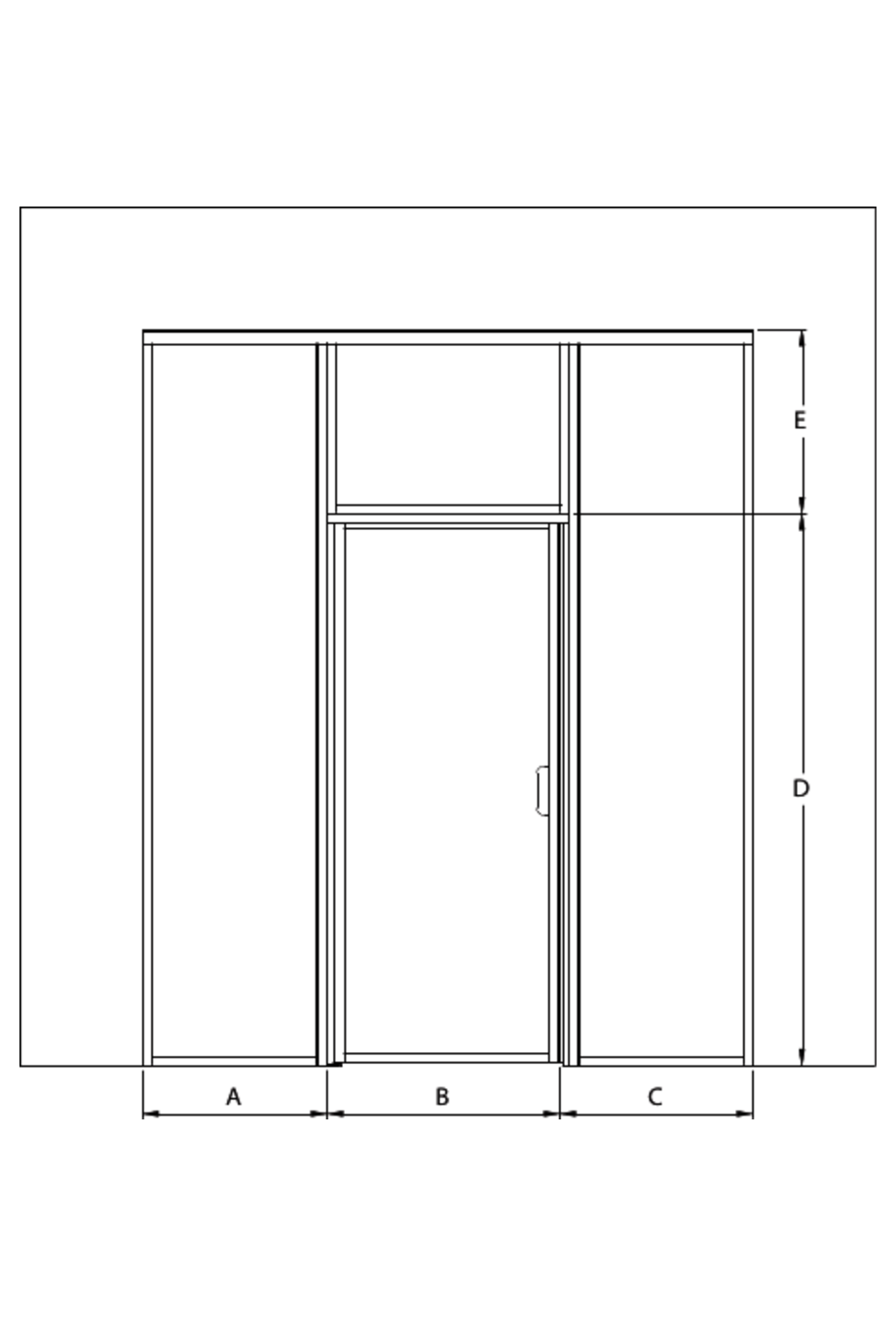

Product size
The selected product can be installed into the opening the total width L1 of which is 1500mm and the total length L2 2400mm.:
Product
Product code
Price
1
Bläk 724 New York
Product code
724-61-0000
Price
0.00 €
2
Blak 736 Door
White painted/Transparent=451 x 2000
Product code
736 61 0000
Price
440.00 €
3
Blak 737 Hinge side panel
White painted/Transparent=500 x 2400
Product code
737 61 0000
Price
378.00 €
4
Blak 737 Handle side panel
White painted/Transparent=500 x 2400
Product code
737 61 0000
Price
378.00 €
5
Blak 739 Upper window
White painted/Transparent=500 x 400
Product code
739 61 0000
Price
210.00 €
6
Bläk 710 Broad ceiling list
White painted/=10 x 1500
Product code
778 6L 0000
Price
0.00 €
7
Blak 724,725,726 Installation instructions
/=
Product code
8/25 6CRLM
Price
0.00 €
8
Maintenance manual Maintenance guide
/=
Product code
059 RL MMMM
Price
0.00 €
9
Magnet locking
Product code
727 6L MMMM
Price
0.00 €
10
TOTAL
Product code
Price
1406.00 €
The selected product can be installed into the opening the total width L1 of which is 1500mm and the total length L2 2400mm.:
| EAN: | 6418379998721 |
|---|
