Bläk 728 Tokyo

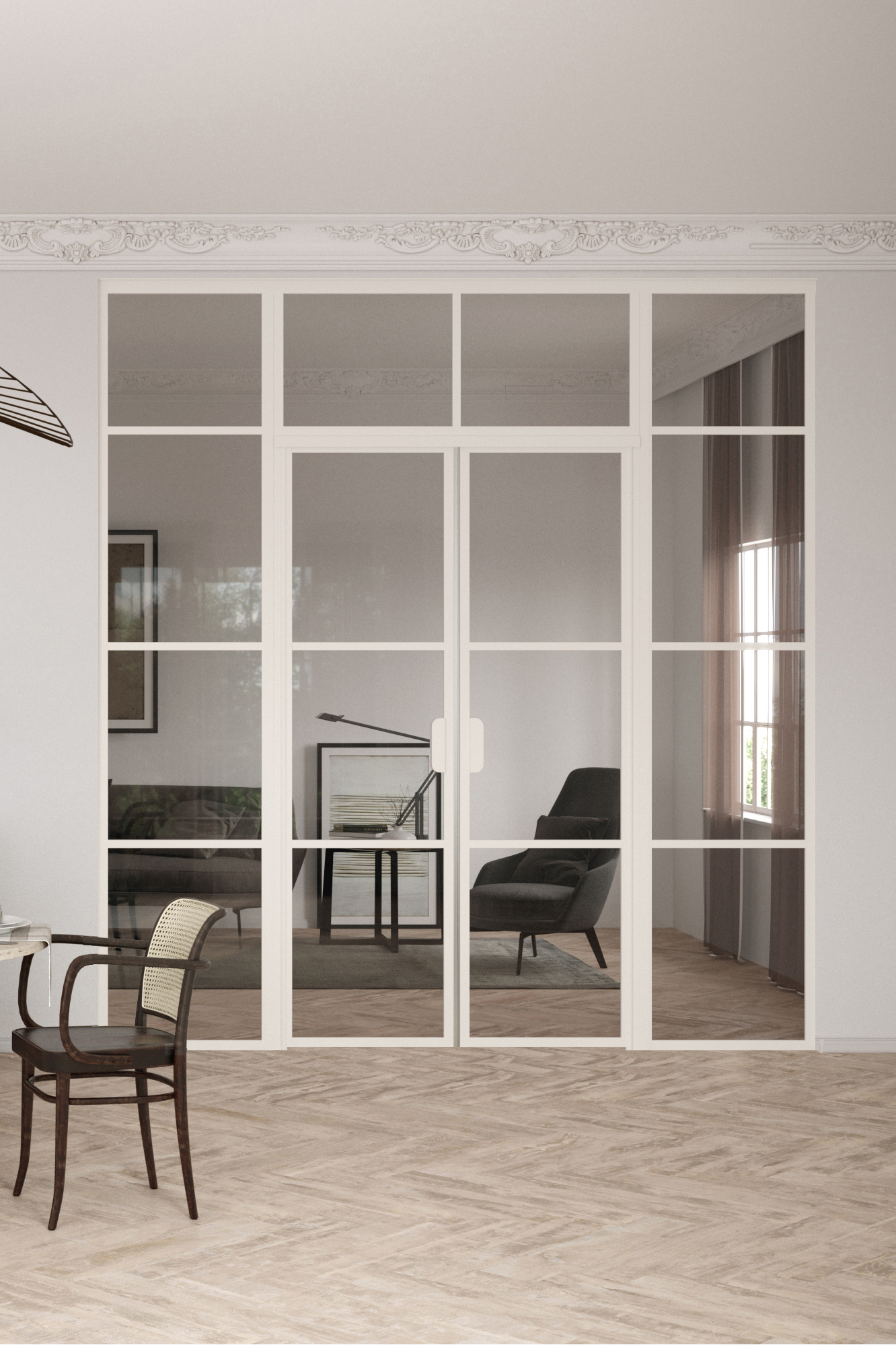

Glass wall with fixed panels on hinge and handle side, a double door and upper window

The glass wall configuration consists of two fixed walls with hinged doors and an upper window.

Doors open 90 degrees to the outside and are equipped with an adjustable centring. The function of the centering is to return the door to the open and closed positions.

The wall panels are mounted to the building wall on each side of the enclosure using wall mounting profiles and floor fitting profiles. The door panels are attached to the wall fixed panels from both sides. The panels and the upper window are secured with self-drilling screws. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.

Icon

20 Working days

Icon

20 year warranty

The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).

Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 14mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. Door opening is 108mm smaller than indicated total door measure .

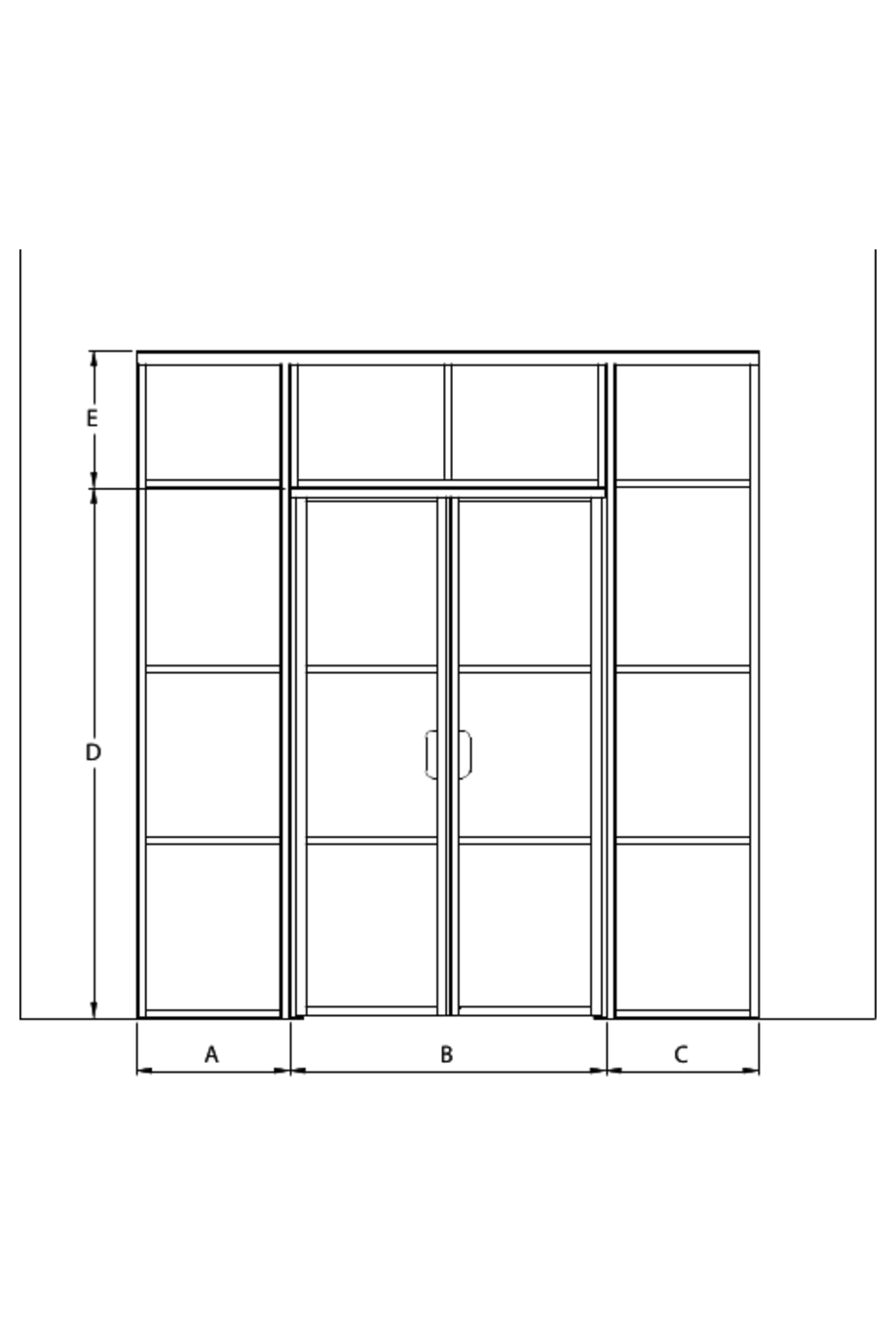

Product size

The selected product can be installed into the opening the total width L1 of which is 2000mm and the total length L2 2400mm.:


Product

Product code

Price

1

Bläk 728 Tokyo

Product code

728-61-0000

Price

0.00 €

2

Blak 737 Hinge side panel
White painted/Transparent=500 x 2400

Product code

737 61 0000

Price

378.00 €

3

Blak 736 Door
White painted/Transparent=488 x 2000

Product code

736 61 0000

Price

440.00 €

4

Blak 736 Door
White painted/Transparent=488 x 2000

Product code

736 61 0000

Price

440.00 €

5

Blak 737 Hinge side panel
White painted/Transparent=500 x 2400

Product code

737 61 0000

Price

378.00 €

6

Bläk 735 Upper window
White painted/Transparent=1000 x 400

Product code

735 61 0000

Price

231.00 €

7

Bläk 710 Broad ceiling list
White painted/=10 x 2000

Product code

778 6L 0000

Price

0.00 €

8

Blak 727,728,729 Installation instructions
/=

Product code

8/25 6BRLM

Price

0.00 €

9

Maintenance manual Maintenance guide
/=

Product code

059 RL MMMM

Price

0.00 €

10

Tokyo -frame

Product code

702 6L 0000

Price

63.00 €

11

Magnet locking

Product code

726 RL MMMM

Price

0.00 €

12

Tokyo -frame

Product code

702 6L 0000

Price

63.00 €

13

Tokyo -frame

Product code

702 6L 0000

Price

63.00 €

14

Tokyo -frame

Product code

702 6L 0000

Price

63.00 €

15

Tokyo -frame

Product code

702 6L 0000

Price

63.00 €

16

BLÄK SERIES 01.08-30.11.2024 -20%

Product code

DISCOUNT

Price

-436.40 €

17

TOTAL

Product code

Price

1745.60 €

The selected product can be installed into the opening the total width L1 of which is 2000mm and the total length L2 2400mm.:
