Bläk 807 Shanghai

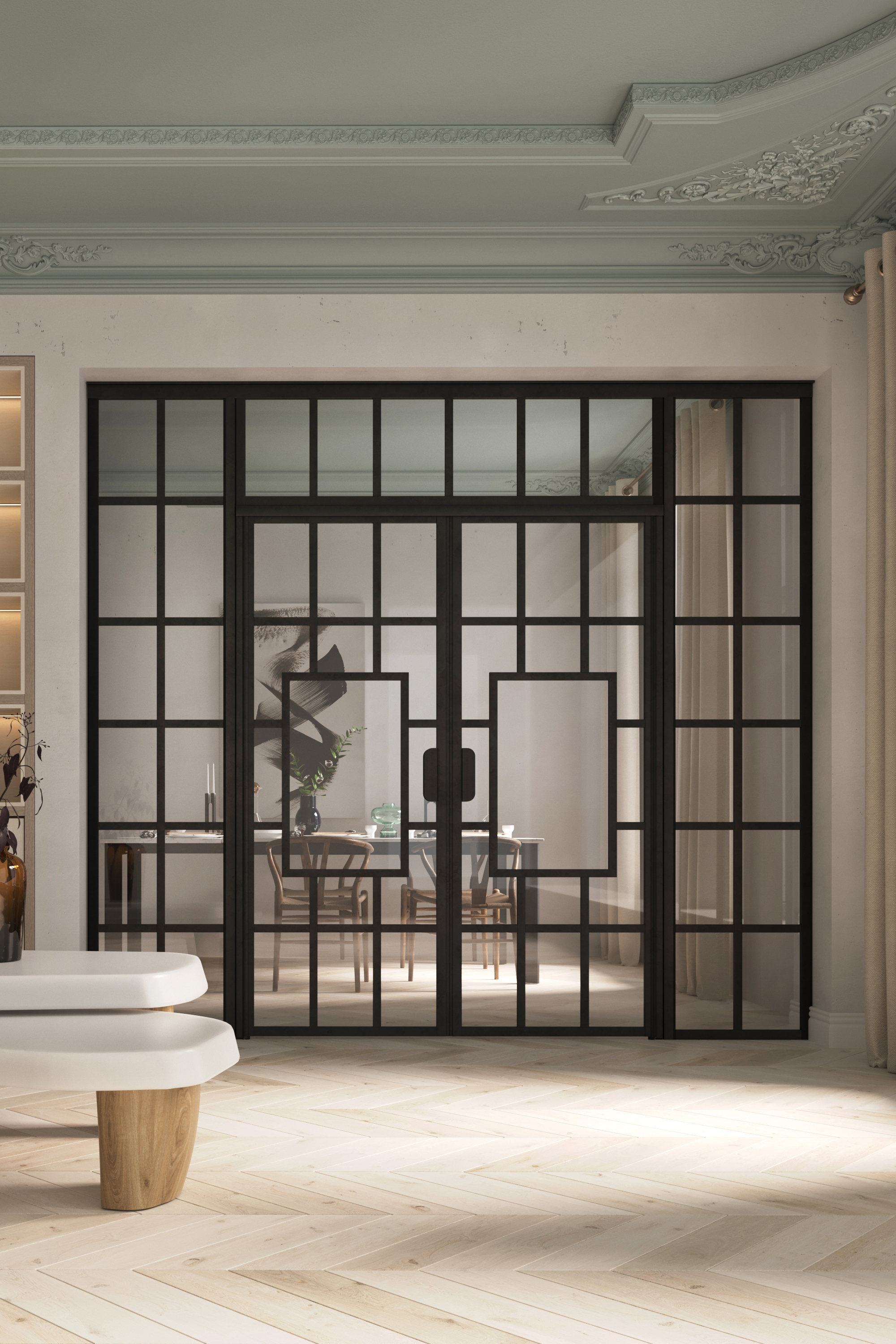

Glass wall with fixed panels on hinge side, a double door and upper window
The glass wall configuration consists of two fixed walls with hinged doors and an upper window.
Doors open 90 degrees to the outside and are equipped with an adjustable centring. The function of the centering is to return the door to the open and closed positions.
The wall panels are mounted to the building wall on each side of the enclosure using wall mounting profiles and floor fitting profiles. The door panels are attached to the wall fixed panels from both sides. The panels and the upper window are secured with self-drilling screws. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.
20 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.
The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).
Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 14mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. Door opening is 108mm smaller than indicated total door measure .

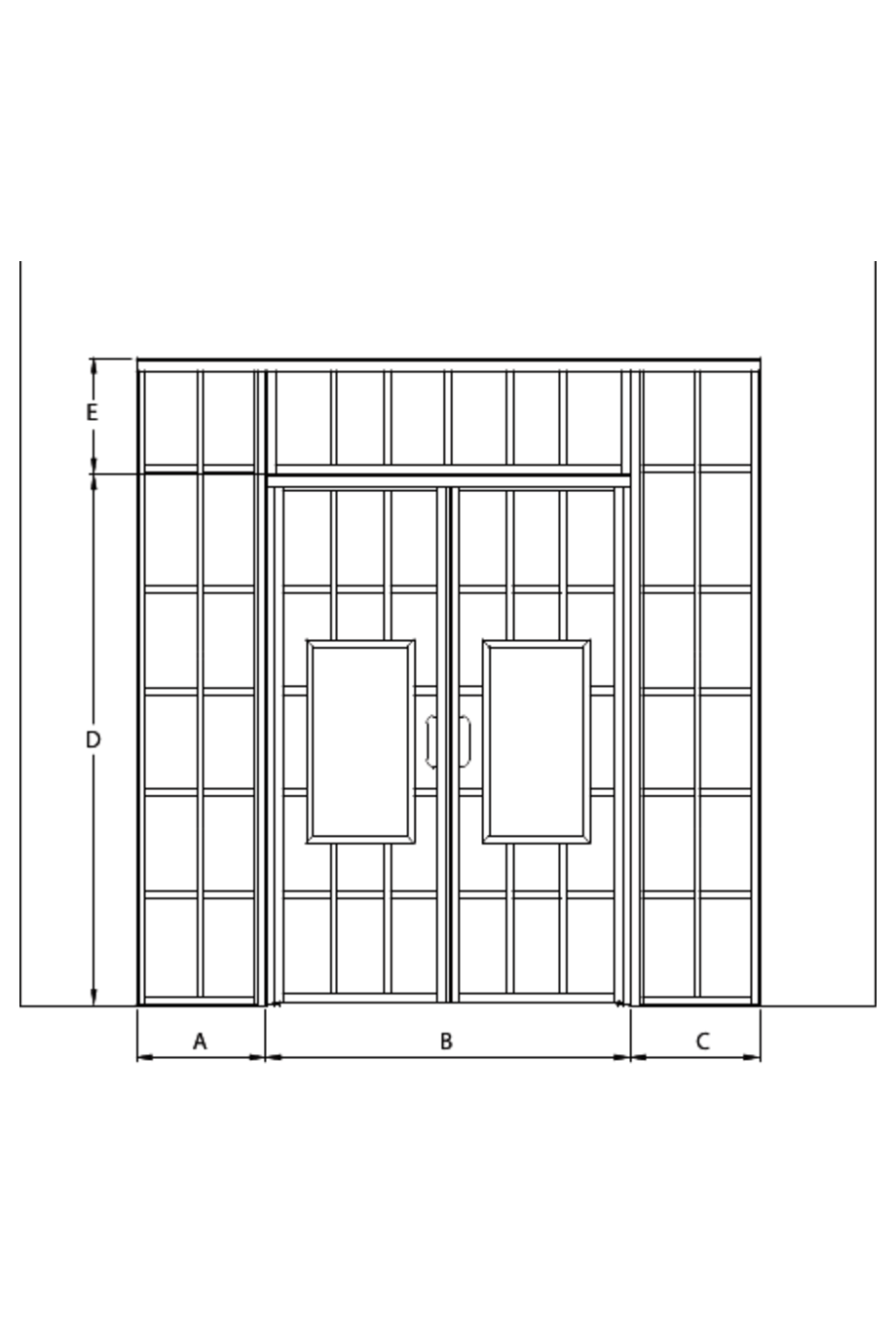

Product size
The selected product can be installed into the opening the total width L1 of which is 2000mm and the total length L2 2400mm.:
Product
Product code
Price
1
Bläk 807 Shanghai
Product code
807-61-0000
Price
0.00 €
2
Blak 737 Hinge side panel
White painted/Transparent=500 x 2400
Product code
737 61 0000
Price
378.00 €
3
Blak 736 Door
White painted/Transparent=488 x 2000
Product code
736 61 0000
Price
440.00 €
4
Blak 736 Door
White painted/Transparent=488 x 2000
Product code
736 61 0000
Price
440.00 €
5
Blak 737 Hinge side panel
White painted/Transparent=500 x 2400
Product code
737 61 0000
Price
378.00 €
6
Bläk 735 Upper window
White painted/Transparent=1000 x 400
Product code
735 61 0000
Price
231.00 €
7
Bläk 710 Broad ceiling list
/=10 x 2000
Product code
710 RL 0000
Price
0.00 €
8
Blak 727,728,729 Installation instructions
/=
Product code
8/25 6BRLM
Price
0.00 €
9
Maintenance manual Maintenance guide
/=
Product code
059 RL MMMM
Price
0.00 €
10
Paris-frame
Product code
703 6L 0000
Price
126.00 €
11
Magnet locking
Product code
726 RL MMMM
Price
0.00 €
12
Shanghai-frame
Product code
741 6L 0000
Price
734.00 €
13
Shanghai-frame
Product code
741 6L 0000
Price
734.00 €
14
Paris-frame
Product code
703 6L 0000
Price
126.00 €
15
Paris-frame
Product code
703 6L 0000
Price
126.00 €
16
BLÄK SERIES 01.08-30.11.2024 -20%
Product code
DISCOUNT
Price
-742.60 €
17
TOTAL
Product code
Price
2970.40 €
The selected product can be installed into the opening the total width L1 of which is 2000mm and the total length L2 2400mm.:
| EAN: | 6418379000325 |
|---|
