Bläk 928 Paris

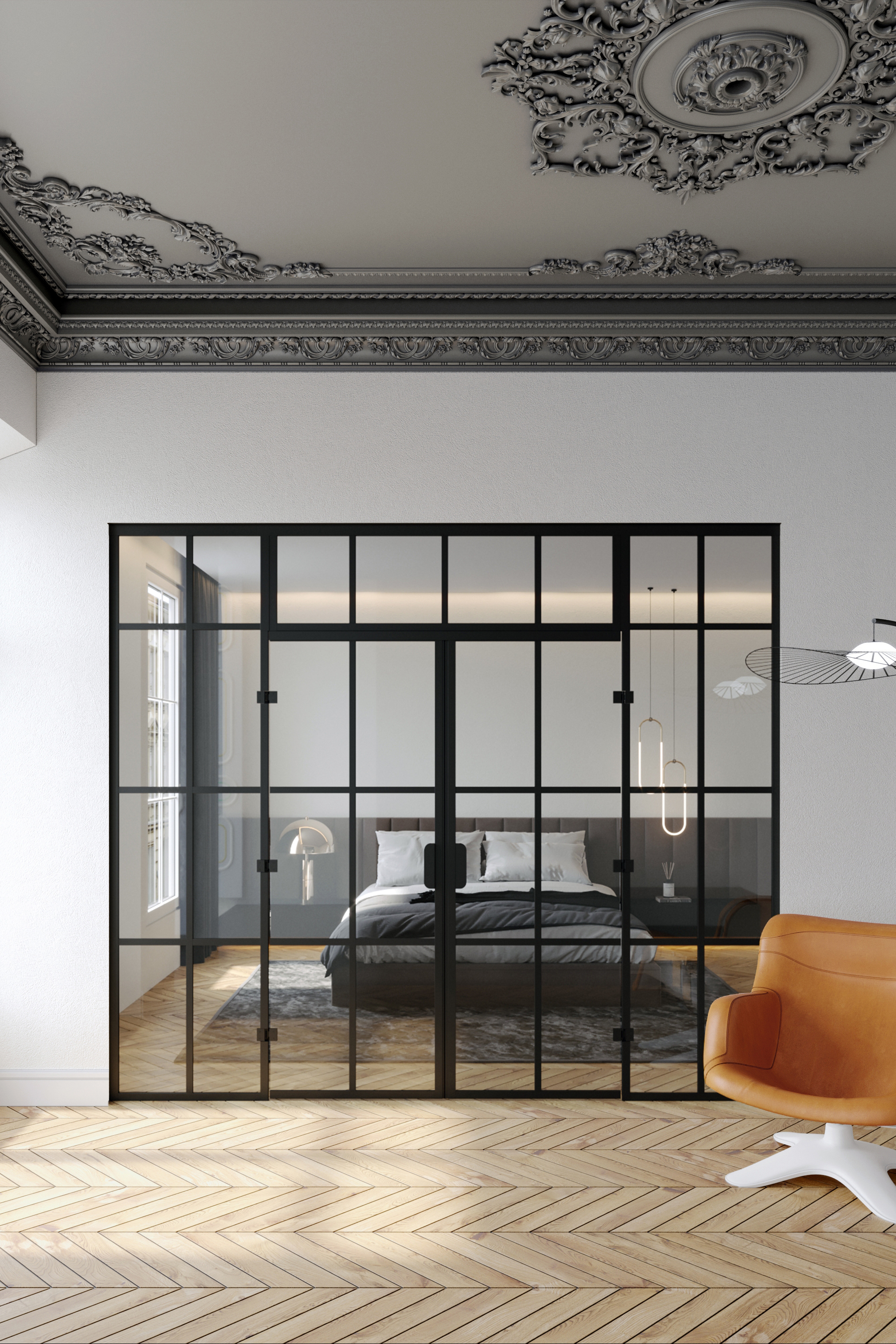

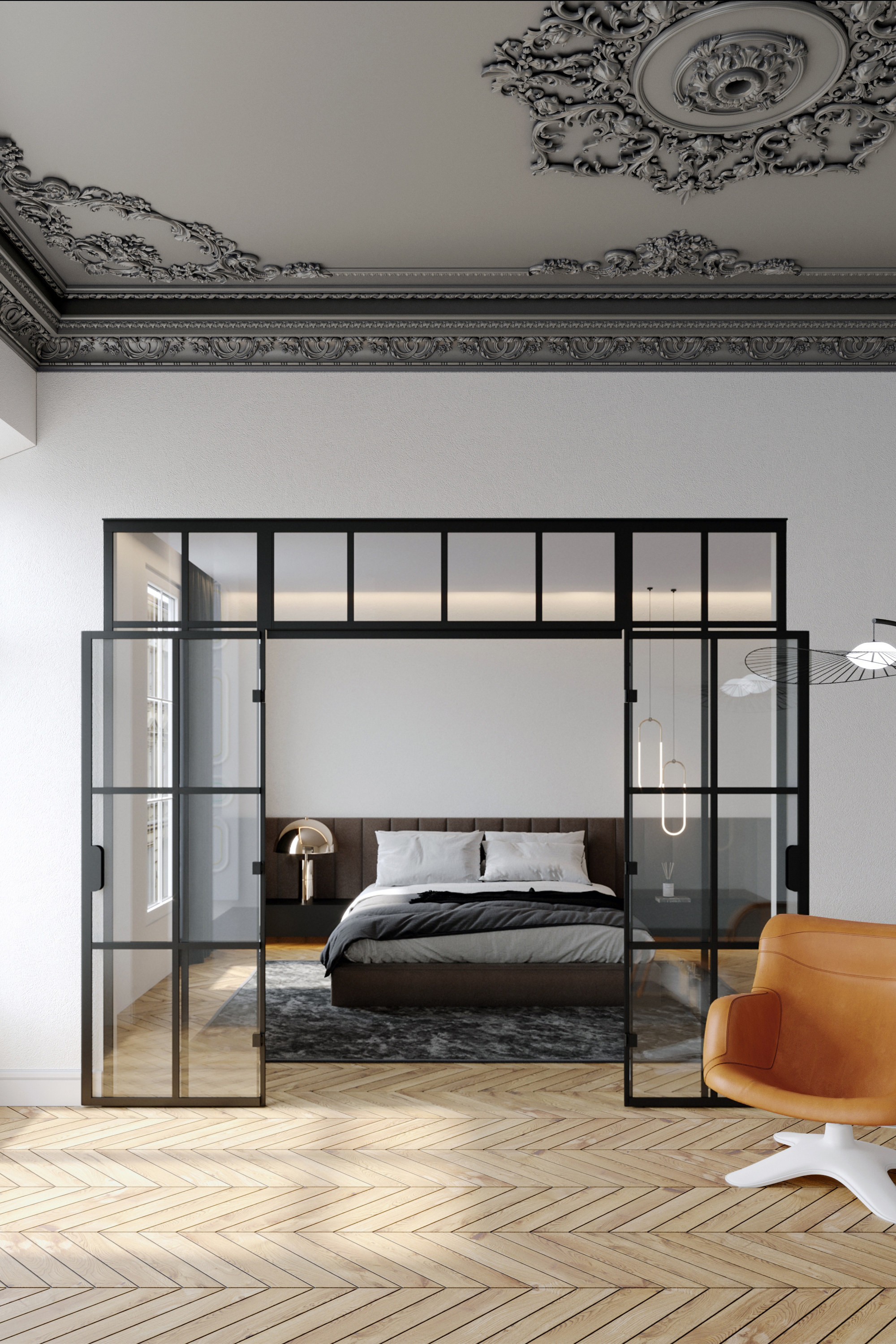

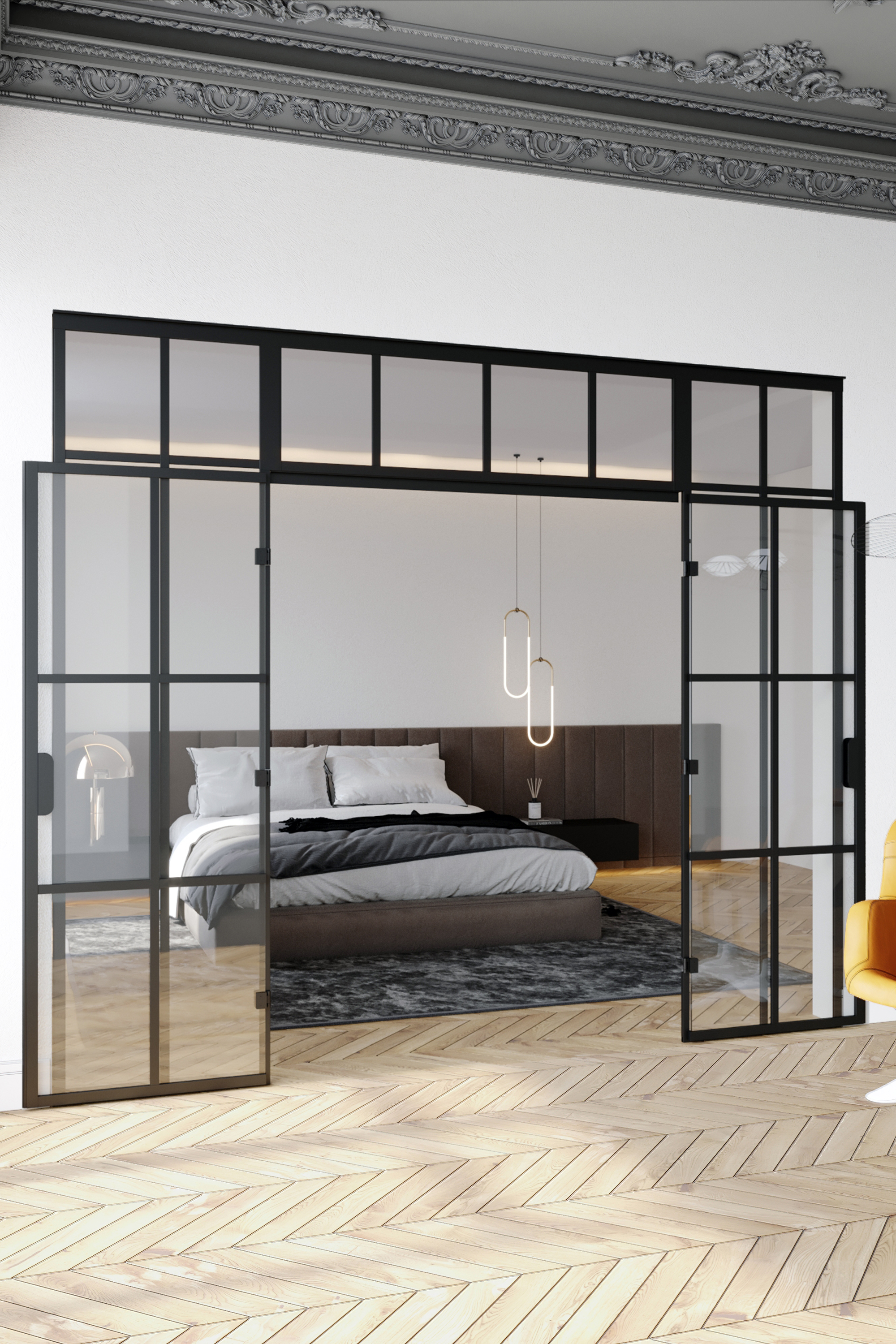

Glass wall with double door, fixed panels on 180 degree hinge sides and upper window
The glass wall configuration consists of two fixed walls with hinged doors and an upper window. Doors open 180 degrees to the outside.
The wall panels are mounted to the building wall on each side of the enclosure using wall mounting profiles and floor fitting profiles.The door panels are attached to the wall fixed panels from both sides.The panels and the upper window are secured with self-drilling screws.Magnet seals are installed on each of the doorway panels to keep the door tightly closed.
21 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.
The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).
Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 14mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. Door opening is exactly the same as indicated in total door measure.
Product size

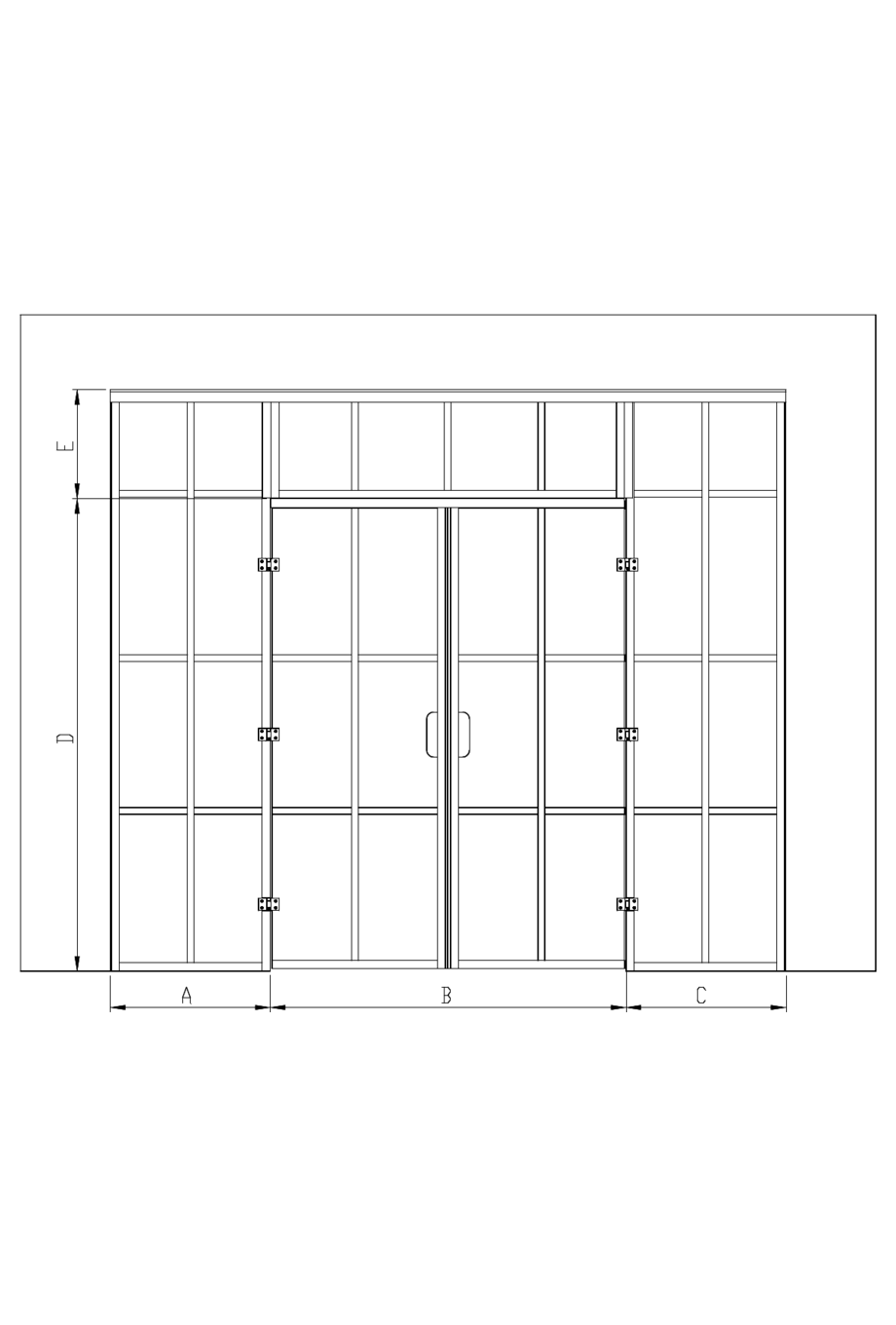

The selected product can be installed into the opening the total width L1 of which is 2199mm and the total length L2 2400mm.:
Product
Product code
Price
1
Bläk 928 Paris
Product code
928-61-0000
Price
0.00 €
2
Blak 737 Hinge side panel
White painted/Transparent=500 x 2400
Product code
037 61 0000
Price
629.00 €
3
Blak 736 Door
White painted/Transparent=621 x 2000
Product code
036 61 0000
Price
440.00 €
4
Blak 736 Door
White painted/Transparent=621 x 2000
Product code
036 61 0000
Price
440.00 €
5
Blak 737 Hinge side panel
White painted/Transparent=500 x 2400
Product code
037 61 0000
Price
629.00 €
6
Bläk 735 Upper window
White painted/Transparent=1197 x 400
Product code
U35 61 0000
Price
231.00 €
7
Blak full Blak full edge profile, middle part
White painted/=10 x 668
Product code
03A 6L 0000
Price
0.00 €
8
Blak full Blak full edge profile, top part
White painted/=10 x 642
Product code
03B 6L 0000
Price
0.00 €
9
Blak full Blak full edge profile, middle part
White painted/=10 x 668
Product code
03A 6L 0000
Price
0.00 €
10
Blak full Blak full edge profile, top part
White painted/=10 x 642
Product code
03B 6L 0000
Price
0.00 €
11
Paris-frame
Product code
703 6L 0000
Price
126.00 €
12
Paris-frame
Product code
703 6L 0000
Price
126.00 €
13
Paris-frame
Product code
703 6L 0000
Price
126.00 €
14
Paris-frame
Product code
703 6L 0000
Price
126.00 €
15
Paris-frame
Product code
703 6L 0000
Price
126.00 €
16
TOTAL
Product code
Price
2999.00 €
The selected product can be installed into the opening the total width L1 of which is 2199mm and the total length L2 2400mm.:
| EAN: | 6418379001506 |
|---|
