Bläk 995 New York
Glass wall with a fixed panel on hinge side

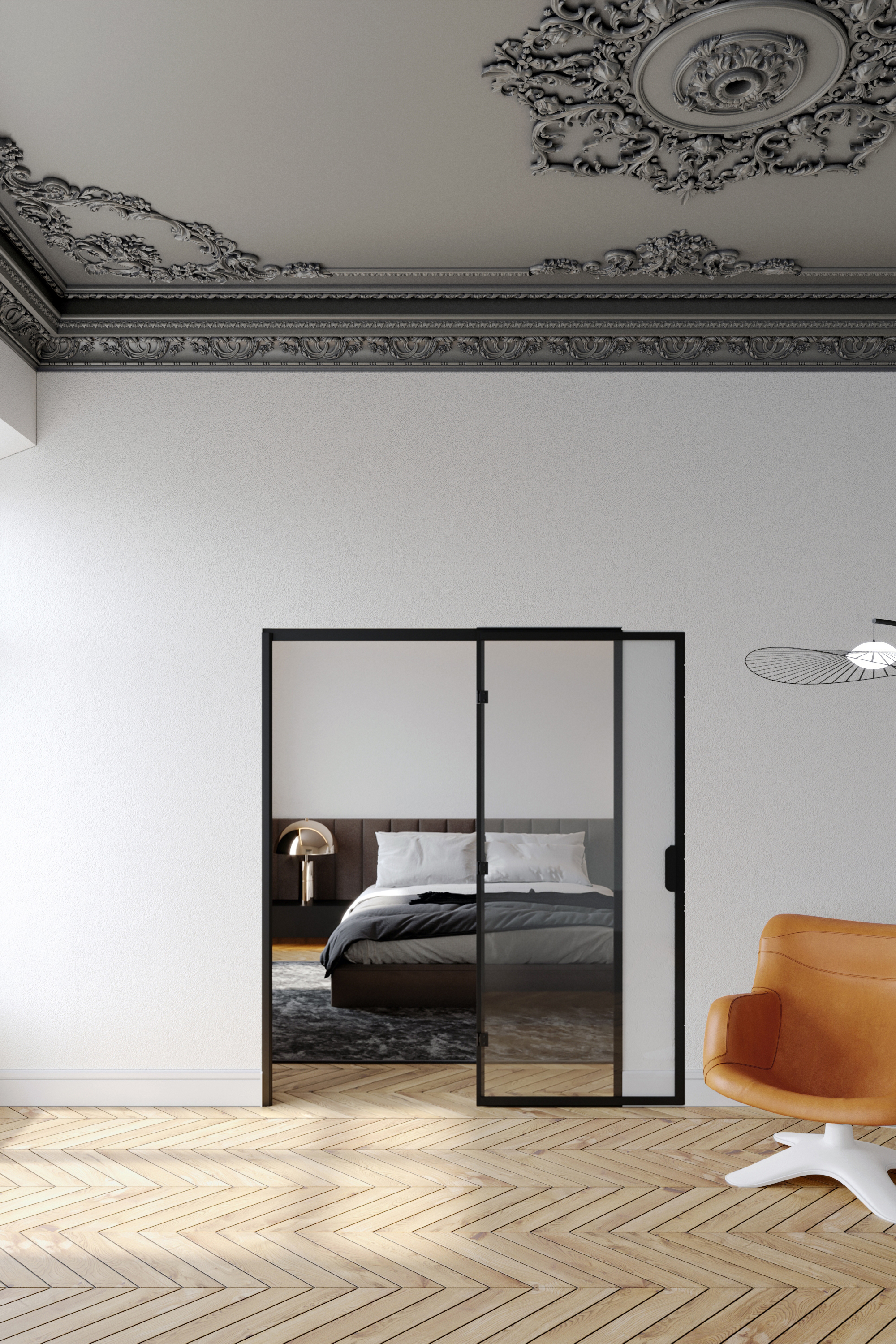

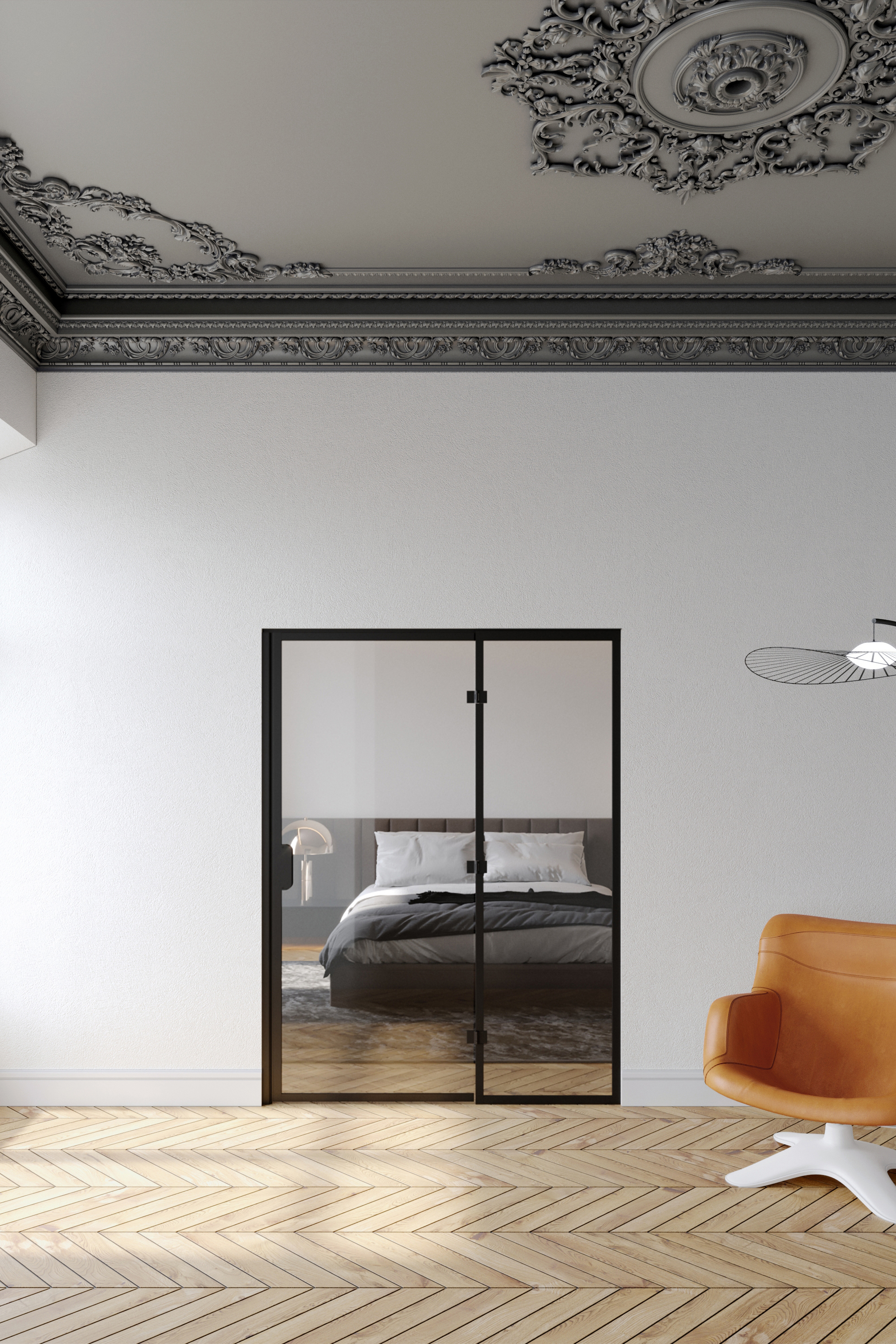

The glass wall configuration consists of a fixed panel with a hinged door.

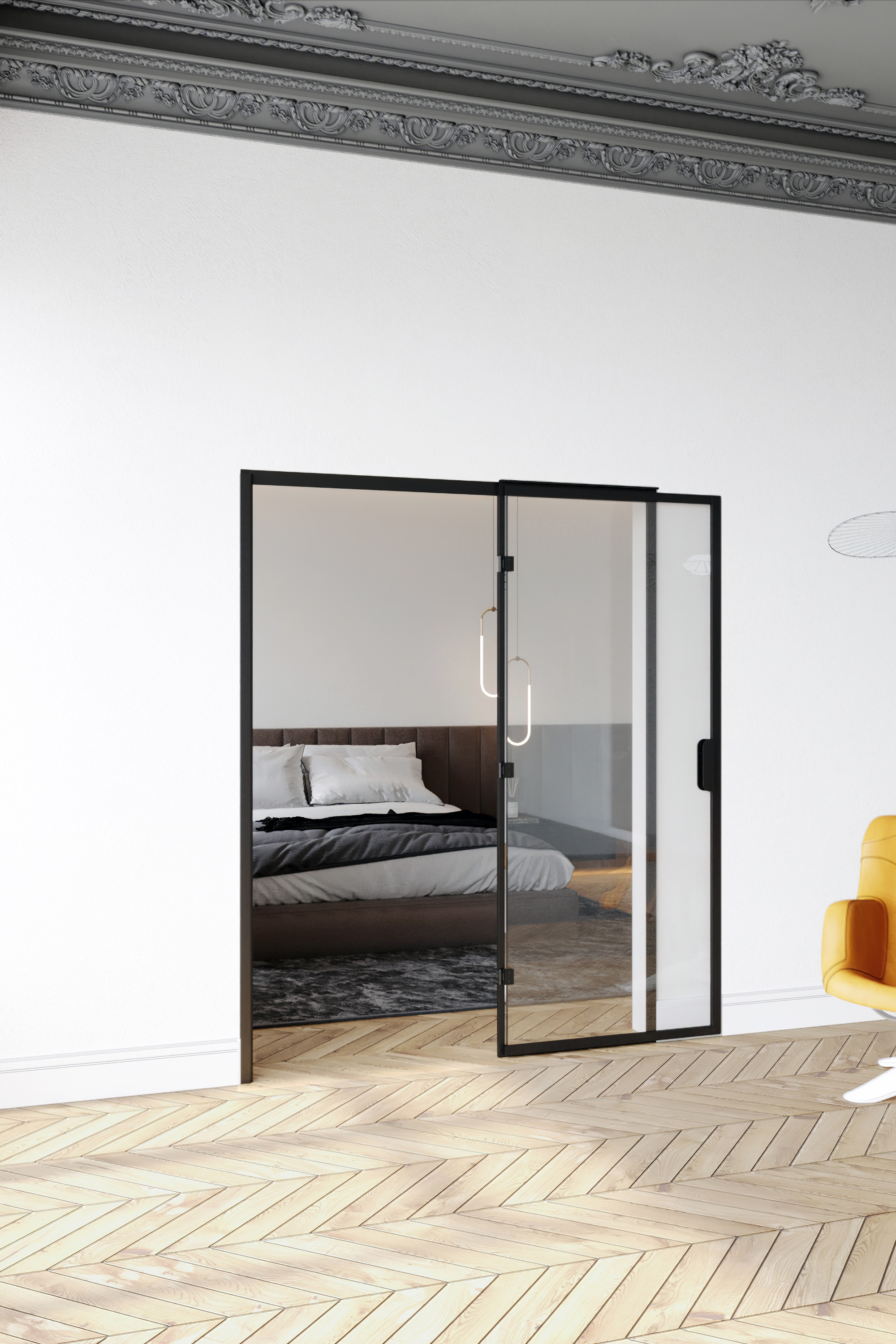

The door opens 180 degrees outside.
The fixed wall panel is attached to the building wall and floor the using wall mounting profile and floor fitting profile. The door panel is attached to the fixed panel. The panels are secured with self-drilling screws. The top of the glass wall is secured by a long profile, covering the top of the unit from one side, and a short profile, covering the fixed part on the side which the door opens to. Magnet seals are installed on both the door panel and the wall profile to keep door tightly closed. Installation guide
21 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 22mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. Door opening is 46 mm smaller than indicated total door measure.

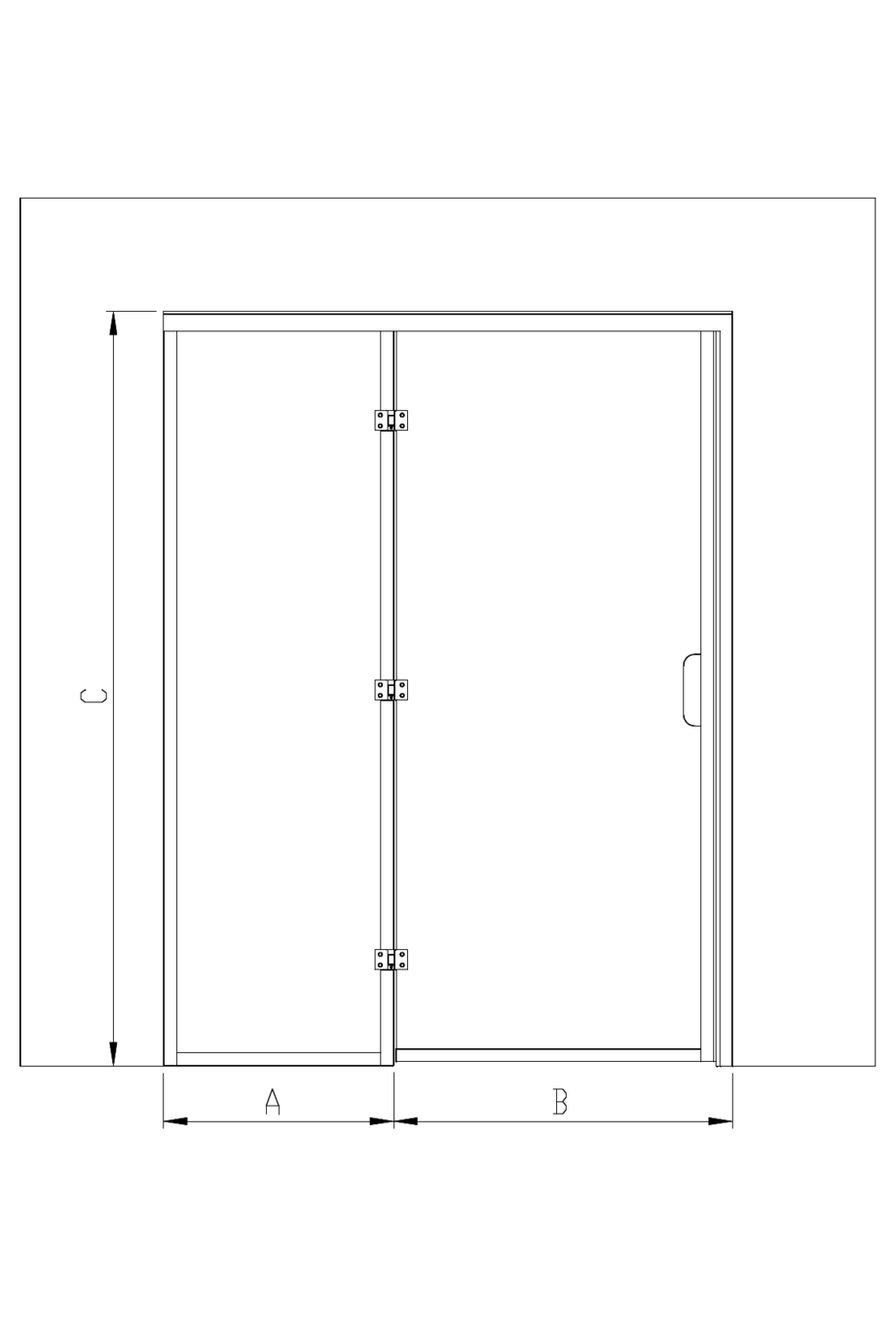

Product size
The selected product can be installed into the opening the total width of which is 1000mm and the total length 2000mm.:
Product
Product code
Price
1
Bläk 995 New York
Product code
995-61-00
Price
0.00 €
2
Bläk 734 Hingeside panel
White painted/Transparent=502 x 2000
Product code
U34 61 0000
Price
346.00 €
3
Bläk 734 Door
White painted/Transparent=482 x 1986
Product code
U34 61 1000
Price
440.00 €
4
Blak full Blak full edge profile, middle part
White painted/=668
Product code
03A 6L 0000
Price
0.00 €
5
TOTAL
Product code
Price
786.00 €
The selected product can be installed into the opening the total width of which is 1000mm and the total length 2000mm.:
