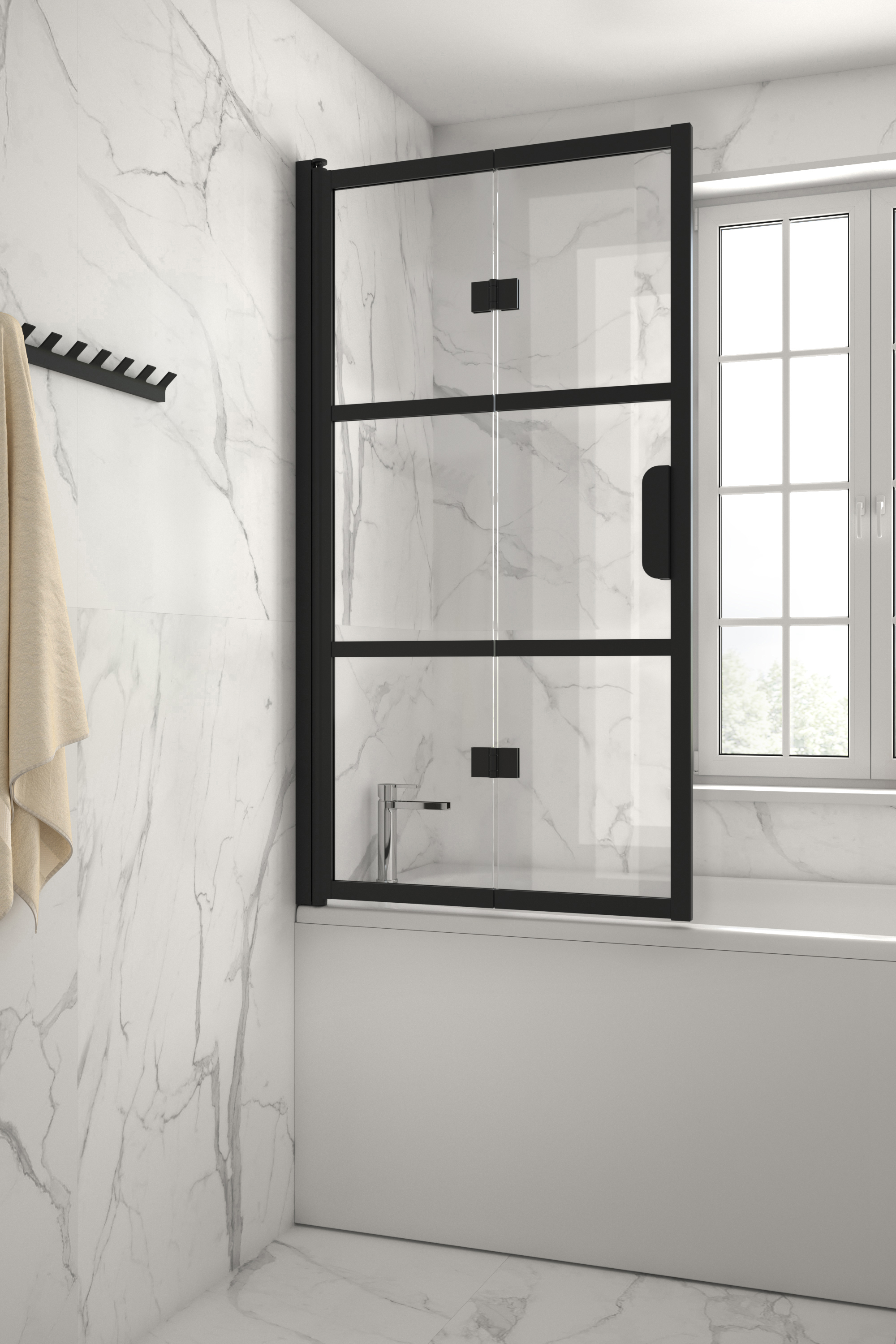

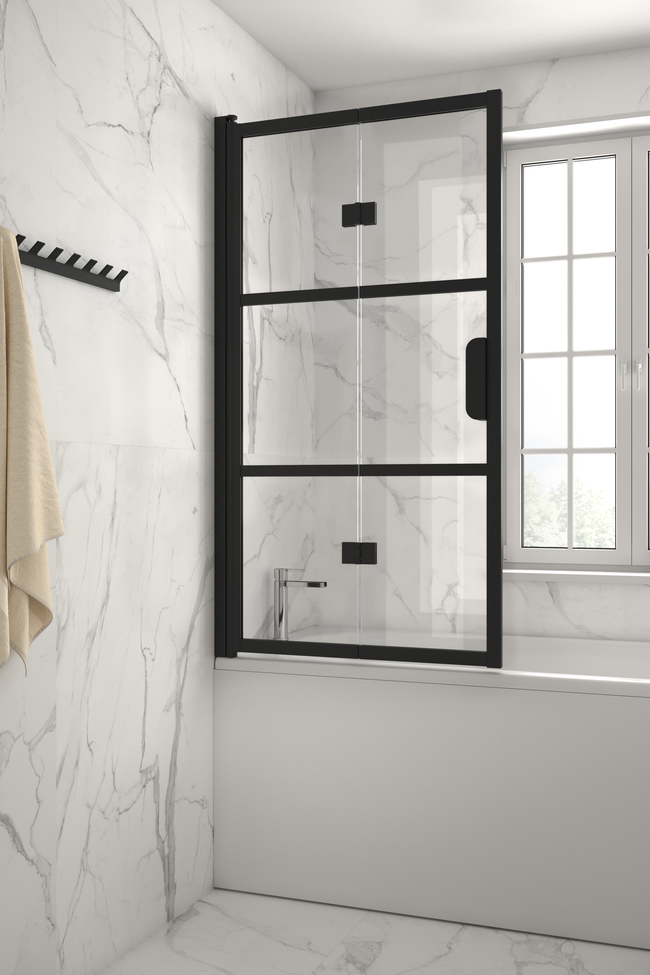

Bläk B3T Tokyo
Folding bath wall
The folding bath wall protects the space and the fixture next to the bathtub from splashing water. The bath wall can be folded into a small space against the wall of the building when needed.

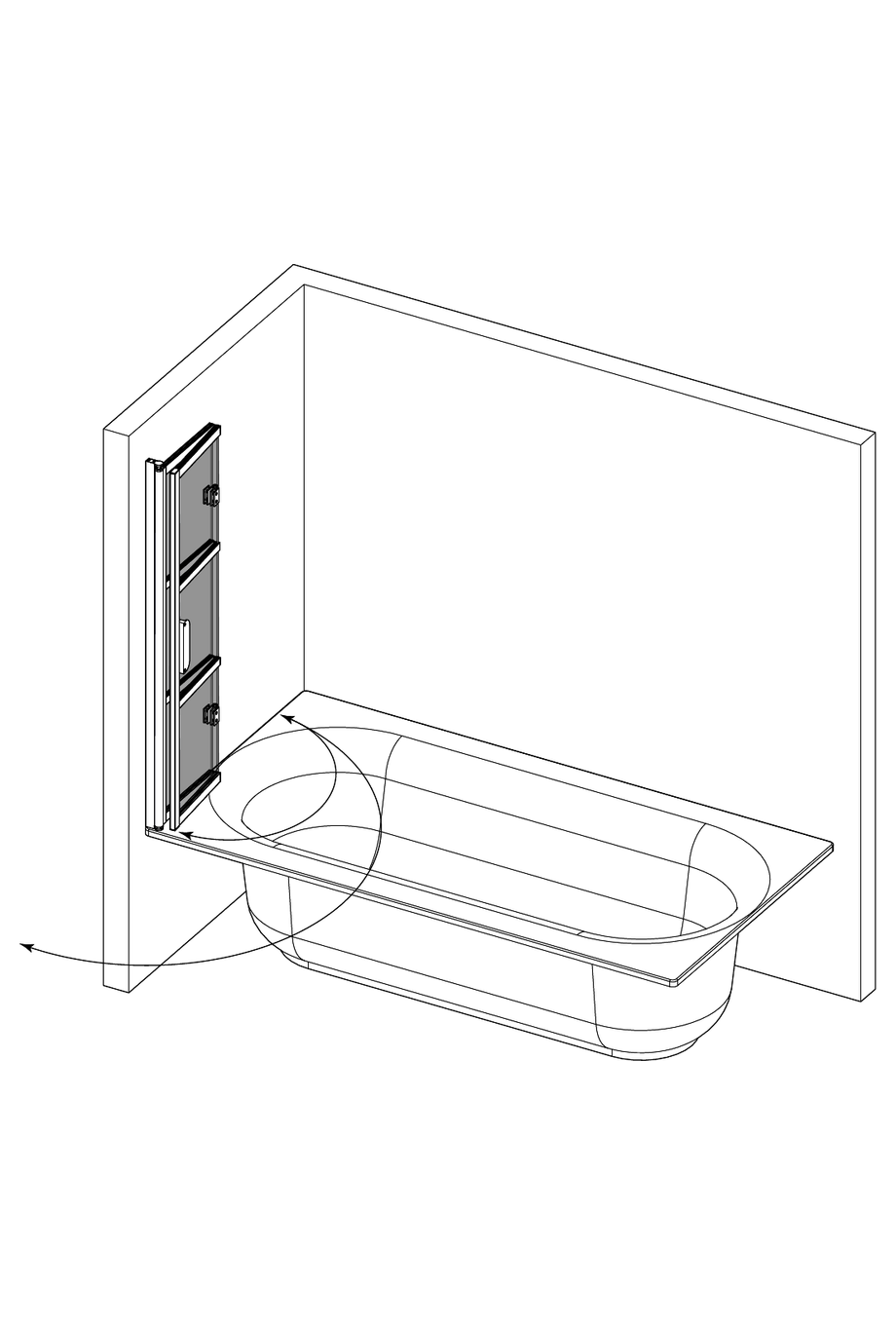

The bath wall turns in both directions and is equipped with adjustable centring. The centring attempts to return the bath wall back to the open and closed positions. In addition, the outermost panel rotates 180 degrees in terms to the inner panel, so that the panels fold against each other into the shower area.
The bath wall is mounted by screwing the mounting profile to the building wall and fastening the door panel to it with self drilling screws. The mounting height can be freely chosen. A 33 mm high door seal is delivered with the product by default, the seal can be cut to proper height when mounting it or left unused if chosen so. The mounting profile is 6 mm shorter than height on order. Installation guide
26 Working days
20 year warranty
The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.
The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the bath wall can be selected from the standard dimensions or it can be manufactured in custom dimensions. The wall mounting profiles have 15 mm of adjustment range. The adjustment range can be used for leveling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided dimensions.

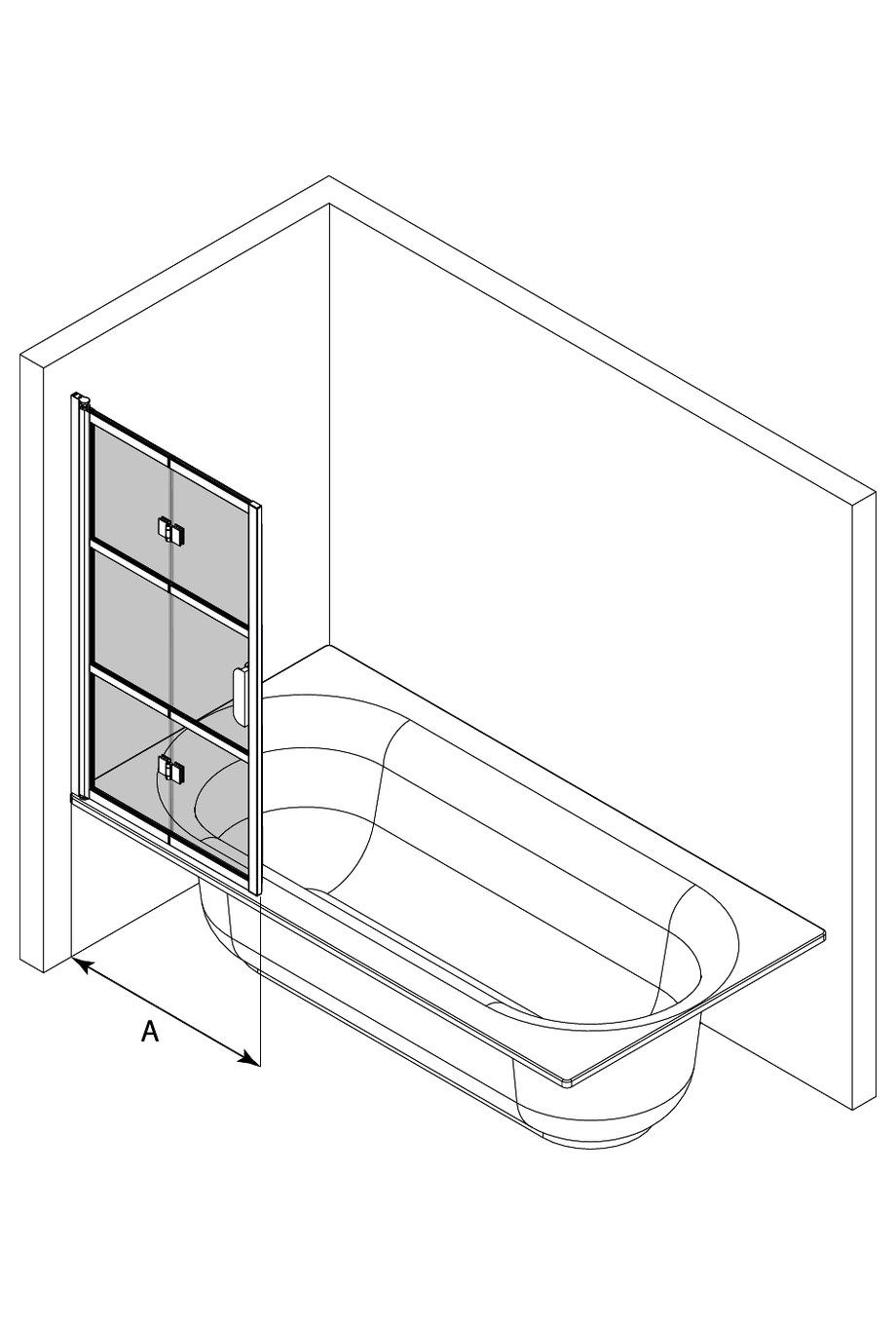

Product size
The total width of the selected product is:
- At its narrowest: 680mm
- At its widest: 695mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
![Image](/kuvapankki/2d/upload/120823.png)
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site.
Product
Product code
Price
1
Bläk B3T Tokyo
Product code
B3T-61-1
Price
0.00 €
2
Bläk B3N Folding shower screen
White painted/Transparent/A=680 x 1450
Product code
B3N 61 0070
Price
590.00 €
3
Cover seal
Product code
720 RL 0001
Price
0.00 €
4
Tokyo -frame
Product code
702 6L 0001
Price
60.00 €
5
CAMPAIGN DISCOUNT -24% 22.-31.8.
Product code
DISCOUNT
Price
-156.00 €
6
TOTAL
Product code
Price
494.00 €
The total width of the selected product is:
- At its narrowest: 680mm
- At its widest: 695mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
