Infinia 261 (213x215)
Shower enclosure with folding doors one of which has a fixed part
Shower enclosure consists of a folding door and a fixed wall with a hinged folding door. The product is well-suited for a shower corner where doors may not have the space to properly open to the outside and where space is also cramped on the inside of the shower area. Folding door does not require space for opening from outside of the shower area, but instead folds into the small space inside the shower area in the direction of the building wall. The fixed wall can be dimensioned according to the fixture (e.g. the mixer) inside the shower area, so that the door does not hit the fixture when being folded. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be positioned parallel to the walls of the building.
Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outermost panels turn in relation to the innermost panels so that the panels of the doors fold against each other to the internal side of the shower area. A pair of magnet handles keeps the doors tightly closed during showering.
Shower wall and door are attached to the walls of the building from the sides by means of wall mountedprofiles. The fixed wall is supported from the top edge by the brace bar installed in the corner and from the bottom corner by the fitting glued to the floor. There will be a 25mm gap between the panel and the floor of the fixed wall. A seal (standard part) may be installed between the panel and the floor in order to prevent water from flowing under the panel. Floor seals , which limit the flow of water, can be installed along the bottom edge of the door panel. Installation guide
17 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, grey and bright profiles have chrome plated fittings.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels Chinchilla and satin panel are not fully transparent, details cannot be made out through the panel. Chinchilla is textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the shower corner can be selected from among the standard sizes or it can be manufactured custom dimensions. The adjustment range of the wall mountedprofile of the fixed part is 20mm and that of the door, 15mm, respectively. The adjustment range can be used for levelling of any tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.
Product size

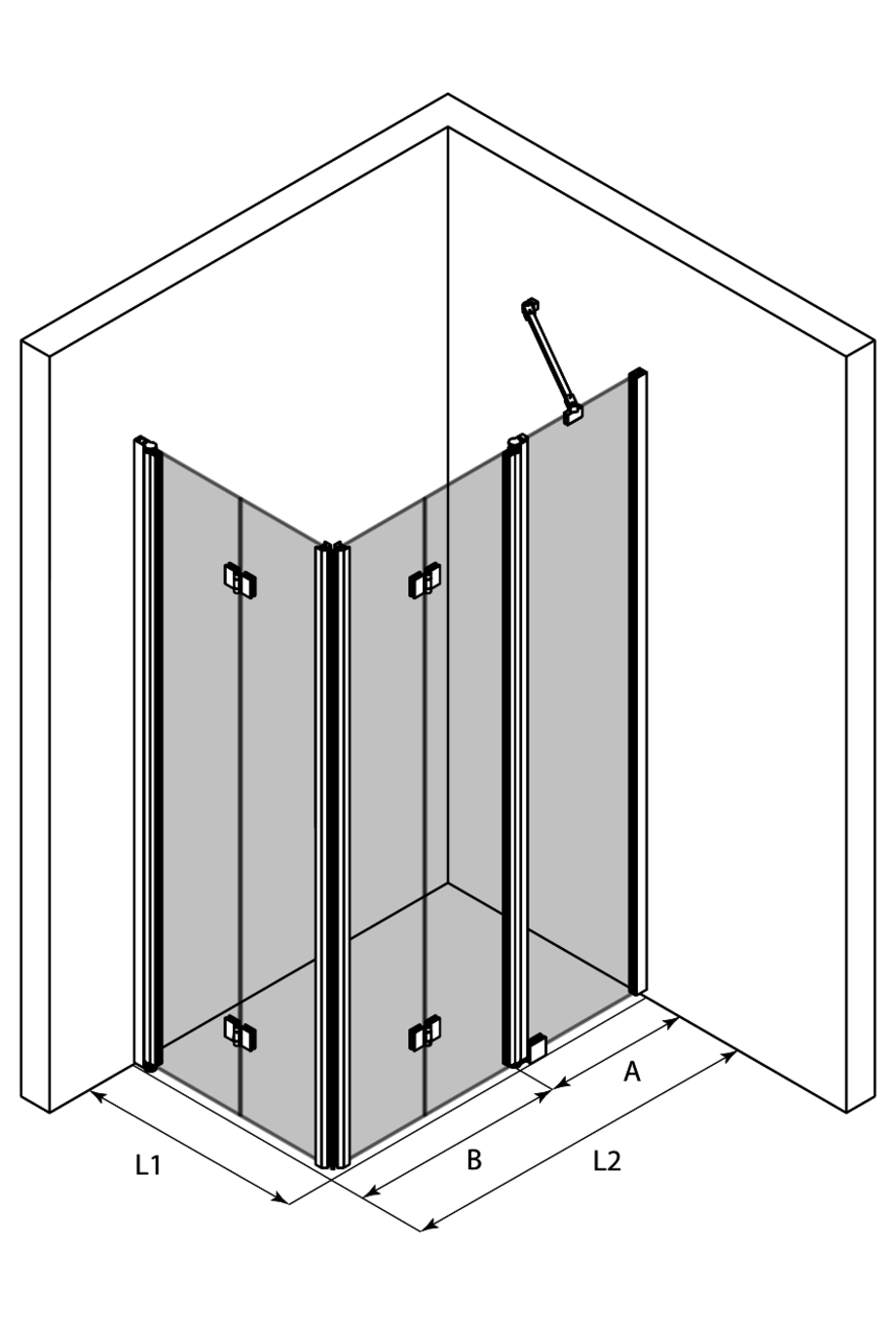

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 598mm - 613mm
- Side L2 : 753mm - 773mm

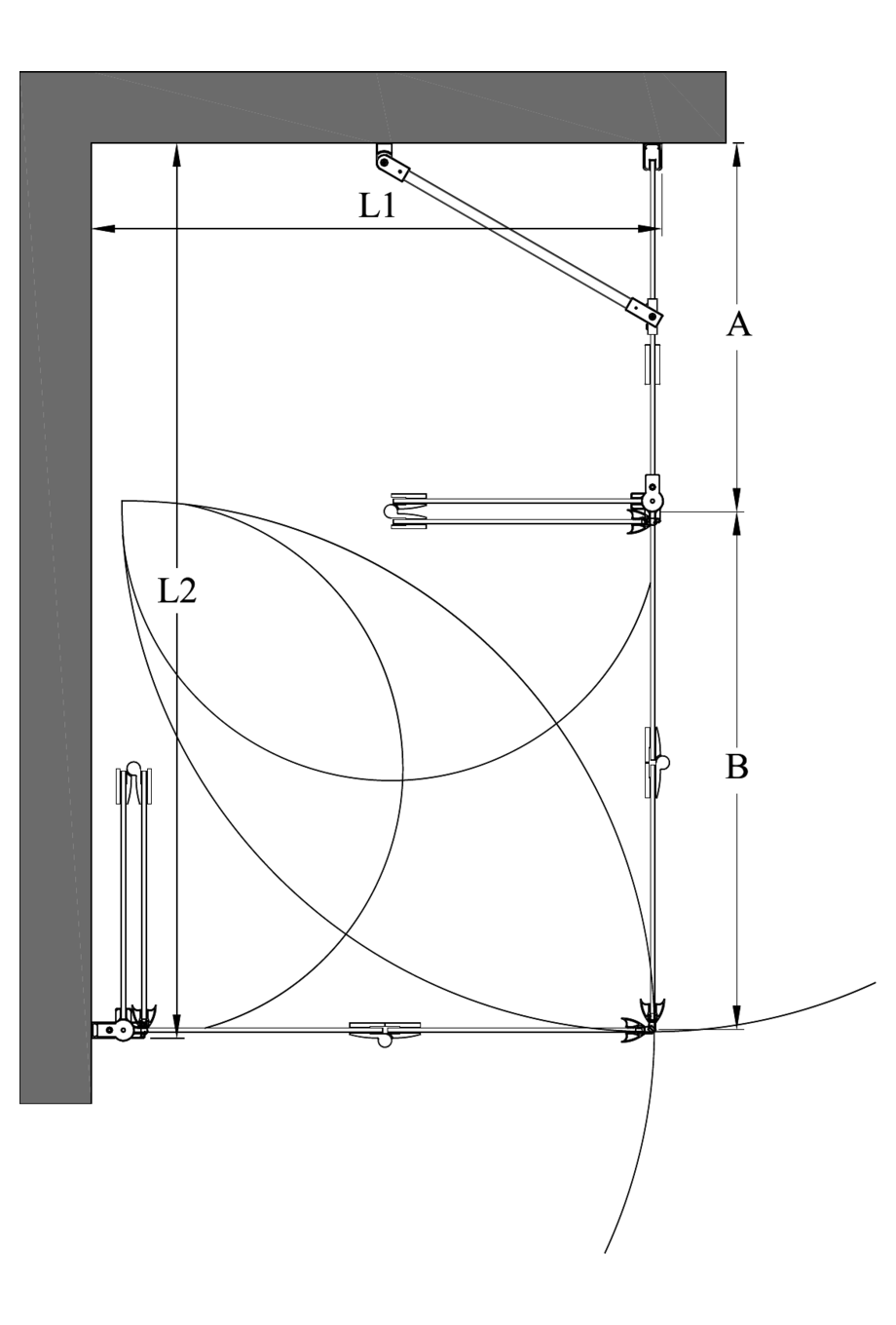

Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10mm and its width is 16mm. An extension step can be placed under the glass clamp to raise it by 10mm.
Product
Product code
Price
1
Infinia 261 (213x215)
Product code
261-61-111
Price
0.00 €
2
Infinia 213 Shower enclosure folding door
White painted/Transparent/L1=598 x 1900
Product code
213 61 0056
Price
493.00 €
3
Infinia 214/215/224/225 Shower enclosure fixed screen
White painted/Transparent/A=217 x 1900
Product code
214 61 0022
Price
367.00 €
4
Infinia 215 Shower enclosure folding door
White painted/Transparent/B=536 x 1900
Product code
215 61 1050
Price
493.00 €
5
Magnet handle
Product code
913 6L 0001
Price
42.00 €
6
Magnet handle
Product code
913 6L 1001
Price
42.00 €
7
TOTAL
Product code
Price
1437.00 €
Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 598mm - 613mm
- Side L2 : 753mm - 773mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
