Express 850 (813x813)
Shower enclosure with folding doors

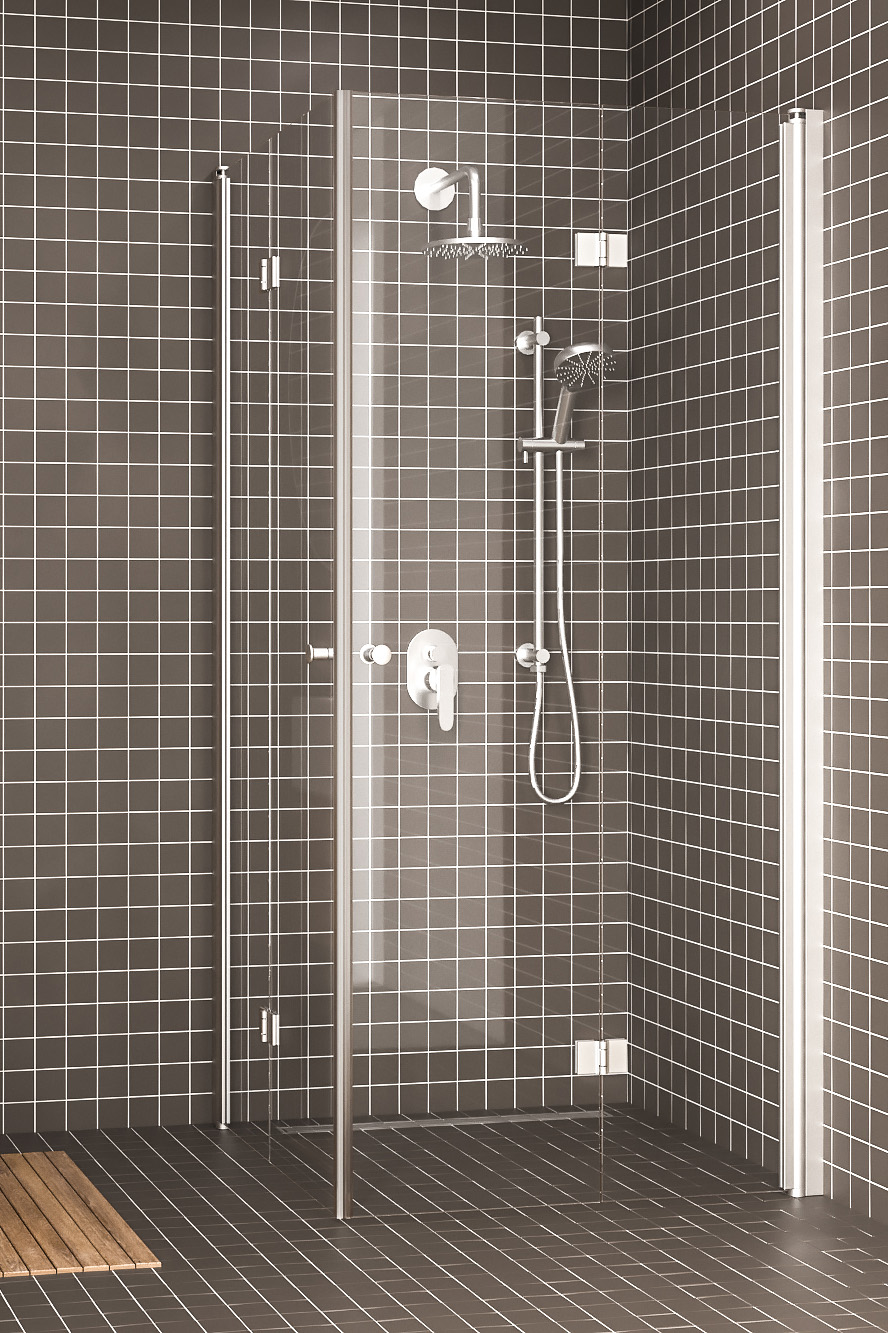

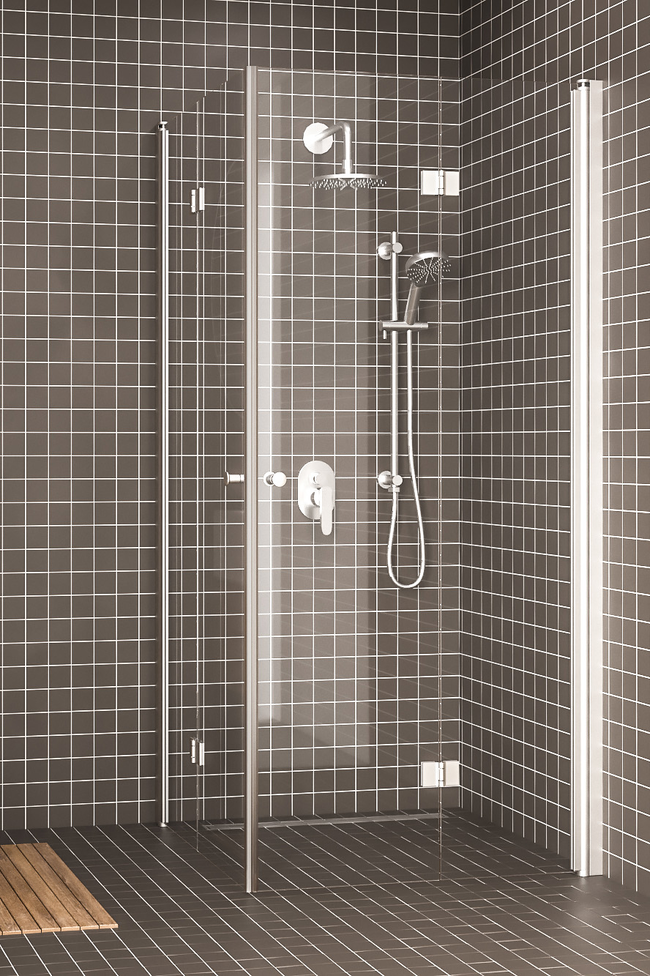

Shower enclosure consists of two folding doors. The product is well-suited for a shower corner where doors may not have the space to properly open outwards. The folding door does not require space for opening from outside the shower area; instead, the door folds inside the shower area, with the door panels folding into a small space against the wall of the building. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use the doors can be turned in against the building walls.
Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition, the outermost panels turn in relation to the innermost panels so that the panels of the doors fold against each other to the internal side of the shower area. A magnet seal keeps the door tightly closed during showering.
Doors are attached to the building walls by means of wall mountedprofiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel. Installation guide
27 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The surface is anodized in grey tones. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels
The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mounted profiles have an adjustment tolerance 15mm. The adjustment tolerance may be used for levelling the tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.
Product size

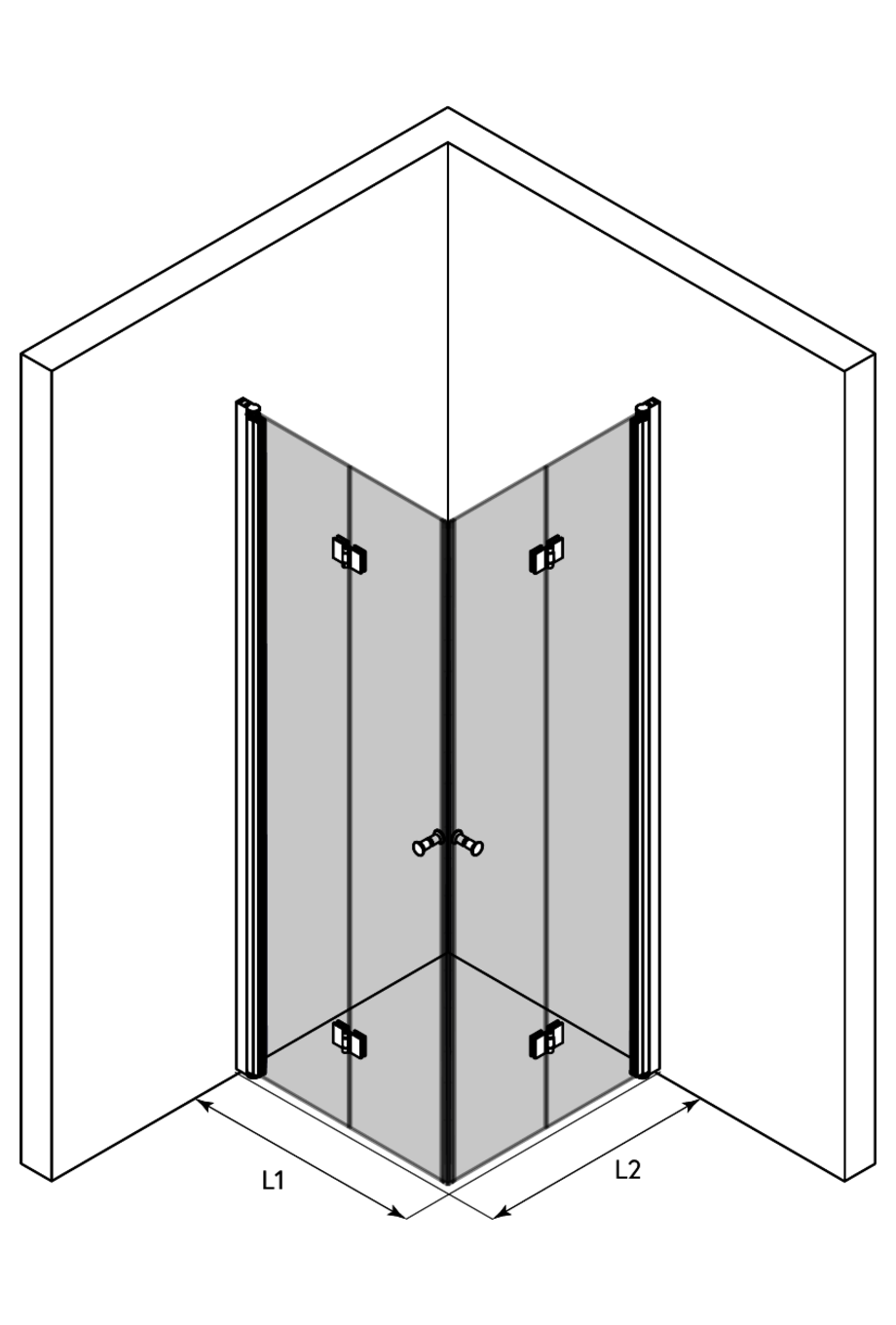

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 695mm - 710mm
- Side L2 : 695mm - 710mm

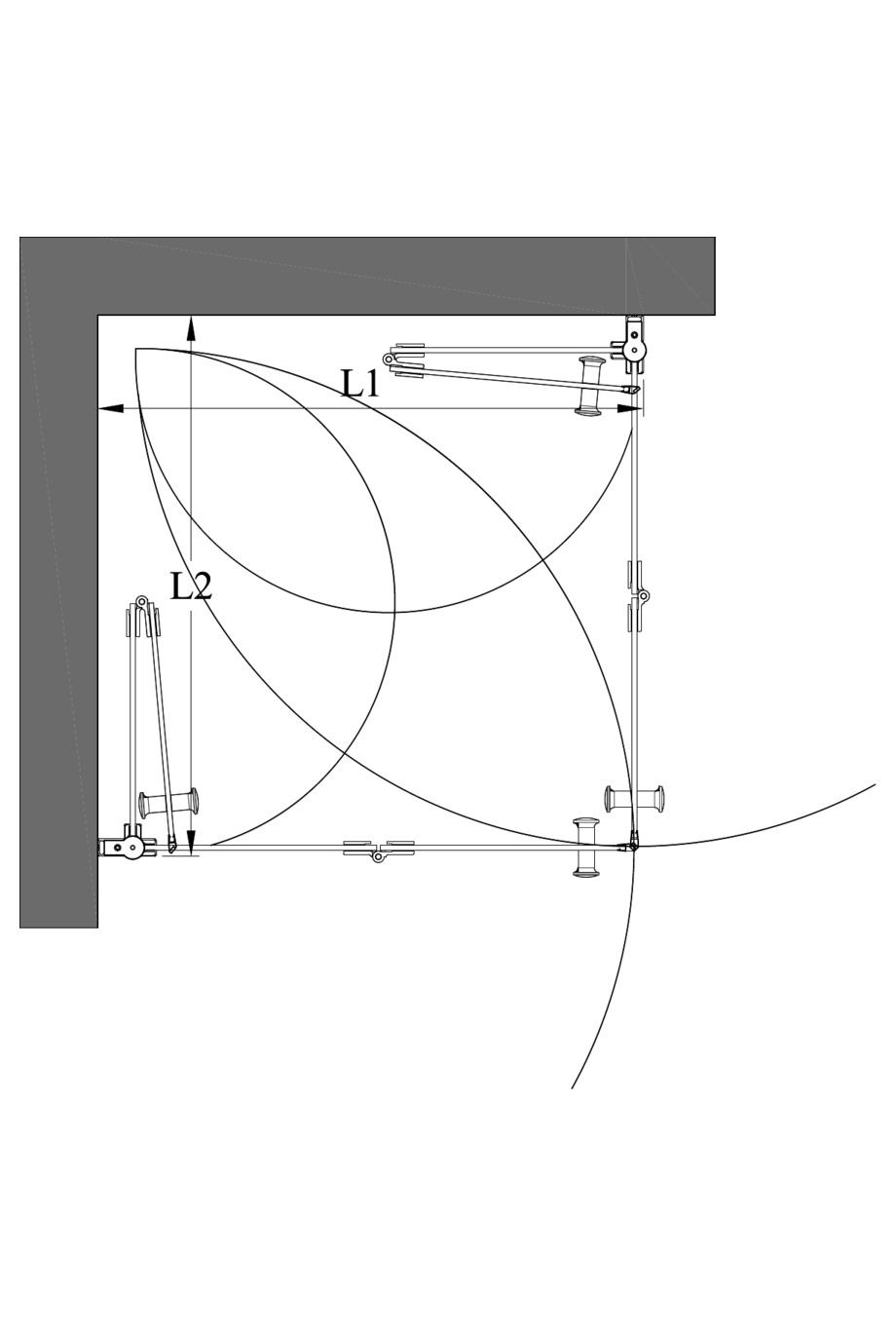

Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Express 850 (813x813)
Product code
850-81-22
Price
0.00 €
2
Express 813 Shower enclosure folding door
Grey anodized/Transparent/L1=695 x 1900
Product code
813 81 0067
Price
0.00 €
3
Express 813 Shower enclosure folding door
Grey anodized/Transparent/L2=695 x 1900
Product code
813 81 0067
Price
0.00 €
4
Magnet seal pair
Product code
900 RL 0002
Price
0.00 €
5
TOTAL
Product code
Price
0.00 €
Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 695mm - 710mm
- Side L2 : 695mm - 710mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
