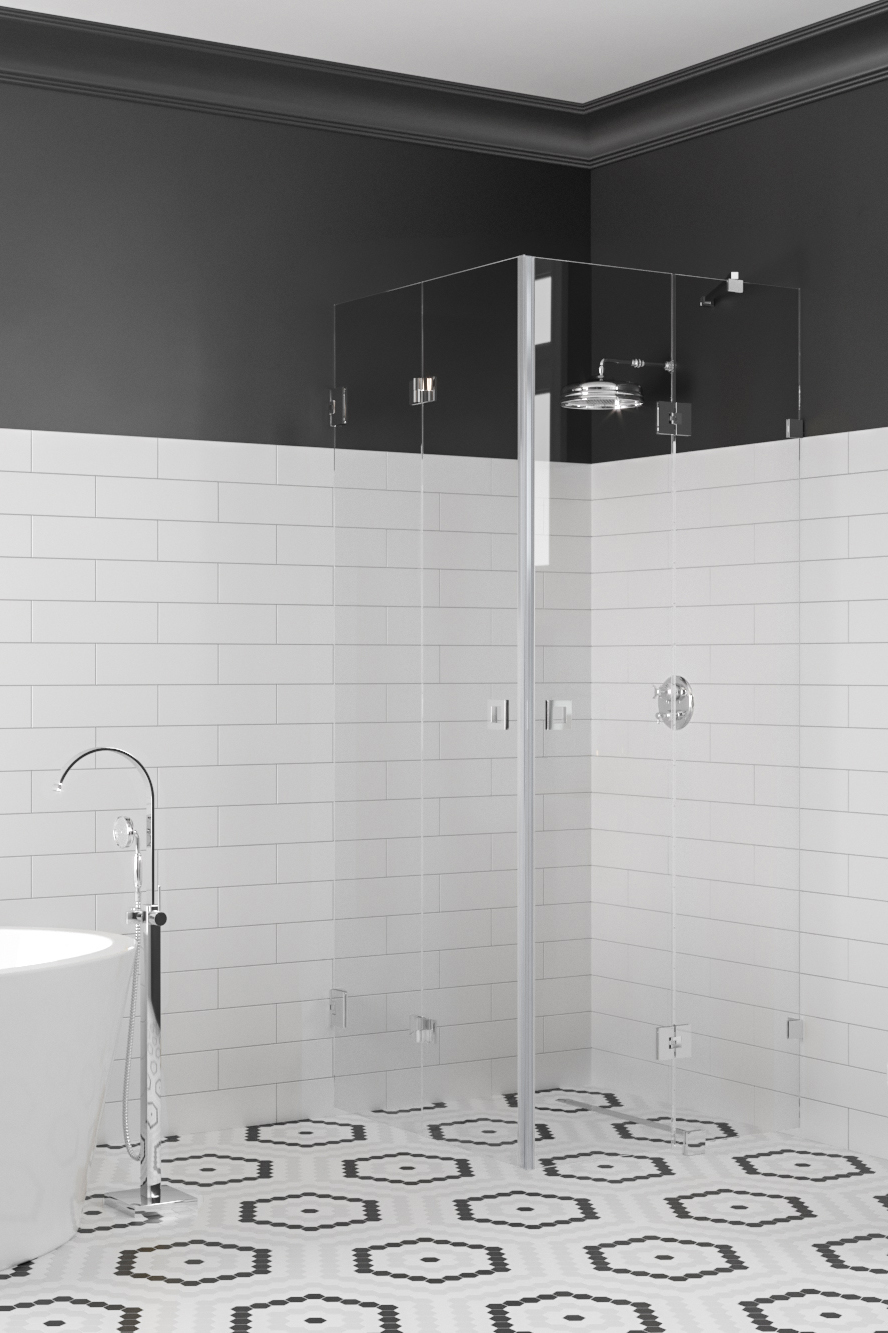

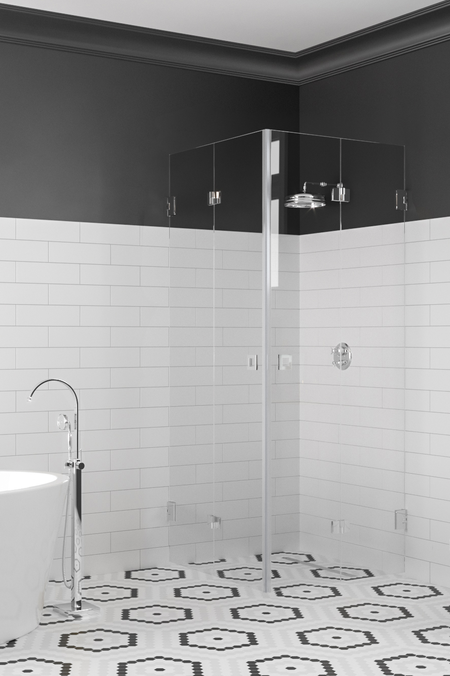

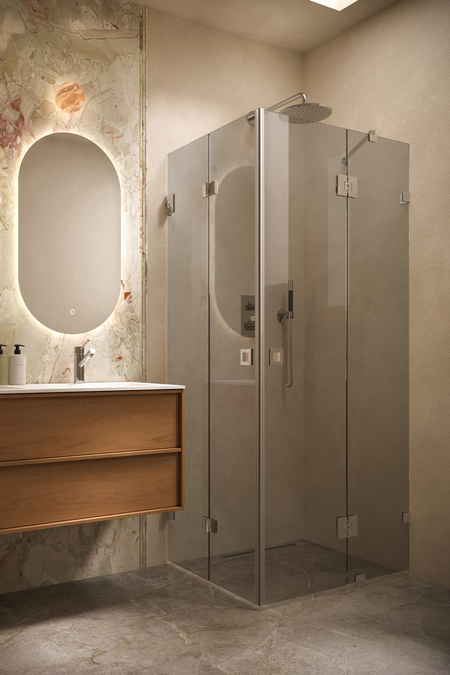

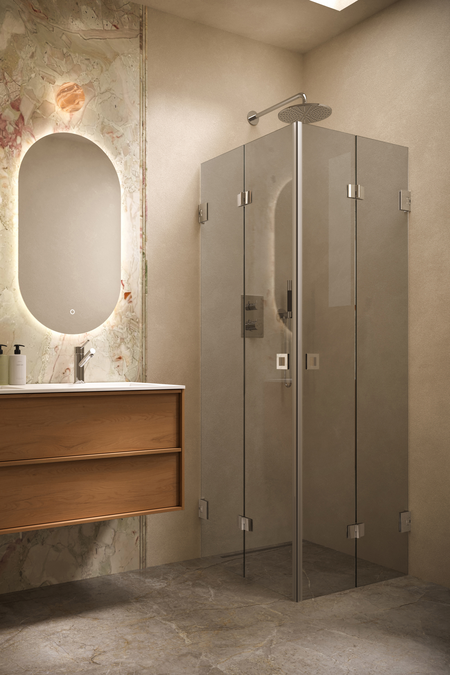

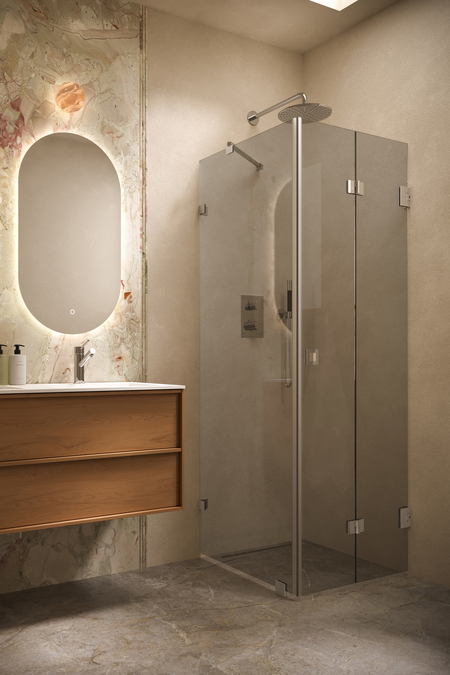

Shower enclosure with a folding door and a hinged door with a fixed part
Shower enclosure consists of a folding door and a fixed wall to which has been is hinged a hinged door. The product is well-suited for a shower corner next to which there are fixtures and where the doors may not have enough space to properly open to both sides. The folding door does not require space for opening in the outside of the shower area; instead, the door folds inside the shower area so that the door panels fold into a small space against the wall of the building. The fixed wall can be dimensioned according to the depth of the fixtures so that when opened, the door does not hit the fixture. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.
Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other inside of the shower area. A magnet seal keeps the door tightly closed during showering.
The fixed wall and the folding door are attached to the walls of the building from the sides by means of wall mountedfittings and hinges. The fixed wall is supported from the top edge by a brace installed in the corner and from the bottom edge by a fitting glued to the floor. Between the panel of the fixed wall and the floor will be a 25mm high gap. Between the panel and the floor may be installed a seal (standard part) in order to prevent water from passing through under the panel. Floor seals (standards equipment) can be installed at the bottom edges of the door panels, which will restrict the flow of water. Installation guide
18 Working days
20 year warranty

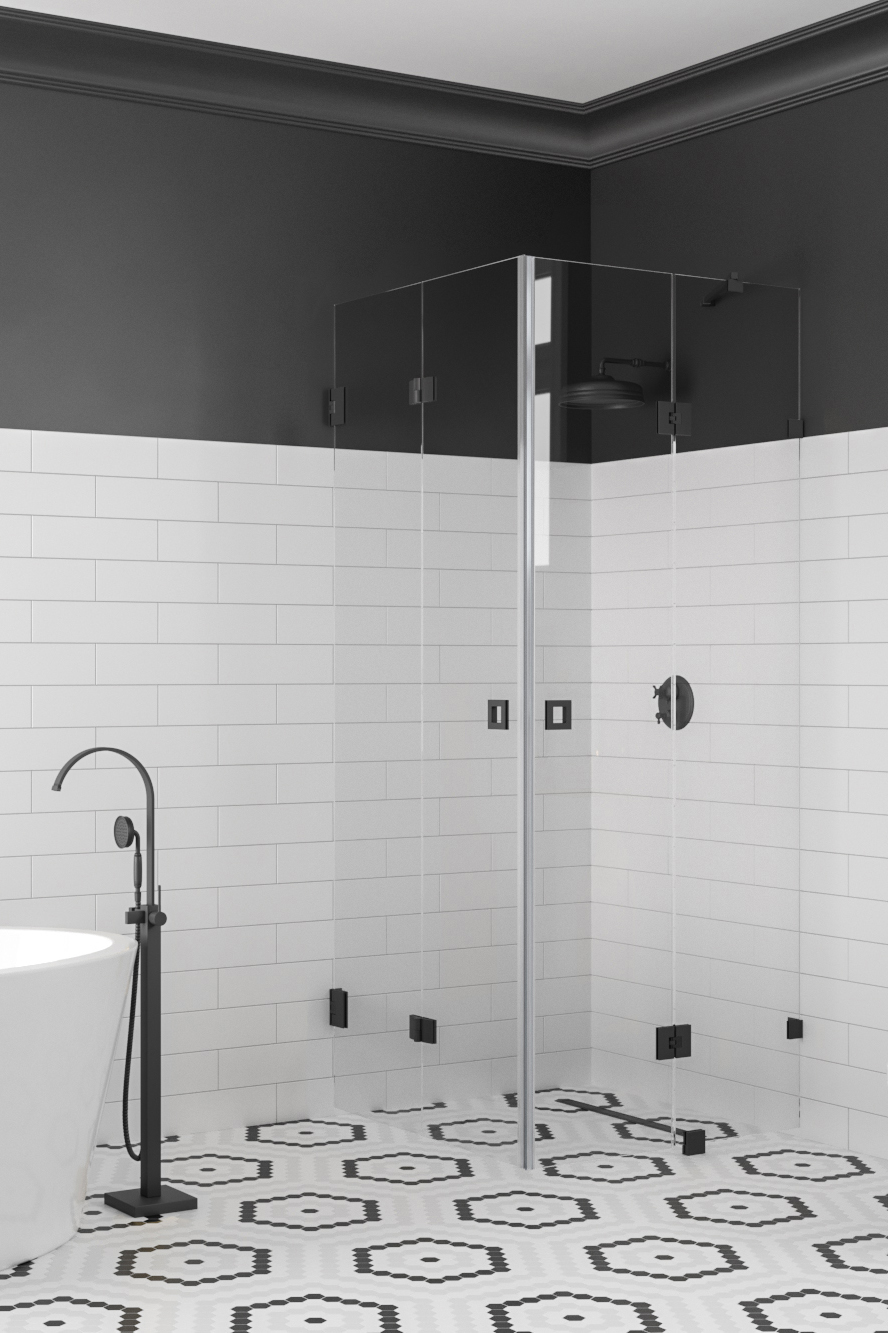

The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower enclosure can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size

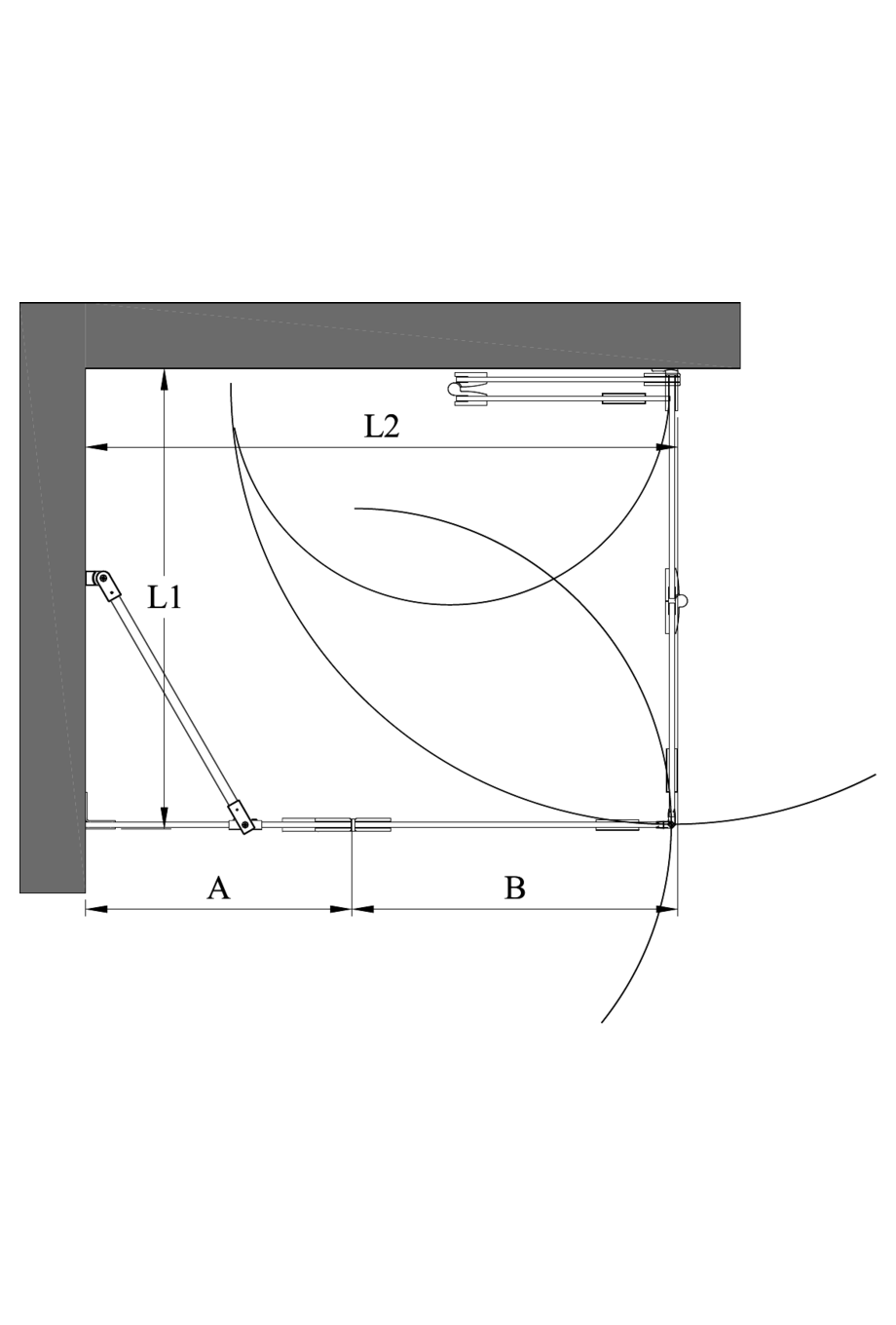

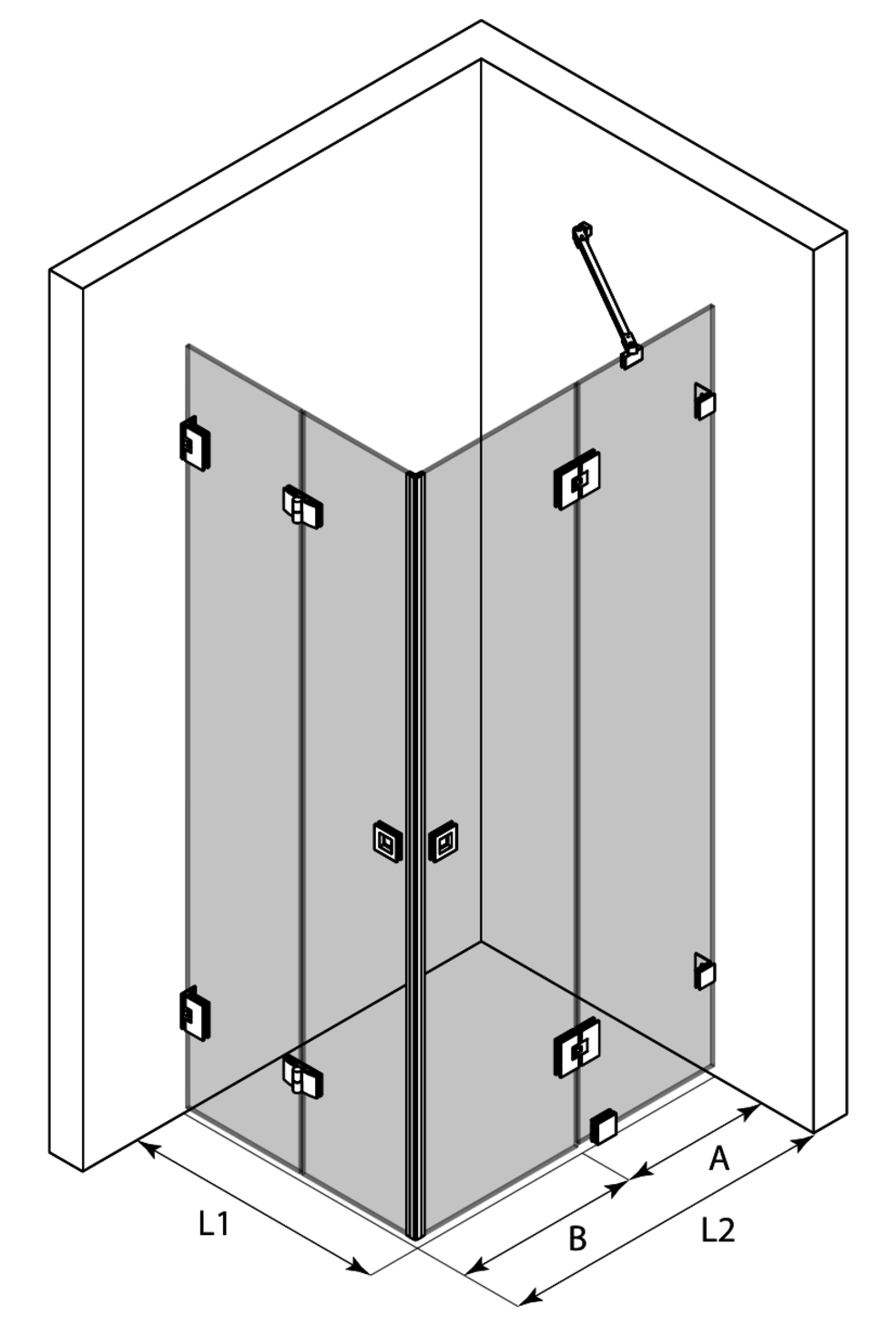

The installation dimensions of the selected combination are:
- Side L1 : 705mm
- Side L2 : 703mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible.:

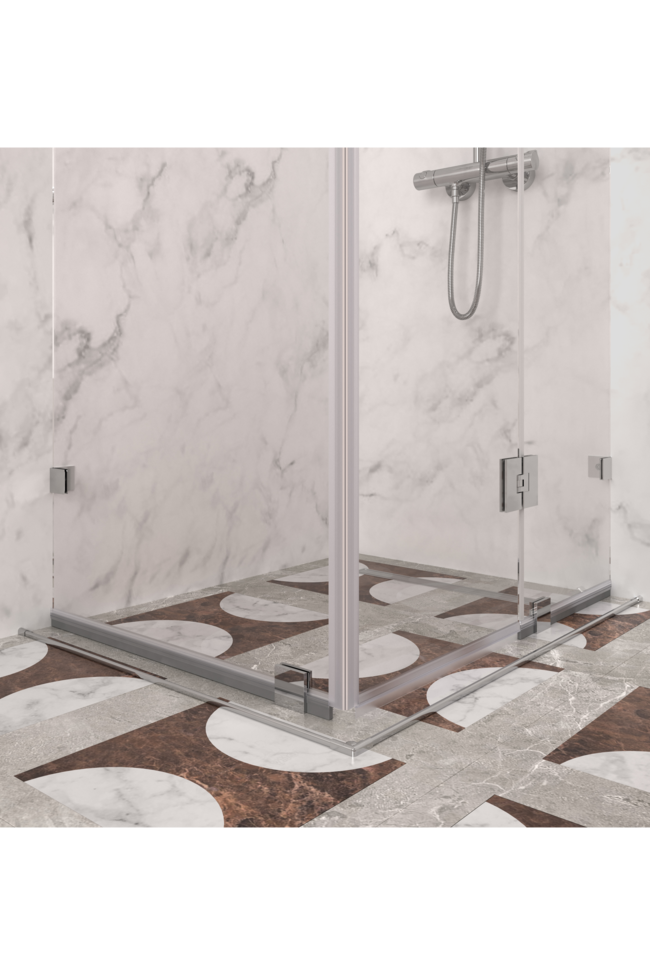

The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10mm and its width is 16mm. An extension step can be placed under the glass clamp to raise it by 10mm.
Choose handle
The middle hinges of the folding door have handedness. When ordering, you must choose whether the folding door is to be installed to the left or the right side when viewed from outside of the shower area. Changing handedness afterwards requires changing the middle hinges initially installed in the factory with others.
Product
Product code
Price
1
Vetro 547 (513x514)
Product code
547-21-224
Price
0.00 €
2
Vetro 513 Shower enclosure folding door
Chrome plated/Transparent/L1=705 x 2000
Product code
513 21 0068
Price
535.00 €
3
Vetro 514 Shower enclosure fixed screen
Chrome plated/Transparent/A=305 x 2000
Product code
514 21 0030
Price
357.00 €
4
Vetro 514 Shower enclosure hinged door
Chrome plated/Transparent/B=398 x 2000
Product code
514 21 1038
Price
357.00 €
5
Magnet seal pair
Product code
915 2L 0002
Price
42.00 €
6
Left
Product code
961 RL MMMM
Price
0.00 €
7
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
8
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
9
TOTAL
Product code
Price
1345.00 €
The installation dimensions of the selected combination are:
- Side L1 : 705mm
- Side L2 : 703mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible.:
