Forma 377
Shower enclosure with a folding door and a hinged door with a fixed part

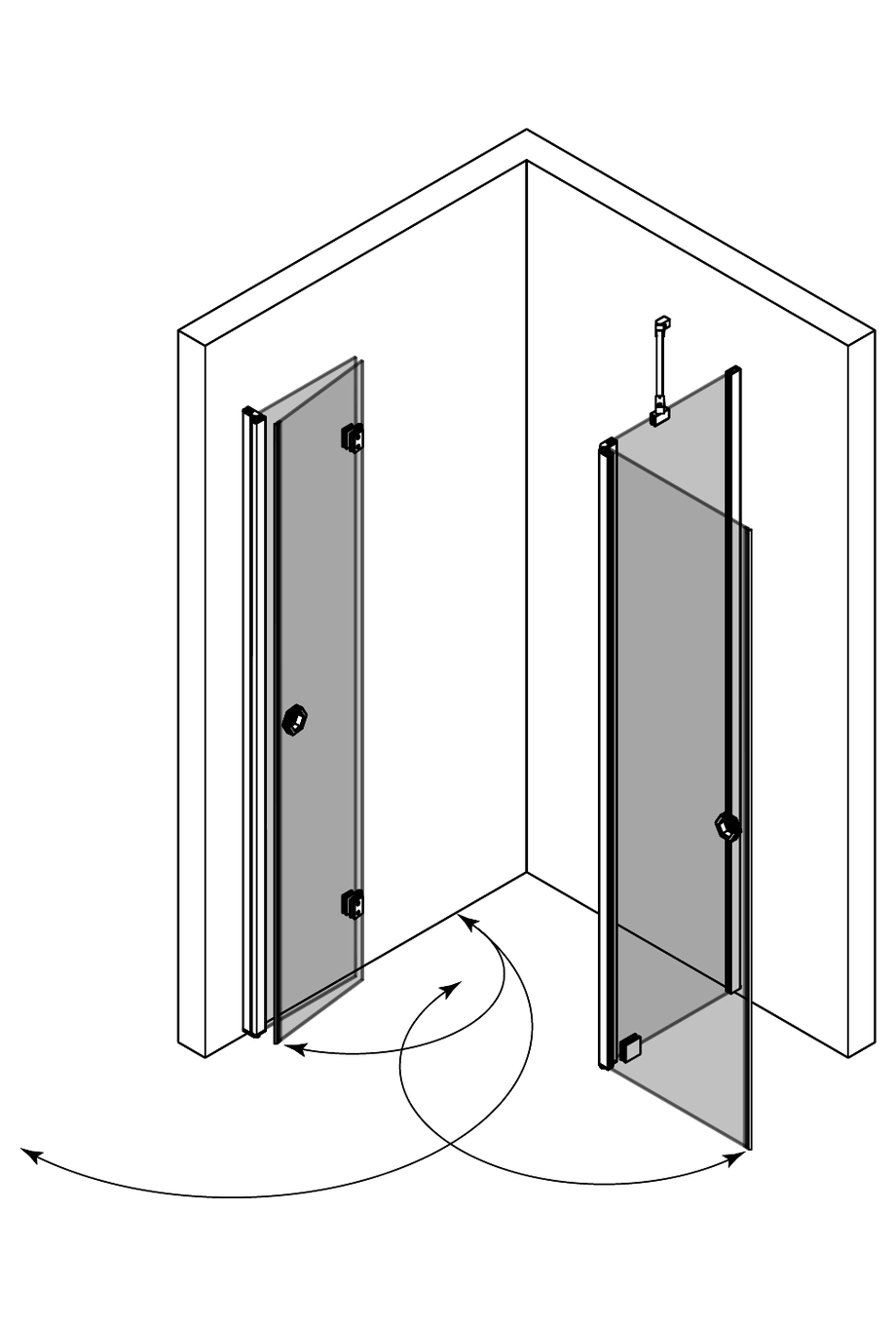

Shower enclosure consists of a folding door and a fixed wall with a hinged door. The product is well-suited for a shower corner next to which are fixtures where the doors may not have enough space to properly open to both sides. Folding door does not require space for opening in the outside of the shower area, but the door folds inside the shower area so that the door panels fold into a small space against the wall of the building. Fixed wall can be dimensioned according to the depth of the fixtures so that when opened, the door does not hit the fixtures. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the doors can be turned in the direction of the building walls. Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outer panel of the folding door rotates 180 degrees inwards so that glass fold inside the shower space along the walls. A pair of magnet seals keeps the doors tightly closed during showering.
The fixed wall and the folding door are attached from the sides to the walls of the building by means of wall mountedprofiles. The fixed wall is supported from the top edge by the brace bar installed in the corner and from the bottom corner by the fitting glued to the floor. There will be a 25mm gap between the panel and the floor of the fixed wall. A seal (standard part) may be installed between the panel and the floor in order to prevent water from flowing under the panel. Floor seals, which limit the flow of water, can be installed under the door panel.Installation guide
20 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, bright profiles have chrome plated fittings and grey profiles have fittings with a brushed nickel finish.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear, grey and bronze are smooth surfaced and transparent glasses. Chinchilla, satin and reeded glasses are not fully transparent, details cannot be made out through the panel. Chinchilla and reeded are textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the shower corner can be selected from among the standard sizes or it can be manufactured custom dimensions. The adjustment range of the wall mountedprofile of the fixed part is 20mm and that of the door, 15mm, respectively. The adjustment range can be used for levelling of any tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.
Product size

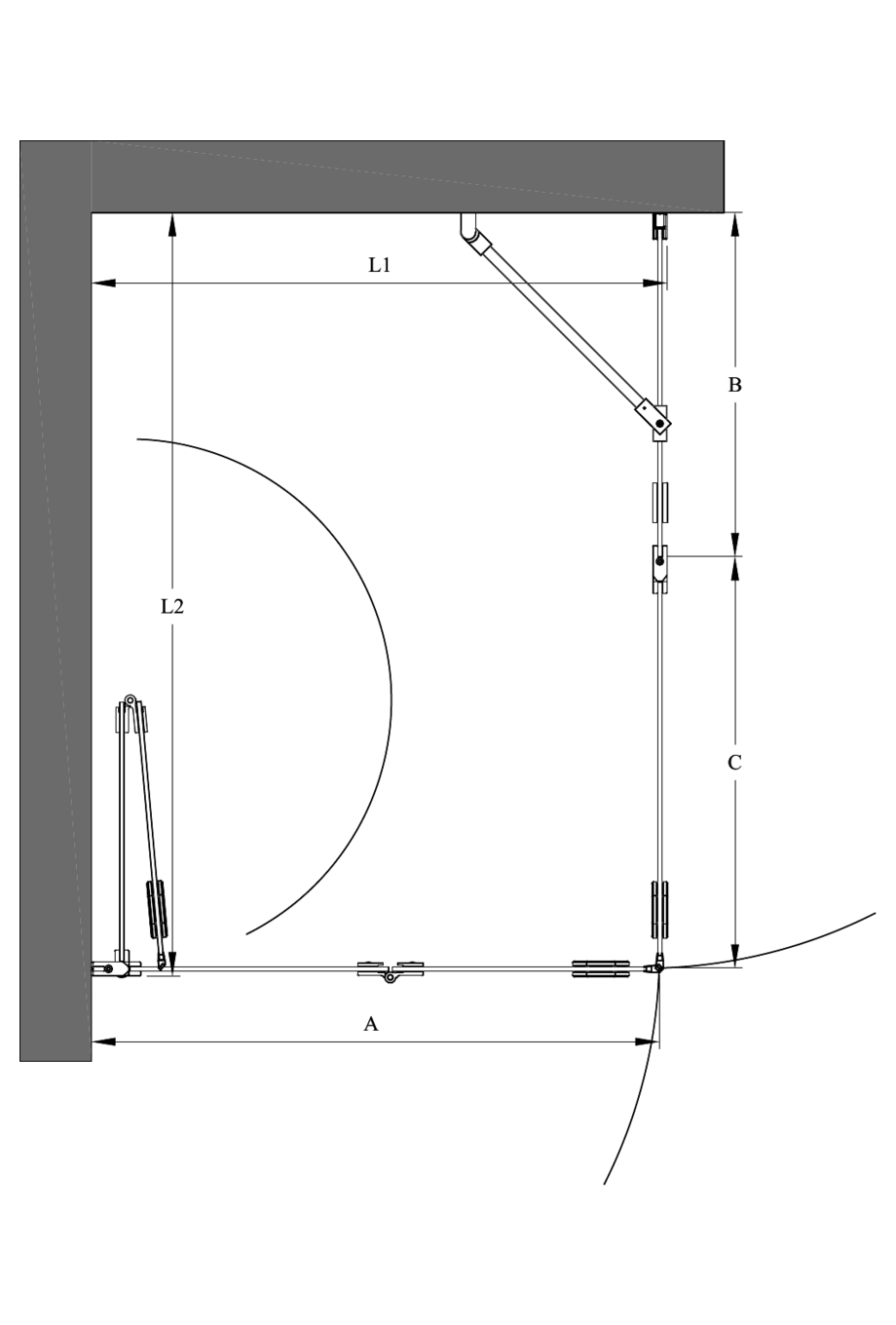

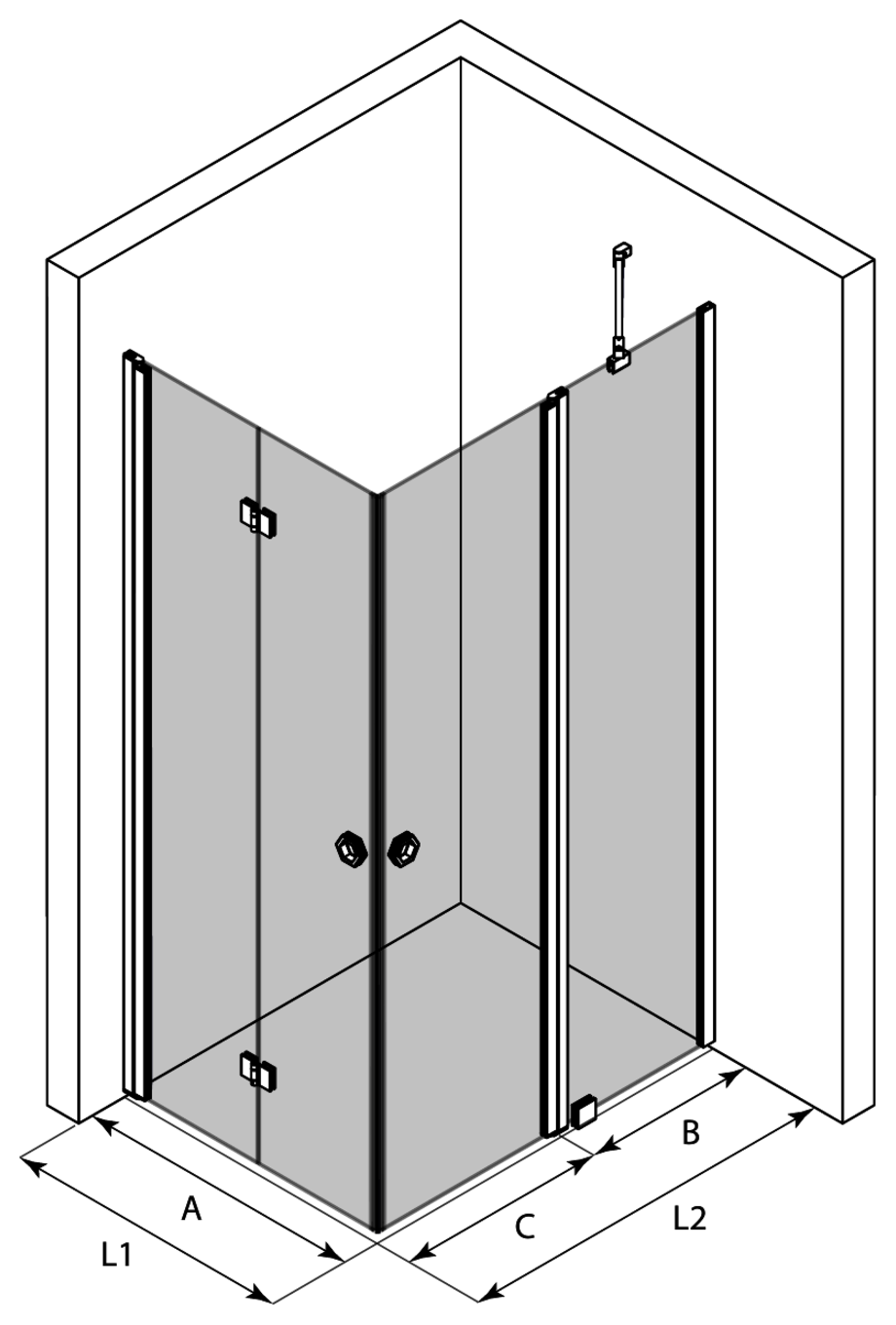

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 607mm - 622mm
- Side L2 : 765mm - 785mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Please select handle model:
Product
Product code
Price
1
Forma 377
Product code
377-61-111
Price
0.00 €
2
Forma 303 Shower enclosure folding door
White painted/Transparent/A=607 x 2025
Product code
303 61 0058
Price
461.00 €
3
Forma 304/305 Shower enclosure fixed screen
White painted/Transparent/B=380 x 2025
Product code
304 61 0038
Price
378.00 €
4
Forma 304 Shower enclosure hinged door
White painted/Transparent/C=385 x 2025
Product code
304 61 1036
Price
357.00 €
5
Magnet seal pair
Product code
F06 6L 0001
Price
21.00 €
6
Hexagonal handle chrome color
Product code
F01 RL MMMM
Price
63.00 €
7
Hexagonal handle chrome color
Product code
F01 RL MMMM
Price
63.00 €
8
TOTAL
Product code
Price
1343.00 €
Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 607mm - 622mm
- Side L2 : 765mm - 785mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
| EAN: |
|---|
