Infinia 215
Folding shower screen with a fixed part

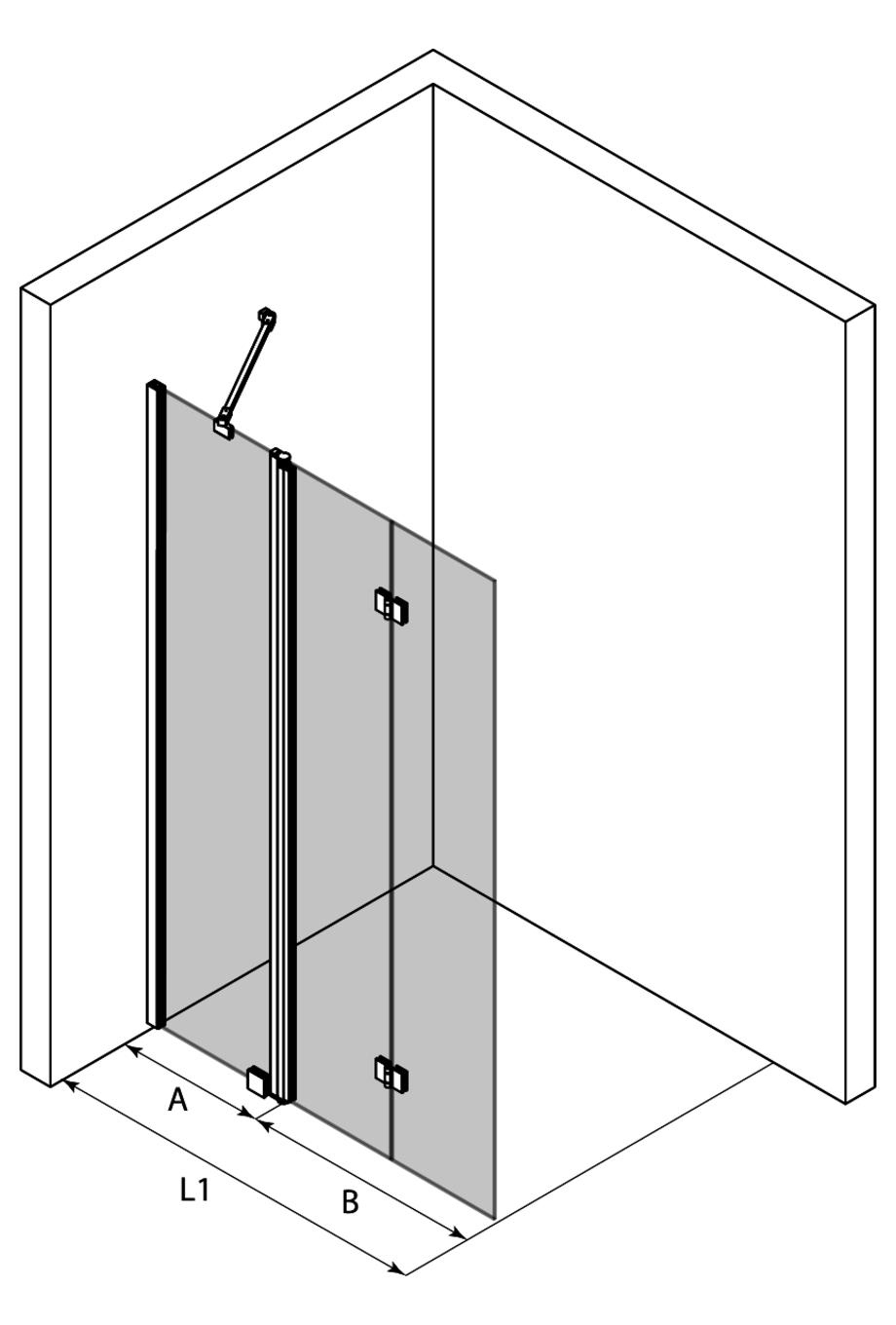

The shower screen consisting of a fixed part and of a hinged part, protecting the space and the fixtures next to the shower from splashing water. The fixed part efficiently restricts the flow of water and when the shower is not in use the folding part can be folded into the space inside the shower in the direction of the building wall. Due to the combination of the fixed and the folding part the shower screen can be dimensioned also in a cramped space so that the hinged part does not hit other fixture.

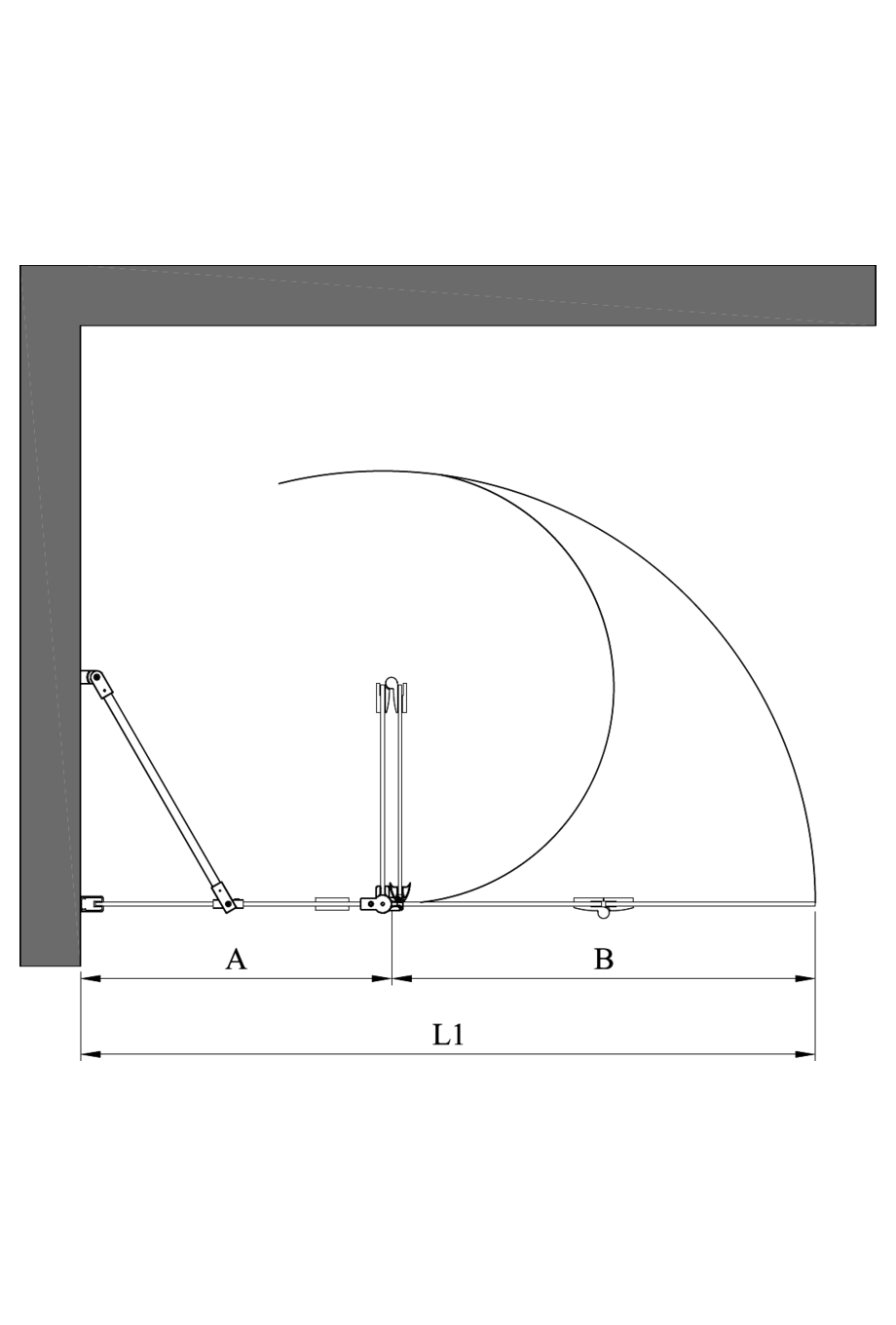

The folding part of the shower screen turns to both directions 90 degrees and is equipped with adjustable centring. The centring attempts to return the folding part back to the open and closed positions. The outermost panel of the folding part turns in addition the outer panel 180 degrees in relation to the inner panel of the folding part so that the panels fold against each other into the interior portion of the shower area.
Shower screen is attached by its sides to the building wall with a wall mountedprofile. The fixed wall is supported from the top edge with the brace installed in the corner and from the bottom corner by the fitting glued to the floor. Between the panel of the fixed part and the floor will be a 25mm high gap. seal (standard part)s may be installed between the panel and the may be installed a seal (standard part) , so that water will not be able to under the panel. In the bottom edge of the panels of the folding part can be installed can be installed along the bottom edge of the door panel. Installation guide
19 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, grey and bright profiles have chrome plated fittings.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels Chinchilla and satin panel are not fully transparent, details cannot be made out through the panel. Chinchilla is textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 20mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.
Product size
The total width of the selected product is:
- At its narrowest: 718mm
- At its widest: 738mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10mm and its width is 16mm. An extension step can be placed under the glass clamp to raise it by 10mm.
The product can be equipped with a profile handle along the entire height of the panel, in order to facilitate use. The profile handle increases the width of the product by 10mm. Profile handle Is installed at the factory during the manufacturing of the product and cannot be removed later on.
Product
Product code
Price
1
Infinia 215
Product code
215-61-11
Price
0.00 €
2
Infinia 214/215/224/225 Shower screen fixed part
White painted/Transparent/A=217 x 1900
Product code
214 61 0022
Price
367.00 €
3
Infinia 215 Shower screen folding part
White painted/Transparent/B=501 x 1900
Product code
215 61 1050
Price
493.00 €
4
TOTAL
Product code
Price
860.00 €
The total width of the selected product is:
- At its narrowest: 718mm
- At its widest: 738mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
