Infinia 221
Curved fixed shower screen
Fixed shower screen protects the space and the fixture next to the shower from splashing water. Fixed shower screen is sturdy and can be efficiently used for protection from water.

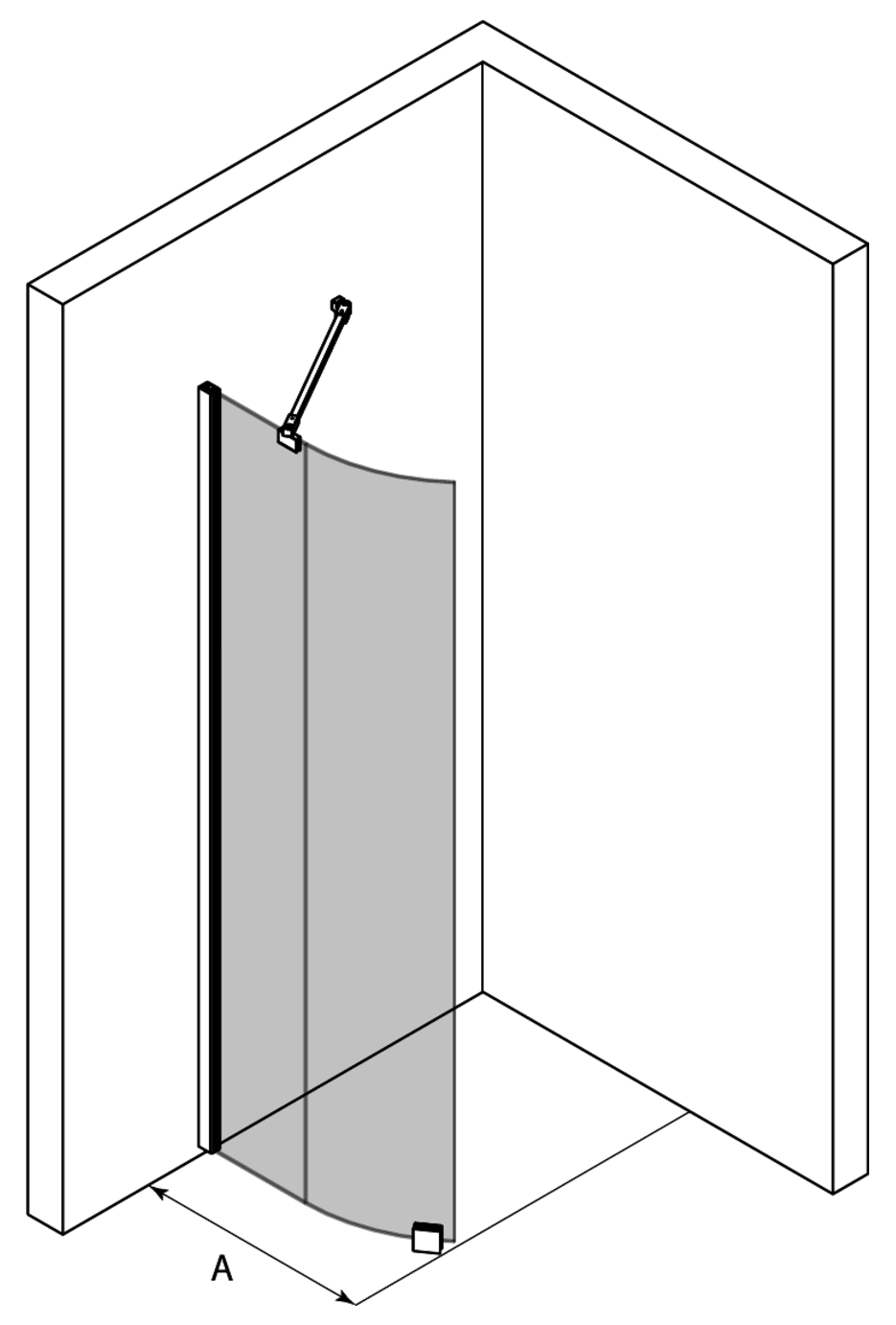

Shower screen is attached by its sides to the building wall with a wall
mountedprofile. The panel is supported from the upper edge by the braces
installed into the corner. The panel is supported from the bottom edge to
the
floor by a glued fitting, which means that there will be a 25mm gap between
the
panel and the floor. A seal (standard part) may be installed between the
panel and the floor, in order to prevent water from flowing under the panel.
Installation guide
Installation services are available in Finland capital (Helsinki, Espoo, Vantaa, Kauniainen, Porvoo, Sipoo, Kirkkonummi, Nurmijärvi, Kerava, Järvenpää, Riihimäki, Pornainen, Hyvinkää, Tuusula), Tampere (Tampere, Nokia, Kangasala, Lempäälä ja Pirkkala), Hämeenlinna and Lahti (Lahti, Mäntsälä, Orimattila) regions. Service is carried out by manufacturers professional mechanic. When product is ordered with installation service, transport company delivers the product to customer site. When the product has arrived, mechanic will phone customer and agree the exact installation date and time. Installation is done to clean and installation ready surfaces. If there is an old product in the bathroom, you can order the additional service for removal of the old product. Installation work includes besides installation of the product also silicone seaming of wall mounting joints and drilled holes and taking away the installation garbage. If you are unsure about the measures of the product (for example in case of custom sized products), you can order a measurement visit on-site done by the mechanic. In this case the mechanic will fill-in the final measures of the product to the system and the responsibility that measures are correct is carried by the manufacturer.
7 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Aluminium is an anodized coating. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, aluminium profiles have chrome plated fittings.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and grey are smooth surfaced and transparent panels
The size of the shower screen is selected from the standard dimensions. The wall mountedprofile has 20mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

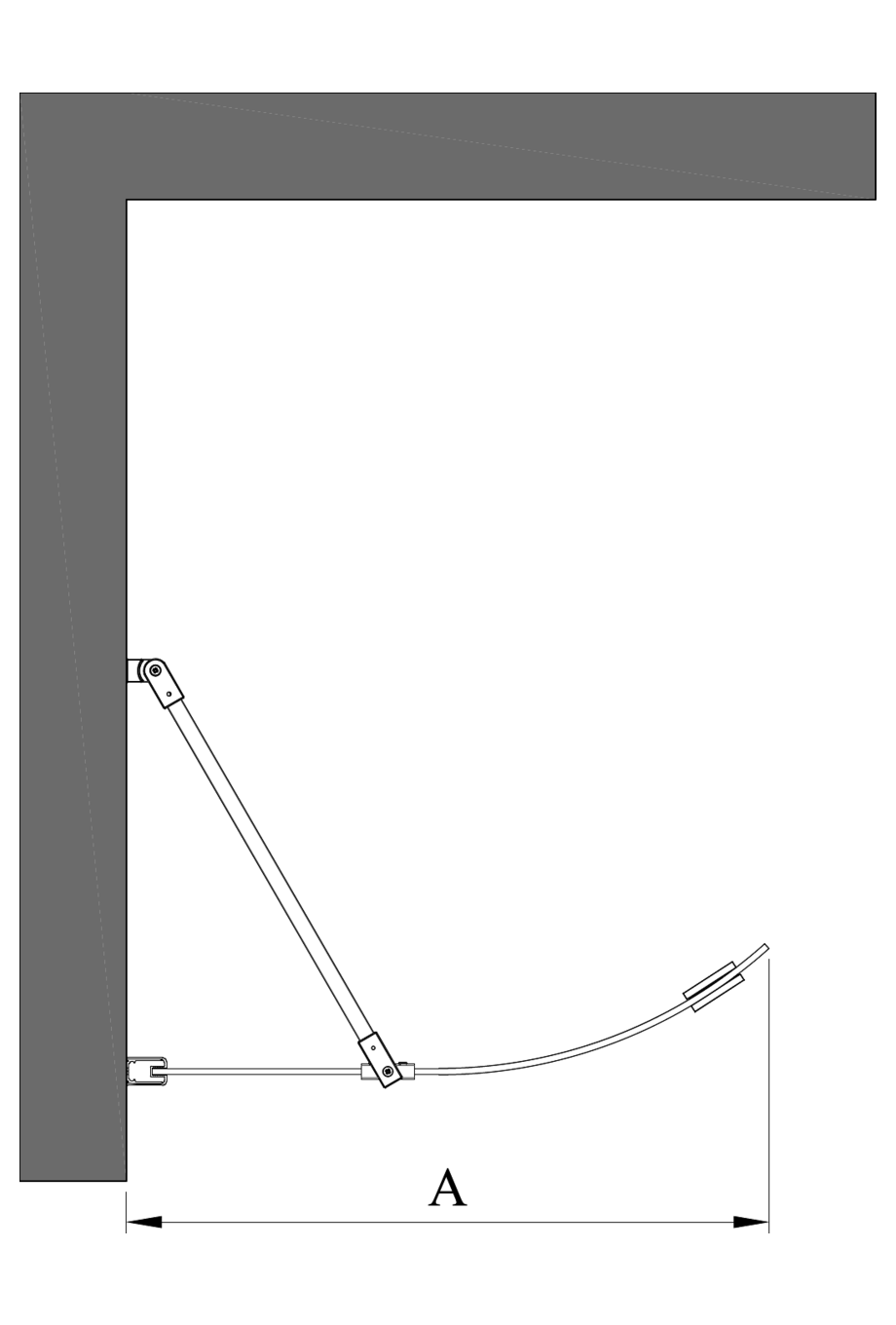

Product size
The total width of the selected product is:
- At its narrowest: 503mm
- At its widest: 523mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
An extension step can be placed under the glass clamp to raise it by 10mm.
Product
Product code
Price
1
Infinia 221
Product code
221-61-1
Price
0.00 €
2
Fixed screen
White/Transparent/A=503 x 1900
Product code
221 61 0050
Price
445.00 €
3
TOTAL
Product code
Price
445.00 €
The total width of the selected product is:
- At its narrowest: 503mm
- At its widest: 523mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
