Express 811
Fixed shower screen
The fixed shower screen protects the space and the fixtures located next to the shower from splashing water. The fixed shower screen is sturdy and can be efficiently used for protection from water.

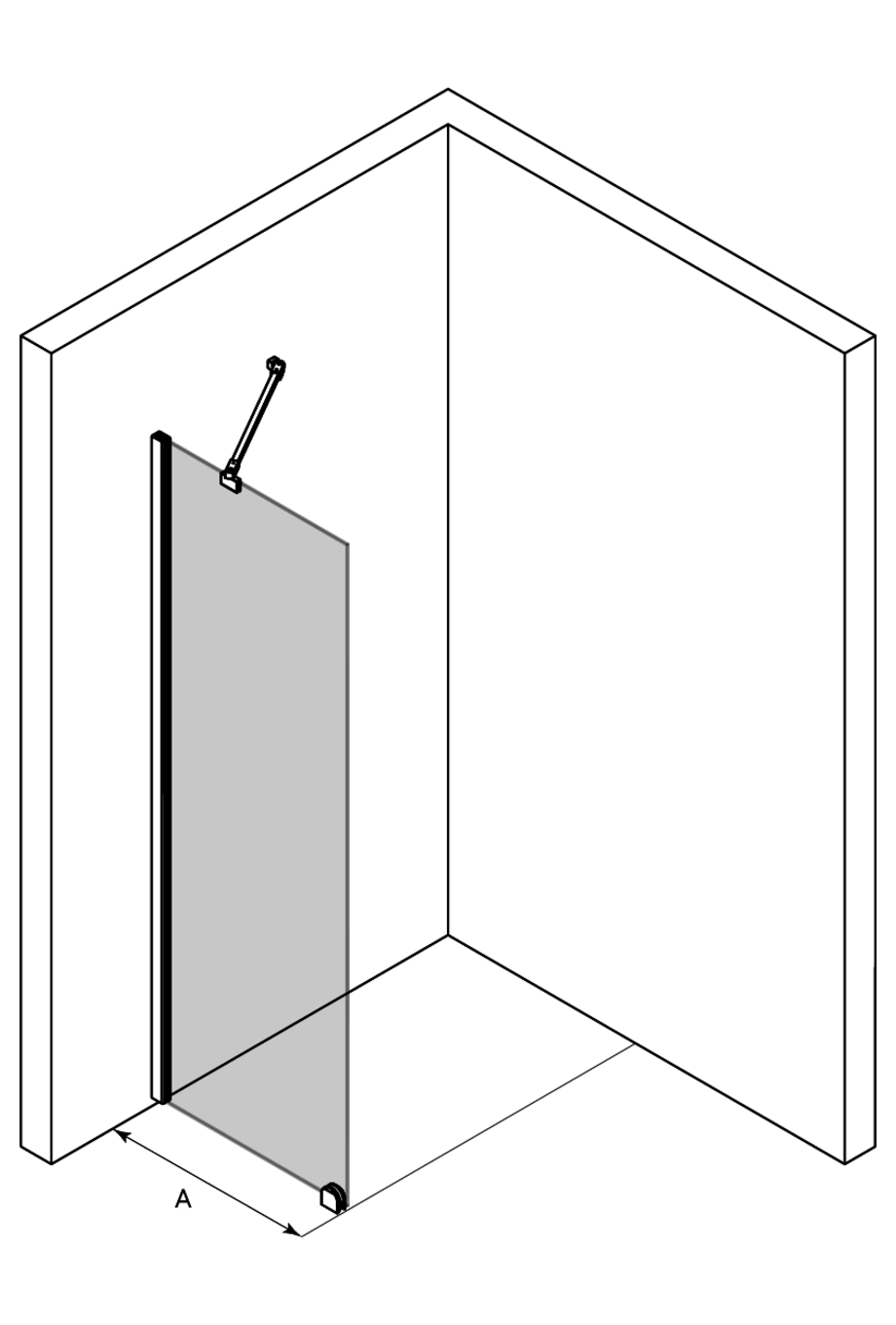

Shower screen is attached by its sides to the building wall with a wall mountedprofile. The panel is supported from the upper edge by the braces installed into the corner. The panel is supported from the bottom edge by the fitting glued to the floor, which means that there will be a 25mm gap between the panel and the floor. Between the panel and the floor a seal (standard part) may be installed, in order to prevent water from flowing under the panel. Installation guide
11 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The surface is anodized in grey tones. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 20mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

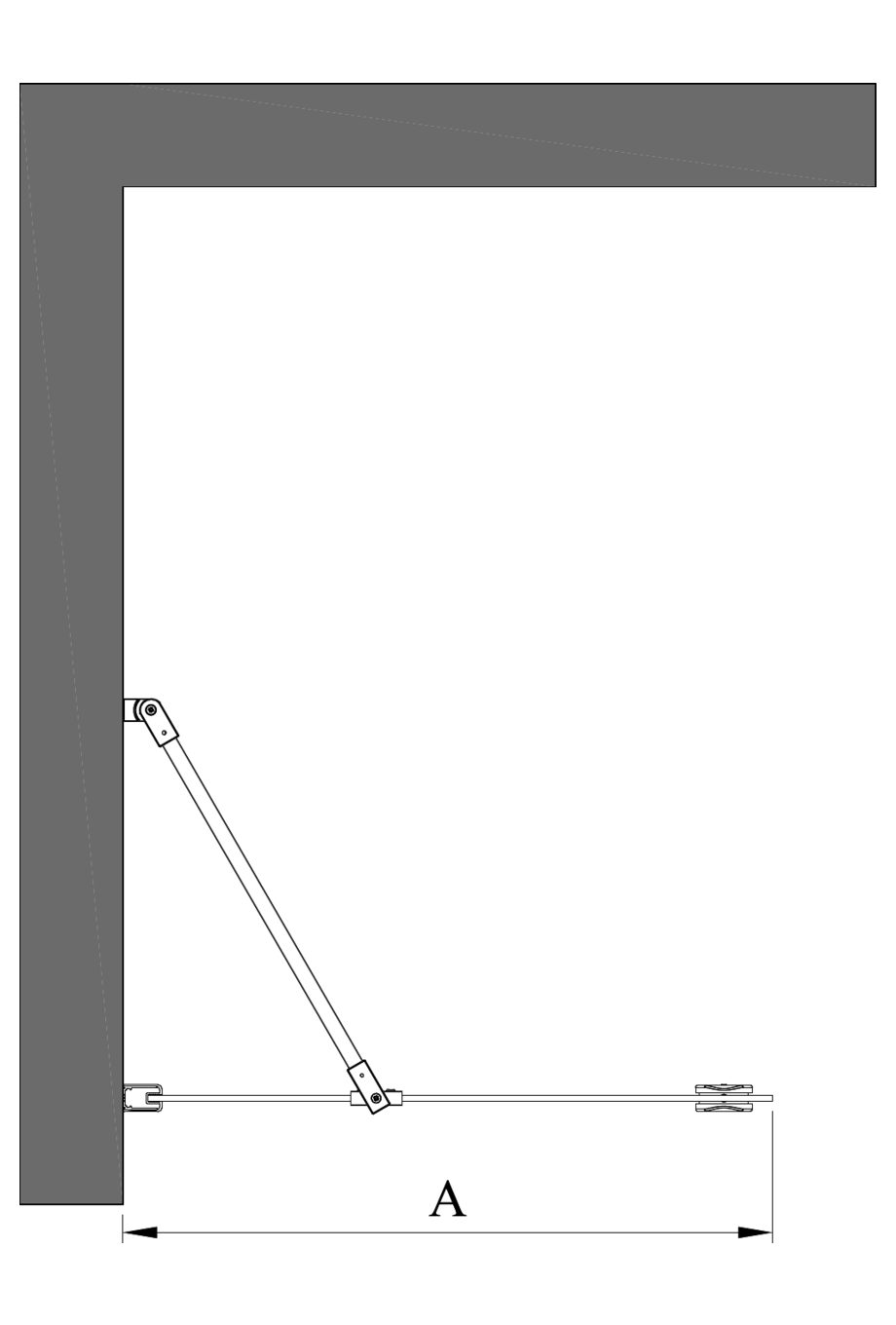

Product size
The total width of the selected product is:
- At its narrowest: 479mm
- At its widest: 499mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
Product
Product code
Price
1
Express 811
Product code
811-81-7
Price
0.00 €
2
Express 811 Fixed screen
Grey anodized/Transparent/A=479 x 1900
Product code
811 81 0048
Price
0.00 €
3
TOTAL
Product code
Price
0.00 €
The total width of the selected product is:
- At its narrowest: 479mm
- At its widest: 499mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
