Express 831
Shower screen with telescopes
The shower screen protects the space and the fixtures located next to the shower from splashing water. The telescope mount shower screen is easy to install and it can used for effective protection from water.
The shower screen is attached by its sides to the building wall with the
wall
mountedprofile and between the floor and the ceiling by means of telescope
mounting (room height max 280 mm). Then the installation height of the panel
can be adjusted depending on the need for use of the space The lower
telescope
is equipped with a joint adjusting leg for floor tilting. A seal (standard
part) may be installed between the panel and the Floor, in order to
prevent
water from flowing under the panel.
Installation guide
Installation services are available in Finland capital (Helsinki, Espoo, Vantaa, Kauniainen, Porvoo, Sipoo, Kirkkonummi, Nurmijärvi, Kerava, Järvenpää, Riihimäki, Pornainen, Hyvinkää, Tuusula), Tampere (Tampere, Nokia, Kangasala, Lempäälä ja Pirkkala), Hämeenlinna and Lahti (Lahti, Mäntsälä, Orimattila) regions. Service is carried out by manufacturers professional mechanic. When product is ordered with installation service, transport company delivers the product to customer site. When the product has arrived, mechanic will phone customer and agree the exact installation date and time. Installation is done to clean and installation ready surfaces. If there is an old product in the bathroom, you can order the additional service for removal of the old product. Installation work includes besides installation of the product also silicone seaming of wall mounting joints and drilled holes and taking away the installation garbage. If you are unsure about the measures of the product (for example in case of custom sized products), you can order a measurement visit on-site done by the mechanic. In this case the mechanic will fill-in the final measures of the product to the system and the responsibility that measures are correct is carried by the manufacturer.
7 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The surface is anodized and the profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.
The product is manufactured of 4mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels
The size of the shower screen can be selected from the standard dimensions. wall mounted profiles have 20mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

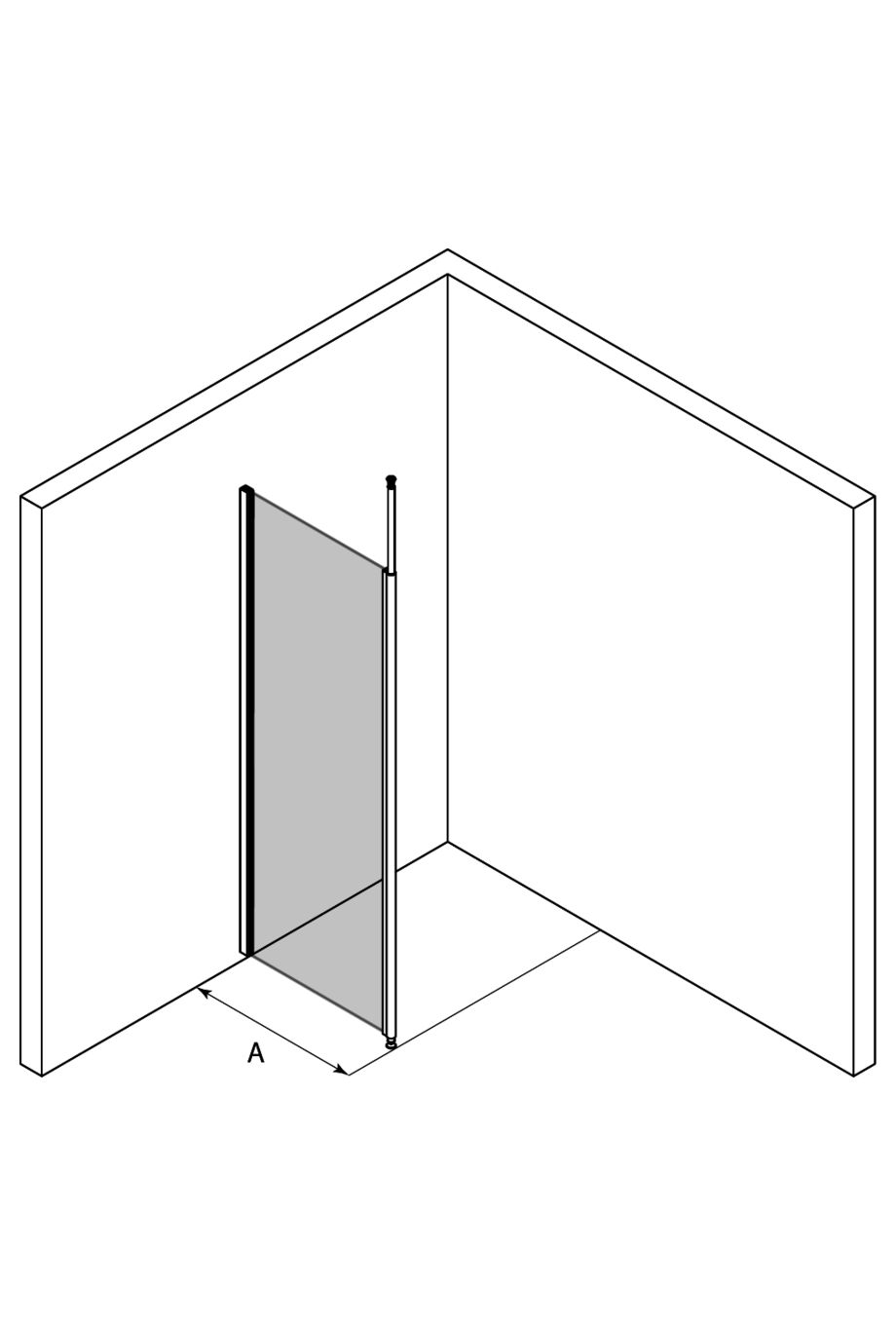

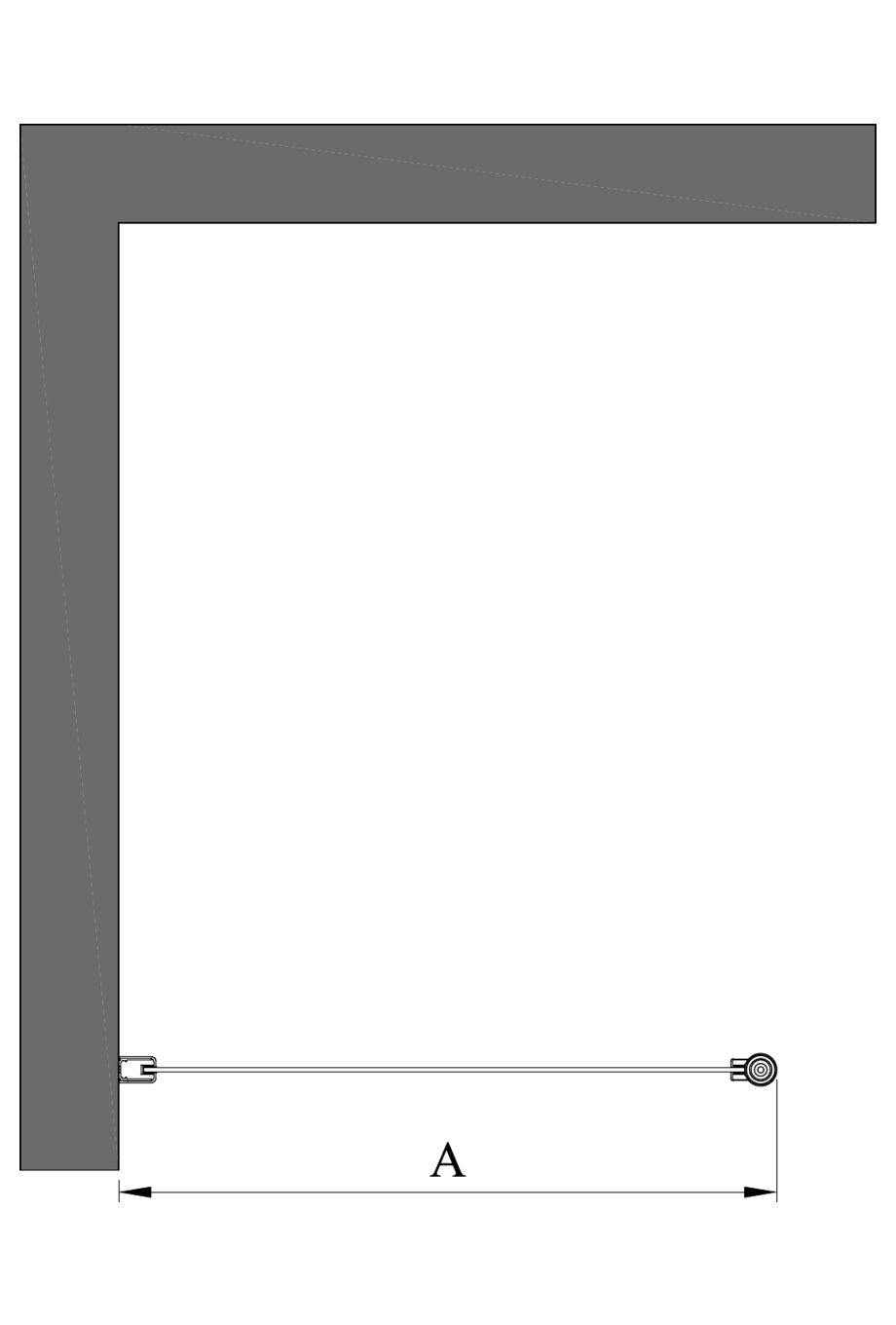

Product size
The total width of the selected product is:
- At its narrowest: 370mm
- At its widest: 390mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Express 831
Product code
831-81-4
Price
0.00 €
2
Shower screen
Aluminium/Transparent/A=370 x 1850
Product code
831 81 0037
Price
0.00 €
3
TOTAL
Product code
Price
0.00 €
The total width of the selected product is:
- At its narrowest: 370mm
- At its widest: 390mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
| EAN: |
|---|
