Express 822
Curved hinged shower screen

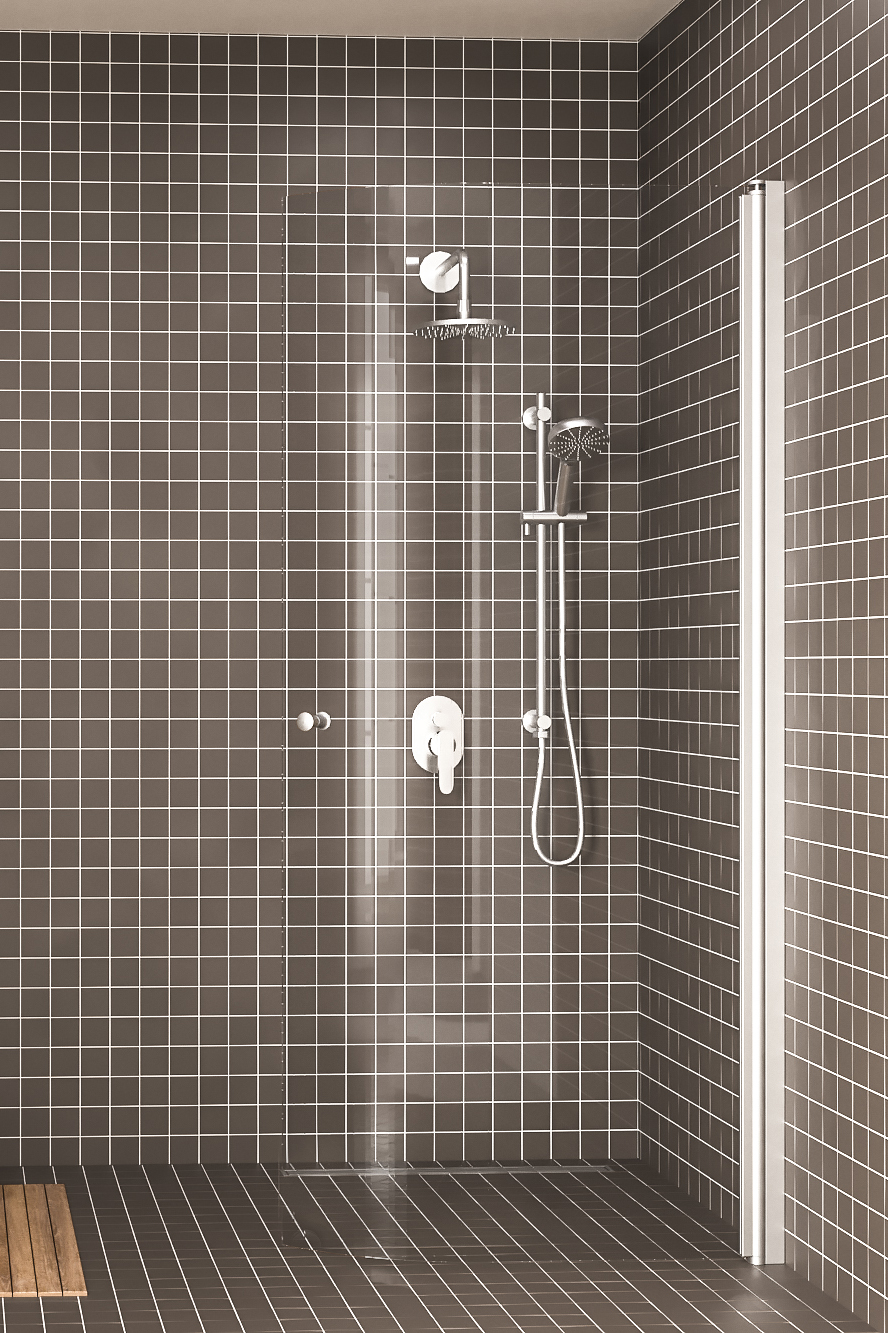

The swinging shower screen protects the space and the fixtures located next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building.
The shower screen turns 90 degrees in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.
The shower screen is attached to the building wall with a wall mountedprofile. The installation height is freely selectable. By installing the product close to the floor and installing a floor seal along the bottom edge of the panel the flow of water can be restricted. Installation guide
10 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The surface is anodized in grey tones. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels

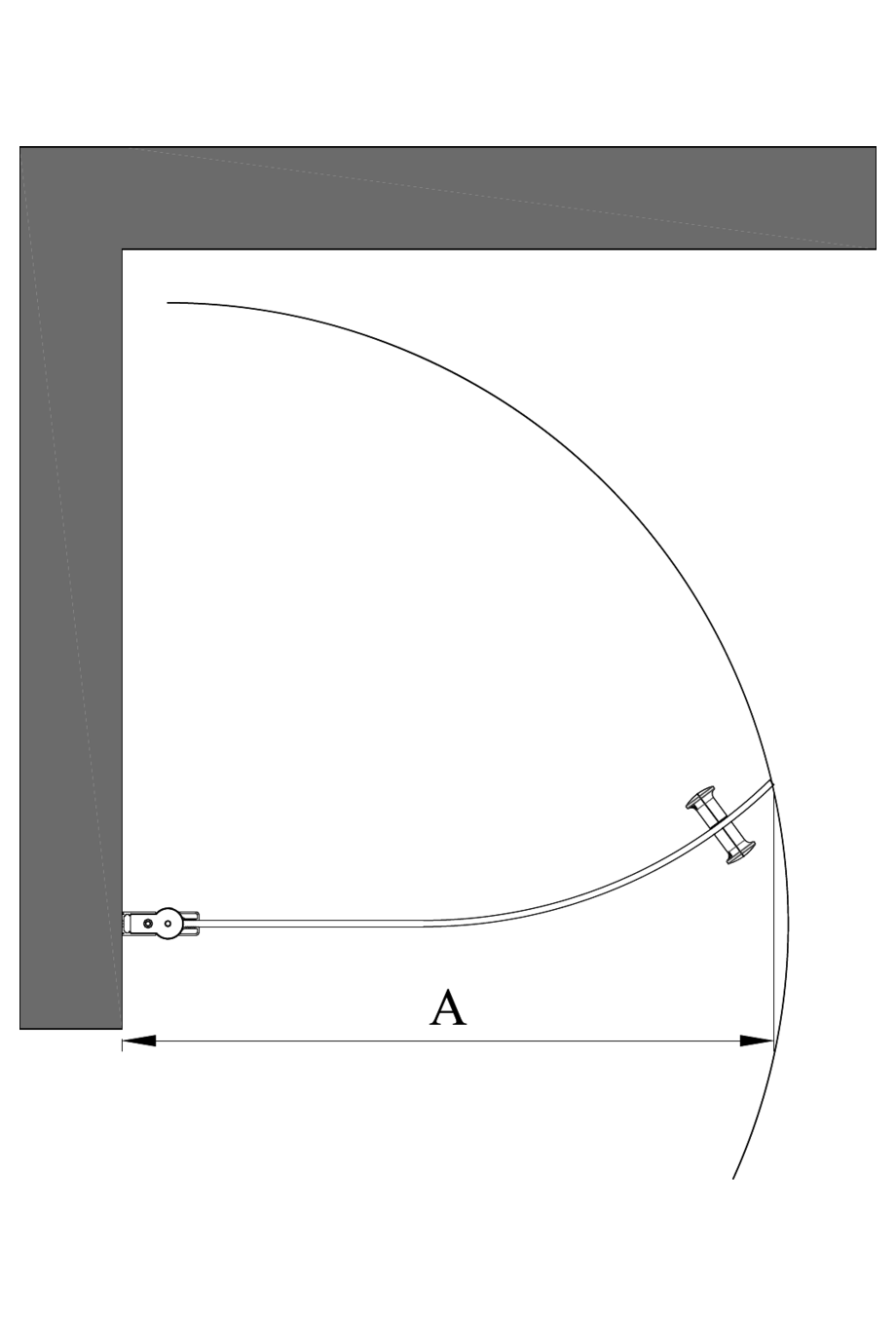

The size of the shower screen is selected from the standard dimensions. The wall mountedprofile has 15mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.
Product size

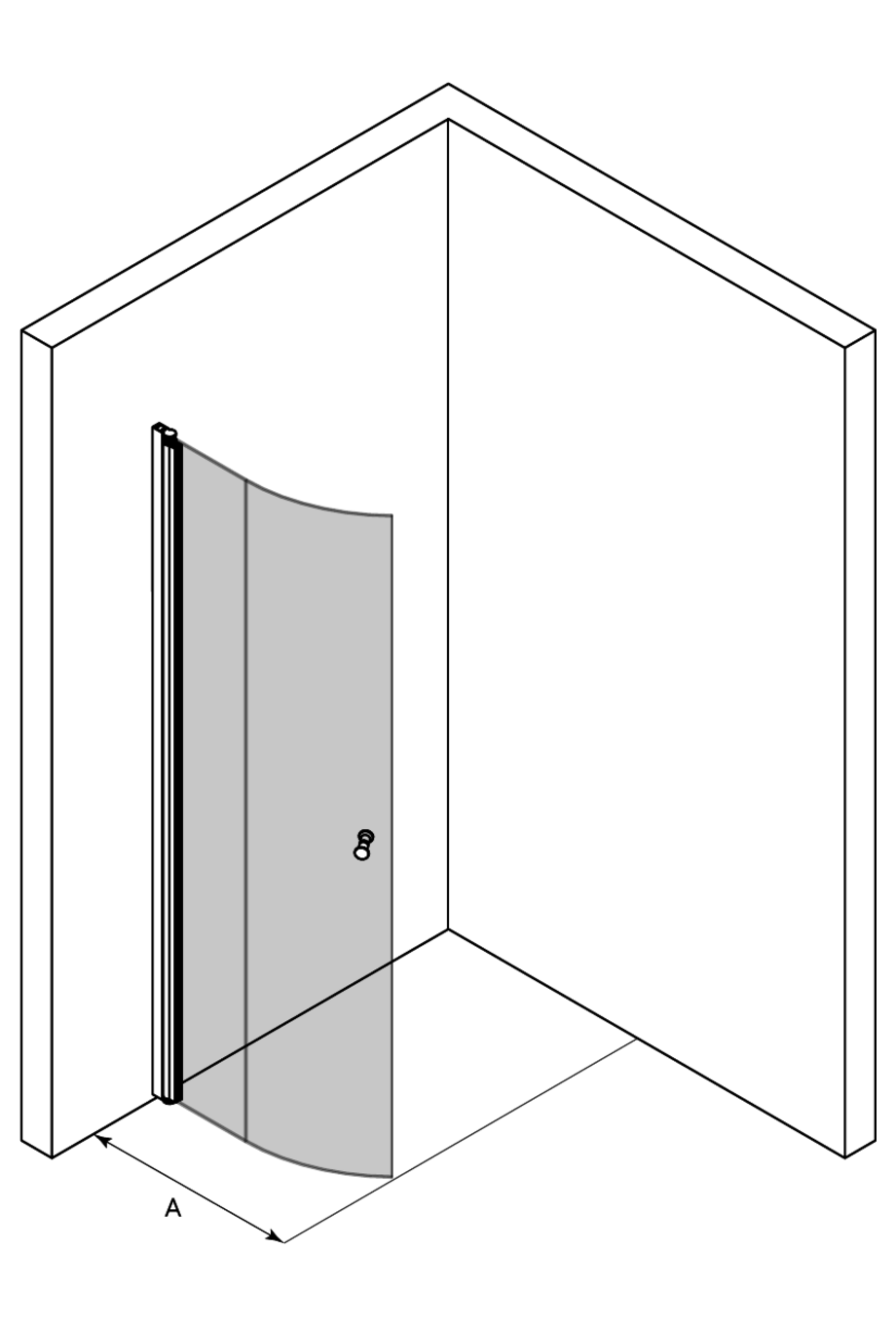

The total width of the selected product is:
- At its narrowest: 638mm
- At its widest: 653mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
The product is equipped with a round knob handle manufactured from brass. The handle color matches the chosen profile color, for both grey and bright profiled products the handle is chromed.
Product
Product code
Price
1
Express 822
Product code
822-81-3
Price
0.00 €
2
Express 822 Hinged door
Grey anodized/Transparent/A=638 x 1900
Product code
822 81 0065
Price
0.00 €
3
TOTAL
Product code
Price
0.00 €
The total width of the selected product is:
- At its narrowest: 638mm
- At its widest: 653mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
