Forma 304

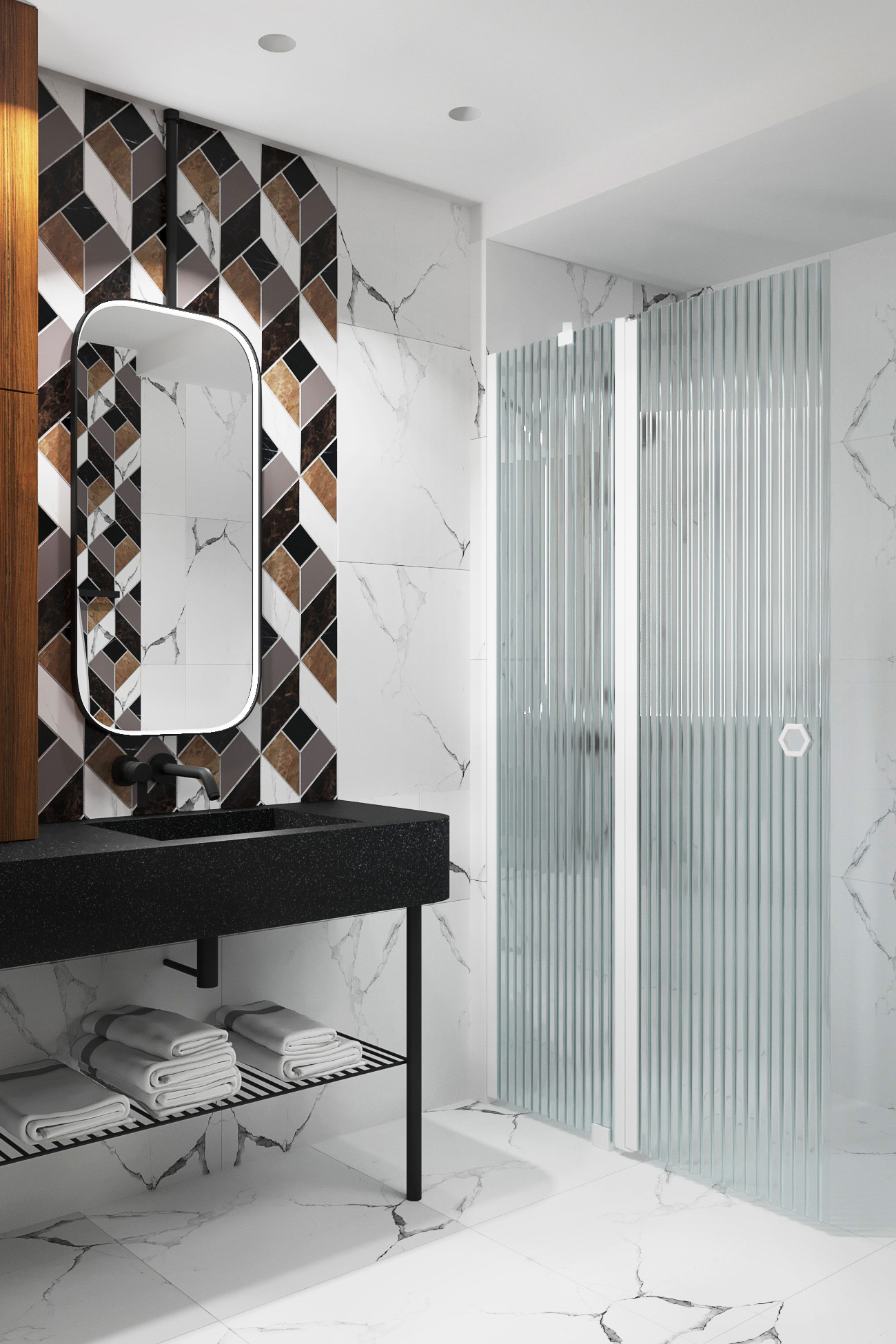

Hinged shower screen with a fixed part
The shower screen consisting of a fixed part and of a hinged part hinged to it protects the space and the fixture next to the shower from splashing water. The fixed part efficiently restricts water and when the shower is not in use the hinged part can be turned to the side. Due to the combination of the fixed and the hinged part the shower screen can be dimensioned also in a cramped space so that the hinged part does not hit other fixture. The hinged part of the shower screen turns to both directions 90 degrees and is equipped with adjustable centring. The centring attempts to return the hinged part back to the open and closed positions.

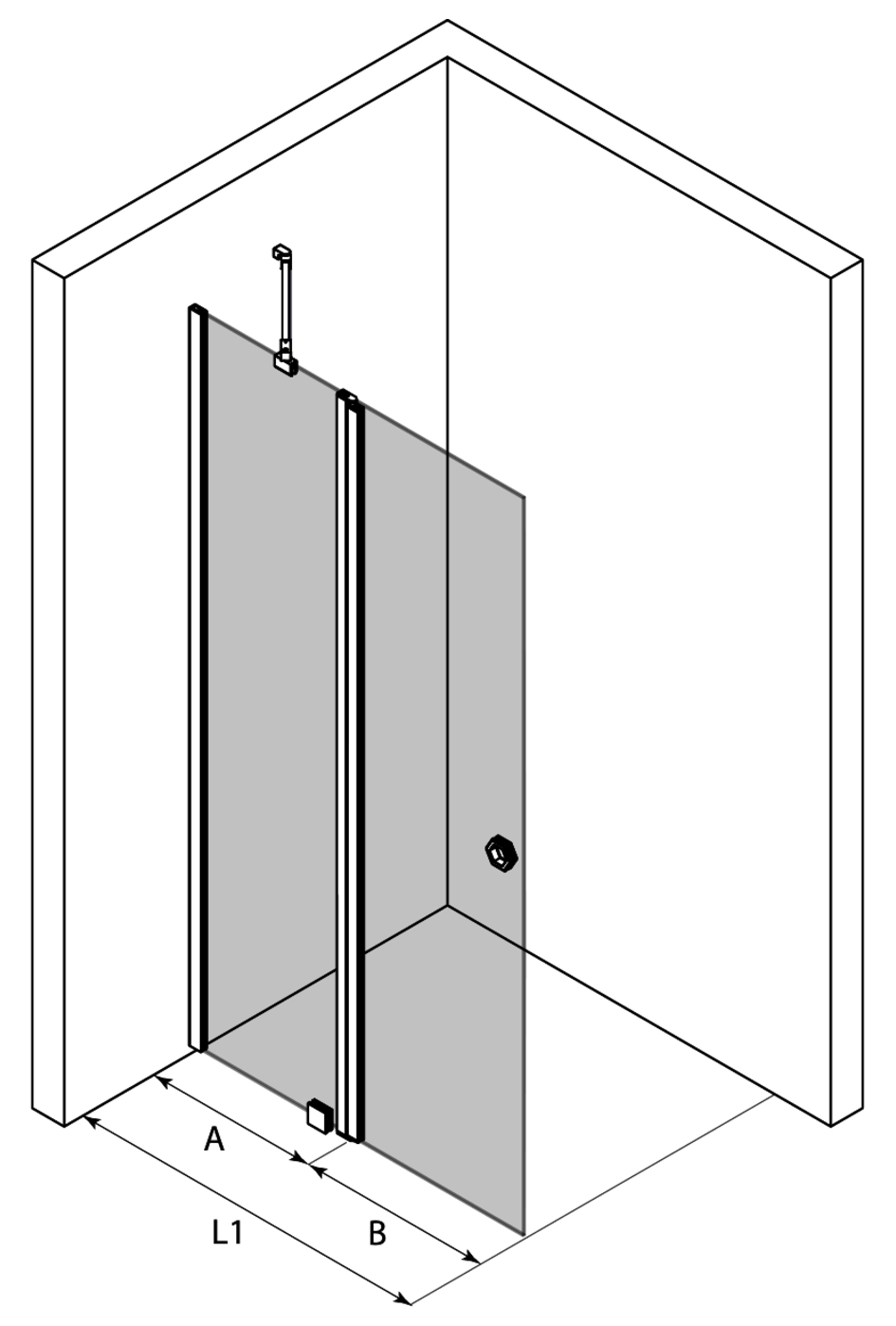

Shower screen is attached by its sides to the building wall with a wall mountedprofile. The fixed wall is supported from the top edge with the brace installed in the corner and from the bottom corner by the fitting glued to the floor. Between the panel of the fixed part and the floor will be a 25mm high gap. seal (standard part)s may be installed between the panel and the may be installed a seal (standard part) , so that water will not be able to under the panel. In the bottom edge of the hinged part can be installed can be installed along the bottom edge of the door panel. Installation guide
10 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White,black, Sand and Mocha profiles have painted fittings, bright profiles have chrome plated fittings and grey profiles have fittings with a brushed nickel finish.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear, grey and bronze are smooth surfaced and transparent glasses. Chinchilla, satin and reeded glasses are not fully transparent, details cannot be made out through the panel. Chinchilla and reeded are textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

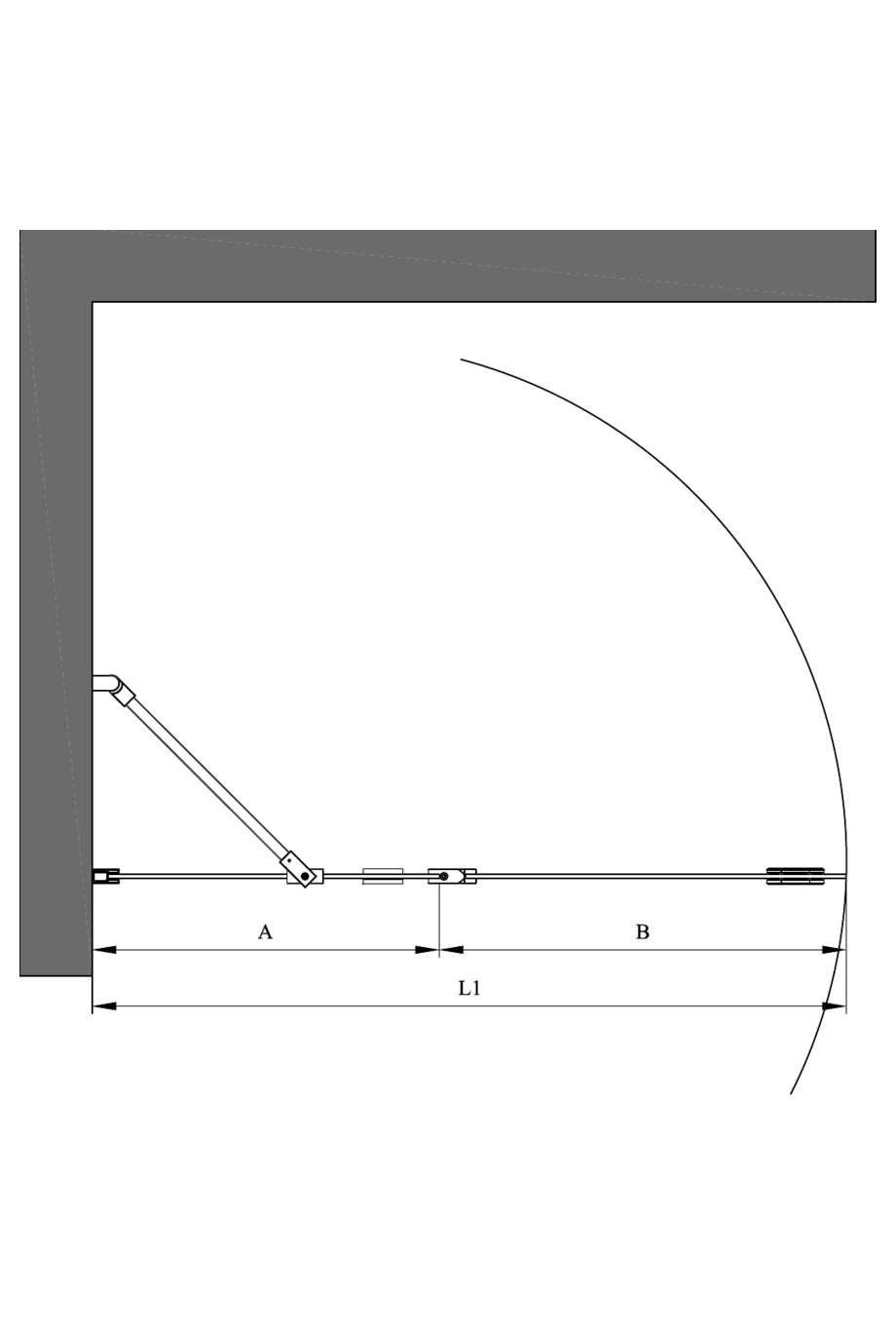

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 20mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.
Product size
The total width of the selected product is:
- At its narrowest: 743mm
- At its widest: 763mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Please select handle model:
Product
Product code
Price
1
Forma 304
Product code
304-61-11
Price
0.00 €
2
Forma 304/305 Shower screen fixed part
White painted/Transparent/A=380 x 2025
Product code
304 61 0038
Price
378.00 €
3
Forma 304 Shower screen hinged part
White painted/Transparent/B=363 x 2025
Product code
304 61 1036
Price
357.00 €
4
Hexagonal handle chrome
Product code
F01 RL MMMM
Price
63.00 €
5
TOTAL
Product code
Price
798.00 €
The total width of the selected product is:
- At its narrowest: 743mm
- At its widest: 763mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
