Vetro 512

Hinged door

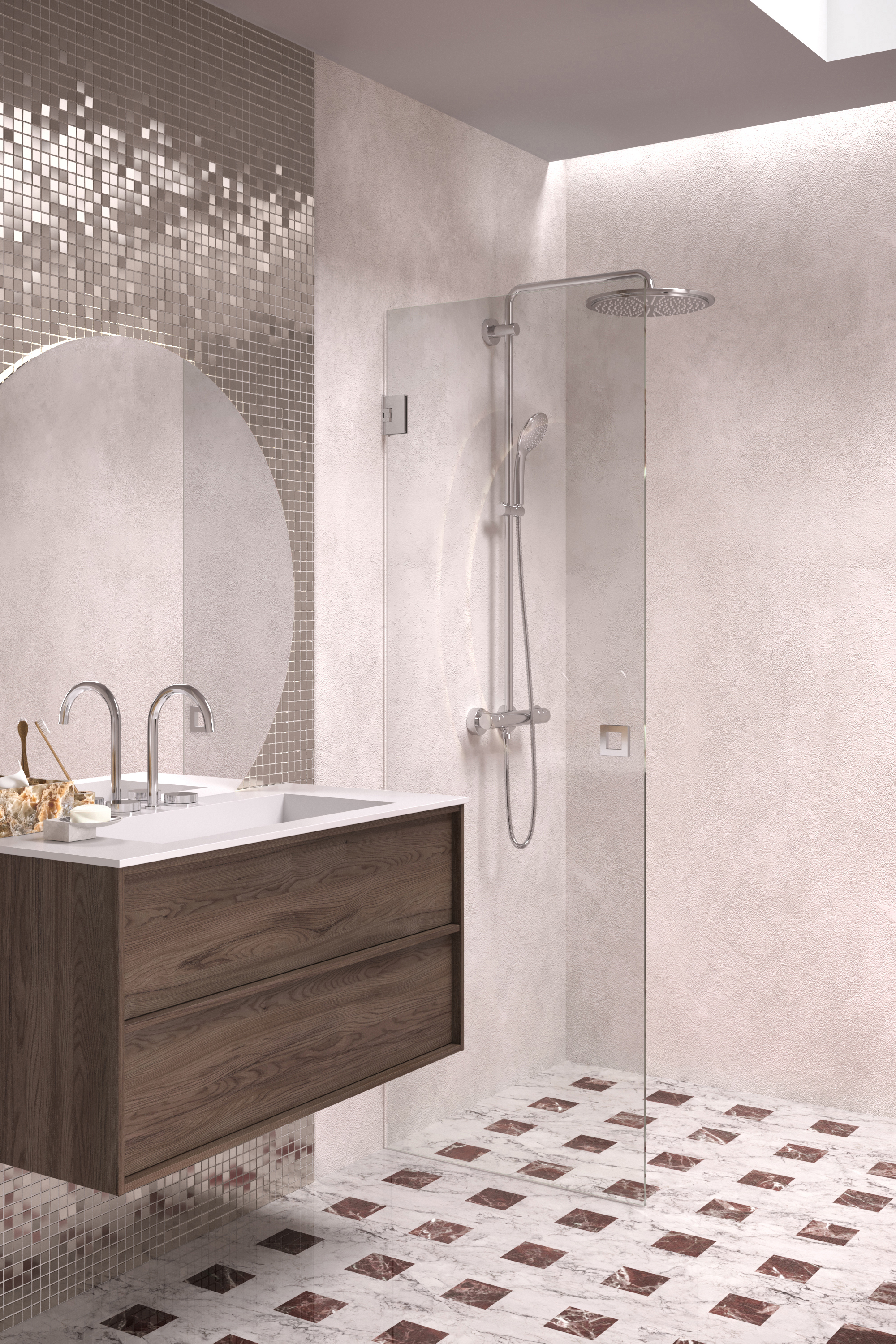

The hinged door protects the space and the fixture next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building.

The shower screen turns in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.

The hinges of the shower screen are mounted directly to the building wall. The installation height is freely selectable. By installing the product close to the floor and mounting a floor seal along the bottom edge of the panel the flow of water can be restricted. Installation guide

Icon

19 Working days

Icon

20 year warranty

The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.

The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions.

Product size

Hinged door (A)

X

The total width of the selected product is 380mm.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Choose handle

Product

Product code

Price

1

Vetro 512

Product code

512-21-4

Price

0.00 €

2

Vetro 512 Hinged door
Chrome plated/Transparent/A=380 x 2000

Product code

512 21 0038

Price

430.00 €

3

Round handle

Product code

Y45 2L MMMM

Price

27.00 €

4

TOTAL

Product code

Price

457.00 €

The total width of the selected product is 380mm.:
