Vetro 517

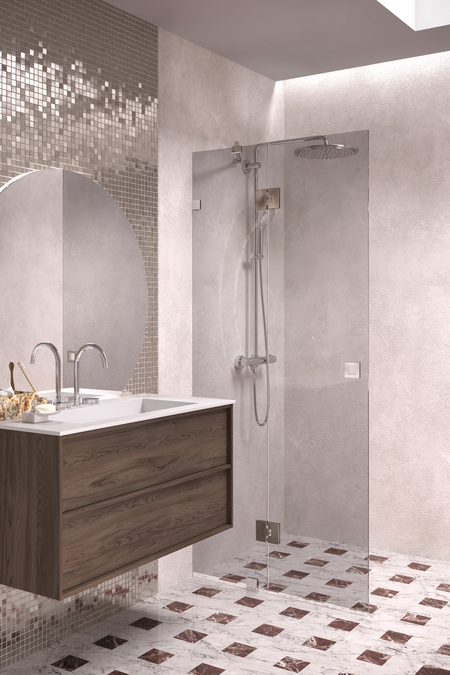

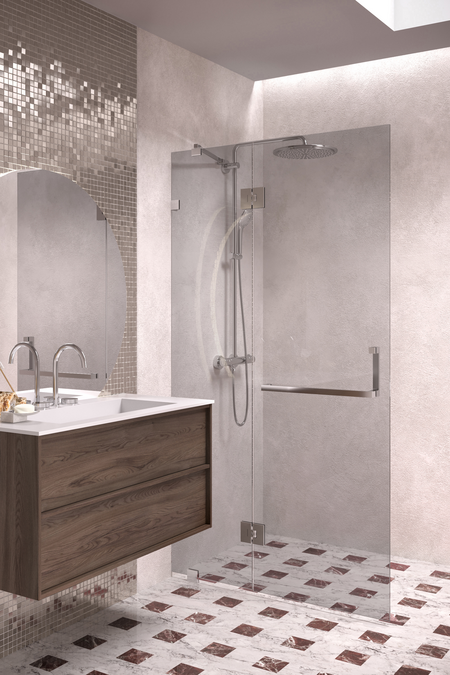

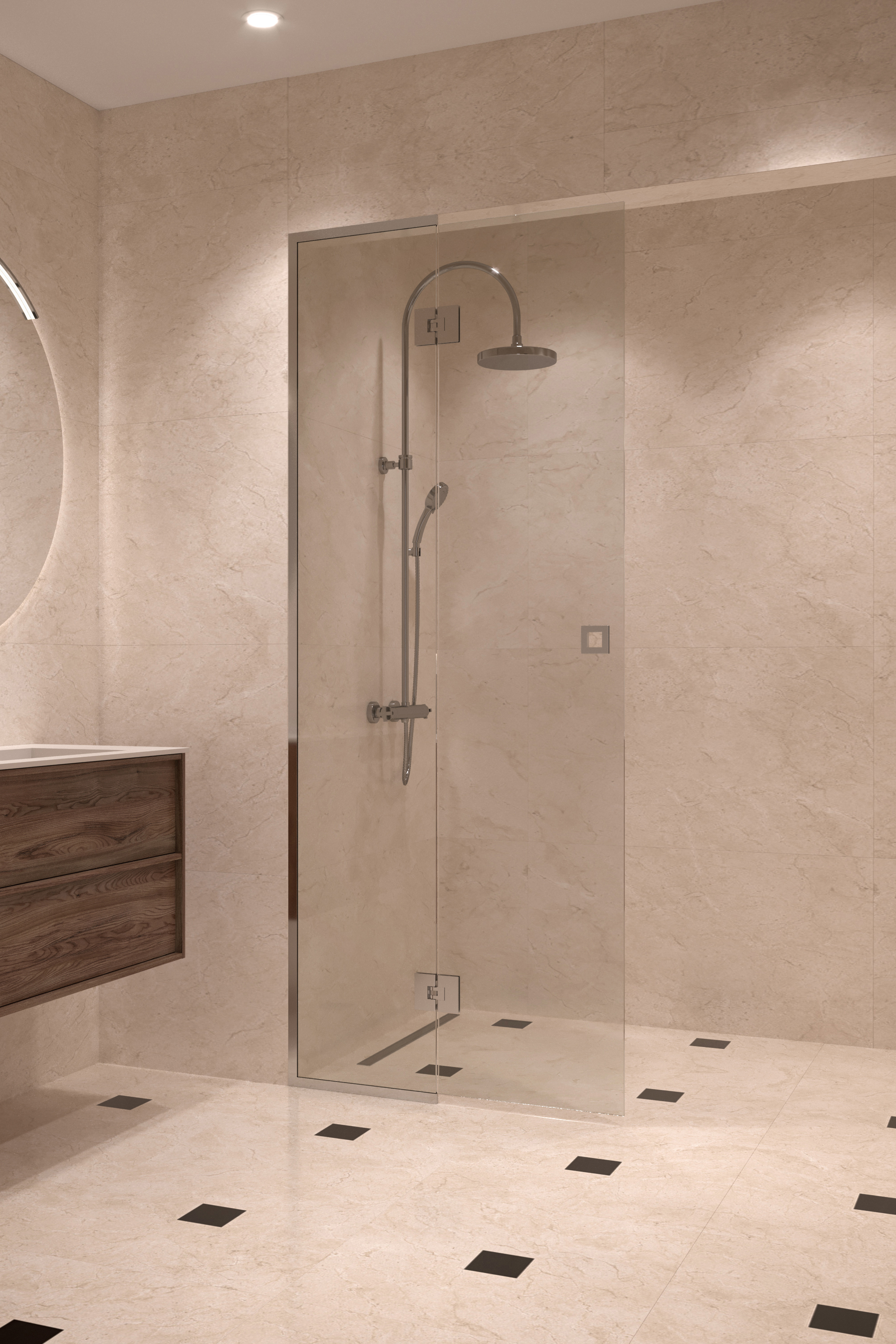

Framed shower screen with a fixed part

A framed shower wall unit with hinged door consists of a glass panel, mounting frame profiles and a door panel. The fixed panel is attached to the wall, floor and ceiling using stainless steel profiles. The fixed part efficiently restricts water and when the shower is not in use the hinged part can be turned to the side.

The framed wall panel is secured by screwing the frame profiles to the wall and ceiling. The glass is glued to the frame profiles and cushioned with seals. The hinged door panel is attached to the fixed panel.

Icon

21 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of stainless steel. The hinges of the door are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.

The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

Shower wall is manufactured according to custom measures.

Product size

:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Please select handle model:

Product

Product code

Price

1

Vetro 517

Product code

517-21-00

Price

0.00 €

2

Vetro 517 Alcove fixed screen
Chrome plated/Transparent/A=800 x 2000

Product code

517 21 0000

Price

629.00 €

3

Vetro 517 Alcove hinged door
Chrome plated/Transparent/B=500 x 2000

Product code

517 21 1000

Price

629.00 €

4

Round handle

Product code

Y45 2L MMMM

Price

27.00 €

5

TOTAL

Product code

Price

1285.00 €

:

EAN:
