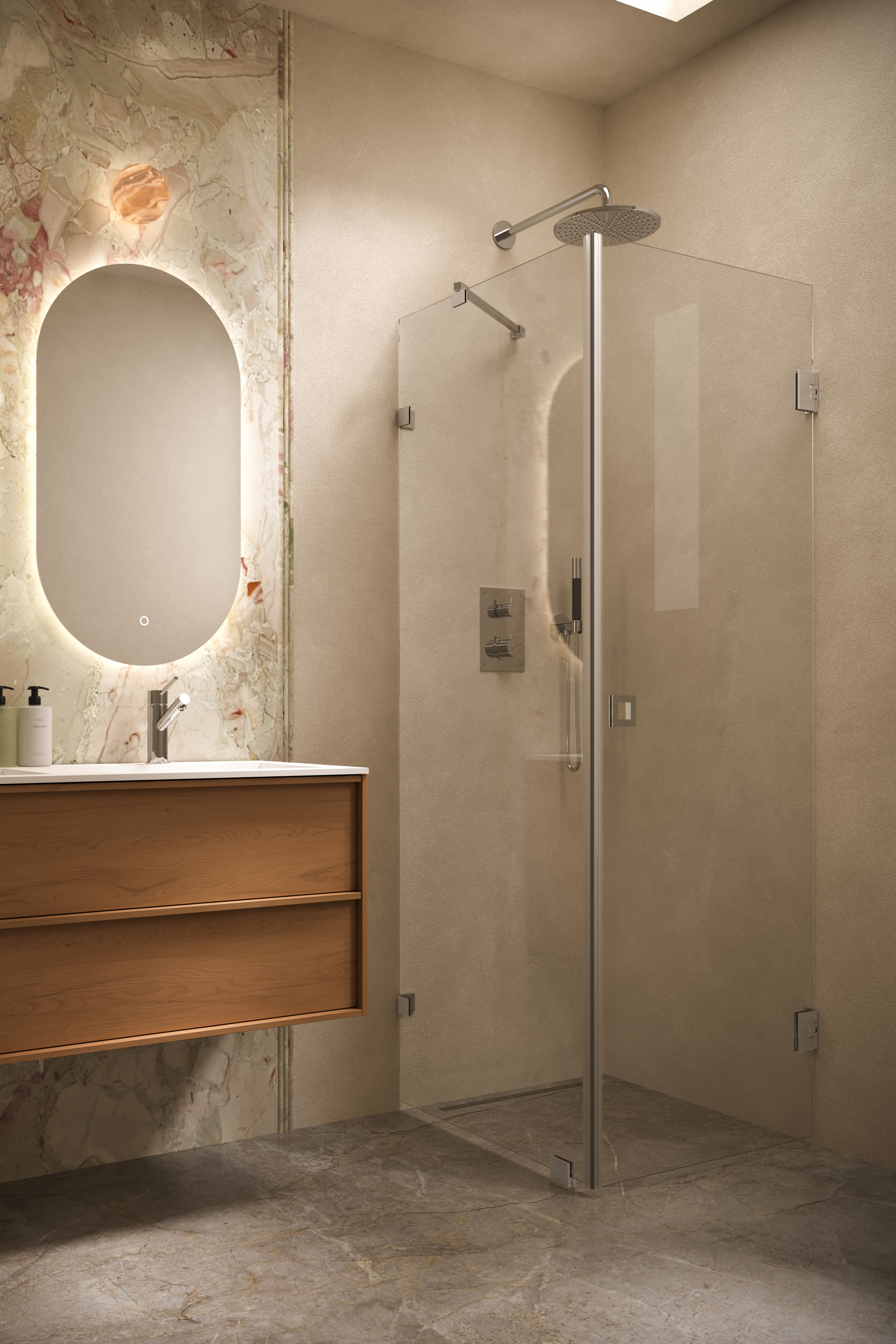

Shower enclosure with a fixed wall and hinged door
The shower enclosure consists of a fixed wall and a hinged door The product is well-suited for a shower corner with fixtures located next to it. A fixed wall and door can be dimensioned so that the fixed wall protects the fixtures and the door is of the width of the available space.
The door opens 90 degrees to the outside and is equipped with an adjustable centring. The centring tries to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.
Fixed wall and door are attached to the wall of the building from the sides by means of wall mountedfittings and hinges. The fixed wall is supported from the top edge by a brace installed in the corner and from the bottom edge by a fitting glued to the floor. Between the panel of the fixed wall and the floor will be a 25mm high gap. Between the panel and the floor may be installed a seal (standard part) in order to prevent water from passing through under the panel. At the bottom edge of the door panel can be installed which restricts the flow of water. Installation guide
18 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower enclosure can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size
The installation dimensions of the selected combination are:
- Side L1 : 400mm
- Side L2 : 402mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10mm and its width is 16mm. An extension step can be placed under the glass clamp to raise it by 10mm.
Choose handle
Product
Product code
Price
1
Vetro 540 (511x512)
Product code
540-21-44
Price
0.00 €
2
Vetro 511 Shower enclosure fixed screen
Chrome plated/Transparent/L1=400 x 2000
Product code
511 21 0038
Price
451.00 €
3
Vetro 512 Shower enclosure hinged door
Chrome plated/Transparent/L2=402 x 2000
Product code
512 21 0038
Price
430.00 €
4
Magnet seal pair
Product code
915 2L 0004
Price
42.00 €
5
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
6
TOTAL
Product code
Price
950.00 €
The installation dimensions of the selected combination are:
- Side L1 : 400mm
- Side L2 : 402mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
