Vetro 525
Framed shower enclosure with a fixed panel and a hinged door with a fixed part
The shower enclosure consists of two fixed walls, into which have been hinged doors have been attached. The product is well-suited for a shower corner on the outside of which are fixtures on both sides. The fixed parts can be dimensioned according to the depth of the fixtures so that when opened, the doors do not hit the fixtures. Doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction of the building walls.

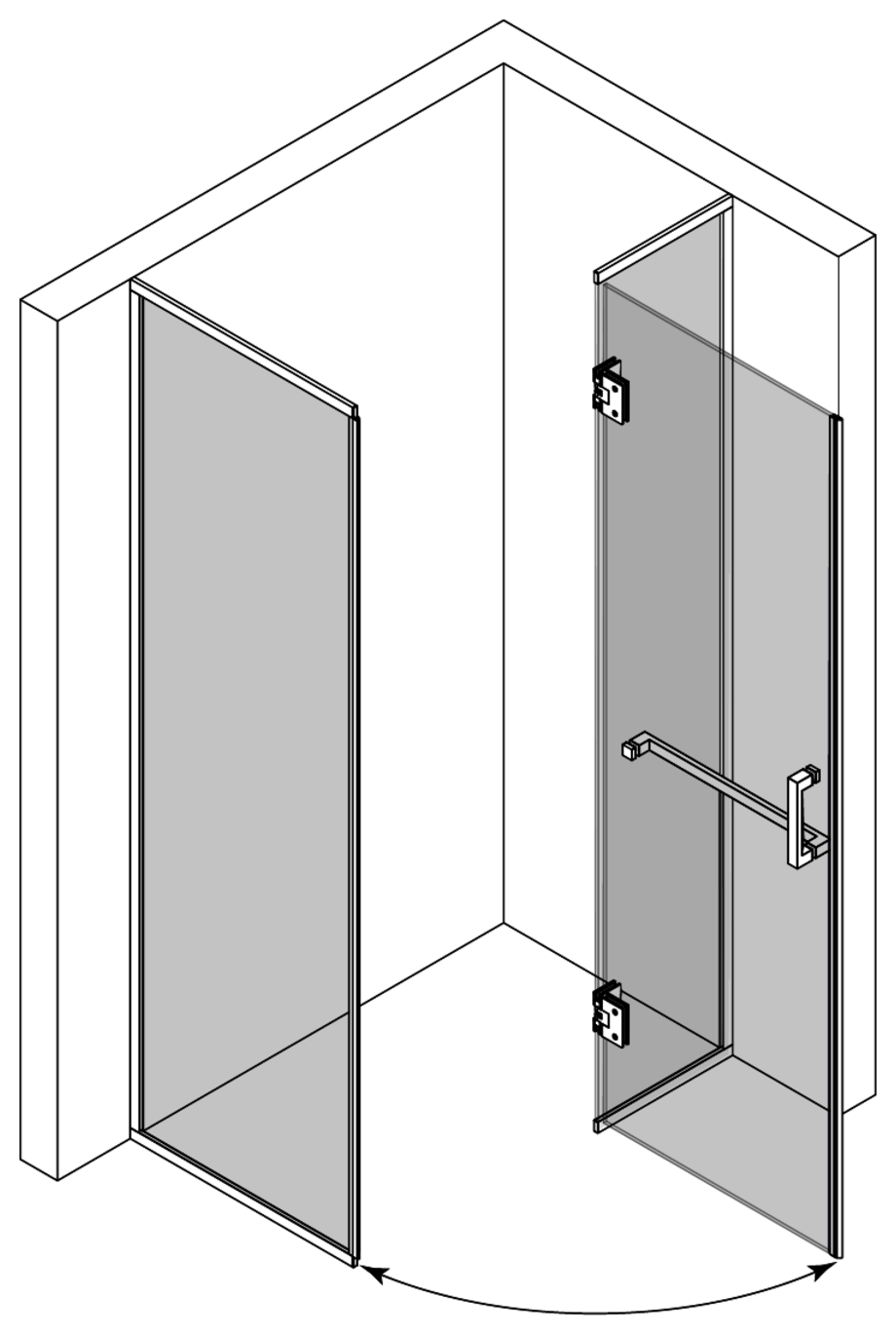

Doors rotate 90 degrees in both directions and are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.
Fixed walls are attached to the wall of the building from the sides by means of wall mountedfittings and supported from the top edge by the braces installed in the corners as well as from the bottom edge by the fitting glued to the floor. Between the panels of the fixed walls and the floor will be a 25mm high gap. Between the panel and the floor may be installed seal (standard part)s , so that water will not be able to flow under the panels. Floor seals (standards equipment) can be installed at the bottom edges of the door panels, which will restrict the flow of water. Installation guide
18 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of stainless steel. The hinges of the door are manufactured of brass alloy. Surface treatment options is chrome plated.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower enclosure can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size

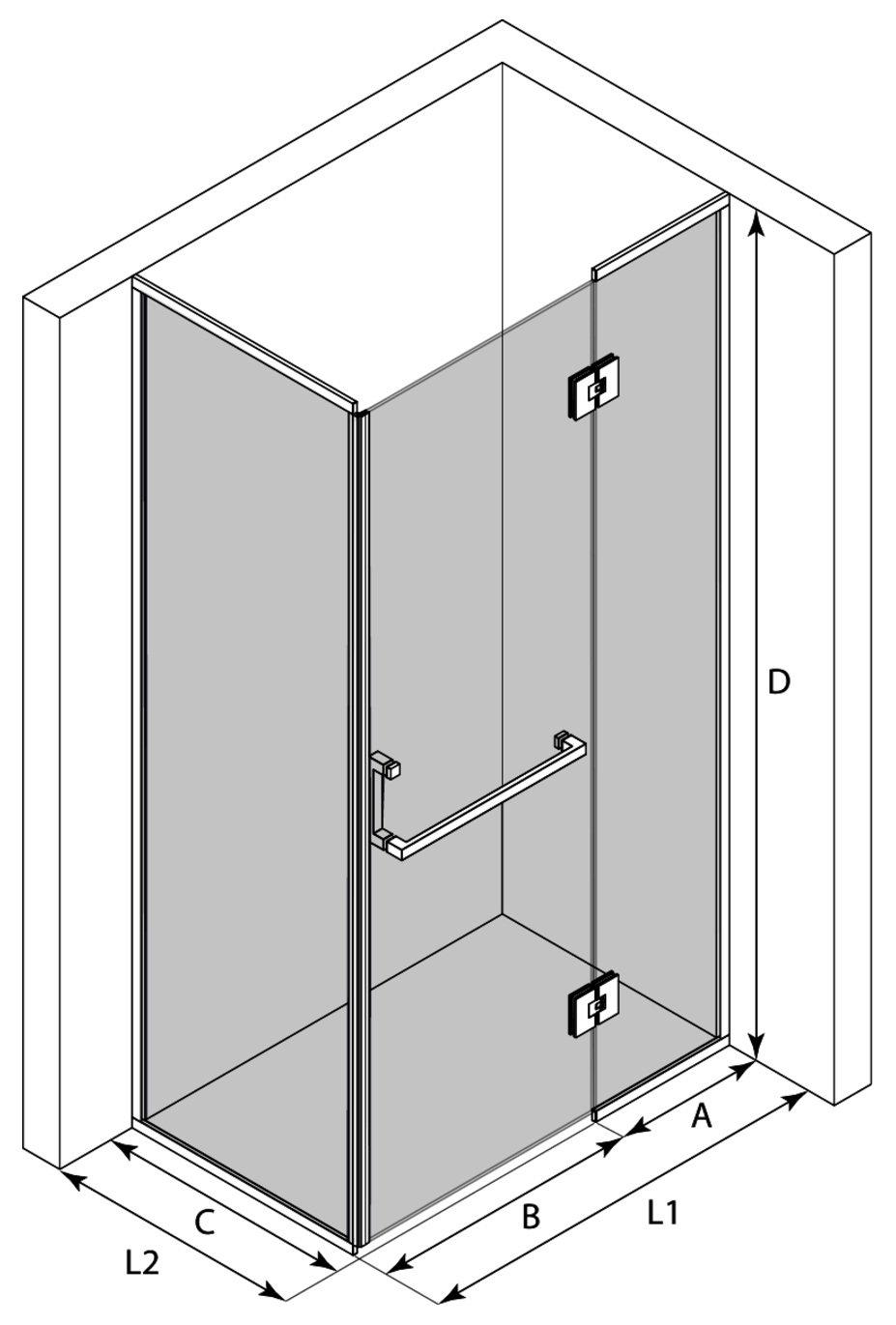

The installation dimensions of the selected combination are:
- Side L1 : 1382mm
- Side L2 : 782mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Product
Product code
Price
1
Vetro 525
Product code
525-21-000
Price
0.00 €
2
Vetro 520 Shower enclosure fixed screen
Chrome plated/Transparent/A=800 x 2000
Product code
520 21 0000
Price
734.00 €
3
Vetro 520 Shower enclosure hinged door
Chrome plated/Transparent/B=582 x 2000
Product code
520 21 1000
Price
734.00 €
4
Vetro 516 Shower enclosure fixed screen
Chrome plated/Transparent/C=782 x 2000
Product code
516 21 0000
Price
681.00 €
5
Magnet seal pair
Product code
915 21 MMMM
Price
32.00 €
6
TOTAL
Product code
Price
2181.00 €

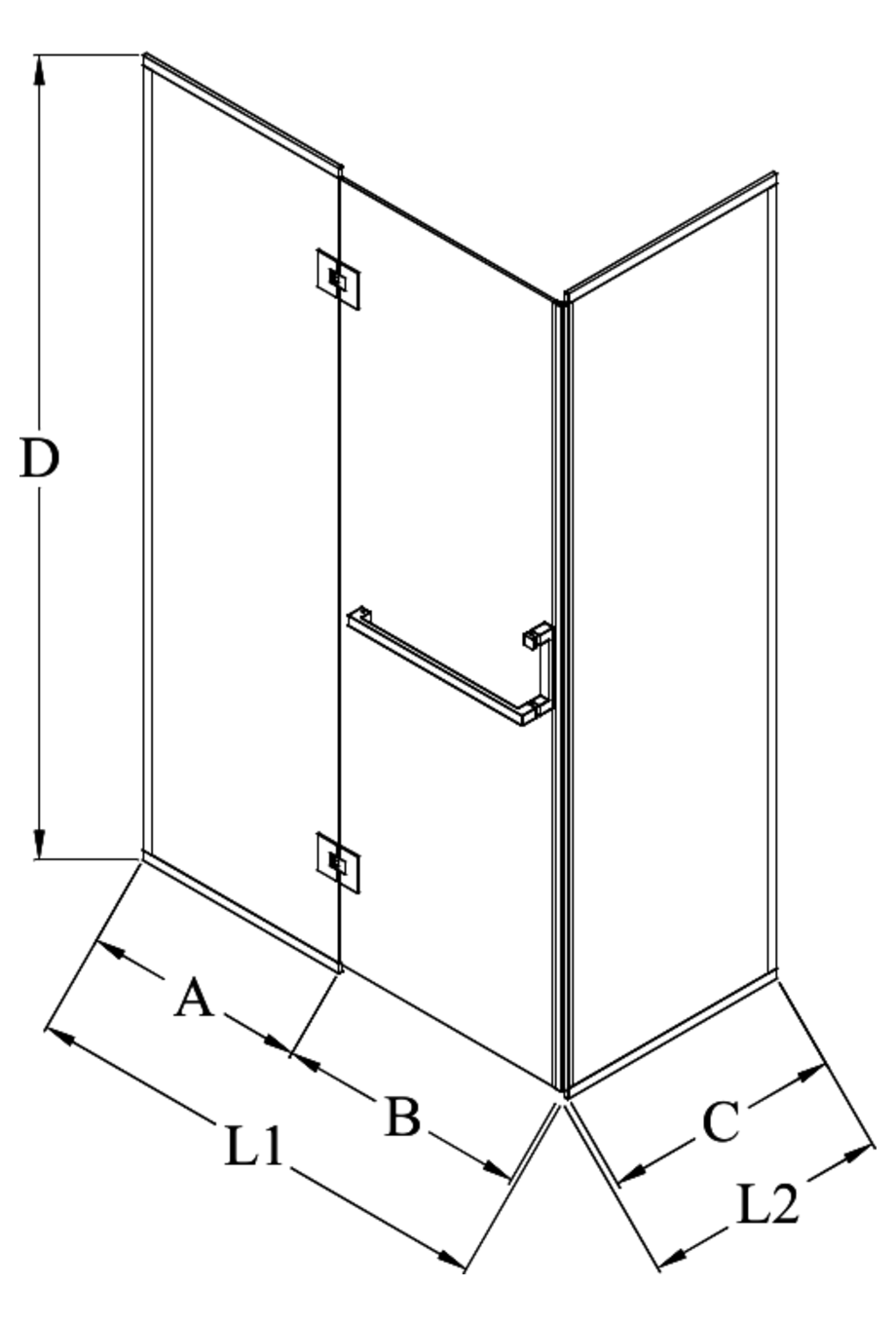

The installation dimensions of the selected combination are:
- Side L1 : 1382mm
- Side L2 : 782mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
