Bläk 731 New York

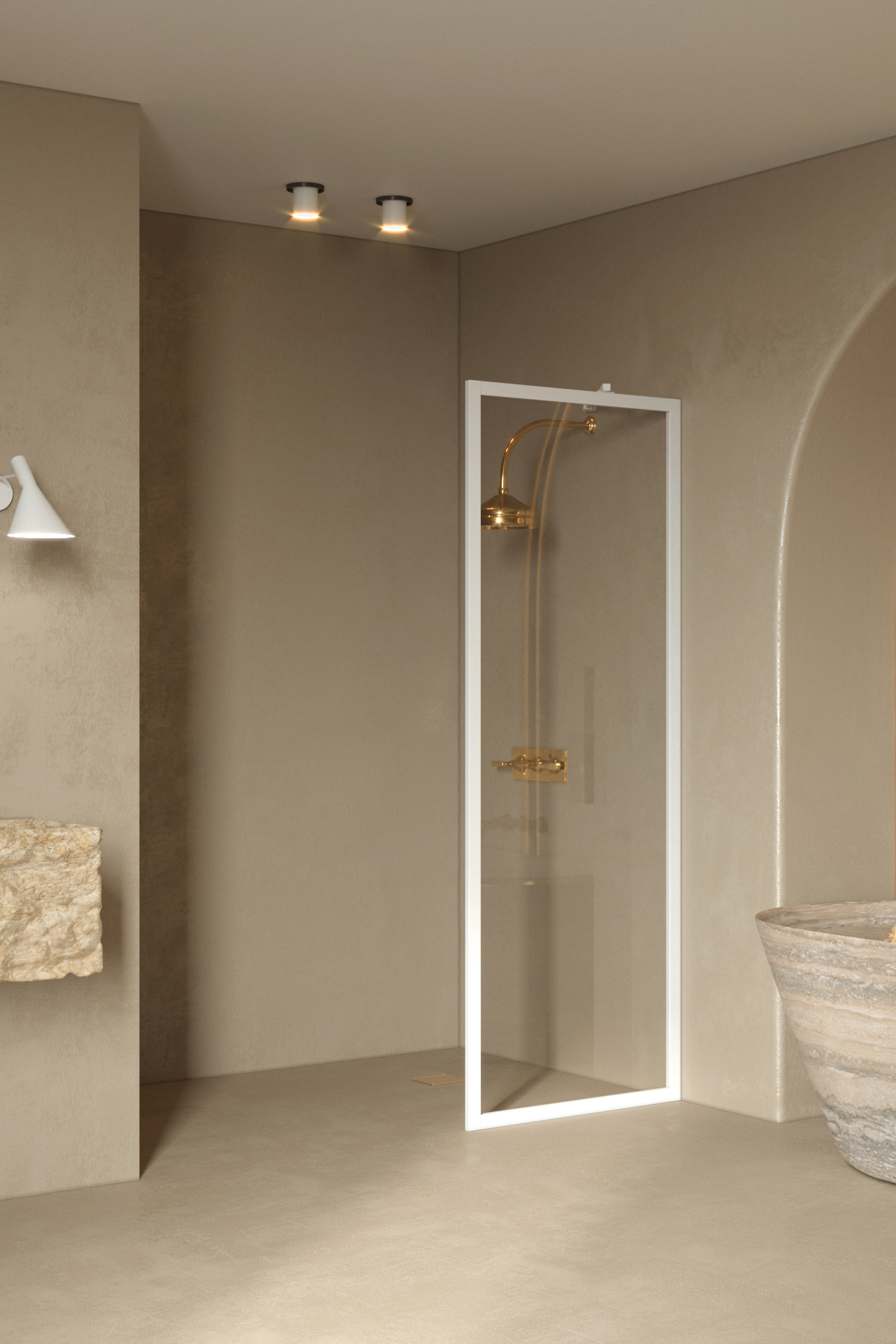

Fixed shower screen
Fixed shower screen protects the space and the fixture next to the shower from splashing water. Fixed shower screen is sturdy and can be efficiently used for protection from water.

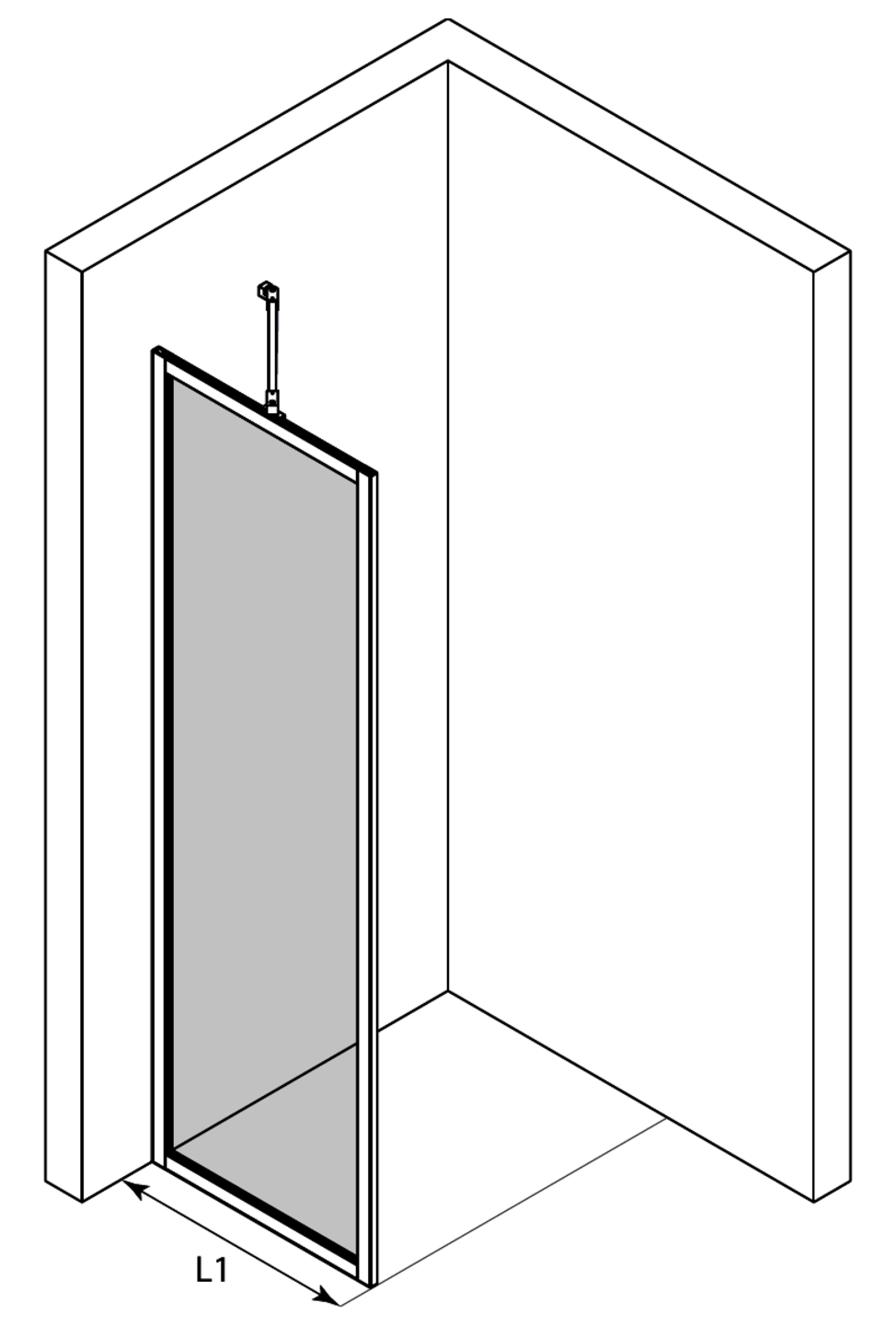

The wall mounting profile is screwed in to the building wall. The fixed shower panel with a tuning leg set up on the bottom is attached to the wall mounting profile with self-drilling screws. The support bar is set up from the top edge of the fixed panel and screwed into the building wall. A bottom seal can be attached to the shower panel to improve water retention. Installation guide
4 Working days
20 year warranty
The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.
The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mounted profiles have 7mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 40mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

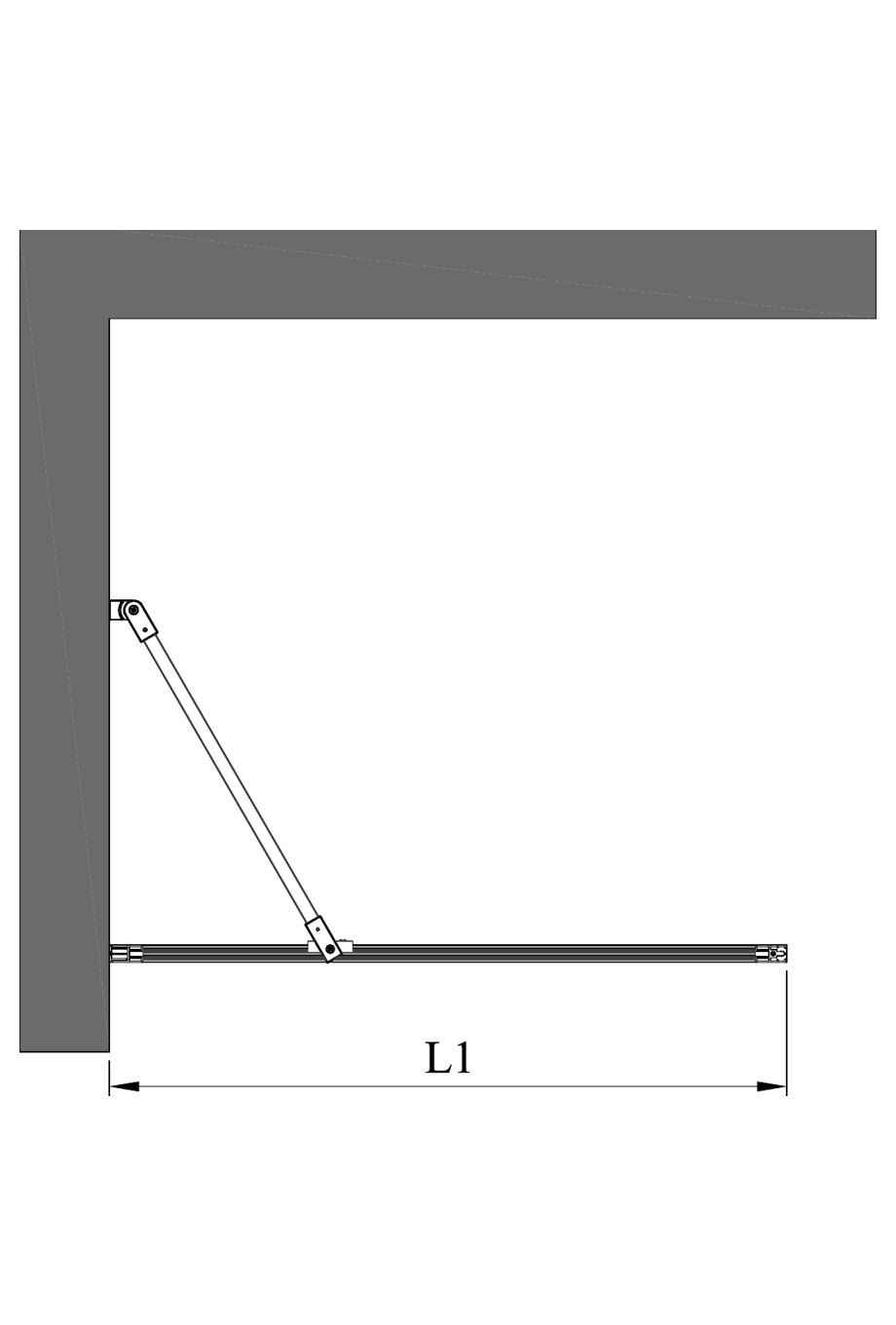

Product size
The total width of the selected product is:
- At its narrowest: 497mm
- At its widest: 504mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
The brace mounted to the upper edge of the panel can be replaced by a long side support mounted to the corner. The side support can be used for drying light towels or as a rail for a shower curtain with hoops. We recommend the long support bar instead of the short one, for added support if the fixed panel exceeds 850 mm in width, or if the panel is close to maximum height. The longer support bar should be mounted as close to the outer edge of the panel as possible.
Product
Product code
Price
1
Bläk 731 New York
Product code
731-61-7
Price
0.00 €
2
Bläk 711 Fixed shower screen
White painted/Transparent/L1=497 x 1950
Product code
711 61 0049
Price
409.00 €
3
TOTAL
Product code
Price
409.00 €
The total width of the selected product is:
- At its narrowest: 497mm
- At its widest: 504mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
