Bläk 785 Paris
Double door
Doors open 90 degrees to the outside and are equipped with an adjustable centring. The function of the centering is to return the door to the open and closed positions.
The door panels are mounted to building wall using wall mounting profiles on each side of the enclosure space. The panels are secured with self-drilling screws. The top of the glass wall is secured from both sides by profiles fixed to the panel and the ceiling. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.
15 Working days
20 year warranty
The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

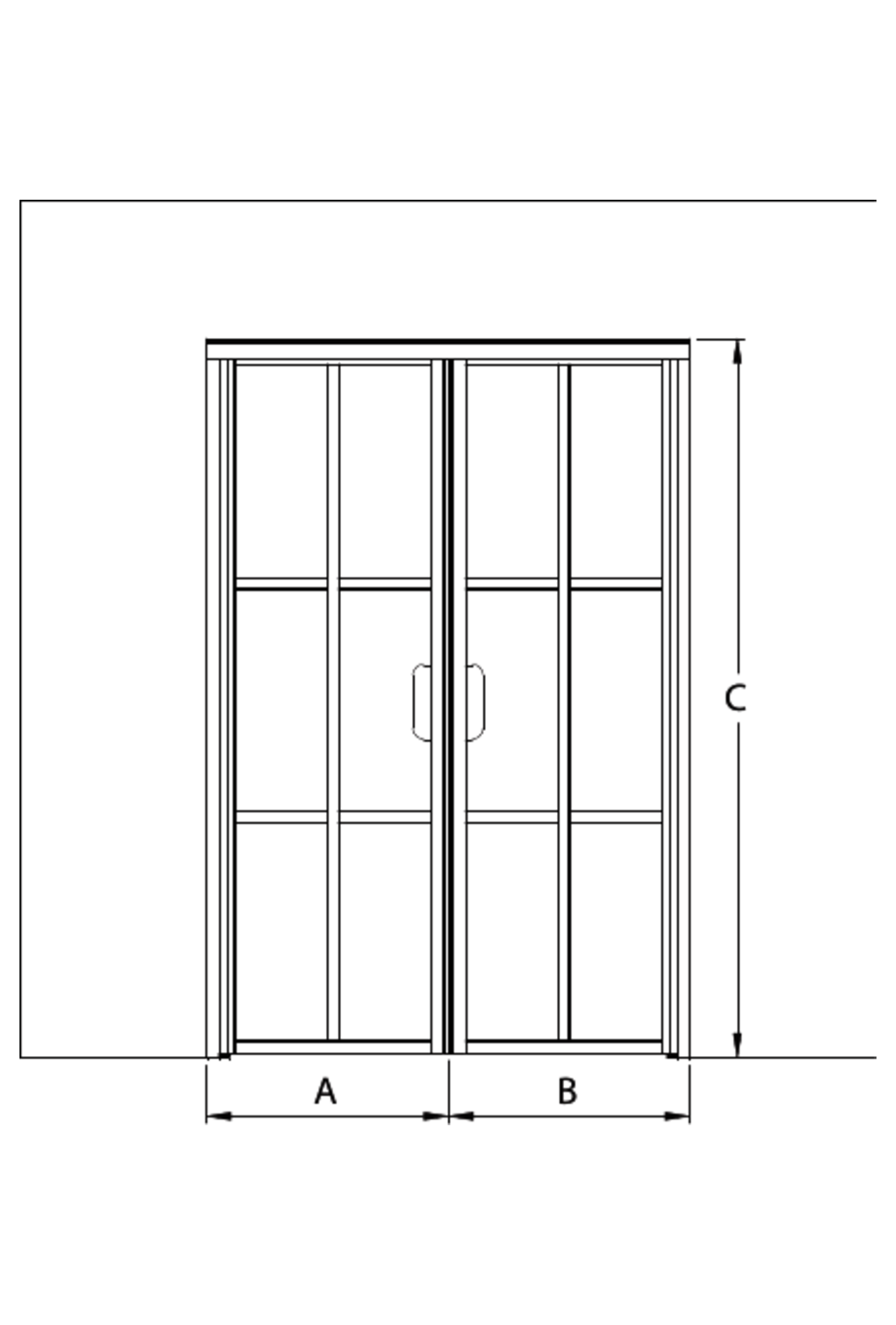

The unit is always manufactured according to custom dimensions. When selecting the size, enter the width of the opening and the height of the opening, entering the smallest measurements in the actual gap. When the width consists of more than one panel, all entered width measurements should add up to the total measurement of the actual gap at its narrowest.
Product size
The selected product can be installed into the opening the total width L1 of which is 1000mm and the total length L2 2000mm.:
Product
Product code
Price
1
Bläk 785 Paris
Product code
785-61-00
Price
0.00 €
2
Blak 738 Door
White painted/Transparent=485 x 2000
Product code
738 61 0000
Price
440.00 €
3
Blak 738 Door
White painted/Transparent=485 x 2000
Product code
738 61 0000
Price
440.00 €
4
Bläk 704 Broad ceiling list
White painted/Transparent=10 x 1000
Product code
704 61 0000
Price
0.00 €
5
Maintenance manual Maintenance guide
/=
Product code
059 RL MMMM
Price
0.00 €
6
Magnet locking
Product code
724 6L 0000
Price
0.00 €
7
Paris -frame
Product code
703 6L 0000
Price
126.00 €
8
Paris -frame
Product code
703 6L 0000
Price
126.00 €
9
TOTAL
Product code
Price
1132.00 €
The selected product can be installed into the opening the total width L1 of which is 1000mm and the total length L2 2000mm.:
