Inne M11 Paris
Glass double doors
Inne Double doors consists of two glass doors that open 180 degrees. The product has sturdy door jambs made of aluminium and door leaves made of tempered glass. The product comes with frames, hinges, 2 door leaves, flush pull handles and a magnet to lock the doors in place against the jambs. The wanted handle should be chosen when placing the order.
In the New York, Tokyo and Paris models, the door leaves are framed. The Tokyo and Paris models are also equipped with aluminum grids glued to the glass.
The aluminum frame is assembled and attached to the walls of the building. The door leaf hinges are attached to the frame. The door leaf is attached to the hinges attached to the frame. The handeness of the product is selected when ordering the product. Installation guide
21 Working days
20 year warranty
Product jambs and depending on the model possible door leaf frames and grids are manufactured of aluminium profiles. Hinges and other fittings are manufactured of brass alloy. Aluminium profile and fitting surfaces are powder painted using black color (RAL 9005).
The product is manufactured of 8 mm thick tempered safety panel (EN 12150).
There's plenty of glass options available. Transparent, grey, brown, super bright, mirage, black and opalglass. Satinglasses are available in different hues (satin, brown satin, grey satin and super bright satin), there's also hue options for the reeded glasses (reeded, brown reeded and grey reeded).
One side of the satin glasses is etched to acquire a velvety feel and the other side is smooth. When choosing a satin glass product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
The mirage glasses transparency depends of lighting in the space, when backside is lit the glass seems transparent, when the backside is dimmed or dark, the mirroring effect kicks in.
The black glass is also slightly see through in heavy light and almost nontransparent if the space is darker.
The super bright glasses are manufactured with the iron removed, thus removing most of the green tint that glasses naturally have.
Opal glass is a laminated glass, that is white tinted and nontransparent, but let's through most of the light.

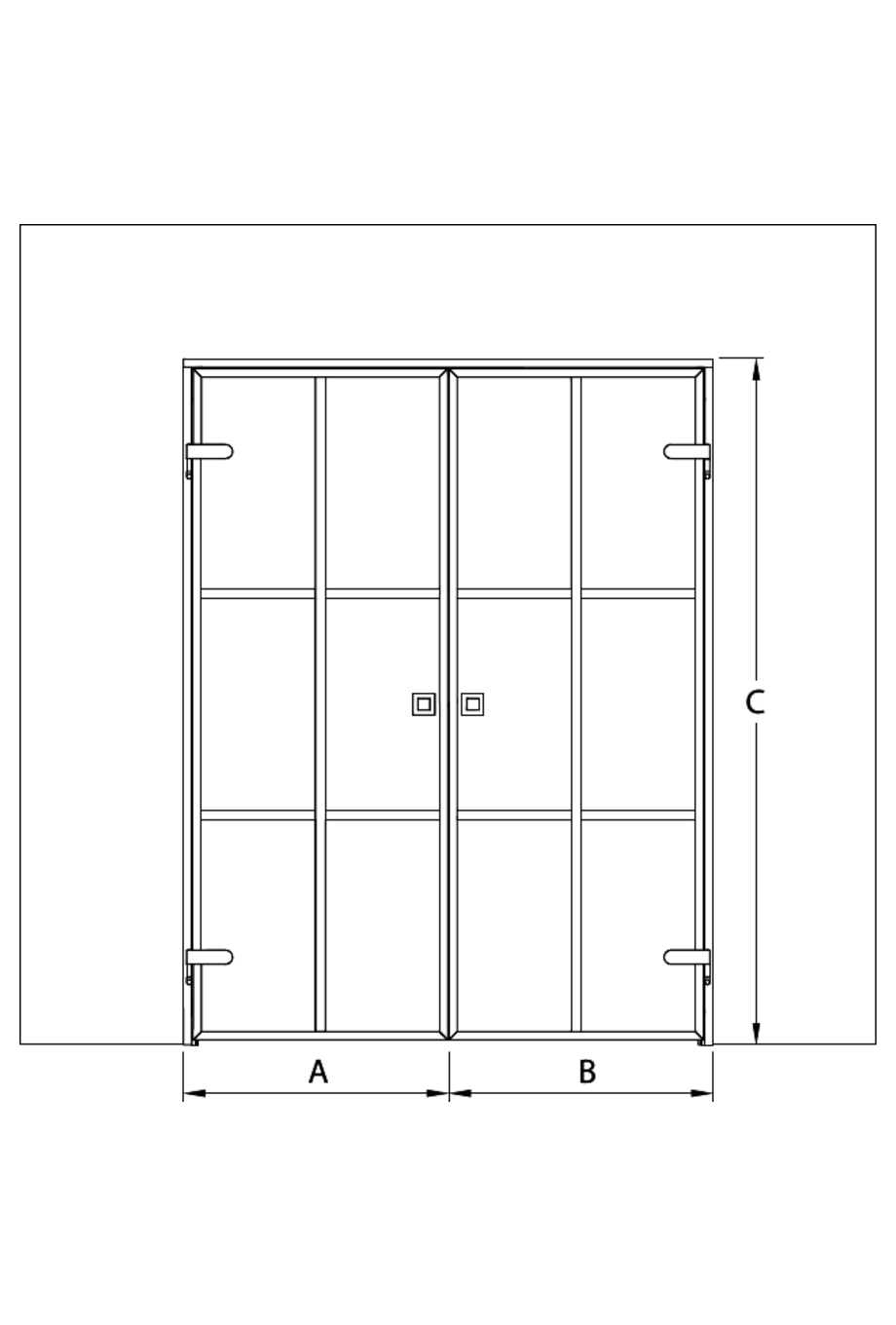

The doors are manufactured according to measures. When ordering, please state the width and height of the installation opening. A should be the left door and B the right door, viewing the gap from the opening direction of the doors. A 20 mm total mounting space is left between the product frames and the specified mounting opening. The free access opening is 110 mm smaller than the width of the specified mounting opening, when both doors are opened. The depth of the frame is 92 mm.
Product size
The selected product can be installed into the opening the total width L1 of which is 1600mm and the total length L2 2000mm.:
Please select handle model:
Product
Product code
Price
1
Inne M11 Paris
Product code
M11-61-00
Price
0.00 €
2
Inne double Left door
White painted/Transparent=800 x 2000
Product code
C39 61 0000
Price
613.00 €
3
Inne double Right door
White painted/Transparent=800 x 2000
Product code
C40 61 0000
Price
613.00 €
4
Inne M05-M11 Inne jambs
White painted/=10 x 1600
Product code
C38 6L 0000
Price
0.00 €
5
Paris -frame
Product code
C04 6L 0000
Price
126.00 €
6
Round handle
Product code
Y76 6L MMMM
Price
27.00 €
7
Paris -frame
Product code
C04 6L 0000
Price
126.00 €
8
Round handle
Product code
Y76 6L MMMM
Price
27.00 €
9
TOTAL
Product code
Price
1532.00 €
The selected product can be installed into the opening the total width L1 of which is 1600mm and the total length L2 2000mm.:
