Classic Ram F02
Framed hinged door

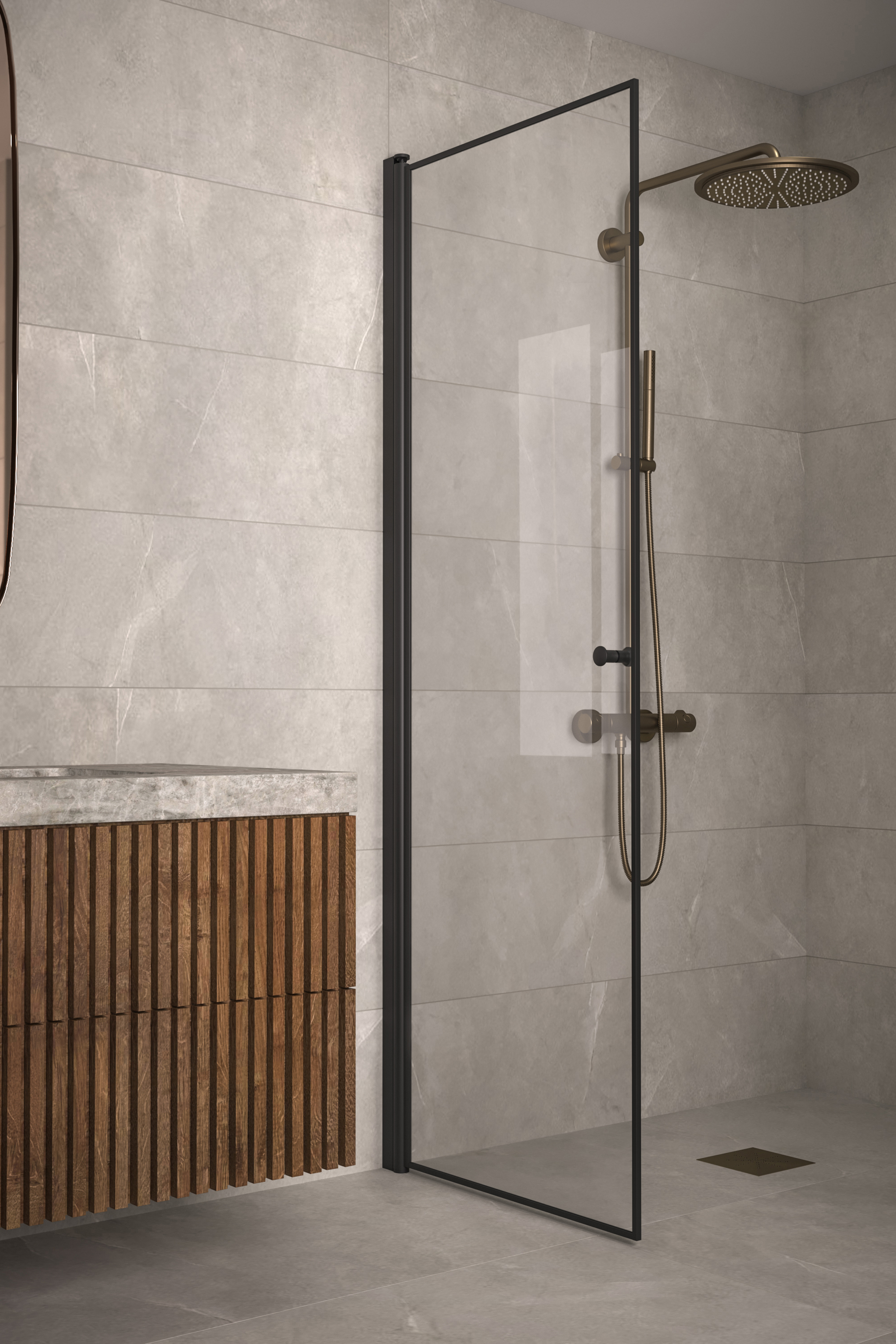

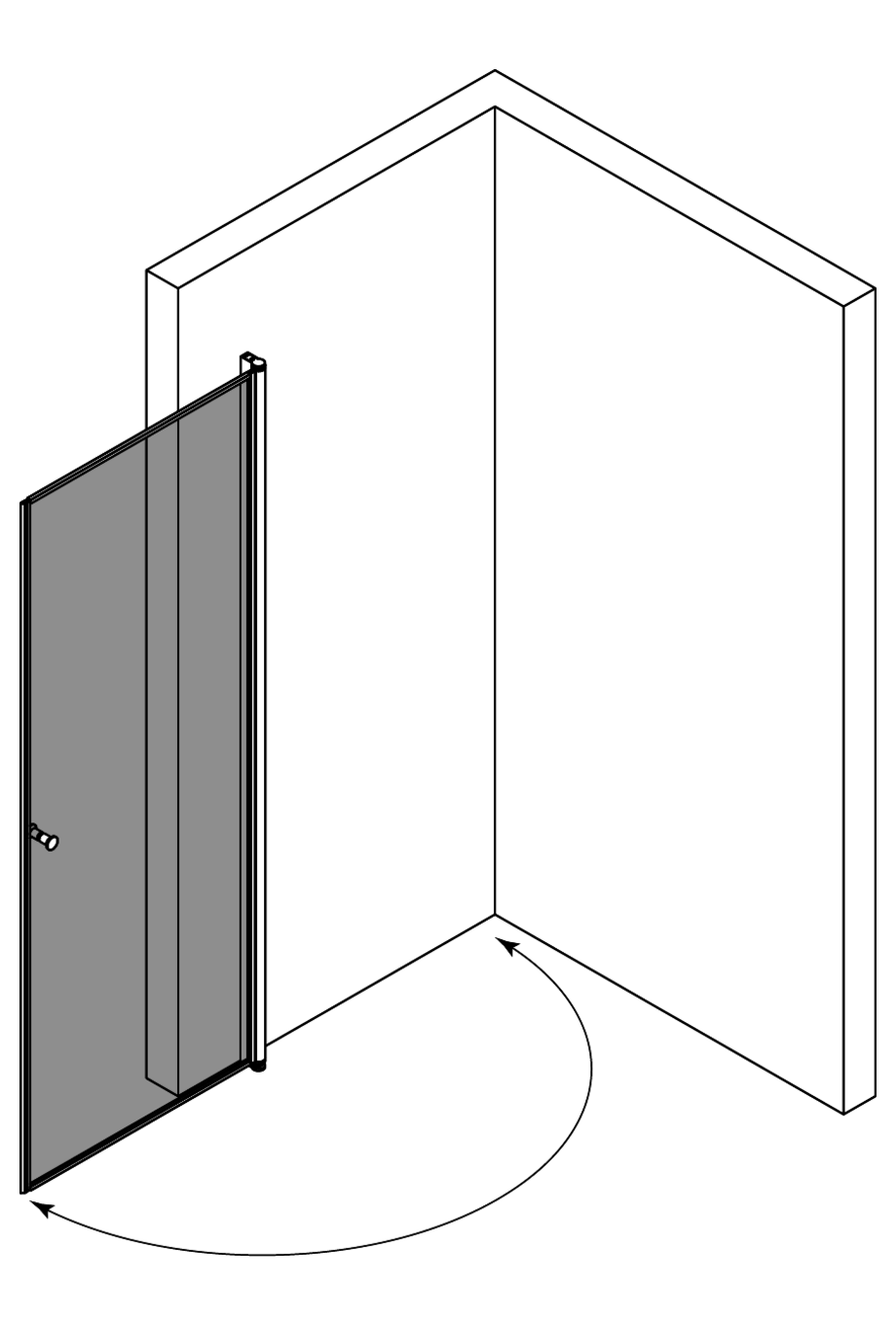

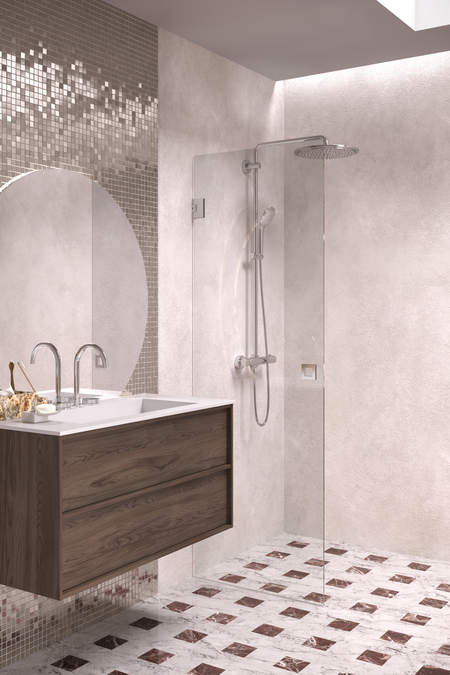

The framed hinged shower screen protects the space and the fixtures located next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building. The shower screen turns 90 degrees in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.
The shower screen is attached to the building wall with a wall
mountedprofile. The installation height is freely selectable. Please note, that a door seal isn't available for this model.
Installation guide
Installation services are available in Finland capital (Helsinki, Espoo, Vantaa, Kauniainen, Porvoo, Sipoo, Kirkkonummi, Nurmijärvi, Kerava, Järvenpää, Riihimäki, Pornainen, Hyvinkää, Tuusula), Tampere (Tampere, Nokia, Kangasala, Lempäälä ja Pirkkala), Hämeenlinna and Lahti (Lahti, Mäntsälä, Orimattila) regions. Service is carried out by manufacturers professional mechanic. When product is ordered with installation service, transport company delivers the product to customer site. When the product has arrived, mechanic will phone customer and agree the exact installation date and time. Installation is done to clean and installation ready surfaces. If there is an old product in the bathroom, you can order the additional service for removal of the old product. Installation work includes besides installation of the product also silicone seaming of wall mounting joints and drilled holes and taking away the installation garbage. If you are unsure about the measures of the product (for example in case of custom sized products), you can order a measurement visit on-site done by the mechanic. In this case the mechanic will fill-in the final measures of the product to the system and the responsibility that measures are correct is carried by the manufacturer.
7 Working days
5 year warranty
The profiles of the product are manufactured of aluminium and painted black (RAL 9005) through powder coating.
The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).

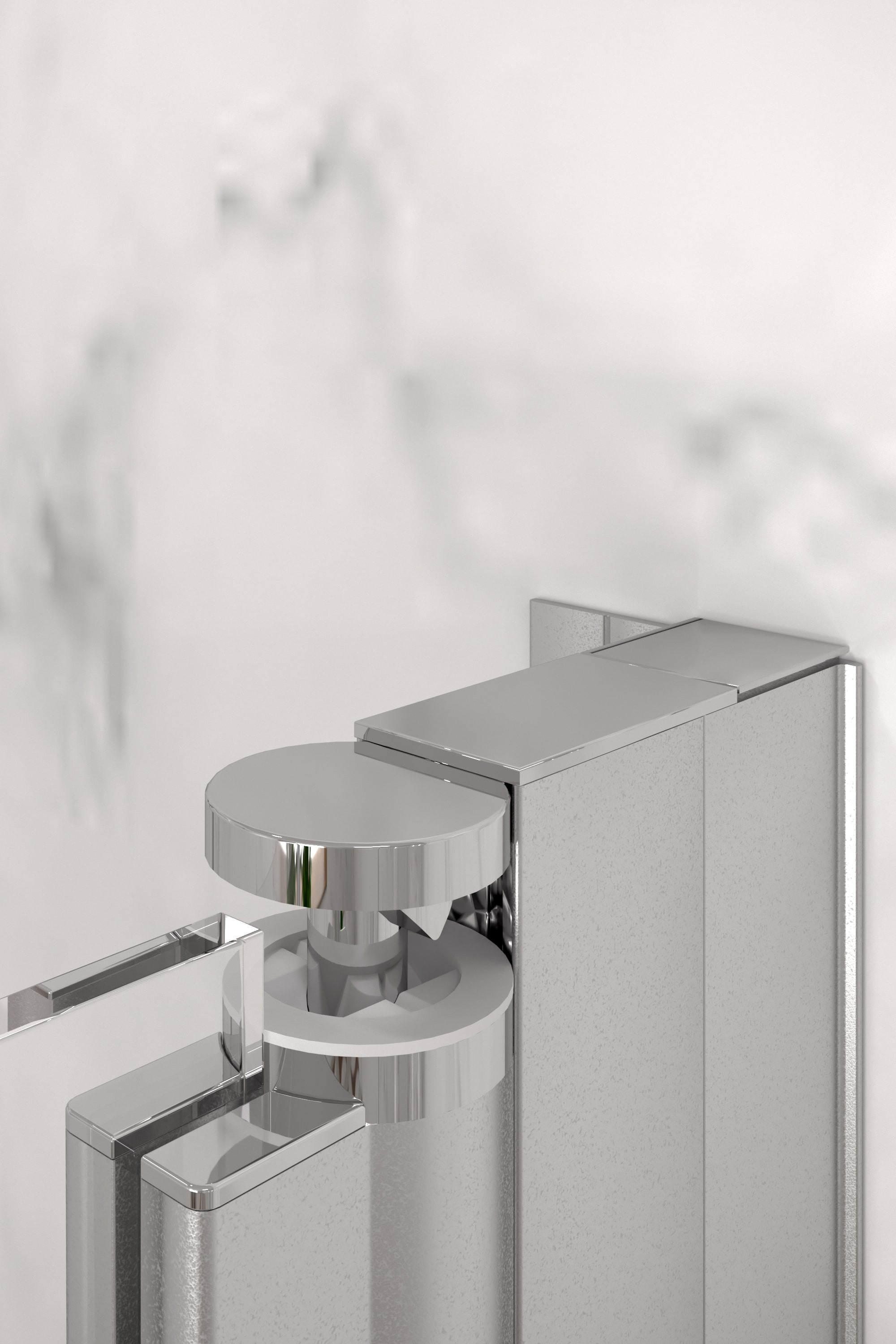

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 15mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

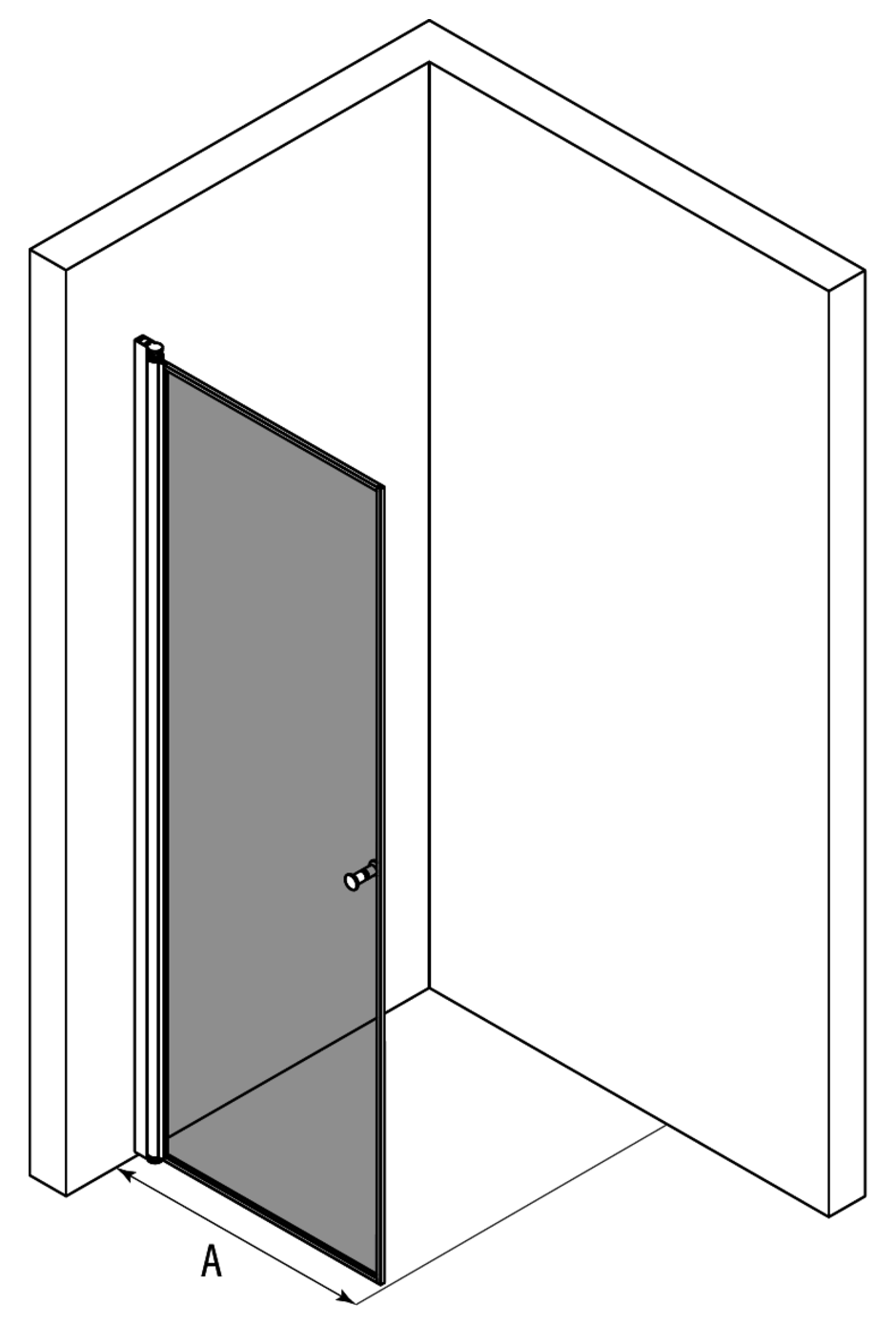

Product size
The total width of the selected product is:
- At its narrowest: 482mm
- At its widest: 497mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:

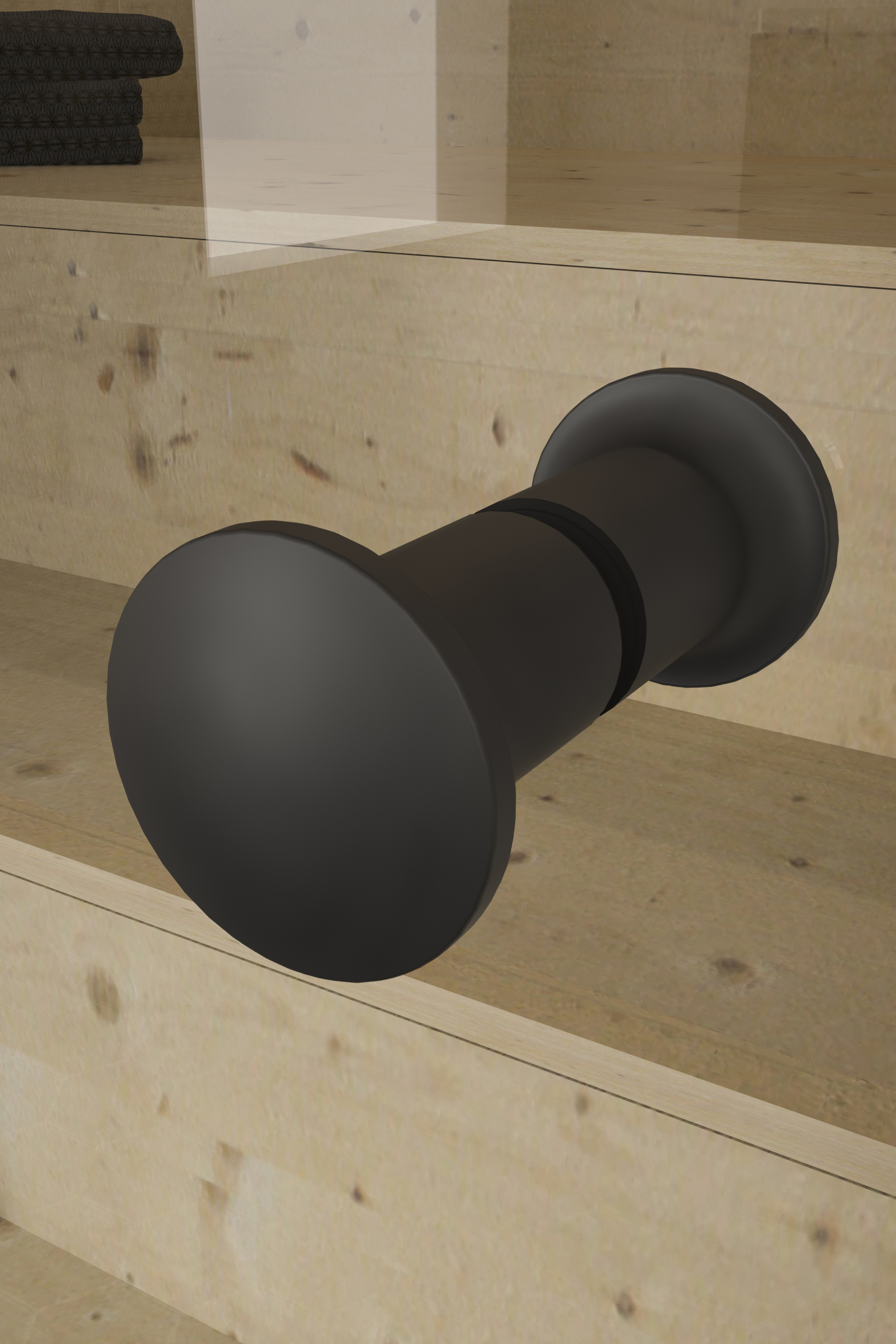

The product is equipped with a round knob handle manufactured from black painted brass.
Product
Product code
Price
1
Classic Ram F02
Product code
F02-91-6
Price
0.00 €
2
Hinged door
Black/Transparent/A=482 x 1900
Product code
CF2 91 0047
Price
283.00 €
3
TOTAL
Product code
Price
283.00 €
The total width of the selected product is:
- At its narrowest: 482mm
- At its widest: 497mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
