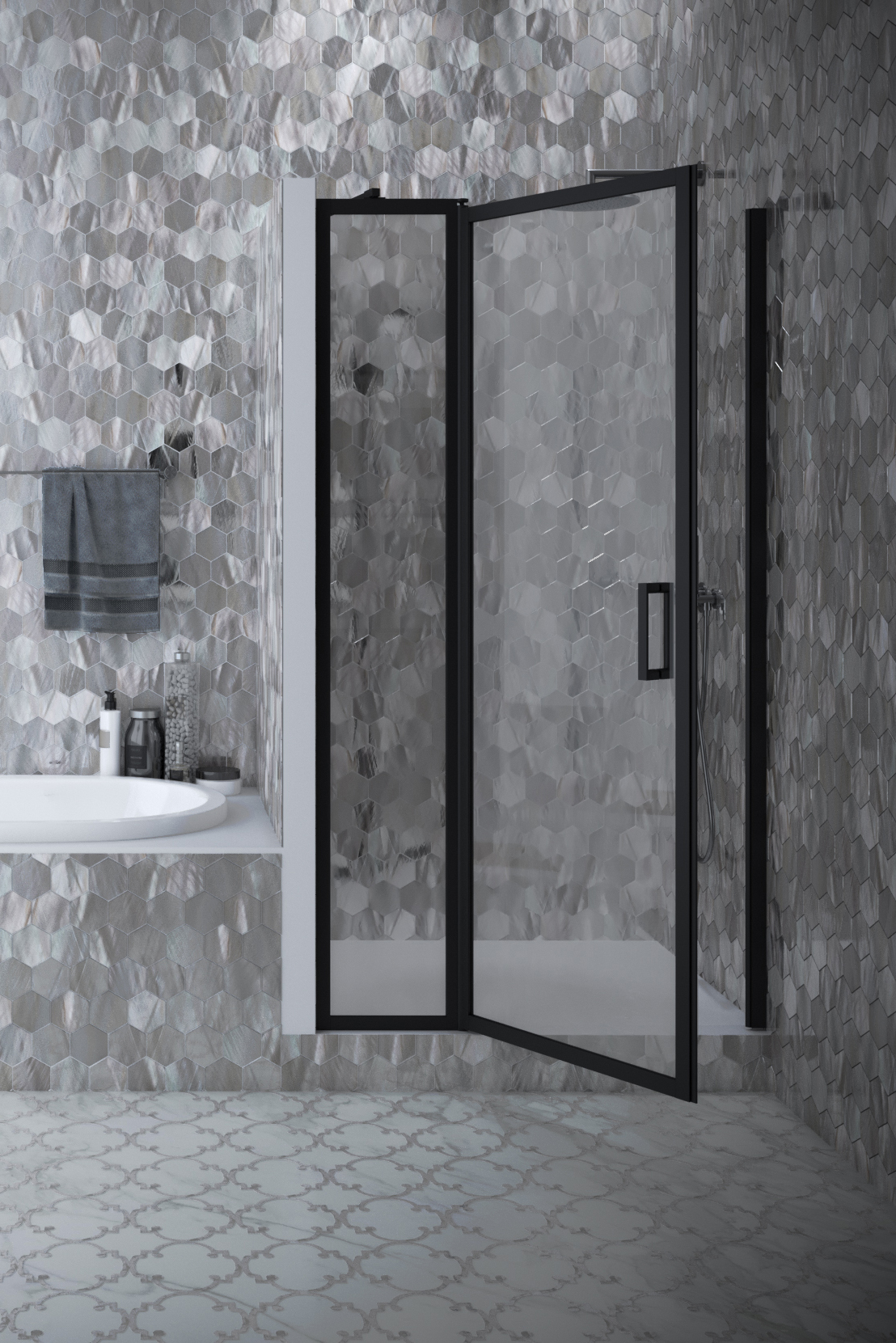

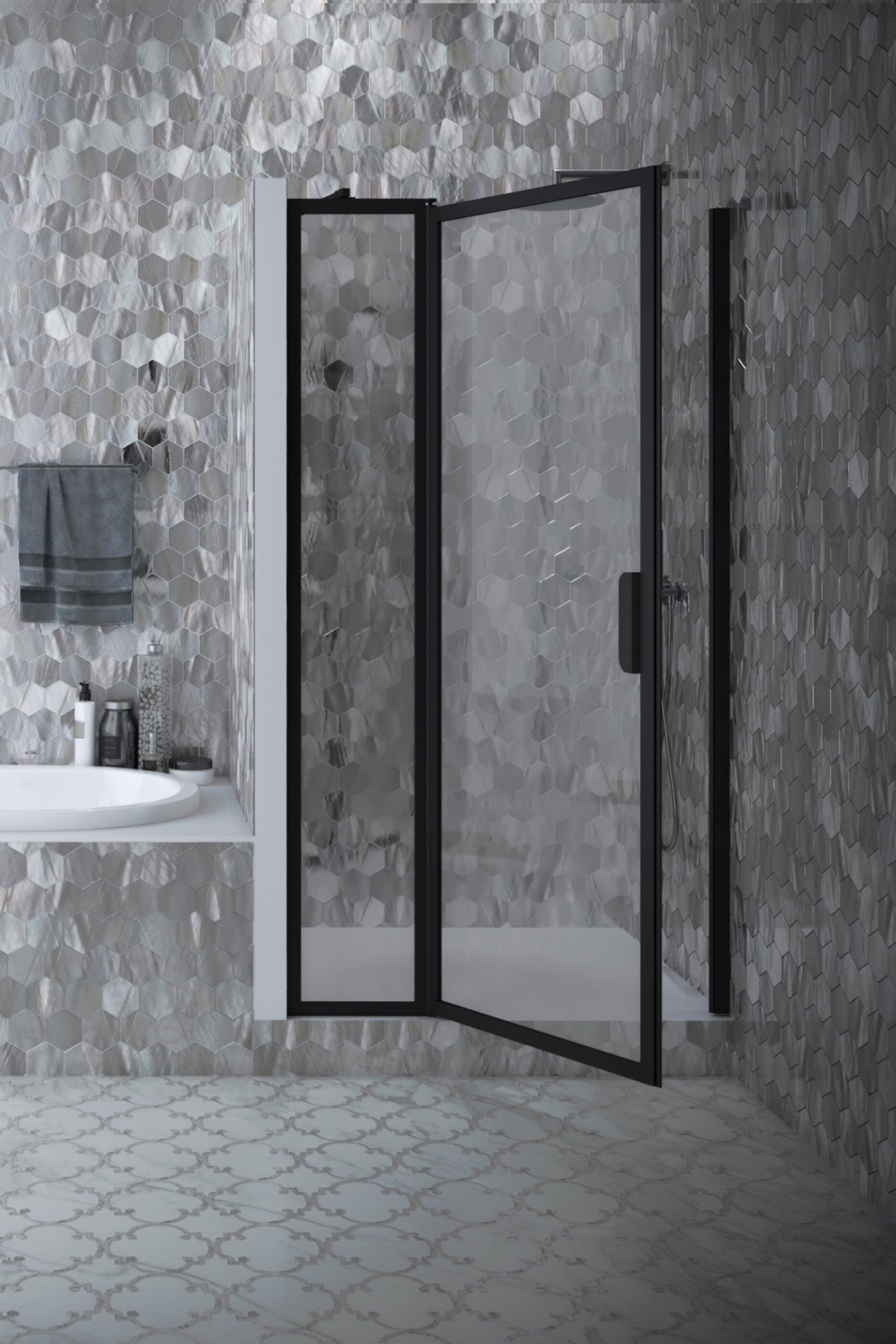

Bläk 789 New York
Hinged shower door with fixed part and magnet locking
The swinging shower screen protects the space and the fixtures located next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building.
The shower screen turns 90 degrees in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.
The door panel with fixed part is mounted by the fixed part to the building wall and floor using wall mounting profile and floor fitting profile. Magnet seals are installed on both the door panel and the wall profile to keep door tightly closed. Bottom seals and step profiles can be installed under the door panels to improve water retention. Installation guide
9 Working days
20 year warranty
The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.
The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

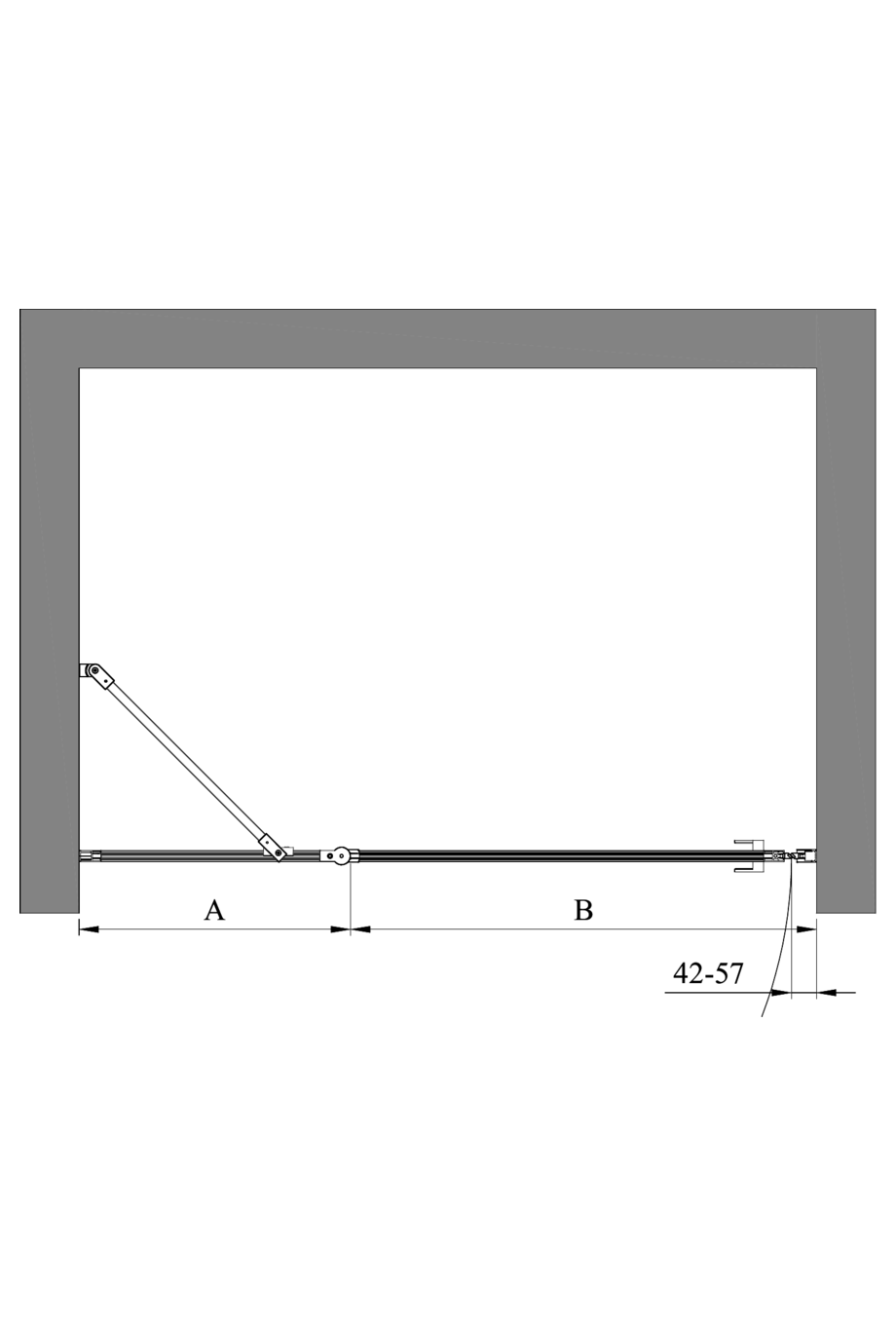

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mounted profiles have 22mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 40mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

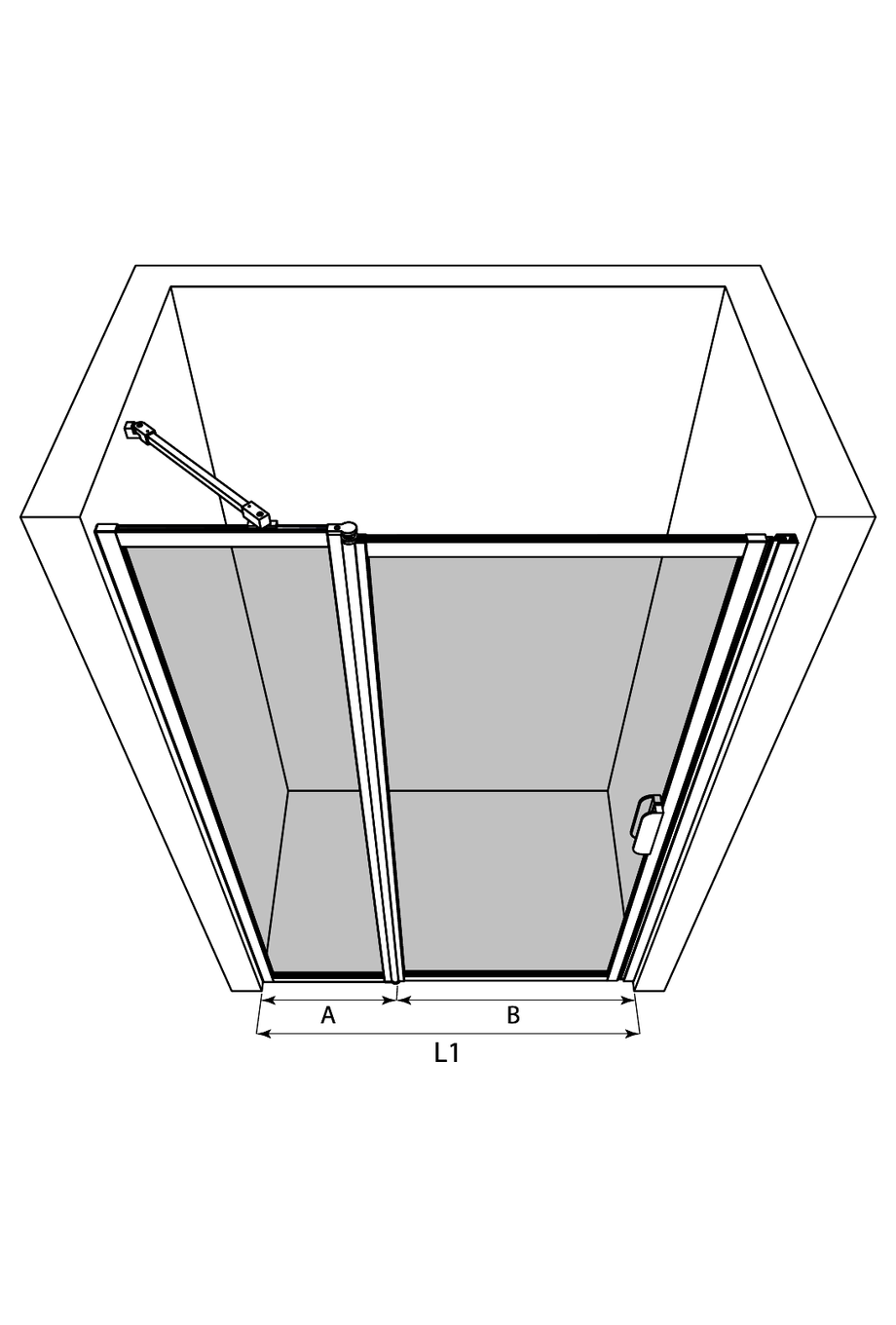

Product size
The total width of the selected product is:
- At its narrowest: 649mm
- At its widest: 671mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a shower door threshold under the door. The door threshold is cut into a suitable length on the side and glued to the floor. The height of a shaped threshold is 10mm and its width is 16mm.Fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.
Product
Product code
Price
1
Bläk 789 New York
Product code
789-61-11
Price
0.00 €
2
Bläk 714 Shower screen fixed part
White painted/Transparent/A=260 x 1950
Product code
714 61 0026
Price
310.00 €
3
Blak 714 Shower screen hinged part
White painted/Transparent/B=389 x 1950
Product code
714 61 1033
Price
310.00 €
4
Magnet locking
Product code
728 6L 0001
Price
105.00 €
5
BLÄK SERIES 01.08-30.11.2024 -20%
Product code
DISCOUNT
Price
-145.00 €
6
TOTAL
Product code
Price
580.00 €
The total width of the selected product is:
- At its narrowest: 649mm
- At its widest: 671mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
