Vetro 543 (512x512)

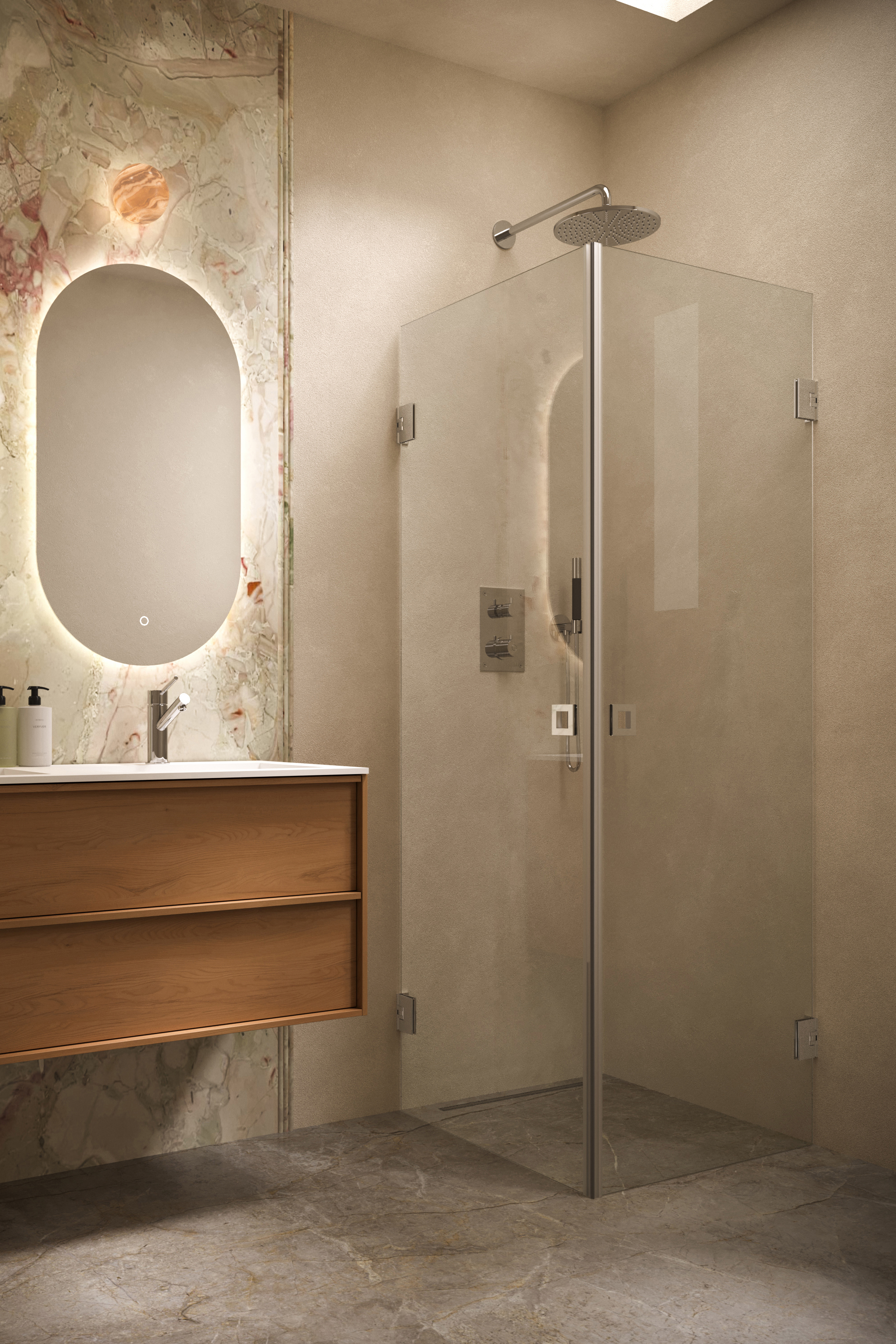

Shower enclosure with hinged doors
The shower enclosure consists of two hinged doors. The product is well-suited for for a shower corner where there is space for opening the door either to the inside or outside of the shower area. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the against the walls. Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. A pair of magnet seals keeps the doors tightly closed during showering.
The hinges of the door panels are mounted directly to the building wall. Floor seals can be installed along the bottom edge of the door panels, which restricts the flow of water. Installation guide
11 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower enclosure can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size
The installation dimensions of the selected combination are:
- Side L1 : 402mm
- Side L2 : 402mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Choose handle
Product
Product code
Price
1
Vetro 543 (512x512)
Product code
543-21-44
Price
0.00 €
2
Vetro 512 Shower enclosure hinged door
Chrome plated/Transparent/L1=402 x 2000
Product code
512 21 0038
Price
430.00 €
3
Vetro 512 Shower enclosure hinged door
Chrome plated/Transparent/L2=402 x 2000
Product code
512 21 0038
Price
430.00 €
4
Magnet seal pair
Product code
915 2L 0004
Price
42.00 €
5
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
6
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
7
TOTAL
Product code
Price
956.00 €
The installation dimensions of the selected combination are:
- Side L1 : 402mm
- Side L2 : 402mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
