Vetro 544 (512x513)

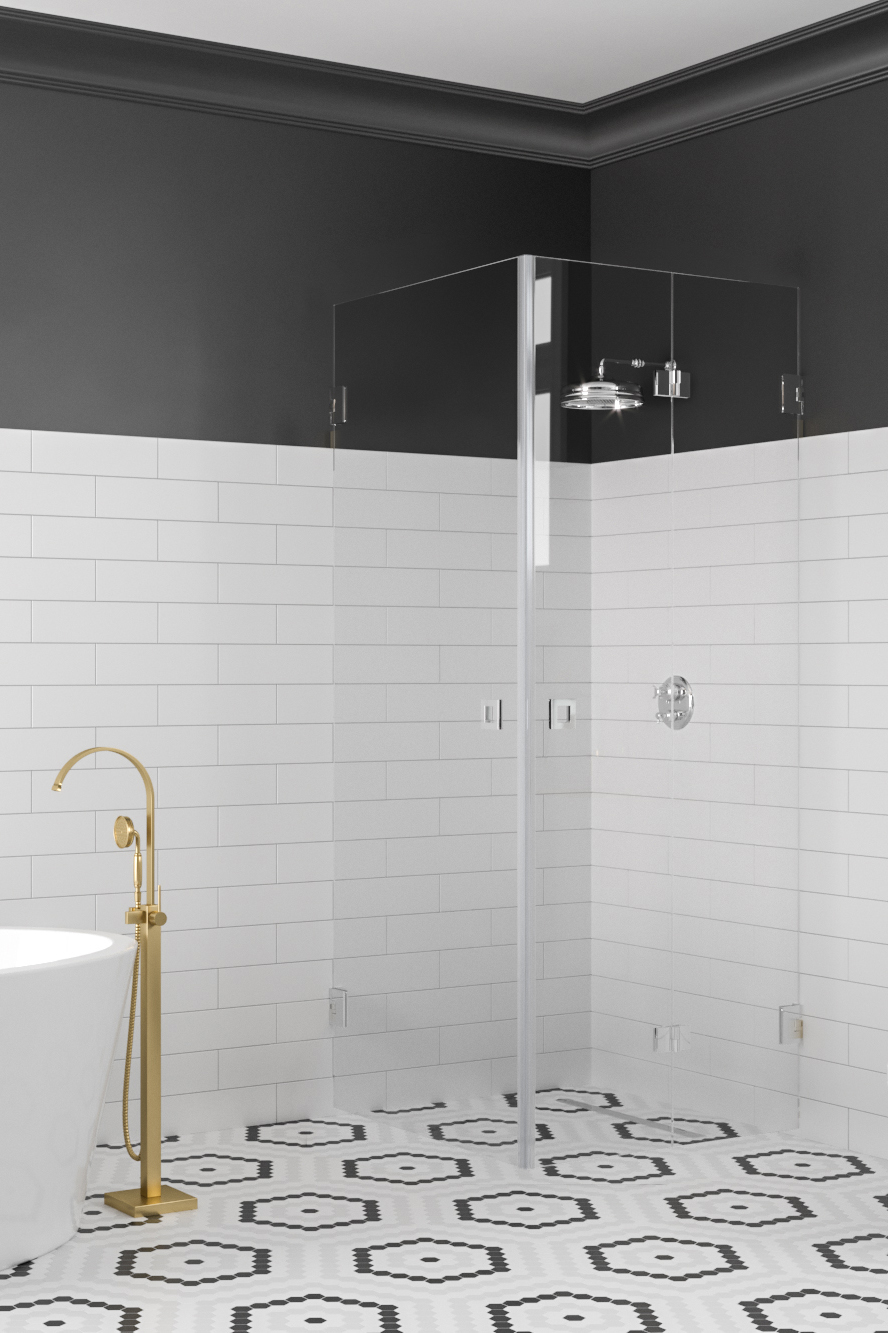

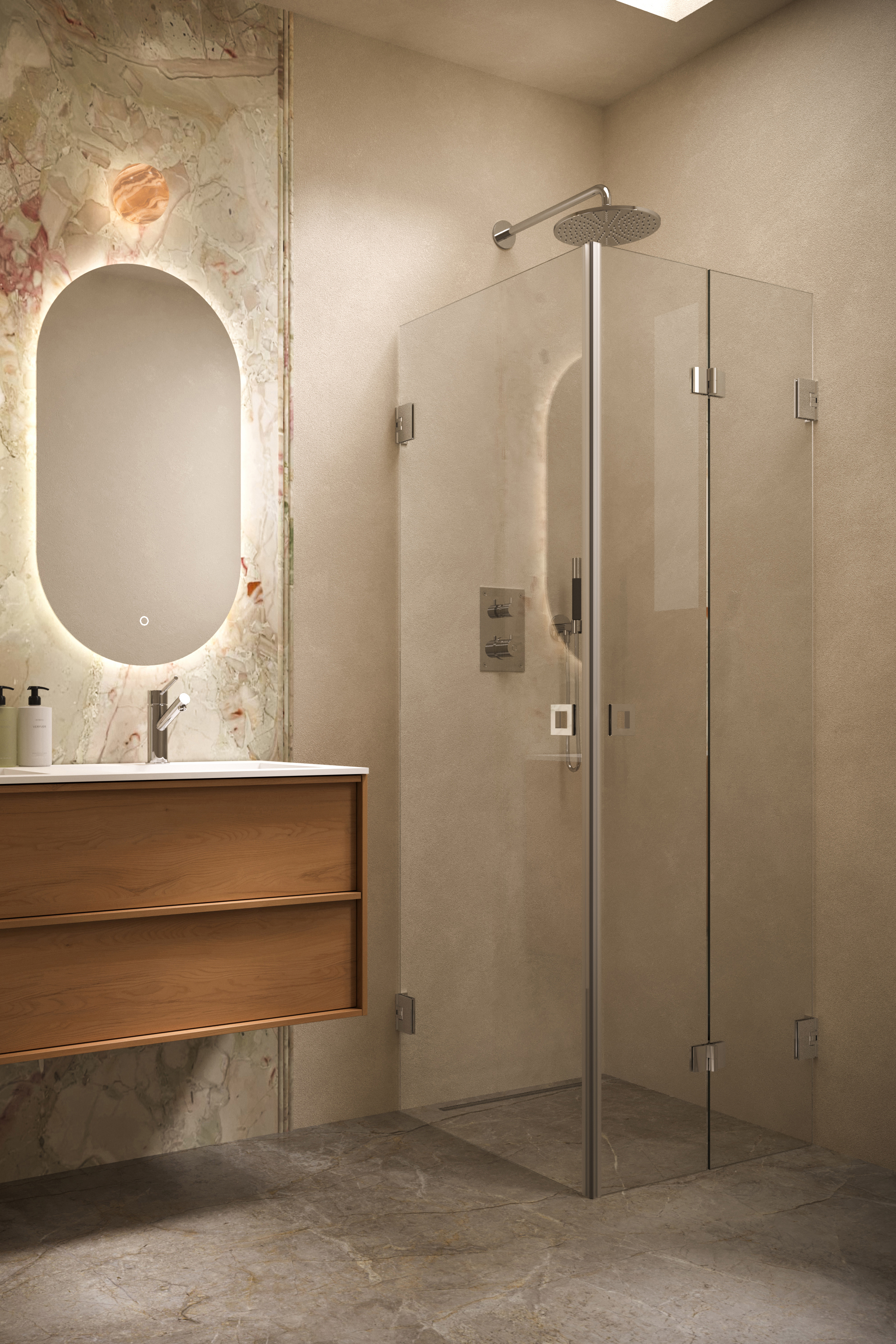

Shower enclosure with a hinged door and a folding door
Shower enclosure consists of a hinged door and a folding door. The product is well-suited for a shower corner where doors may not have the space to properly open outward on both sides. The folding door does not require space from outside the shower area, but instead the door rotates folding inside the shower area so that the door panels fold into a small space against the wall of the building. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the walls of the building. Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other inside of the shower area. A magnet seal keeps the door tightly closed during showering.
The hinges of the door panels are mounted directly to the building wall. Floor seals can be installed along the bottom edge of the door panels, which restricts the flow of water. Installation guide
20 Working days
20 year warranty

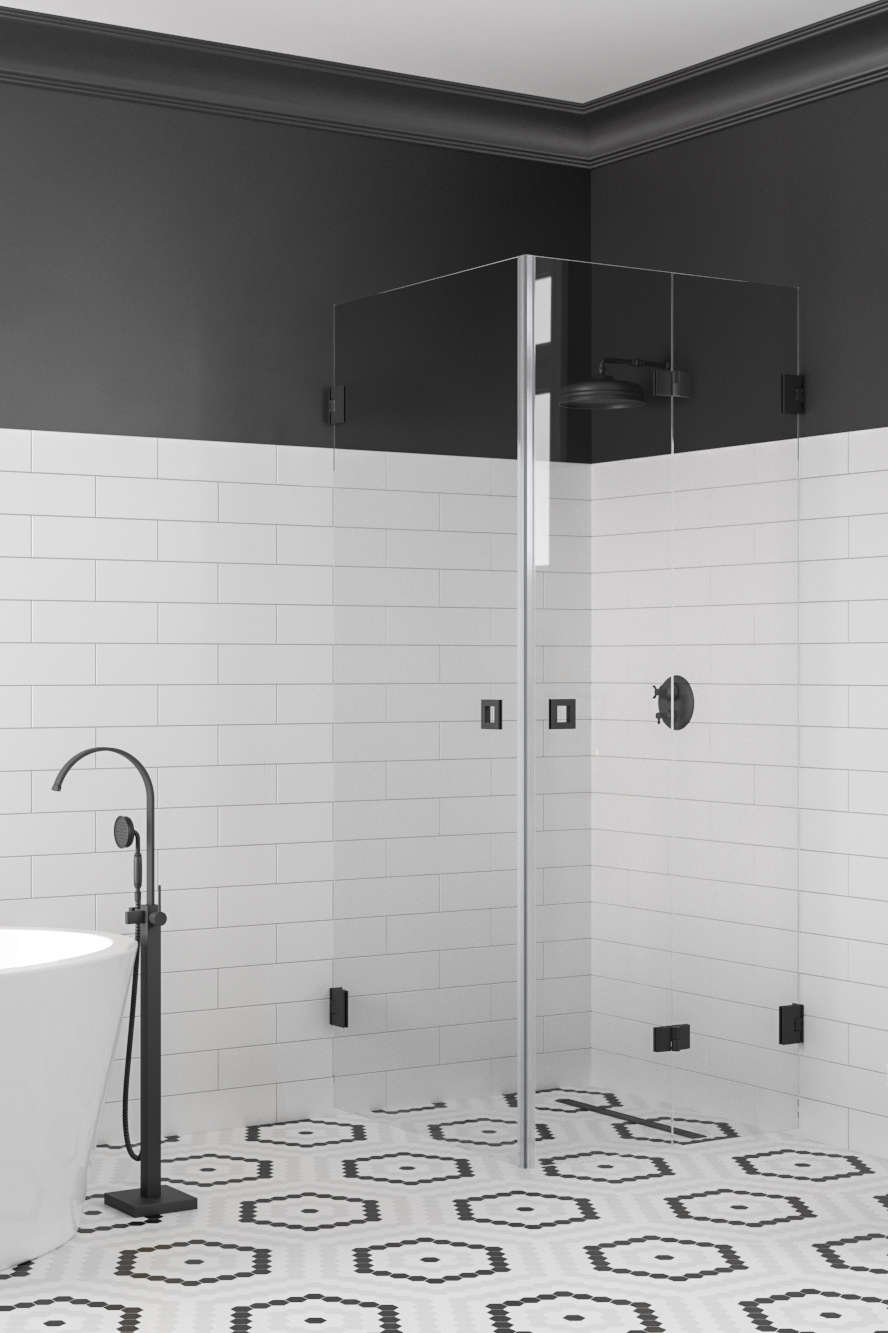

The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower enclosure can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size

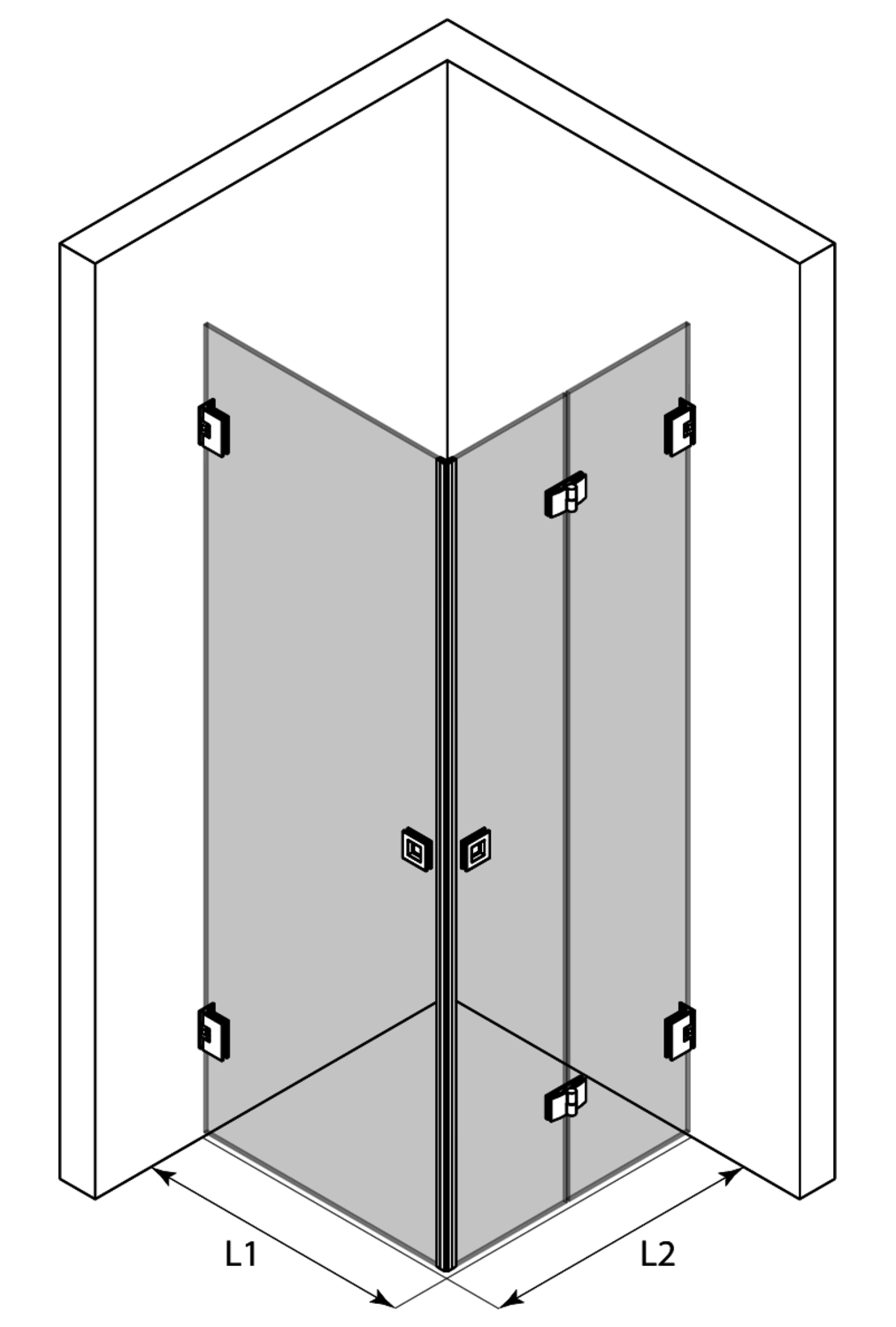

The installation dimensions of the selected combination are:
- Side L1 : 402mm
- Side L2 : 705mm

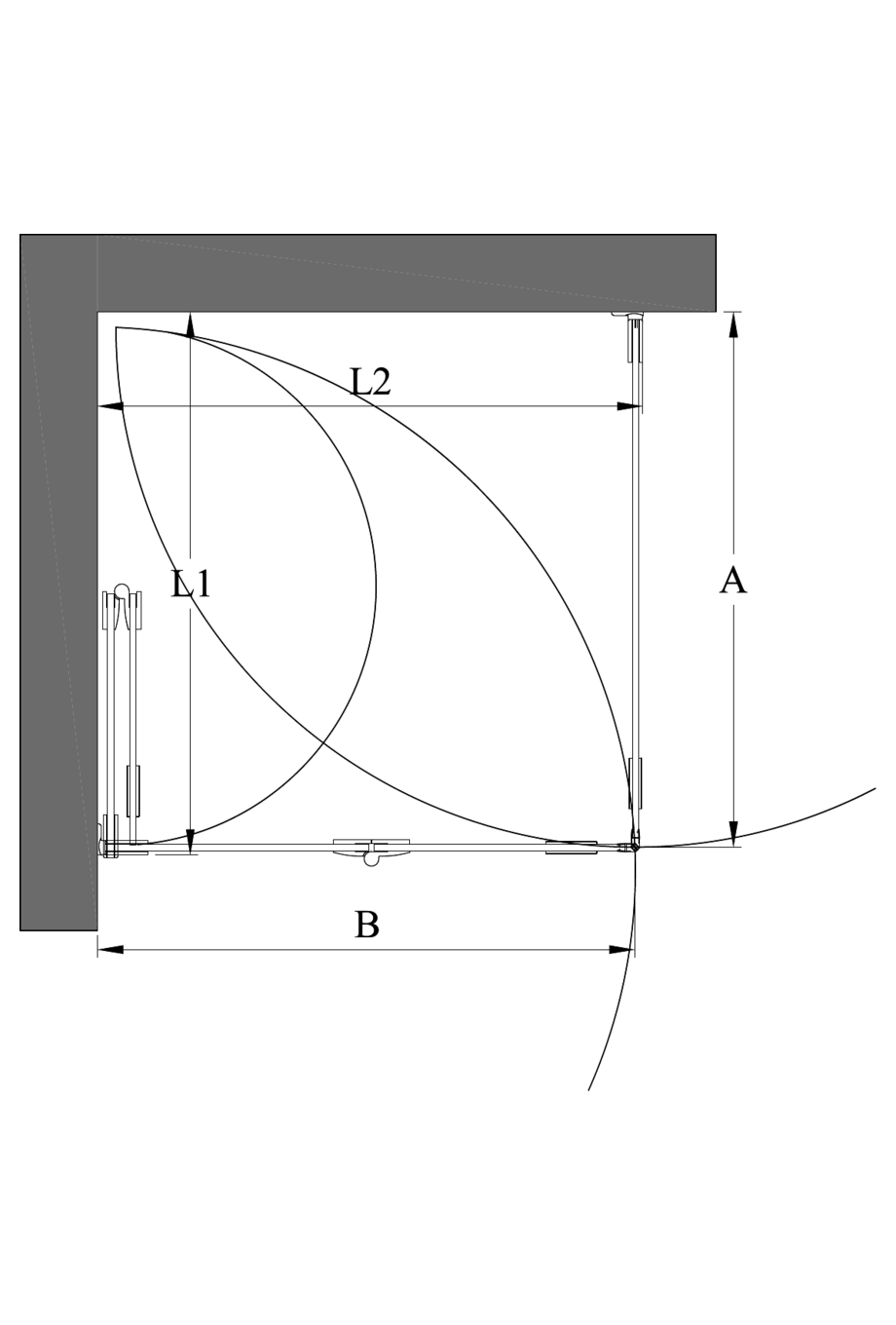

Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Choose handle
The middle hinges of the folding door have handedness. When ordering, you must choose whether the folding door is to be installed to the left or the right side when viewed from outside of the shower area. Changing handedness afterwards requires changing the middle hinges initially installed in the factory with others.
Product
Product code
Price
1
Vetro 544 (512x513)
Product code
544-21-42
Price
0.00 €
2
Vetro 512 Shower enclosure hinged door
Chrome plated/Transparent/L1=402 x 2000
Product code
512 21 0038
Price
430.00 €
3
Vetro 513 Shower enclosure folding door
Chrome plated/Transparent/L2=705 x 2000
Product code
513 21 0068
Price
535.00 €
4
Magnet seal pair
Product code
915 2L 0004
Price
42.00 €
5
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
6
Left
Product code
961 RL MMMM
Price
0.00 €
7
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
8
TOTAL
Product code
Price
1061.00 €
The installation dimensions of the selected combination are:
- Side L1 : 402mm
- Side L2 : 705mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible.:
