Vetro 552 (522x522)
Curved shower enclosure with hinged doors
Shower enclosure consists of two hinged doors. The product is well-suited for a shower corner where there is space for opening the door either inside or outside of the shower area. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the wall of the building.
Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.
The hinges of the door panels are mounted directly to the building wall. Floor seals can be installed along the bottom edge of the door panels, which restricts the flow of water. Installation guide
11 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower enclosure is selected from the standard dimensions.
Product size

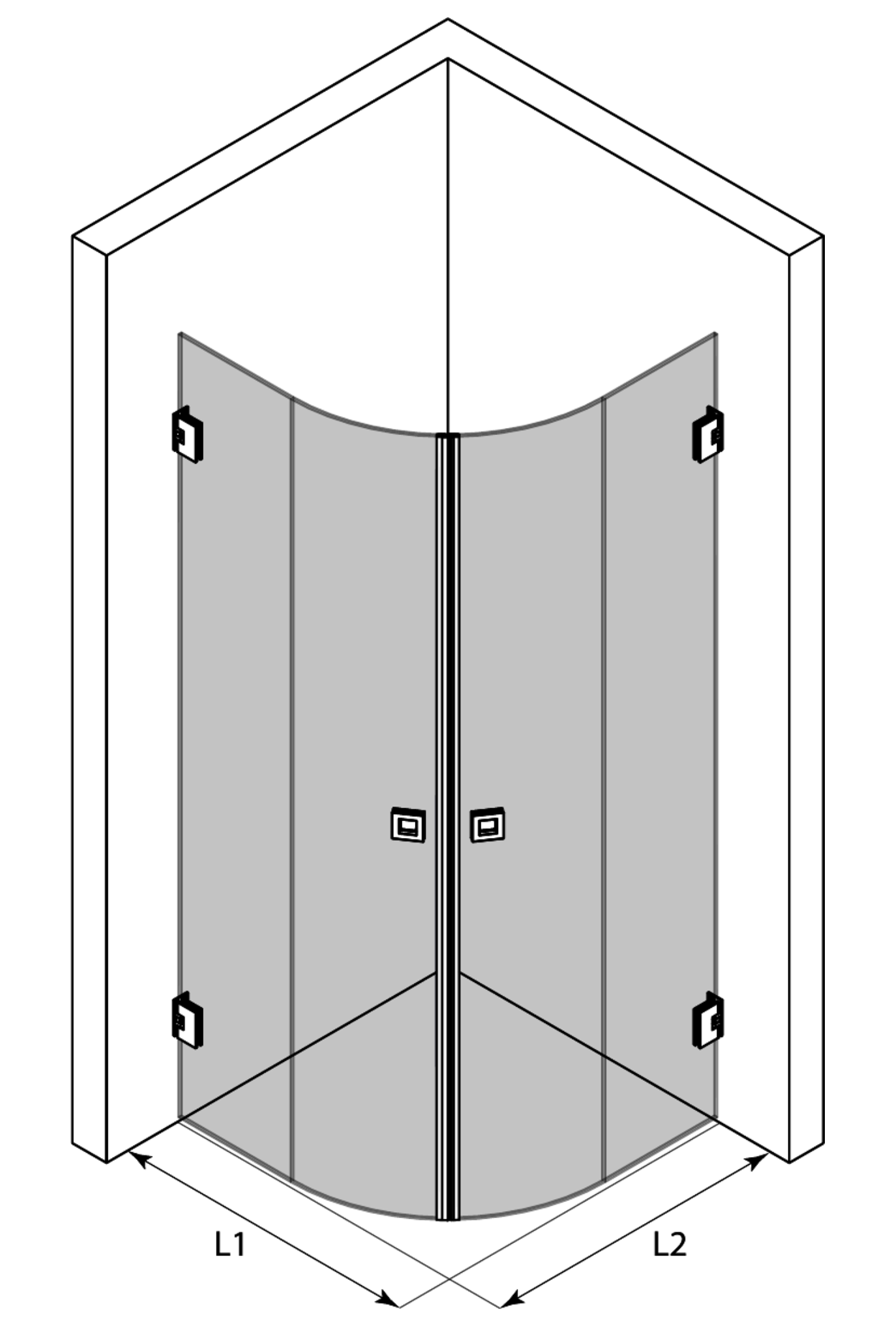

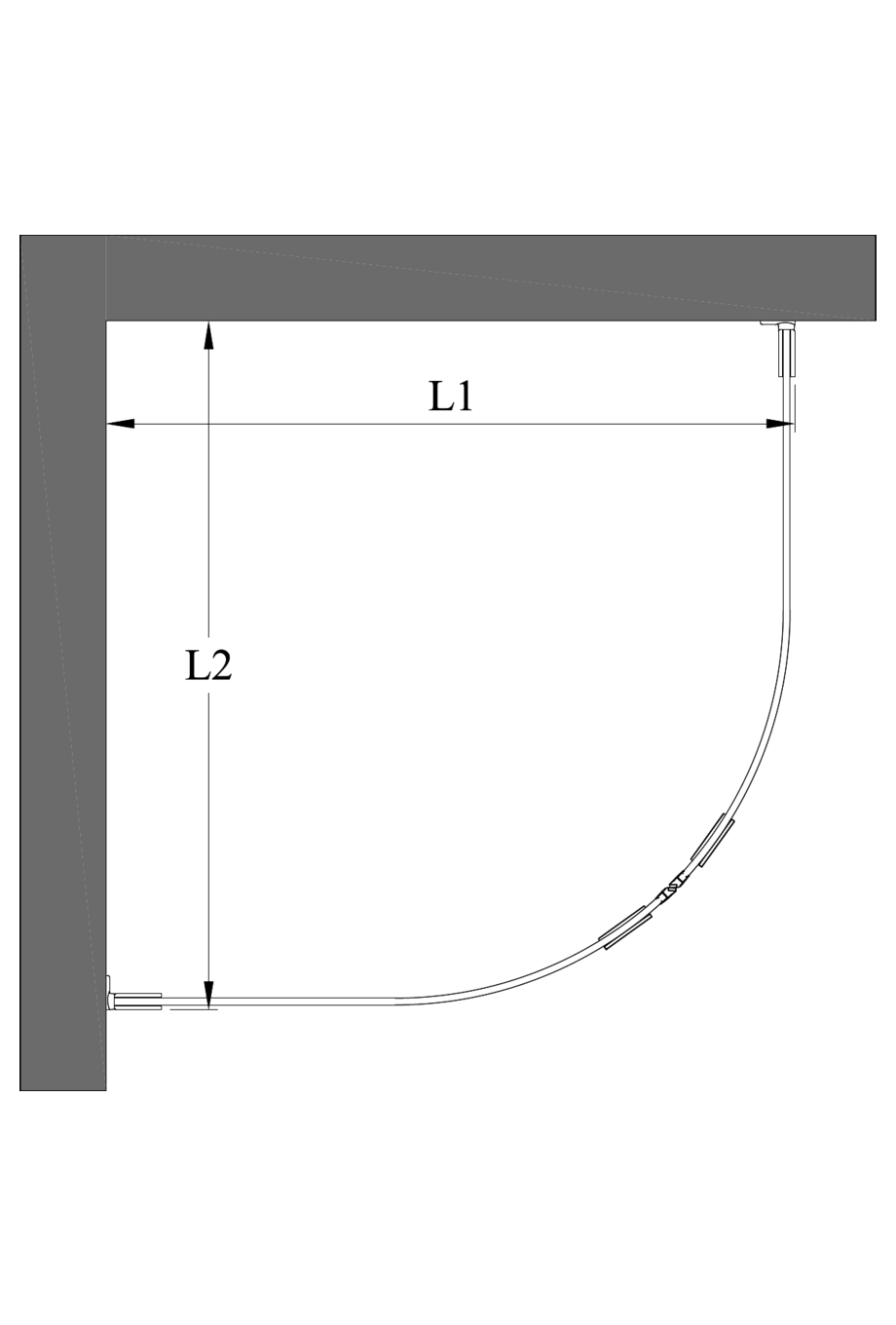

The installation dimensions of the selected combination are:
- Side L1 : 804mm
- Side L2 : 804mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Choose handle
Product
Product code
Price
1
Vetro 552 (522x522)
Product code
552-21-33
Price
0.00 €
2
Vetro 522 Shower enclosure hinged door
Chrome plated/Transparent/L1=804 x 2000
Product code
522 21 0065
Price
550.00 €
3
Vetro 522 Shower enclosure hinged door
Chrome plated/Transparent/L2=804 x 2000
Product code
522 21 0065
Price
550.00 €
4
Magnet seal pair
Product code
915 2L 0003
Price
42.00 €
5
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
6
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
7
TOTAL
Product code
Price
1196.01 €
The installation dimensions of the selected combination are:
- Side L1 : 804mm
- Side L2 : 804mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
