Vetro 513
Folding shower screen
Folding shower screen protects the space and the fixtures next to the shower from splashing water. When the shower is not in use, the shower screen can be folded into a small space against the wall of the building, inside the shower area.

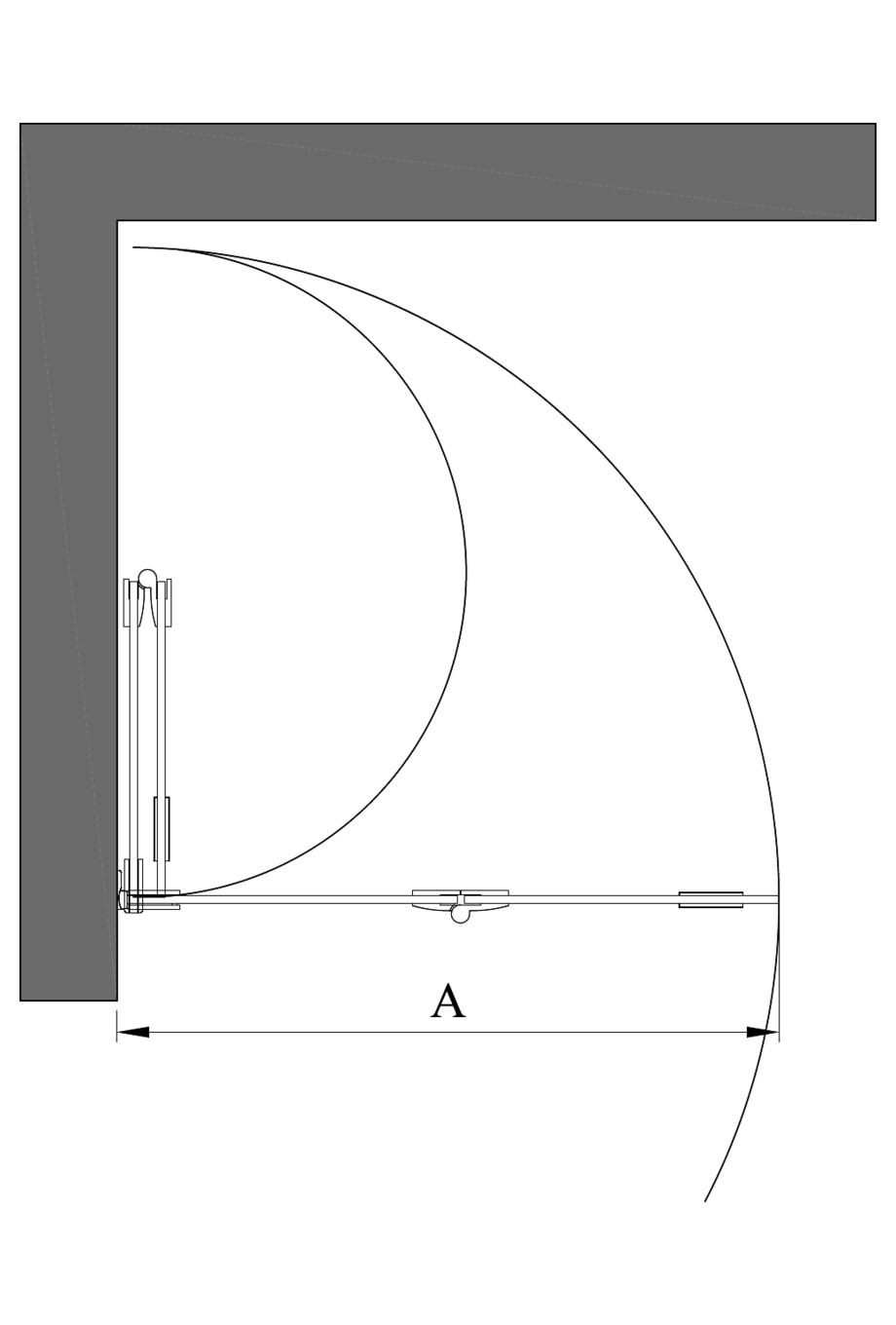

The shower screen turns to both directions 90 degrees and is equipped with an adjustable centring. The centring attempts to return the shower screen back to the open and closed positions. In addition, the outermost panel turns 180 degrees relative to the inner panel, so that panels fold against each other inside of the shower area.
The hinges of the shower screen are mounted directly to the building wall. The installation height is freely selectable. By installing the product close to the floor and by mounting a floor seal to the bottom edge of the panel the flow of water can be restricted. Installation guide
19 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size

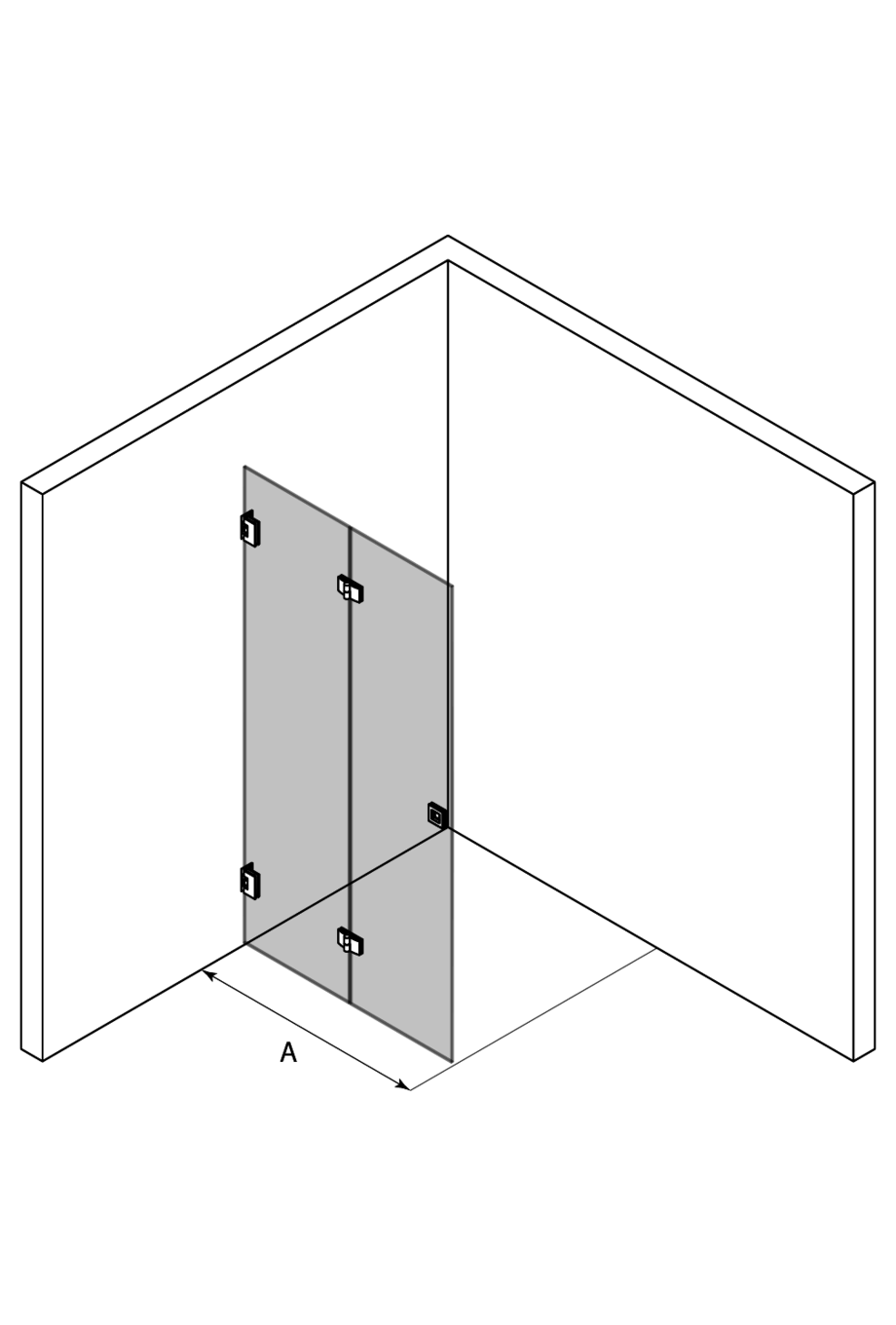

The total width of the selected product is 683mm.:
The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.
Choose handle
The middle hinges of the folding door have handedness. When ordering, you must choose whether the folding door is to be installed to the left or the right side when viewed from outside of the shower area. Changing handedness afterwards requires changing the middle hinges initially installed in the factory with others.
Product
Product code
Price
1
Vetro 513
Product code
513-21-2
Price
0.00 €
2
Vetro 513 Folding shower screen
Chrome plated/Transparent/A=683 x 2000
Product code
513 21 0068
Price
535.00 €
3
Left
Product code
961 RL MMMM
Price
0.00 €
4
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
5
TOTAL
Product code
Price
562.00 €
The total width of the selected product is 683mm.:
| EAN: |
|---|
